Assark 60/100W
Assark Hot Glue Gun User Manual
Model: 60/100W
Introduction
Thank you for choosing the Assark Hot Glue Gun. This versatile tool is designed for various crafting, DIY, and quick repair tasks, offering reliable adhesion for multiple materials. With its dual-power settings and rapid heating, it provides efficiency and precision for both small and large projects. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting.
Image: The Assark Hot Glue Gun, shown with its packaging and a bundle of 15 glue sticks, highlighting the complete kit.
Safety Instructions
Please read and understand all safety instructions before using the hot glue gun to prevent injury or damage.
- Hot Surfaces: The nozzle and melted glue become extremely hot. Avoid direct contact with skin to prevent burns. Use caution and protective gloves if necessary.
- Adult Supervision: This tool is not a toy. Adult supervision is required when used by children.
- Power Source: Ensure the power supply matches the voltage specified on the glue gun (230 Volts AC). Do not use with damaged cords or plugs.
- Ventilation: Use in a well-ventilated area.
- Flammable Materials: Do not use near flammable liquids, gases, or materials. The glue gun features flame-retardant materials for enhanced safety.
- Stable Surface: Always place the glue gun on its integrated stand on a stable, heat-resistant surface when not in use. Do not lay it on its side when hot.
- Do Not Pull Out Glue Stick: Never pull out a partially used glue stick from the back of the gun while it is hot, as this can damage the heating mechanism.
- Unplug When Not In Use: Always unplug the glue gun from the power outlet when not in use or before cleaning.
- Avoid Tilting Upwards: Do not tilt a hot glue gun upwards, as melted glue may flow back into the mechanism and cause damage.
Image: A visual comparison demonstrating the flame-retardant properties of the Assark glue gun's material compared to a standard combustible material, emphasizing safety.
Image: A close-up view of the anti-scald design of the glue gun's nozzle, indicating a protective feature.
Setup
- Insert Glue Stick: Insert a 10mm diameter glue stick into the hole at the back of the glue gun. Push it in until it stops.
- Place on Stand: Extend the metal stand at the front of the glue gun and place the gun on a flat, heat-resistant surface.
- Connect Power: Plug the power cord into a standard 230V AC electrical outlet.
Image: A four-panel illustration demonstrating the initial setup and operation steps: loading a glue stick, plugging in and switching on, preheating, and squeezing the trigger.
Operating Instructions
Power Settings
The Assark Hot Glue Gun features dual power settings for different applications:
- 60W (Low Power): Ideal for smaller, delicate tasks where glue needs to dry quickly.
- 100W (High Power): Suitable for larger projects or when a slower drying time is desired for repositioning.
Image: A detailed diagram illustrating the dual power switch (60W and 100W) on the glue gun, explaining their respective uses for quick-drying small works and slower-drying large projects.
Using the Glue Gun
- Turn On: Flip the power switch to either 60W or 100W. The indicator light will illuminate.
- Preheat: Allow the glue gun to preheat for 3-5 minutes. The glue will become molten and ready for use.
- Apply Glue: Gently squeeze the trigger to dispense melted glue from the nozzle. Apply glue to one surface you wish to bond.
- Join Surfaces: Press the two surfaces together immediately after applying glue. Hold firmly for a few seconds until the glue sets.
- Continuous Use: As you use the glue, the glue stick will shorten. Insert a new glue stick into the back to push the remaining one forward.
- Turn Off: When finished, switch the power off and unplug the glue gun.
Image: An X-ray view of the glue gun's internal heating element, illustrating the rapid 3-minute heating process and reiterating the dual 60W/100W power options.
Maintenance
- Cleaning the Nozzle: After the glue gun has cooled completely, you can gently wipe any excess dried glue from the nozzle with a dry cloth. Do not use water or solvents.
- Storage: Store the glue gun in a dry, cool place, away from direct sunlight and out of reach of children. Ensure it is completely cooled before storing.
- Cord Care: Do not wrap the power cord tightly around the glue gun. Store it loosely to prevent damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Glue not dispensing | Not preheated sufficiently; Glue stick not fully inserted; Glue stick too small. | Allow more preheating time (3-5 min); Push glue stick in firmly; Ensure 10mm diameter glue sticks are used. |
| Glue drips excessively | Overheated; Glue gun tilted upwards. | Ensure proper power setting for task; Always keep the nozzle pointed downwards or level when hot. |
| Glue gun not heating | Not plugged in; Power switch off; Faulty outlet. | Check power connection; Ensure switch is ON; Test outlet with another device. |
Image: A visual guide of "Warm Tips" showing common mistakes to avoid: touching the hot nozzle, pulling out a remaining glue stick, squeezing the trigger during preheating, and tilting the gun upwards.
Specifications
- Brand: Assark
- Model: 60/100W (HL-E 20W)
- Power: 60W / 100W Dual Power
- Voltage: 230 Volts (AC)
- Heating Time: 3-5 minutes
- Compatible Glue Stick Diameter: 10 mm (0.43 inches)
- Included Components: 1 Hot Glue Gun, 15 Glue Sticks, User Manual
- Cord Length: Approximately 1.5m (60 inches)
- Dimensions: 20.8 x 20.1 x 5.9 cm
- Weight: 760 grams
Product Features and Applications
The Assark Hot Glue Gun is designed with user convenience and safety in mind, making it suitable for a wide range of creative and practical applications.
- Super Fast Heating: Reaches operating temperature in 3-5 minutes.
- Anti-Drip Nozzle: Designed to release glue smoothly without drips or globs, ensuring precise application.
- Heat-Resistant Cap: The nozzle cap is covered with heat-resistant rubber to prevent burns.
- Safety Fuse: Built-in safety fuse provides overheat protection.
- Foldable Stand: Allows the glue gun to rest stably on a workbench.
- On/Off Switch: For enhanced safety and control.
- High Viscosity Glue Sticks: Comes with 15 transparent, high-viscosity, impurity-free, and odor-free glue sticks.
Image: An annotated image highlighting key features of the glue gun: the 60/100W switch, status indicator, stable stand holder, and the included 15 glue sticks and UL power cord.

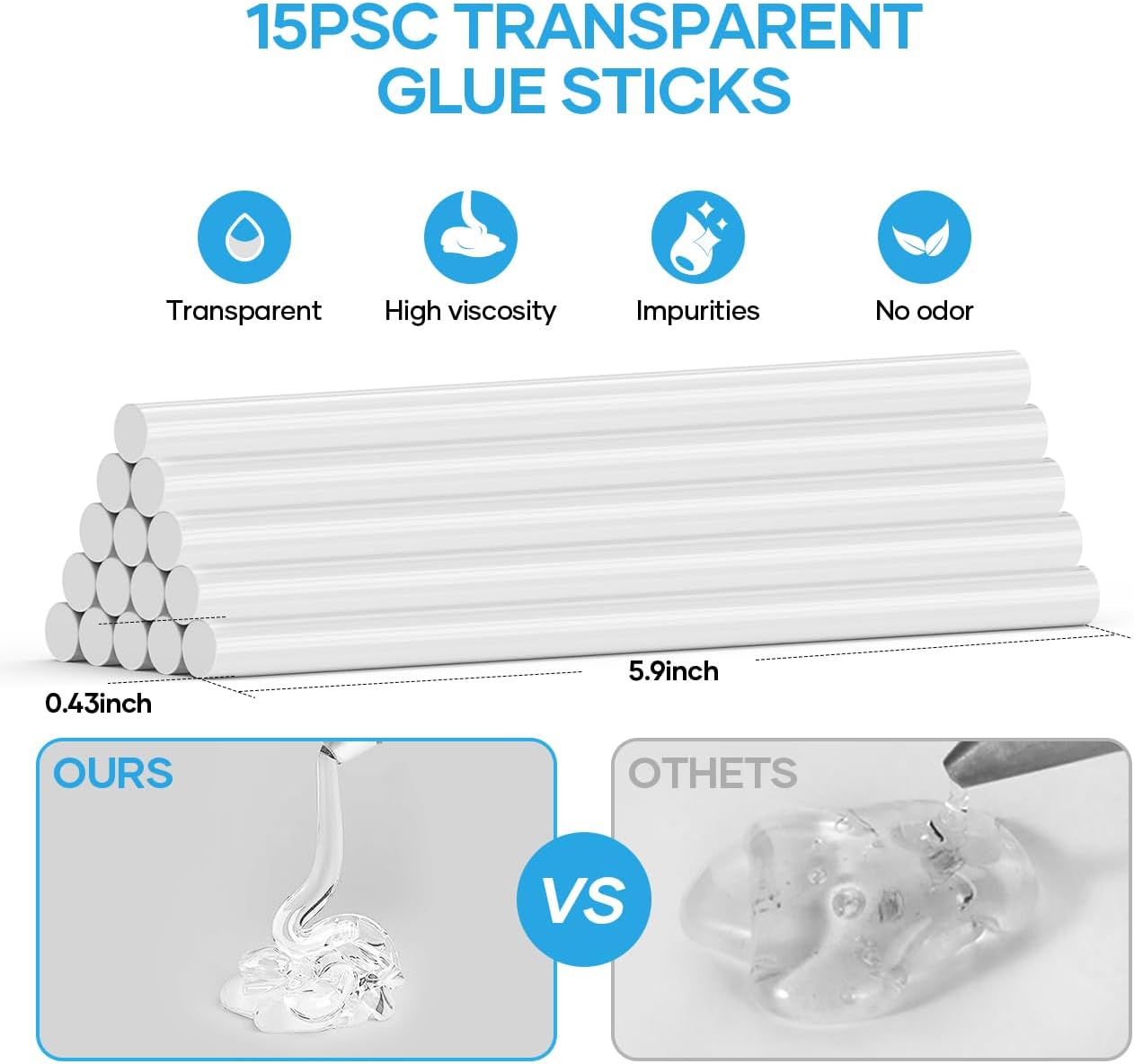

Image: A display of the 15 transparent glue sticks included, emphasizing their high viscosity, lack of impurities, and odor-free properties, with a comparison to lower quality glue.
Common Applications
This hot glue gun is ideal for a wide array of tasks, including but not limited to:
- Crafts and Arts projects
- School projects
- Quick home repairs
- Decorations (e.g., Christmas trees, wreaths)
- Fabric and textile work (e.g., cloth toys)
- Woodworking
- Plastic flower arrangements
- Circuit board minor fixes (with caution)
- Photo frame assembly

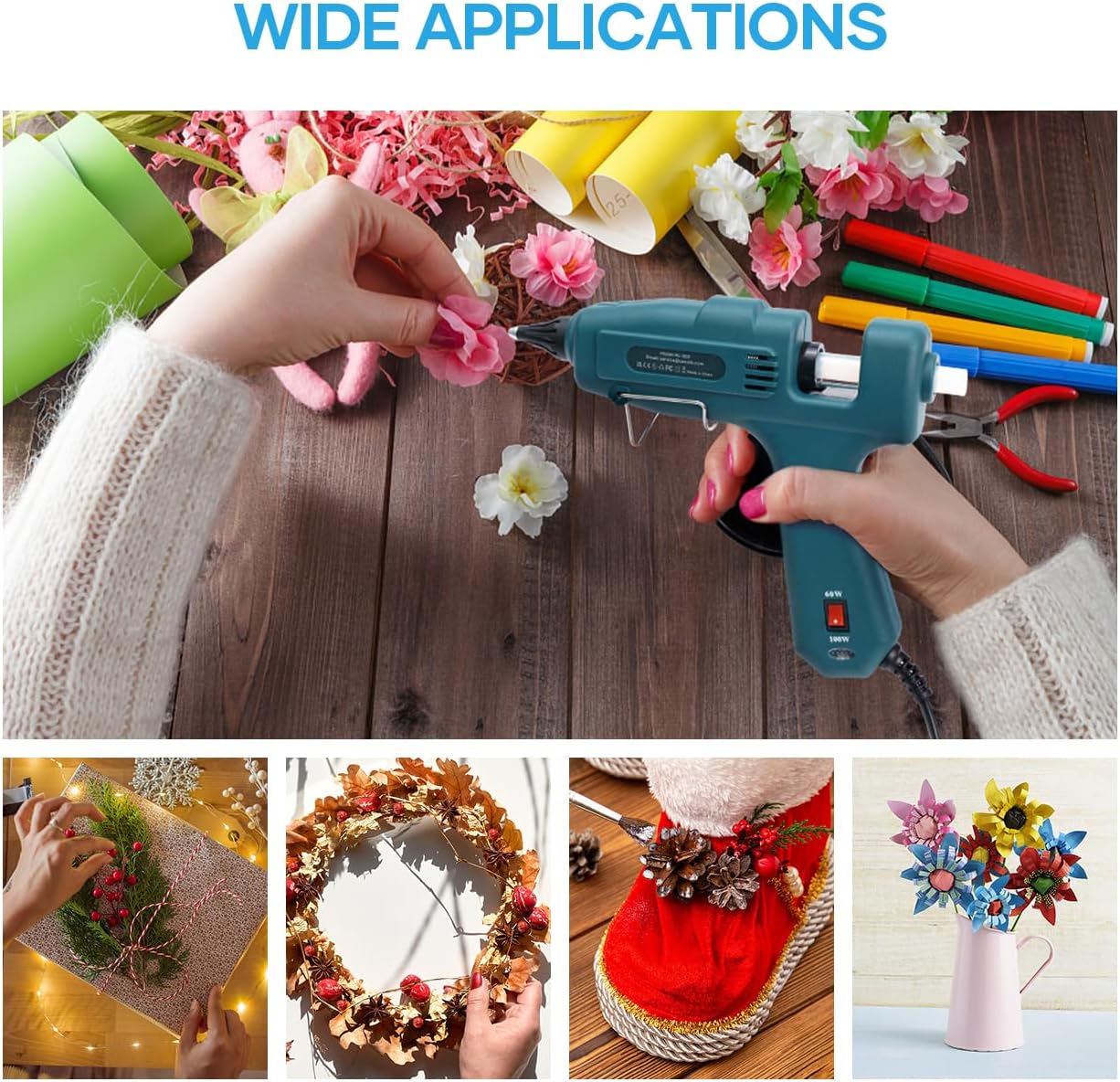

Image: A collage showcasing diverse applications of the hot glue gun, from crafting and gift wrapping to creating wreaths and decorative items.
Image: A person using the Assark hot glue gun for a crafting project, surrounded by various art and craft supplies, demonstrating its ease of use for creative tasks.
Image: The glue gun in use for decorating a Christmas wreath, with key features like 3-minute heating, leak-proof nozzle, high viscosity glue, ultra-long cord, 15 included glue sticks, and easy operation highlighted.
