1. Introduction
This manual provides essential information for the safe and efficient use of your Bulbrite LED A19 Light Bulb. This 7-watt LED bulb is designed to replace traditional incandescent bulbs, offering energy efficiency and a long lifespan. It features a standard A19 pear shape, a medium screw (E26) base, and emits a natural white light at 3,000 Kelvin. The bulb is also dimmable, allowing for adjustable light levels.

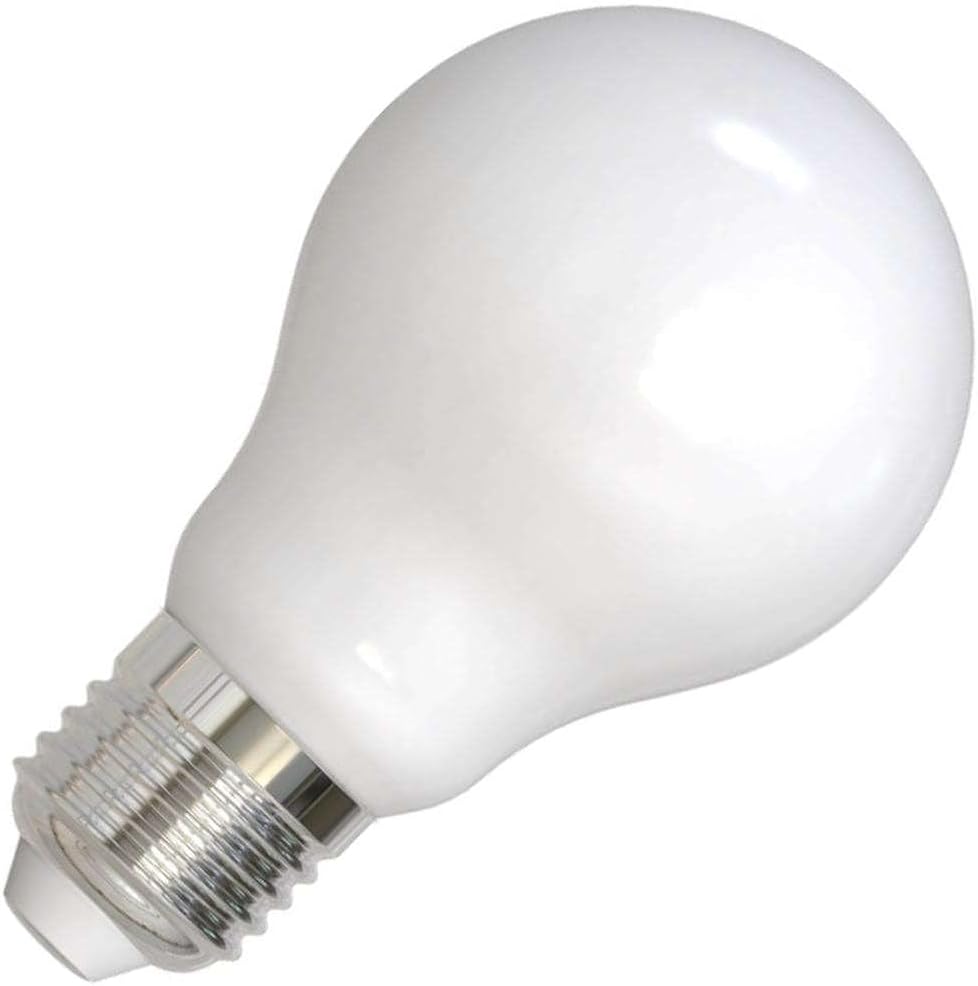

This image displays the Bulbrite A19 LED light bulb, featuring a classic pear shape and a standard medium screw (E26) base. The bulb has a frosted or diffused finish, indicating even light distribution.
2. Important Safety Instructions
- Risk of Electric Shock: Always turn off power to the fixture and allow the bulb to cool before replacing.
- Risk of Burns: Do not touch the bulb when it is operating or immediately after turning it off.
- Indoor Use Only: This bulb is designed for indoor applications unless specifically rated for outdoor use.
- Dimmable Feature: Use only with compatible LED dimmers. Incompatible dimmers may cause flickering or damage to the bulb.
- Proper Disposal: Dispose of bulbs according to local regulations.
3. Setup
Installation Guide
- Ensure the power to the light fixture is turned off at the circuit breaker or wall switch.
- Carefully remove the old bulb from the fixture by twisting it counter-clockwise.
- Screw the Bulbrite LED A19 bulb into the fixture's E26 medium screw base by twisting it clockwise until snug. Do not overtighten.
- Restore power to the fixture.
4. Operating
Usage
Once installed, operate the Bulbrite LED A19 bulb using your standard wall switch. If connected to a compatible dimmer switch, you can adjust the light output from full brightness to a lower dimmed level. Ensure your dimmer is specifically designed for LED lighting to prevent performance issues.
5. Maintenance
Care and Cleaning
The Bulbrite LED A19 bulb requires minimal maintenance. To clean, ensure the power is off and the bulb is cool. Gently wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as these can damage the bulb's finish or internal components. Replace the bulb when it reaches the end of its operational life.
6. Troubleshooting
Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up. | No power to fixture, loose connection, or bulb failure. | Check power switch and circuit breaker. Ensure bulb is screwed in tightly. Test bulb in another working fixture. |
| Bulb flickers or hums. | Incompatible dimmer switch or loose connection. | Ensure dimmer is LED compatible. Tighten bulb. If problem persists, try a non-dimmable fixture. |
| Light output is too low or too high. | Dimmer setting or incorrect bulb for fixture. | Adjust dimmer setting. Verify the bulb's wattage and lumen output are suitable for your needs. |
7. Specifications
Technical Data
| Attribute | Value |
|---|---|
| Manufacturer | Bulbrite |
| Part Number | 776654 |
| Model Number | 776654 |
| Type of Bulb | LED |
| Shape | Arbitrary (A19 Pear) |
| Base Type | Medium Screw (E26) |
| Wattage | 7 watts |
| Voltage | 120 volt |
| Luminous Flux | 800 Lumen |
| Color Temperature | 3,000K (Natural White) |
| Color Rendering Index (CRI) | 80 |
| Average Lifetime | 15,000 hours |
| Special Features | Dimmable |
| Material | Copper |
| Item Package Quantity | 1 |
| ASIN | B0CGJ5LSJ1 |
| Date First Available | August 24, 2023 |
8. Warranty and Support
Warranty Information
Bulbrite products are manufactured to high-quality standards. For specific warranty details regarding your LED A19 light bulb, please refer to the packaging or the official Bulbrite website. Keep your purchase receipt as proof of purchase for any warranty claims.
Customer Support
If you have any questions, require technical assistance, or encounter issues not covered in this manual, please contact Bulbrite customer support. Visit the official Bulbrite website for contact information and additional resources.
