Mabe RMS510IVMRM0 Automatic Refrigerator User Manual

1. Introduction

This user manual provides essential information for the safe and efficient operation of your new Mabe RMS510IVMRM0 Automatic Refrigerator. Please read these instructions thoroughly before installation and use, and keep them for future reference. Proper installation, use, and maintenance will ensure optimal performance and extend the lifespan of your appliance.

The Mabe RMS510IVMRM0 is a spacious 510-liter automatic refrigerator designed for modern households. It features an elegant matte stainless steel finish and is engineered for efficient cooling and energy saving.

2. Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following basic precautions:

• Read all instructions before using the appliance.
• Ensure the refrigerator is properly grounded.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or performing any maintenance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not damage the refrigerant circuit.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Product Overview

The Mabe RMS510IVMRM0 refrigerator offers a top freezer configuration with ample storage capacity and a sleek design.

3.1 Exterior Features

The refrigerator features a matte stainless steel finish and two doors, one for the freezer compartment and one for the fresh food compartment.

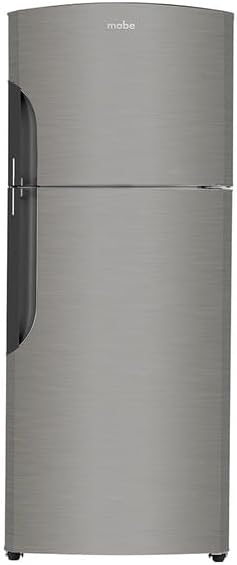

Image 3.1.1: Front view of the Mabe RMS510IVMRM0 Automatic Refrigerator. This image displays the refrigerator's exterior, highlighting its matte stainless steel finish and the two-door design, with the Mabe logo visible on the upper door.

3.2 Interior Features

The interior is designed for efficient organization and storage of various food items. It includes multiple shelves, door bins, and a crisper drawer.

Image 3.2.1: Interior view of the Mabe RMS510IVMRM0 Refrigerator. This image shows the fresh food compartment with its adjustable shelves and door bins, providing a clear view of the storage layout when empty.

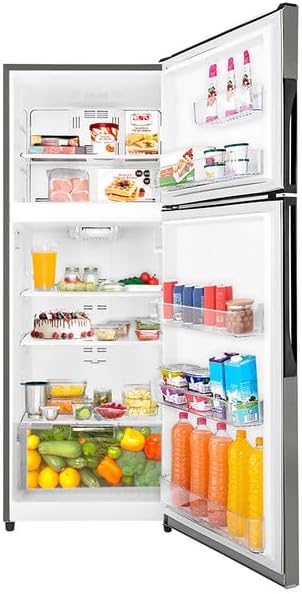

Image 3.2.2: Interior view of the Mabe RMS510IVMRM0 Refrigerator with food items. This image illustrates the practical use of the refrigerator's interior, showcasing how various food and beverage items can be organized across the shelves, crisper drawer, and door compartments.

4. Setup and Installation

4.1 Unpacking

• Remove all packaging materials, including tape and protective films.
• Inspect the refrigerator for any shipping damage. Report any damage immediately to your retailer.
• Keep packaging materials out of reach of children.

4.2 Placement

Choose a location that is:

• Away from direct sunlight and heat sources (e.g., stove, radiator).
• On a level, sturdy floor capable of supporting the refrigerator's weight (approximately 73 kg).
• Well-ventilated, with adequate space around the appliance for air circulation. Allow at least 10 cm (4 inches) of space at the back and sides, and 30 cm (12 inches) at the top.
• Near a grounded electrical outlet.

The dimensions of the refrigerator are approximately 73.82 cm (depth) x 66.2 cm (width) x 187.39 cm (height).

Image 4.2.1: Dimensional diagram of the Mabe RMS510IVMRM0 Refrigerator. This image provides a visual representation of the refrigerator's height (187.39 cm), width (66.2 cm), and depth (73.82 cm), crucial for planning installation space.

4.3 Leveling

Use the adjustable leveling feet at the bottom front of the refrigerator to ensure it is level. A level appliance operates more efficiently and prevents door alignment issues.

4.4 Electrical Connection

Connect the refrigerator to a dedicated, grounded 127 Volt, 60 Hz AC outlet. Do not use extension cords or adapter plugs.

4.5 First Use

After plugging in, allow the refrigerator to operate for at least 2-4 hours before placing food inside. This allows the interior to reach the optimal temperature.

5. Operating Instructions

5.1 Temperature Control

The refrigerator is equipped with a temperature control dial or electronic panel, typically located inside the fresh food compartment or freezer. Adjust the setting to achieve desired cooling. A medium setting is usually recommended for general use.

• Colder Setting: Turn the dial towards a higher number or "colder" indicator.
• Warmer Setting: Turn the dial towards a lower number or "warmer" indicator.

Allow several hours for the temperature to stabilize after making adjustments.

5.2 Food Storage Guidelines

• Store raw meats and poultry on the lowest shelf to prevent drips onto other foods.
• Keep fruits and vegetables in the crisper drawer to maintain freshness.
• Ensure all food items are properly covered or sealed to prevent odor transfer and maintain moisture.
• Do not overload the refrigerator, as this can impede air circulation and cooling efficiency.

6. Maintenance

6.1 Cleaning

Regular cleaning helps maintain hygiene and efficiency.

• Exterior: Wipe with a soft cloth dampened with mild soap and water. For stainless steel, use a specialized stainless steel cleaner.
• Interior: Remove all food items and shelves. Wash with a solution of warm water and baking soda (about 2 tablespoons of baking soda to 1 liter of water). Rinse and dry thoroughly.
• Door Gaskets: Clean regularly with warm, soapy water to ensure a tight seal.
• Condenser Coils: Periodically vacuum or brush the condenser coils (located at the back or bottom of the refrigerator) to remove dust and debris. This improves cooling efficiency.

WARNING: Always unplug the refrigerator before cleaning.

6.2 Defrosting (Manual Defrost System)

This refrigerator features a manual defrost system for the freezer compartment. Frost buildup can reduce cooling efficiency and storage space. Defrost when frost accumulation reaches approximately 0.5 cm (1/4 inch) thickness.

1. Remove all food from the freezer and place it in a cooler or another refrigerator.
2. Unplug the refrigerator from the electrical outlet.
3. Leave the freezer door open to allow frost to melt naturally. Place towels on the floor to absorb water.
4. Do not use sharp objects or heating devices to speed up defrosting, as this can damage the appliance.
5. Once all frost has melted, clean and dry the interior thoroughly.
6. Plug the refrigerator back in and allow it to cool for a few hours before returning food.

7. Troubleshooting

Before contacting service, check the following common issues:

If the problem persists after checking these points, please contact qualified service personnel.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Mabe website. Keep your purchase receipt as proof of purchase for any warranty claims.

For service inquiries or technical assistance, please contact Mabe customer service through their official channels.
