Mabe LMA72215WBAB1 22 kg Top-Load Automatic Washing Machine User Manual

1. Introduction

This user manual provides essential information for the safe and efficient operation of your Mabe LMA72215WBAB1 22 kg Top-Load Automatic Washing Machine. Please read this manual thoroughly before using the appliance and keep it for future reference. Proper use and maintenance will ensure optimal performance and longevity of your washing machine.

2. Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.

General Safety

• Read all instructions before using the appliance.
• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they emit vapors that could ignite or explode.
• Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Before the appliance is removed from service or discarded, remove the door or lid to the washing compartment.
• Do not reach into the appliance if the tub or agitator is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
• Always disconnect the appliance from the power supply before attempting any service.

3. Setup and Installation

Proper installation is crucial for the optimal performance and safety of your washing machine. It is recommended to have the appliance installed by a qualified technician.

Unpacking

Carefully remove all packaging materials. Ensure no parts are left inside the drum. Keep packaging materials away from children.

Location Requirements

• Place the washing machine on a firm, level floor.
• Ensure there is adequate space around the machine for ventilation and maintenance.
• Avoid direct sunlight or heat sources.
• The appliance operates on 127 Volts. Ensure the electrical outlet meets this requirement.

Connecting Water Hoses

Connect the hot and cold water inlet hoses to the corresponding valves on the back of the machine and to your household water supply. Ensure connections are tight to prevent leaks.

Drain Hose Installation

Securely place the drain hose into a standpipe or laundry tub, ensuring it is properly secured to prevent dislodging during operation.

Leveling the Appliance

Use a level to ensure the washing machine is perfectly balanced. Adjust the leveling feet at the bottom of the machine as needed to prevent vibration and noise during operation.

Figure 3.1: Washing Machine Dimensions. This diagram illustrates the physical dimensions of the washing machine, including its height, length, and width, which are important for installation planning.

4. Operating Instructions

Your Mabe LMA72215WBAB1 washing machine is designed for ease of use with its intuitive controls and automatic programs.

Control Panel Overview

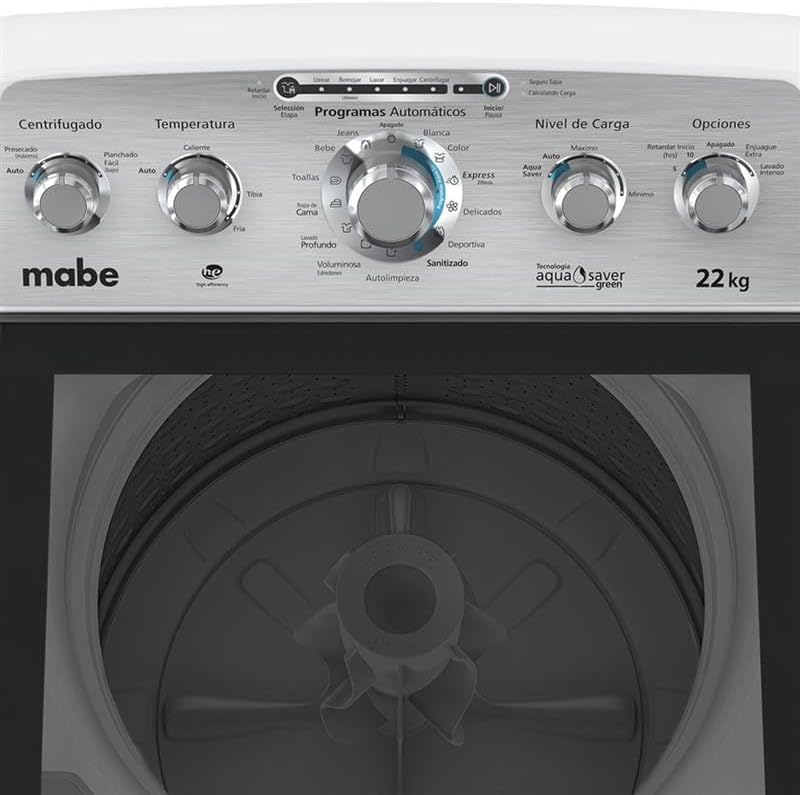

Figure 4.1: Control Panel. This image provides a detailed view of the washing machine's control panel, highlighting the various settings and options available for different wash cycles.

The control panel features rotary knobs and push-button controls for selecting wash programs, temperature, load level, and additional options.

Loading Laundry

Open the top lid and load clothes loosely into the wash basket. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The machine has a 22 kg capacity.

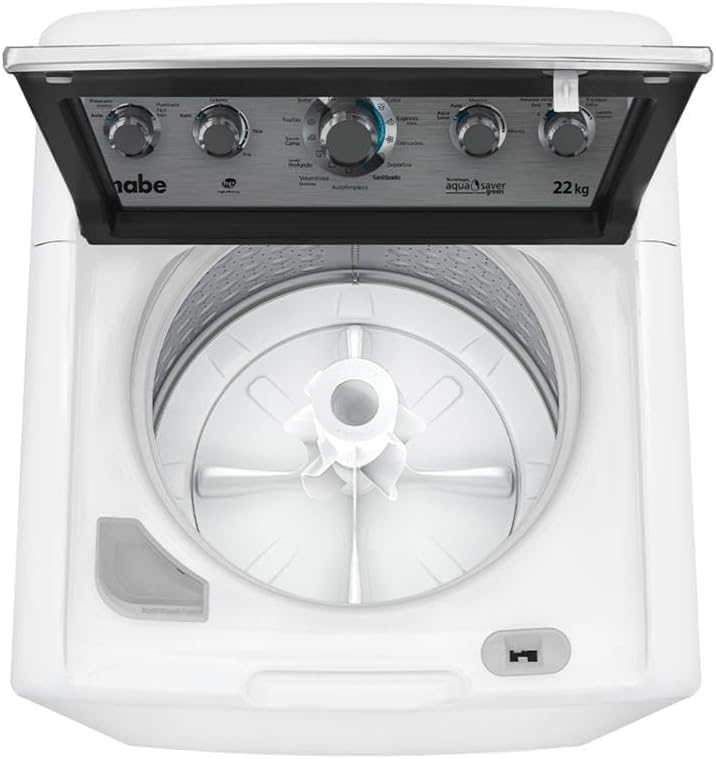

Figure 4.2: Open Lid and Wash Drum. This image shows the washing machine from above with the lid open, providing a clear view of the spacious wash drum and the central agitator.

Adding Detergent and Softener

Add appropriate amounts of detergent and fabric softener to their designated dispensers. Refer to your detergent's instructions for recommended quantities.

Selecting a Wash Program

Turn the Program knob to select the desired wash cycle. Available programs include:

• Automatic Programs: Baby, Jeans, White, Color, Express, Delicates, Sportswear, Sanitized, Self-cleaning.
• Manual Programs: Soak, Wash, Rinse, Spin.

Adjusting Settings

• Temperature: Select Hot, Warm, or Cold.
• Load Level: Choose from Maximum, Medium, or Minimum. The Aqua Saver Green technology helps save up to 76% of water per wash.
• Options: Includes features like Delayed Start and Extra Rinse.

Starting the Wash Cycle

Close the lid securely. Press the Start/Pause button to begin the wash cycle. The machine will automatically proceed through the selected program.

5. Key Features

• Aqua Saver Green Technology: Saves up to 76% of water per wash cycle, promoting environmental sustainability and reducing utility costs.
• Stylish Lid: Features a double-thickness lid with a modern design, enhancing durability and aesthetic appeal.
• Efficient Basket Design: The wash basket is designed for improved water drainage, leading to faster drying of clothes.
• Tub Balance System: Ensures the tub remains balanced during operation, preventing impacts or tilting due to uneven load distribution.
• High Capacity: With a 22 kg capacity, this washing machine is suitable for large loads, ideal for families.
• Automatic Programs: A wide range of pre-set programs for various fabric types and washing needs, including specialized cycles like "Sanitized" and "Self-cleaning".

6. Maintenance and Care

Regular maintenance ensures the longevity and efficient operation of your Mabe washing machine.

Cleaning the Exterior

Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.

Cleaning the Dispenser Drawers

Periodically remove and clean the detergent and fabric softener dispensers to prevent residue buildup.

Cleaning the Wash Basket

Use the "Self-cleaning" program regularly to clean the interior of the wash basket and remove any detergent or fabric softener residue.

Water Inlet Filters

Check and clean the water inlet filters periodically to prevent blockages and ensure proper water flow.

Winterizing (If Applicable)

If the machine is to be stored in an area subject to freezing temperatures, follow the winterizing procedure outlined in the full manual to prevent damage from ice.

7. Troubleshooting

Before contacting service, refer to the following table for common issues and their solutions.

If the problem persists after attempting these solutions, please contact Mabe customer service.

8. Product Specifications

9. Warranty and Support

Warranty Information

Mabe products typically come with a manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

Customer Support

For technical assistance, service requests, or to inquire about replacement parts, please contact Mabe customer support. Contact details can usually be found on the Mabe official website or on the warranty card.

You can also visit the official Mabe store on Amazon for more product information and support: Mabe Official Store
