Vente-unique Malina II Wall Bed Instruction Manual

Introduction

The Vente-unique Malina II wall bed is designed to optimize space in your home, offering a comfortable sleeping solution that can be discreetly stored when not in use. This manual provides essential information for the safe installation, operation, and maintenance of your wall bed. Please read all instructions carefully before assembly and use.

The Malina II wall bed, when closed, integrates seamlessly into a room, resembling a stylish cabinet.

Safety Information

Your safety is paramount. Adhere to the following guidelines to prevent injury or damage to the product:

• Professional Installation: Installation and subsequent adjustments must be carried out only by qualified personnel.
• Wall Fixing: To avoid any risk of tipping, the bed unit must be securely fixed to a solid support (wall) using the supplied elements. Regular checks of these fixings are essential.
• Wall Type: The bed comes with plugs suitable for solid walls. If fixing to other surfaces (e.g., plasterboard, hollow walls), use appropriate plugs and screws adapted for that specific wall type.
• Installation Surface: The installation surface must be in good condition. The floor must be flat, smooth, and horizontal to ensure proper operation and stability.
• Mattress Weight: Do not exceed the maximum recommended mattress weight of 22 kg.
• Bed Base Weight Capacity: The bed base supports a maximum weight of 185 kg for the 140 x 200 cm bed. Do not exceed this limit.
• Children and Pets: Keep children and pets away from the bed during opening and closing operations.

Setup and Installation

The Vente-unique Malina II wall bed requires assembly and professional installation. Ensure all components are present before beginning assembly. Delivery of the product is typically to street level.

Pre-Installation Checks:

• Verify that the installation area meets the required dimensions and has a flat, level floor.
• Confirm the wall where the bed will be mounted is solid and capable of supporting the unit's weight, including the bed and mattress.
• Ensure you have the correct wall plugs and screws for your specific wall type if different from those supplied.

Assembly Steps:

1. Unpack all components and identify them using the provided parts list.
2. Assemble the main cabinet structure according to the detailed diagrams in the separate assembly guide.
3. Attach the bed frame and mechanism to the cabinet structure.
4. Position the assembled unit against the chosen wall.
5. Securely fix the unit to the wall using the appropriate wall plugs and screws. This step is critical for safety and must be performed by qualified personnel.
6. Install the bed base (24 beech wood slats).
7. Place your mattress (up to 25 cm thick and max 22 kg) onto the bed base.

This image illustrates the Vente-unique Malina II wall bed in its open position, detailing its overall dimensions for installation planning.

Operating Instructions

The Malina II wall bed features a vertical manual opening mechanism with assisted silent operation.

To Open the Bed:

1. Ensure the area in front of the bed is clear of any obstructions.
2. Gently pull the aluminum handles located on the front panel of the cabinet.
3. As the bed begins to descend, the Zamak legs will open manually and automatically extend to support the bed.
4. Continue to guide the bed downwards until it is fully horizontal and the legs are firmly on the floor.
5. The bed can be opened quickly and easily without needing to remove the mattress, sheets, or duvet.

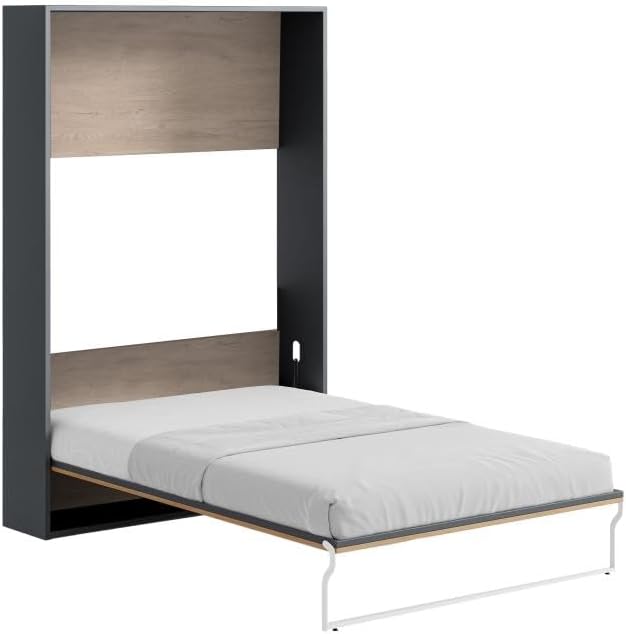

A close-up view of the Malina II wall bed fully open, ready for use, highlighting the bed base and mattress support.

To Close the Bed:

1. Ensure no items are left on the bed that could obstruct its closing.
2. Lift the bed frame upwards using the handles. The assisted mechanism will help with the movement.
3. As the bed rises, the Zamak legs will retract and become invisible when the bed is fully closed.
4. Continue to push the bed upwards until it is fully vertical and securely latched into its cabinet position.

This image displays the Malina II wall bed in its closed state, showcasing the cabinet exterior and the integrated handles for opening.

Maintenance

Proper maintenance will ensure the longevity and safe operation of your Vente-unique Malina II wall bed.

• Cleaning: The melamine finish can be cleaned with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the surface.
• Mechanism Check: Regularly inspect the opening and closing mechanism for any signs of wear or damage. Ensure it operates smoothly and silently.
• Wall Fixings: Periodically check the wall fixings to ensure they remain secure. Tighten any loose screws if necessary. This is a critical safety check.
• Bed Base: Inspect the beech wood slats for any cracks or damage. Replace any damaged slats immediately to maintain proper mattress support.
• Mattress Care: Follow the care instructions provided by your mattress manufacturer. Ensure the mattress weight does not exceed 22 kg.

Troubleshooting

If you encounter any issues with your Malina II wall bed, refer to the following common problems and solutions:

• Bed is difficult to open or close:
  • Check for any obstructions in the path of the bed.
  • Ensure the floor is level and the unit is properly aligned.
  • Verify that the mattress weight does not exceed the maximum limit.
  • If the issue persists, the opening mechanism may require adjustment by qualified personnel.
• Bed feels unstable or wobbly:
  • Immediately check all wall fixings and ensure they are securely tightened.
  • Confirm the floor is flat and level.
  • Ensure the Zamak legs are fully extended and stable when the bed is open.
• Unusual noises during operation:
  • Inspect the mechanism for any loose parts or foreign objects.
  • Light lubrication of moving parts may be required, but this should be done by a professional to avoid damage.

For any issues not resolved by these steps, or if you are unsure about any repair, please contact Vente-unique customer support.

Specifications

Warranty and Support

Vente-unique is committed to customer satisfaction. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

For technical assistance, missing parts, or any questions regarding your Vente-unique Malina II wall bed, please contact Vente-unique customer support. Our specialized customer service team is available to assist you.

You can find contact information on the official Vente-unique website or through your purchase platform.
