KUAFU Skid Plate Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your KUAFU Aluminum Skid Plate, Model BL2112. This product is designed to offer enhanced protection for the engine and lower components of compatible motorcycles.

2. Product Overview

2.1 Compatibility

This KUAFU Skid Plate (Model BL2112) is compatible with the following motorcycle models:

• Suzuki DL 650 V-Strom (Years: 2011-2022)

It serves as a direct replacement for RP3101 engine guards. Please verify your vehicle's model and year before installation to ensure proper fitment.

2.2 Key Features

• Enhanced Protection: Designed to prevent damage to the engine and other vital lower components from rocks, debris, and obstacles encountered during off-road or rough terrain riding.
• Durable Construction: Manufactured from high-quality aluminum material, ensuring high strength and impact resistance.
• Corrosion Resistance: Features an oxidation silver surface treatment, providing durability against harsh weather and environmental conditions.
• Precision Fit: Engineered for a direct bolt-on installation, matching the specified Suzuki DL 650 V-Strom models.

Image 1: The KUAFU Skid Plate (Model BL2112) shown installed on a Suzuki DL 650 V-Strom motorcycle, protecting the engine's lower section.

3. Package Contents

Upon opening your package, please ensure all the following components are present:

• 1x KUAFU Aluminum Skid Plate
• Mounting Hardware (screws, washers, nuts as required)
• Installation Drawing (refer to this for specific bolt locations)

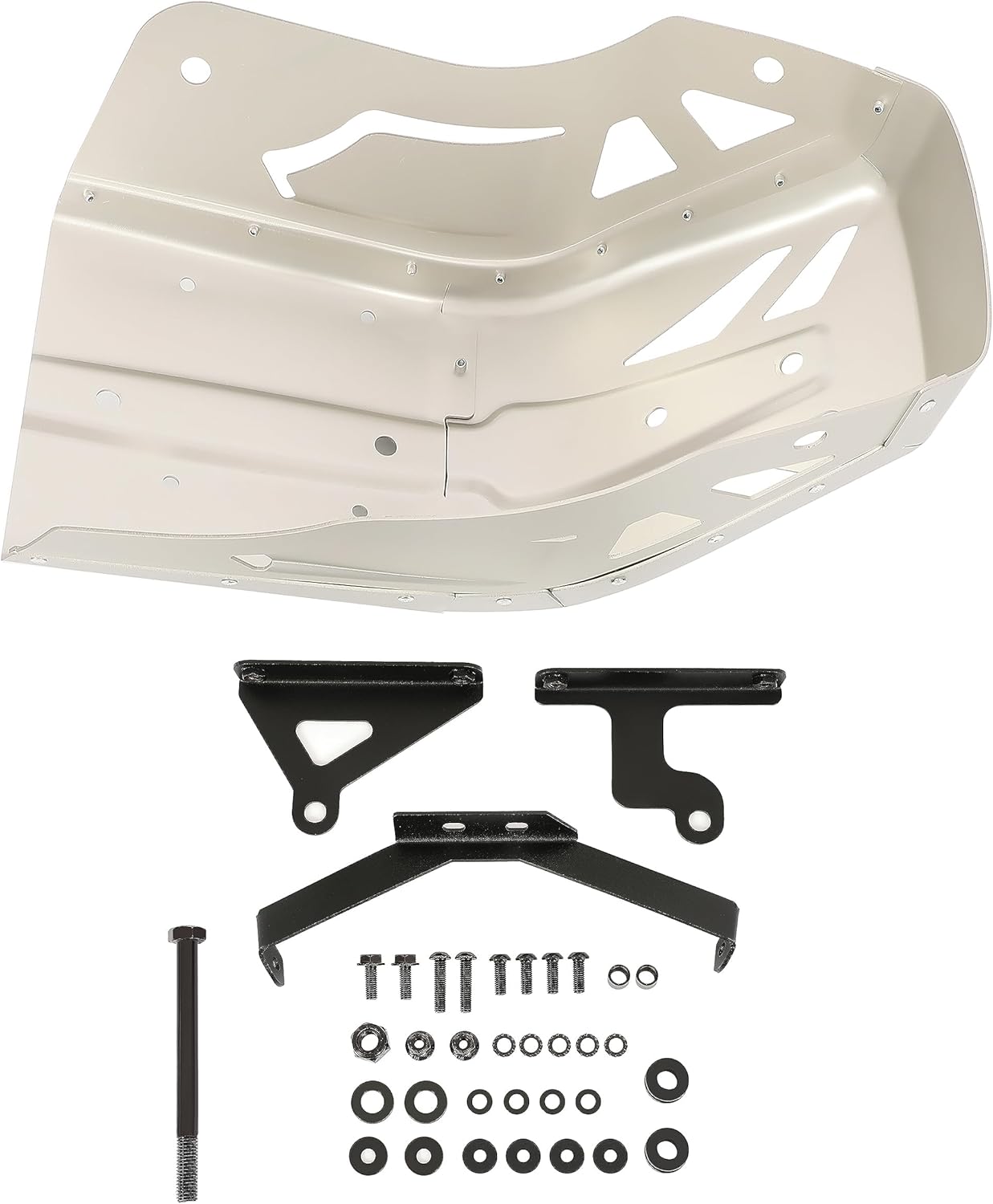

Image 2: Contents of the KUAFU Skid Plate package, including the skid plate and all necessary mounting hardware.

4. Installation Guide

The KUAFU Skid Plate is designed for a direct bolt-on installation. While the process is straightforward, professional installation is highly recommended if you are unfamiliar with motorcycle maintenance.

4.1 Tools Required (Not Included)

• Appropriate wrenches or sockets for the provided hardware.
• Torque wrench (for proper tightening).
• Motorcycle stand (for stability during installation).

4.2 Installation Steps

1. Prepare the Motorcycle: Ensure the motorcycle is stable and securely placed on a stand. Allow the engine to cool completely before beginning.
2. Identify Mounting Points: Refer to the included installation drawing to locate the specific mounting points on your Suzuki DL 650 V-Strom's frame and engine.
3. Position the Skid Plate: Carefully align the KUAFU Skid Plate with the identified mounting points.
4. Install Hardware: Insert the provided screws and other mounting hardware through the skid plate and into the corresponding motorcycle mounting points. Hand-tighten all fasteners initially.
5. Align and Adjust: Ensure the skid plate is properly aligned and does not interfere with any other components. Make any necessary minor adjustments.
6. Tighten Fasteners: Using appropriate tools, gradually tighten all fasteners to the manufacturer's recommended torque specifications (if available, otherwise tighten securely but do not overtighten). Start from the center and work outwards to ensure even pressure.
7. Final Check: Double-check all fasteners to ensure they are securely tightened. Verify that the skid plate is firmly installed and does not have any loose movement.

Note: No relevant installation video for this specific skid plate model was available from the seller. The instructions provided are general guidelines for bolt-on skid plate installation.

5. Operation and Maintenance

5.1 Operation

Once installed, the KUAFU Skid Plate operates passively by providing a protective barrier for your motorcycle's engine and lower frame. It is designed to absorb impacts and prevent direct damage from road debris, rocks, and other hazards encountered during riding, particularly in off-road or challenging conditions.

5.2 Maintenance

• Regular Inspection: Periodically inspect the skid plate for any signs of damage, cracks, or loose fasteners, especially after riding in harsh conditions.
• Cleaning: Clean the skid plate with mild soap and water to remove dirt, mud, and grime. Avoid abrasive cleaners that could damage the oxidation finish.
• Fastener Check: Ensure all mounting bolts remain tight. Re-tighten if necessary, adhering to proper torque specifications.
• Damage Assessment: If the skid plate sustains significant damage, consider replacing it to maintain optimal protection for your motorcycle.

6. Specifications

7. Support

For any questions regarding the KUAFU Skid Plate, including installation assistance or product inquiries, please contact KUAFU customer support through the retailer's platform or the official brand website. Always refer to your motorcycle's service manual for specific torque values and safety procedures.
