1. Introduction
The BAKON 882 is a versatile 2-in-1 SMD Hot Air Rework and Soldering Station designed for precision electronic work. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting of your device.
1.1. Package Contents
- BAKON 2-in-1 Hot Air Rework and Soldering Iron Station
- Solder Wire (0.8mm, 10g)
- 5 Additional Styles of Soldering Iron Tips
- 2 Additional Sized Hot Air Nozzles
- 1 Solder Sucker
- 1 Anti-static Tweezers
- 1 Brass Tip Cleaner
- 1 Sponge Tip Cleaner
- 1 Instruction Manual
2. Safety Instructions
Always observe the following safety precautions to prevent injury or damage to the equipment:
- Electrical Safety: This model operates on 110V with a U.S. plug. Ensure the power cord is firmly connected to the machine and a grounded outlet. Do not operate with wet hands or in damp environments.
- Heat Hazard: The soldering iron and hot air gun reach high temperatures. Avoid direct contact with heated elements. Allow tools to cool before handling or storing.
- Fumes: Use in a well-ventilated area to avoid inhaling solder fumes.
- ESD Safety: The station features ESD safety. Always use appropriate anti-static measures when working with sensitive electronic components.
- Children: Keep out of reach of children.
- Flammable Materials: Keep flammable materials away from the work area.
3. Product Features
The BAKON 882 offers advanced features for efficient and precise soldering and rework tasks:
- 2-in-1 Dual System Design: Combines a 90W soldering station and a 650W hot air rework station.
- Independent Operation: Dual display system and dual power switches allow independent or simultaneous use of hot air and soldering functions.
- PID Temperature Control: High-end precision PID program monitors and corrects actual temperature at high speed for accurate and stable temperature control.
- Smart Transformer: Built-in professional-grade transformer for enhanced durability and stable performance.
- Large LCD Display: A 2.9-inch LCD screen provides clear visual feedback on temperature, air volume, and other settings.
- Automatic Standby & Sleep: Features automatic standby and sleep functions to conserve energy and prolong component life.
- Digital Temperature Calibration: Allows for precise temperature adjustment and compensation.
- Temperature Unit Conversion: Easily switch between Celsius (°C) and Fahrenheit (°F).
- Temperature Presets: Three customizable memory buttons for quick selection of frequently used temperature settings.
- Password Lock: Secure settings with a password to prevent unauthorized changes.
- Cool Air/Hot Air Changeable: Provides flexibility for various rework applications.
- Short Circuit Protection: Integrated protection for safer operation.
Figure 1: Overview of BAKON 882 key features.
4. Setup
4.1. Unpacking and Inspection
- Carefully remove all components from the packaging.
- Inspect the station and accessories for any signs of damage. If any damage is found, do not operate the device and contact customer support.
- Ensure all items listed in the Package Contents section are present.
4.2. Component Identification
Figure 2: Labeled components of the BAKON 882 station.
4.3. Initial Setup
- Place the main station on a stable, heat-resistant surface.
- Connect the soldering iron to the designated port on the front panel. Place the soldering iron in its stand.
- Connect the hot air gun to its designated port. Place the hot air gun in its bracket.
- Ensure the power switches for both the soldering iron and hot air gun are in the OFF position.
- Plug the power cord into a 110V AC grounded outlet.
5. Operating Instructions
5.1. Power On/Off
Press the main power switch on the back of the unit to turn the station ON. The LCD display will illuminate. Use the individual power switches on the front panel to activate the soldering iron or hot air gun functions.
5.2. Soldering Iron Operation
- Turn on the soldering iron switch. The display will show the current and set temperatures.
- Use the 'Up' and 'Down' arrow buttons to adjust the desired temperature.
- The station features 3 preset memory buttons (CH1, CH2, CH3) for quick temperature selection. Press a preset button to recall a stored temperature. To save a new temperature, set the desired temperature, then press and hold the desired CH button until the setting is saved.
- The soldering iron will automatically heat up when picked up from its stand and enter sleep mode when placed back.
Video 1: Demonstrates the BAKON 882's independent control, quick heating, and customizable shortcut buttons for soldering and hot air functions.

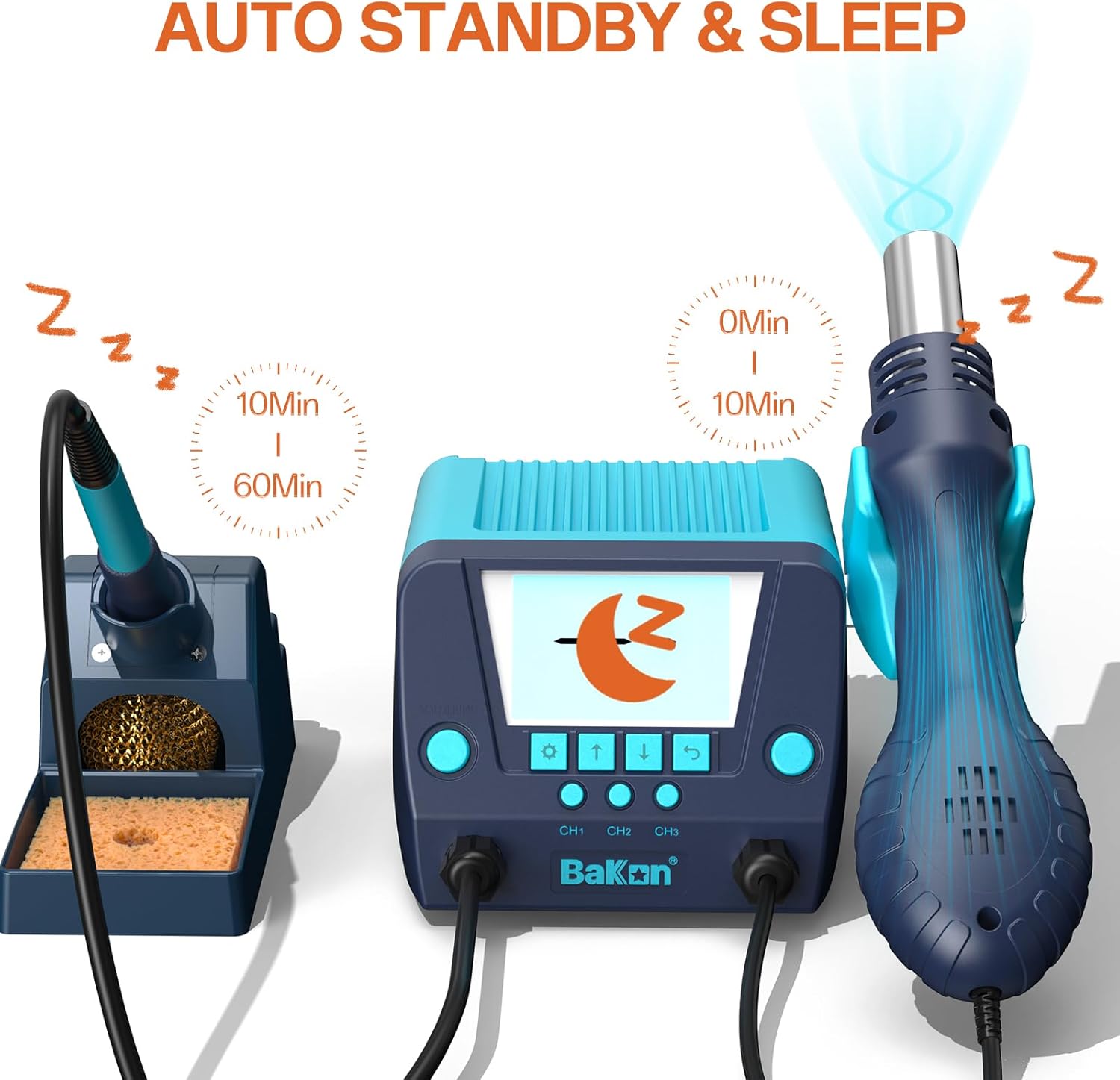

Figure 3: Automatic Standby and Sleep Functionality.
5.3. Hot Air Gun Operation
- Turn on the hot air gun switch. The display will show the current temperature and air volume.
- Use the 'Up' and 'Down' arrow buttons to adjust the desired temperature.
- Use the 'Plus' and 'Minus' buttons to adjust the air volume.
- The hot air gun will automatically cool down and enter sleep mode when placed in its bracket.
Video 2: Illustrates the hot air rework station's features, including temperature and air volume control, and heat shrink application.
5.4. Temperature Unit Conversion (°C/°F)
Press the dedicated °C/°F button to toggle between Celsius and Fahrenheit temperature displays.
5.5. Password Lock
To activate the password lock, navigate to the password setting in the menu (refer to the detailed instruction manual for specific menu navigation). Set your desired password to prevent unauthorized changes to settings.
6. Maintenance
6.1. Soldering Tip Maintenance
- Regularly clean soldering tips using the brass tip cleaner or a damp sponge (ensure the sponge is only damp, not soaking wet).
- Tin the tip with a small amount of solder after each use and before storage to prevent oxidation.
- Replace tips when they become excessively worn or corroded to maintain optimal performance.
6.2. Hot Air Nozzle Maintenance
- Ensure hot air nozzles are free from debris or solder splatter. Clean gently with a non-abrasive tool if necessary.
- Periodically check for secure attachment of nozzles to the hot air gun.
6.3. General Cleaning
- Wipe the main unit and tool handles with a soft, dry cloth.
- Do not use abrasive cleaners or solvents.
- Ensure the unit is unplugged and cool before cleaning.
7. Troubleshooting
7.1. Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| No Power | Power cord loose; Main switch off; Outlet issue | Check power cord connection; Ensure main switch is ON; Test outlet with another device. |
| Soldering Iron Not Heating | Iron switch OFF; Tip not properly inserted; Heating element failure | Turn iron switch ON; Re-insert tip securely; Contact support if issue persists. |
| Hot Air Gun Not Heating/No Airflow | Hot air switch OFF; Nozzle blocked; Heating element/fan failure | Turn hot air switch ON; Check/clear nozzle; Contact support if issue persists. |
| Temperature Inaccuracy | Needs calibration; Sensor issue | Perform digital temperature calibration; Contact support if issue persists. |
| Short Circuit Protection Activated | Faulty component; Wiring issue | Inspect components/wiring for shorts; Disconnect and re-test; Contact support. |
For issues not listed above, please refer to the detailed instruction manual or contact BAKON customer support.
8. Specifications
- Model: BAKON 882
- Input Voltage: 110V AC
- Soldering Iron Power: 90W
- Hot Air Rework Power: 650W
- Soldering Iron Temperature Range: 180°C - 480°C (356°F - 896°F)
- Hot Air Gun Temperature Range: 100°C - 500°C (212°F - 932°F)
- Display Type: 2.9-inch LCD
- Temperature Stability: High
- ESD Safe: Yes
- Item Weight: 1.96 kg
- Power Source: AC
- Cord Length: 43 Inches
9. Warranty and Support
BAKON provides the following support for your BAKON 882 station:
- Warranty: 1-year warranty after-sales service.
- Technical Support: Lifetime technical support.
- Returns: 30 days full return policy.
If you have any questions about our products or instructions, please feel free to contact us. We will reply to you within 24 hours.
