1. Introduction
This manual provides detailed instructions for the safe and effective use of your VILTROX AF 27mm F1.2 Pro lens. Please read this manual thoroughly before using the product and keep it for future reference.
The VILTROX AF 27mm F1.2 Pro is a high-performance APS-C autofocus prime lens designed for Fuji X-Mount mirrorless cameras. It features an exceptionally large F1.2 aperture, offering excellent low-light performance and beautiful bokeh. The lens incorporates a precise STM stepping motor for fast and quiet autofocus, supporting advanced features like eye and animal detection AF.
2. Safety Information
To prevent damage to the product or injury to yourself or others, read the following safety precautions completely before using this product.
- Do not look at the sun or other strong light sources through the lens, as this may cause permanent vision impairment.
- Keep the lens away from water and moisture.
- Avoid dropping or subjecting the lens to strong impacts.
- Do not attempt to disassemble or repair the lens yourself. Contact authorized service personnel.
- Keep out of reach of children.
- Clean the lens only with appropriate lens cleaning solutions and cloths.
3. Product Overview and Components
The VILTROX AF 27mm F1.2 Pro lens is designed with high-quality materials and precision engineering. Below are the main components and what is included in the packaging.

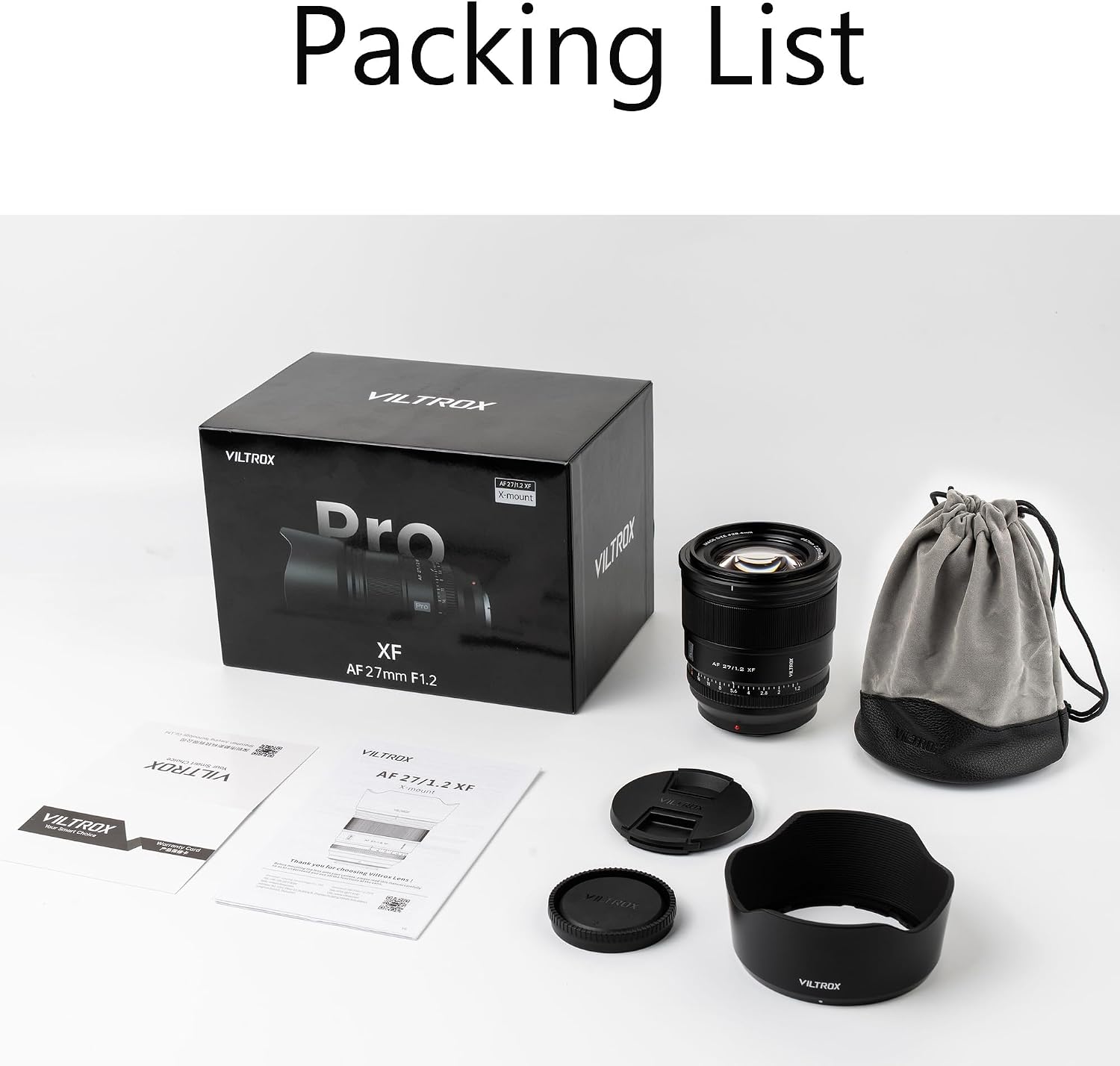

Package Contents:
- VILTROX AF 27mm F1.2 Pro Lens
- Lens Hood
- Front Lens Cap
- Rear Lens Cap
- Soft Lens Pouch
- Instruction Manual
4. Setup and Installation
Attaching the Lens to Your Camera:
- Ensure your camera is turned off.
- Remove the rear lens cap from the VILTROX lens and the body cap from your camera.
- Align the red dot on the lens barrel with the corresponding red dot on your camera's lens mount.
- Insert the lens into the camera mount and rotate it clockwise until it clicks into place. Do not force the lens.
- To remove the lens, press the lens release button on your camera and rotate the lens counter-clockwise until it detaches.
Attaching the Lens Hood:
The included lens hood helps to block stray light from entering the lens, reducing flare and ghosting, and provides some physical protection to the front element.
- Align the mark on the lens hood with the mark on the front of the lens barrel.
- Twist the lens hood clockwise until it locks securely into place.
- To store the lens hood, you can reverse it and attach it to the lens.
5. Operating the Lens
Autofocus (AF) and Manual Focus (MF):
This lens supports both autofocus and manual focus modes. The focus mode is typically controlled via your camera's settings.
- Autofocus: The built-in STM stepping motor provides fast, precise, and quiet autofocus performance. It supports advanced features such as eye-detection AF and animal-detection AF, ensuring sharp focus on your subjects.
- Manual Focus: When in manual focus mode, rotate the focus ring on the lens barrel to adjust focus.
Aperture Control:
The VILTROX AF 27mm F1.2 Pro features a clicked aperture ring for precise control over your depth of field and exposure.
- Rotate the aperture ring to select your desired f-stop from F1.2 to F16.
- The F1.2 large aperture allows for excellent low-light performance and creates a beautiful, creamy bokeh (background blur), isolating your subject effectively.
Optical Performance and Features:
- Premium Optical Construction: The lens features 15 elements in 11 groups, including high-refractive index lenses, ED lenses, and an aspherical lens, ensuring high resolution and image quality.
- HD Nano Multi-Layer Coating: This coating enhances light transmission, reduces flare and ghosting, and provides water-resistance and anti-fouling properties for superior durability and clarity.
- Close-up Shooting: The lens supports a minimum shooting distance of 0.28m, allowing for detailed close-up photography.
- Firmware Upgrades: The lens is equipped with a USB-C interface for convenient firmware upgrades, ensuring compatibility and performance improvements.
6. Maintenance and Care
- Cleaning the Lens: Use a soft, clean microfiber cloth specifically designed for optical surfaces to gently wipe away dust and smudges. For stubborn marks, use a small amount of lens cleaning solution applied to the cloth, not directly to the lens.
- Storage: When not in use, store the lens with both front and rear caps attached in a dry, cool place, away from direct sunlight and extreme temperatures. If storing for extended periods, consider using a dehumidifier or desiccant to prevent mold growth.
- Avoid Contaminants: Keep the lens away from sand, dust, and water. If exposed, clean immediately and thoroughly.
- Handling: Always handle the lens by its barrel, avoiding touching the glass elements.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lens not recognized by camera | Lens not properly mounted; dirty electronic contacts. | Re-mount the lens, ensuring it clicks into place. Clean the lens and camera contacts with a clean, dry cloth. Ensure camera firmware is up to date. |
| Autofocus is slow or inaccurate | Insufficient light; subject lacks contrast; lens firmware outdated. | Ensure adequate lighting. Focus on areas with clear contrast. Update lens firmware via the USB-C port. |
| Images are blurry | Incorrect focus; camera shake; dirty lens elements. | Check focus mode and ensure proper focus. Use a faster shutter speed or tripod. Clean the front and rear lens elements. |
| Lens hood is loose | Not properly locked into place. | Ensure the lens hood is twisted until it clicks securely. |
8. Product Specifications
Detailed technical specifications for the VILTROX AF 27mm F1.2 Pro lens:
| Model | AF 27/1.2 Pro XF |
| Mount Type | X mount (Fujifilm X) |
| Sensor Format | APS-C |
| Focal Length | 27mm (40.5mm equivalent on full-frame) |
| Lens Elements / Groups | 15 elements in 11 groups |
| Viewing Angle | 55.3° |
| Aperture Range | F1.2 - F16 |
| Number of Aperture Blades | 11 |
| Minimum Shooting Distance | 0.28m |
| Focus Mechanism | Internal Focusing System |
| Focus Motor | STM + Lead screw |
| Focus Mode | MF, AF |
| Max. Magnification | 0.15X |
| Filter Size | φ67mm |
| Lens Size (Diameter x Length) | φ82mm x 92mm |
| Weight | ≈ 560g (1.23 lbs) |
9. Warranty and Support
VILTROX products are manufactured to high quality standards. For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official VILTROX website.
For technical assistance, product inquiries, or service requests, please contact VILTROX customer support through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
