1. Introduction
This instruction manual provides guidance for the proper installation and use of your ZOWEETEK Belt Clips. These clips are specifically designed to enhance the portability of your ZOWEETEK ZW-Z258 and ZW-S615 voice amplifiers.
Package Contents
- ZOWEETEK Belt Clip (Model ZW-BJ)
2. Key Features
- Durable ABS Material: Constructed from robust ABS material for long-lasting use.
- Easy Installation: Designed for quick and straightforward attachment to compatible voice amplifiers.
- Secure Attachment: Provides a sturdy and reliable method for carrying your voice amplifier.
- Compatibility: Specifically designed for ZOWEETEK Voice Amplifiers ZW-Z258 and ZW-S615.
3. Installation Instructions
Follow these steps to attach the belt clip to your ZOWEETEK voice amplifier.
- Identify the Attachment Point: Locate the designated slot or attachment area on the back of your ZOWEETEK ZW-Z258 or ZW-S615 voice amplifier. This is typically a rectangular opening designed to receive the clip.
Figure 1: Back of the voice amplifier showing the belt clip attachment slot. An arrow indicates the direction to slide the clip.
- Align the Belt Clip: Take the ZOWEETEK Belt Clip (Model ZW-BJ) and align its sliding mechanism with the attachment slot on the amplifier. Ensure the clip's orientation allows for comfortable wearing.

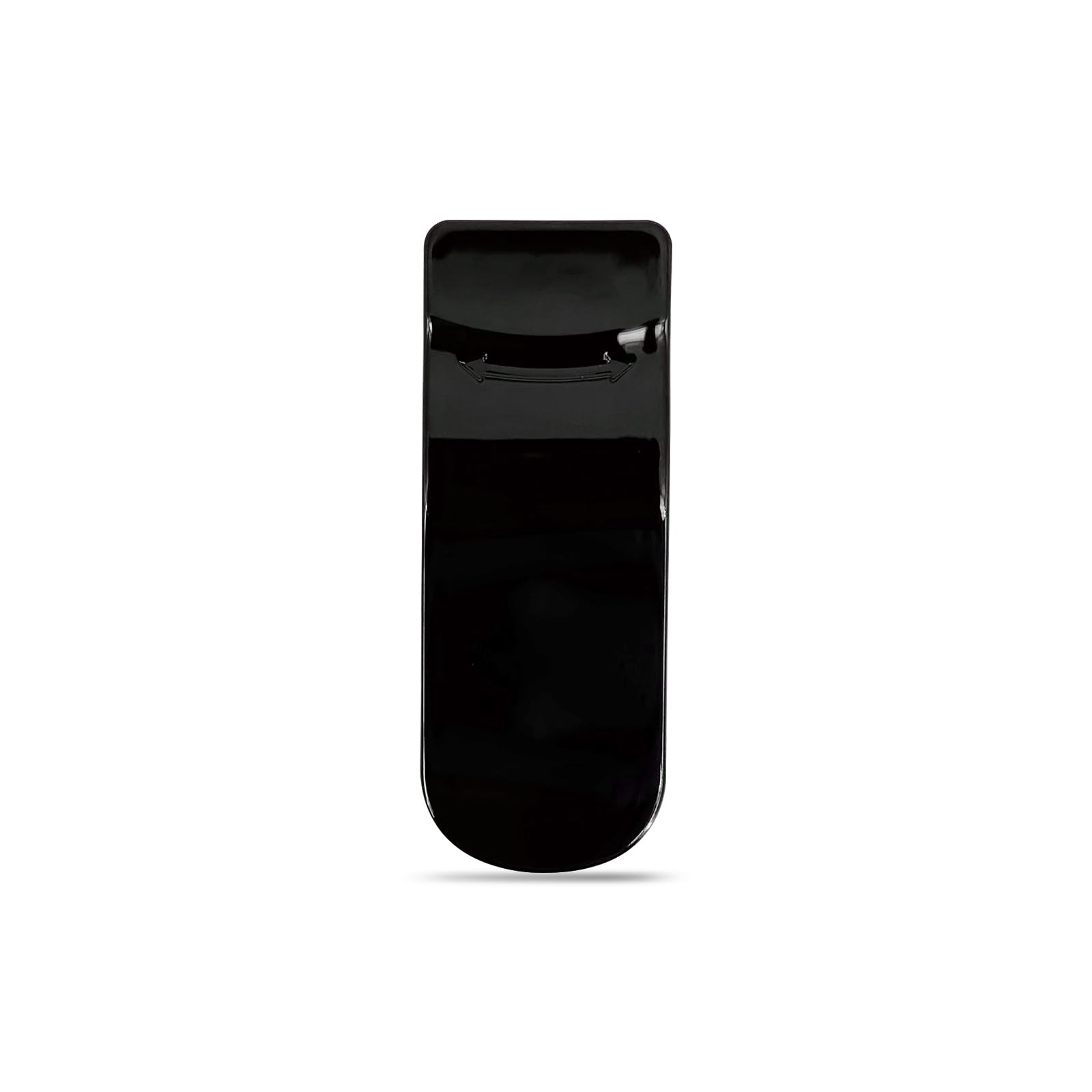

Figure 2: The ZOWEETEK Belt Clip (Model ZW-BJ) ready for installation.
- Slide and Secure: Gently slide the belt clip into the slot until it clicks securely into place. Apply firm but not excessive pressure. Verify that the clip is firmly attached and does not wobble.
Figure 3: Dimensions of the ZOWEETEK Belt Clip for reference.
4. Operating Instructions
Once installed, the belt clip allows for convenient carrying of your voice amplifier.
- Attaching to Clothing: The clip can be attached to belts, waistbands, pockets, or other suitable clothing edges. Ensure the clip is fully engaged with the fabric for maximum security.
- Using the Lanyard (if applicable): If your amplifier comes with a lanyard, you can attach it to the designated loops on the amplifier for additional carrying options, even with the belt clip attached.
5. Care and Maintenance
- Cleaning: Wipe the belt clip with a soft, dry cloth to remove dust or debris. Avoid using harsh chemicals or abrasive cleaners.
- Inspection: Periodically inspect the clip for any signs of wear, cracks, or damage. If the clip appears damaged, replace it to prevent accidental drops of your amplifier.
- Storage: Store the belt clip in a cool, dry place when not in use.
6. Troubleshooting
Belt Clip Does Not Attach Securely
- Check Compatibility: Ensure your voice amplifier model (ZW-Z258 or ZW-S615) is compatible with this specific belt clip (ZW-BJ).
- Inspect for Obstructions: Make sure there are no foreign objects or debris in the amplifier's attachment slot or on the clip itself that might prevent a secure fit.
- Verify Alignment: Re-align the clip carefully with the slot and apply gentle, even pressure until it clicks into place.
- Examine for Damage: Check both the clip and the amplifier's attachment point for any visible damage. A damaged clip or slot may prevent proper attachment.
7. Product Specifications
| Feature | Specification |
|---|---|
| Model | ZW-BJ |
| Brand | ZOWEETEK |
| Material | ABS |
| Color | Black |
| Product Dimensions | 2.78" L x 1.1" W x 0.4" H (approximate) |
| Item Weight | 0.634 ounces |
| Compatible Models | ZOWEETEK ZW-Z258, ZW-S615 Voice Amplifiers |
8. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your ZOWEETEK voice amplifier or visit the official ZOWEETEK website.
You can also visit the ZOWEETEK Store on Amazon for more product information and support.
Manufacturer: ZOWEETEK
ASIN: B0CG5TRDZG
UPC: 600748749645
