Introduction
Thank you for choosing the Tuffenough Solar Outdoor Lights with Motion Sensor. This manual provides essential information for the proper installation, operation, and maintenance of your new solar lights. Please read these instructions carefully before use and retain them for future reference.
Product Overview
The Tuffenough Solar Outdoor Lights are designed to provide efficient and reliable outdoor illumination. Featuring a high-efficiency solar panel and advanced motion sensors, these lights offer enhanced security and convenience for your outdoor spaces.
Key Features:
- Long-life Solar-powered Spotlight: Built-in rechargeable battery with a high-efficiency solar panel ensures charging even in less light conditions. Converts sunlight into electricity and lights up at night when motion is detected, reducing carbon emissions and saving on electricity bills.
- Super Bright Solar Motion Lights: Equipped with 423 LED lights, producing up to 2500 LM. Designed with 4 rotatable light heads, allowing adjustment in multiple directions to illuminate larger areas.
- Motion Sensor Outdoor Lights: Features upgraded dual PIR motion sensors, detecting motion at 16-40ft distance within a 180° detection angle. Stays off during the daytime for charging and automatically turns ON at night when triggered by humans or animals.
- 3 Working Modes: Easily switch between three distinct lighting modes using a button.
- IP65 Waterproof & Easy Installation: Made of durable material with IP65 waterproof rating, ensuring functionality in heavy rain and snowstorms. Easy to install without complex wiring or adapters.
Image: Tuffenough Solar Outdoor Light, showcasing its 4 adjustable LED heads and integrated solar panel.
Image: Illustration of the 4-head solar outdoor light providing wide-angle illumination.
Product Features Video:
Video: A quick overview highlighting the key features of the Tuffenough Solar Outdoor Lights.
Package Contents
Upon opening your package, please ensure all items are present and in good condition:
- Tuffenough Solar Outdoor Light Unit(s)
- Mounting Screws
- Instruction Manual (this document)
Setup and Installation
Pre-Installation Notes:
- For optimal performance, fully charge the solar lights in direct sunlight for at least 2 days before initial use.
- Choose an installation location that receives ample direct sunlight throughout the day to ensure maximum charging efficiency. Avoid shaded areas.
- Recommended installation height: 6.5-8 feet (2-2.4 meters) for optimal motion detection and light coverage.
Installation Steps:
- Prepare the Light: Before mounting, locate the button switch at the back of the solar light. Select your desired operating mode (Mode 1, 2, or 3) by pressing the button.
- Mark Drill Holes: Hold the mounting bracket against the wall at your chosen installation spot. Use a pencil to mark the positions for the drill holes.
- Drill Holes: Drill holes at the marked positions. Insert the provided wall anchors if installing into masonry or drywall.
- Attach Mounting Bracket: Secure the mounting bracket to the wall using the provided screws.
- Mount the Light: Slide the solar light unit onto the secured mounting bracket. Ensure it clicks firmly into place.
- Adjust Light Heads: Adjust the 4 rotatable light heads and the solar panel to your preferred angles for optimal illumination and sun exposure.
Image: Step-by-step visual guide for mounting the solar light.
Image: The solar light unit securely installed on an exterior wall.
Installation Demonstration Video:
Video: A demonstration of the unboxing and installation process for the solar outdoor lights.
Operating Instructions
The Tuffenough Solar Outdoor Lights feature three distinct operating modes, selectable via the button switch on the unit. Each press of the button cycles through the modes.
Available Modes:
- Mode 1 (Sensor Mode): The light remains off until motion is detected. Upon detection, it turns on with strong brightness and turns off 25-30 seconds after motion ceases.
- Mode 2 (Always On Dim Mode): The light turns on at 10% brightness in darkness or at night and stays on for 8 hours. It then turns off automatically.
- Mode 3 (Dim-to-Bright Mode): The light stays on at a dim level in darkness. When motion is detected, it brightens to full intensity and returns to dim after people leave.

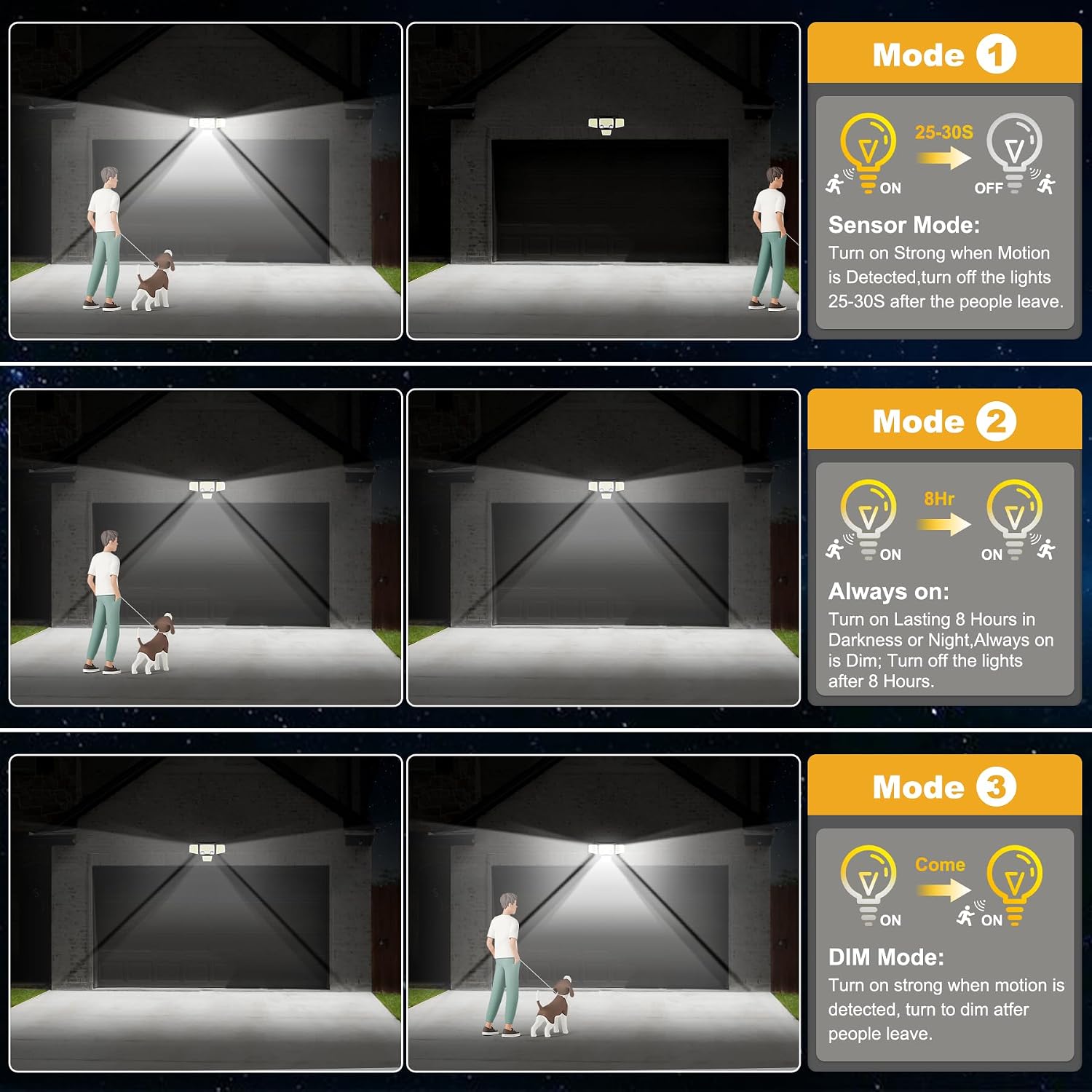

Image: Visual representation of the three distinct operating modes.
Image: The solar light unit charging during the day and providing illumination at night.
Maintenance
To ensure the longevity and optimal performance of your Tuffenough Solar Outdoor Lights, follow these simple maintenance guidelines:
- Clean Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, and debris. A clean panel ensures efficient sunlight absorption and charging.
- Check for Obstructions: Periodically check that no new obstructions (e.g., growing branches, new installations) are blocking direct sunlight from reaching the solar panel.
- Inspect for Damage: Occasionally inspect the light unit for any physical damage, loose connections, or signs of wear. Address any issues promptly.
- Battery Care: While the battery is long-life, extreme temperatures can affect its performance. Ensure the light is installed in a location suitable for outdoor conditions.
Troubleshooting
If you encounter any issues with your solar outdoor lights, please refer to the following common troubleshooting steps:
- Light Not Turning On at Night:
- Ensure the light is switched ON and set to the desired mode.
- Verify the solar panel is receiving direct sunlight for at least 6-8 hours daily. Relocate if necessary.
- Check for any light sources nearby (e.g., streetlights) that might be tricking the sensor into thinking it's daytime.
- Motion Sensor Not Detecting:
- Ensure the motion sensors are clean and free from obstructions.
- Confirm the light is installed within the recommended height and the detection angle is clear.
- Test different modes to ensure the sensor is active.
- Light Brightness is Low or Short Duration:
- The solar panel may not be getting enough sunlight. Clean the panel and ensure it's in a prime sun exposure location.
- Cold weather can affect battery performance. Allow the battery to warm up if temperatures are very low.
- The battery might not be fully charged. Allow for a few days of full sun charging.
Specifications
| Feature | Detail |
|---|---|
| Brand | Tuffenough |
| Model Name | Solar Outdoor Lights with Motion Sensor |
| Model Number | 797430535195 |
| Light Source Type | LED (423 LEDs) |
| Brightness | 2500 Lumen |
| Motion Sensor Detection Angle | 180° |
| Motion Sensor Detection Distance | 16-40ft |
| Water Resistance Level | IP65 Waterproof |
| Power Source | Battery Powered, Solar Powered |
| Control Method | Touch (Push Button) |
| Installation Type | Wall Mount |
| Material | Plastic |
| Product Dimensions | 10.59"L x 8.8"W x 5.5"H |
| Item Weight | 3.05 pounds |
Warranty and Support
Tuffenough products are manufactured to the highest quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product packaging or our official website for specific warranty terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact our customer service team:
- Email: support@tuffenough.com (Example)
- Phone: 1-800-XXX-XXXX (Example)
- Website: www.tuffenough.com (Example)
Our customer service is available 7 days a week, 24 hours a day to assist you.
