iPormis Queen Bed Frame User Manual

1. Product Overview

The iPormis Queen Bed Frame is an upholstered platform bed designed for comfort and convenience. It features a 16-inch wingback headboard with button tufting and rivet detailing, providing both aesthetic appeal and a comfortable backrest. The headboard integrates a charging station and a storage shelf for personal items. The bed frame is constructed with heavy-duty materials, including solid wood slats and nine thick support legs, designed for stability and noise reduction.

Image 1.1: The iPormis Queen Bed Frame, showcasing its upholstered wingback headboard, integrated charging station, and overall design.

2. Package Contents

Before beginning assembly, ensure all components are present and undamaged. Refer to the included parts list in your package. All necessary assembly tools are typically provided within the packaging.

Image 2.1: Diagram illustrating the dimensions of the Queen bed frame, including length, width, height, and under-bed clearance.

3. Setup and Assembly

Assembly is designed to be straightforward, typically taking around 30 minutes with the provided instructions and tools. Components are labeled for ease of identification.

Important Assembly Notes:

• Review Instructions Carefully: Before starting, read through the entire instruction manual to familiarize yourself with the steps.
• Initial Screw Placement: Some users have reported that the first step in the provided paper instructions may instruct you to place screws in parts that need to be removed later. It is advisable to review subsequent steps to avoid unnecessary work.
• Two-Person Assembly: While possible for one person, assembly is generally easier and quicker with two individuals.
• Component Alignment: Ensure all pre-drilled holes align correctly before tightening fasteners. If holes appear misaligned, double-check the orientation of the parts. Do not force components together.
• Noise Reduction Features: The bed frame incorporates EVA foam and Velcro design for a noiseless experience. Ensure these elements are correctly installed during assembly.

Image 3.1: Close-up view of the Velcro design for quick setup, EVA foam for noise reduction, and the well-built wood slats.

4. Operating Instructions

4.1. Charging Station

The integrated charging station is located on the headboard's storage shelf. It includes a Type-A port, a Type-C port, and two standard AC outlets. To use, simply plug the bed frame's power cord into a wall outlet. You can then connect your devices (phones, tablets, etc.) to the available ports for convenient charging.

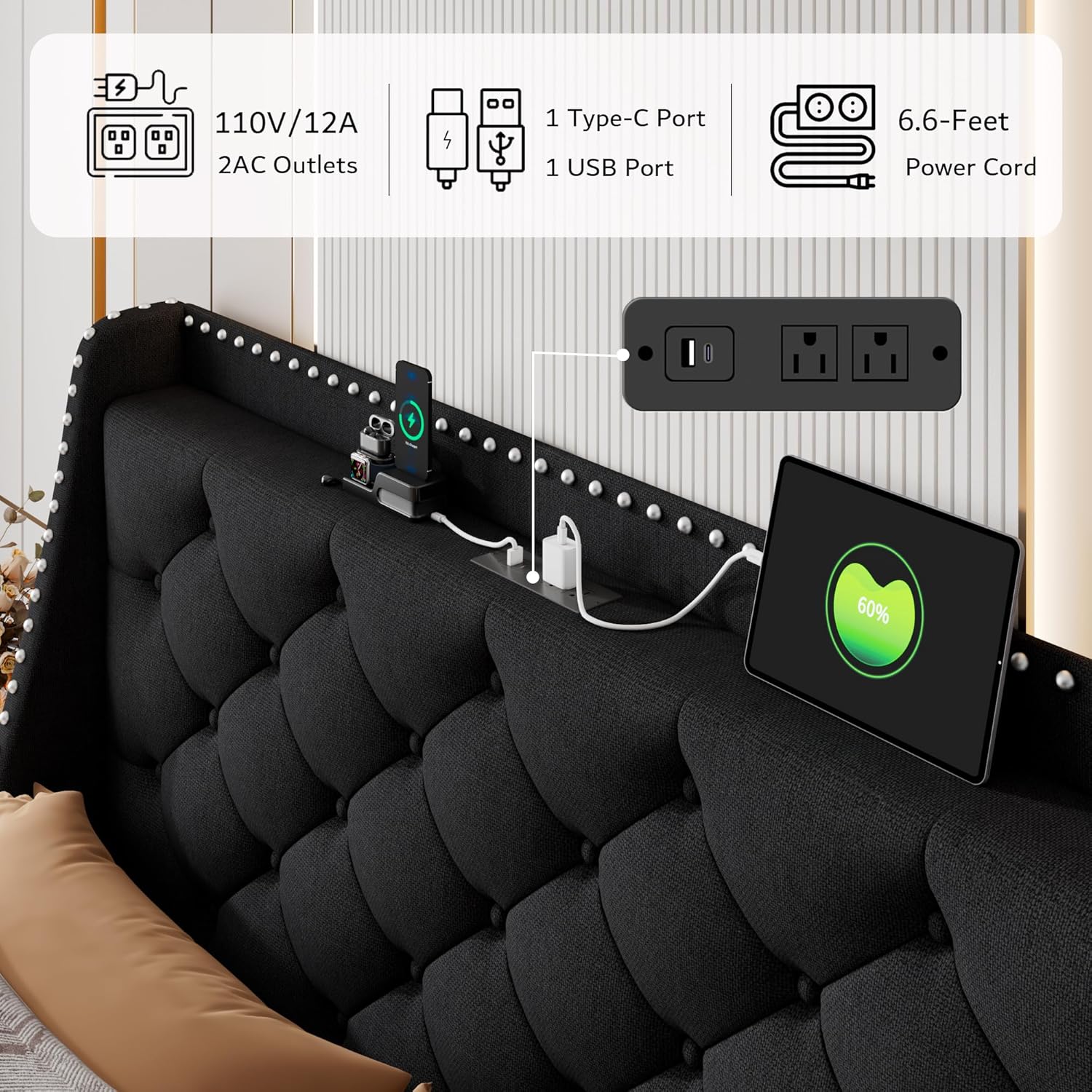

Image 4.1: Detailed view of the headboard's charging station, showing the USB-A, USB-C, and AC outlets.

4.2. Storage Shelf

The headboard features a 4-inch wide storage ledge, ideal for keeping small items such as phones, glasses, or books within easy reach.

4.3. Under-Bed Storage

The bed frame provides 8 inches of clearance underneath, offering space for storing boxes, luggage, or facilitating easy cleaning.

Image 4.2: Visual representation of the 8-inch under-bed clearance, suitable for storage containers.

5. Maintenance

• Cleaning the Upholstery: For general cleaning, gently vacuum the fabric to remove dust and debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner following the product's instructions, testing on an inconspicuous area first.
• Frame Inspection: Periodically check all bolts and fasteners to ensure they remain tight. Loose connections can lead to instability and squeaking.
• Slats Care: Ensure the wooden slats are free from damage. If any slats are broken or severely warped, they should be replaced to maintain proper mattress support.
• Charging Station: Keep the charging ports free of dust and debris. Do not expose the charging station to liquids.

6. Troubleshooting

6.1. Squeaking Noises

• Check Fasteners: The most common cause of squeaking is loose bolts. Retighten all assembly bolts, especially those connecting the side rails and headboard/footboard.
• Verify Slat Placement: Ensure all wooden slats are correctly seated and the Velcro strips are securely attached to prevent movement.
• Inspect EVA Foam: Confirm that the EVA foam strips, designed for noise reduction, are properly in place between metal components and slats.

6.2. Charging Station Not Working

• Power Connection: Ensure the bed frame's power cord is securely plugged into a functional wall outlet.
• Device Compatibility: Verify that your device and charging cable are compatible with the USB-A, USB-C, or AC outlets.
• Overload: Avoid overloading the charging station with too many high-power devices simultaneously.

6.3. Assembly Difficulties / Misaligned Parts

• Re-read Instructions: Carefully re-examine the assembly instructions, paying close attention to part orientation and specific steps.
• Part Identification: Double-check that you are using the correct parts for each step, as indicated by their labels.
• Contact Support: If you encounter persistent issues with misaligned holes or damaged parts that prevent assembly, contact customer support for assistance.

7. Specifications

8. Warranty Information

Please refer to the warranty card included with your product for specific details regarding coverage and duration. Typically, bed frames come with a limited manufacturer's warranty covering defects in materials and workmanship under normal use. Keep your proof of purchase for warranty claims.

9. Customer Support

For any questions, concerns, or assistance with assembly or product issues, please contact iPormis customer support. Refer to the contact information provided in your product packaging or visit the official iPormis website for support options.
