ALLPOWERS R2500 Portable Power Station

1. Introduction

The ALLPOWERS R2500 is a high-capacity portable power station designed to provide reliable power for various applications, from outdoor camping and RV travel to home backup during emergencies. Featuring a 2016Wh LiFePO4 battery and a 2500W (4000W Peak) AC output, it offers fast charging capabilities and a robust UPS function to protect your sensitive electronics.

2. Safety Information

Always read and understand all safety warnings and instructions before operating the ALLPOWERS R2500. Failure to follow these guidelines may result in electric shock, fire, or serious injury.

• Do not expose the unit to rain or moisture.
• Ensure proper ventilation during use and charging.
• Keep out of reach of children and pets.
• Do not disassemble, repair, or modify the unit.
• Use only approved accessories and charging cables.
• Avoid extreme temperatures.

Safe Insulating Covers

The ALLPOWERS R2500 features safe insulating covers to prevent electric shock, provide IP44 waterproof protection, isolate dust, and block insects from entering the outlets.

3. Product Overview

The ALLPOWERS R2500 is a compact yet powerful portable power station. Below is an image illustrating the main unit and its various output ports.

The ALLPOWERS R2500 unit, showcasing its intuitive display and multiple power output options.

Output Ports

The R2500 is equipped with 14 outlets, allowing simultaneous charging and powering of multiple devices.

• 4x AC Outlets: 2500W rated power (4000W peak) for household appliances.
• 1x RV Outlet: 30A for recreational vehicles.
• 2x USB-C Ports: PD 100W Max output for fast charging compatible devices.
• 4x USB-A Ports: Various wattages (36W Max, 12W Max) for standard USB devices.
• 2x DC Ports: 5525 120W Max for DC-powered devices.
• 1x Car Socket: 120W Max for car appliances.

4. Setup

Initial Charging

Before first use, it is recommended to fully charge the ALLPOWERS R2500. This ensures optimal battery performance and calibration.

1. Connect the provided AC charging cable to the input port on the R2500.
2. Plug the other end of the AC charging cable into a standard wall outlet.
3. The display will indicate charging status. The unit can be fully charged in approximately 1.3 hours using AC input.

Solar Charging Setup

The R2500 supports up to 1000W solar input for efficient charging.

1. Ensure your solar panels are compatible with the R2500's input specifications.
2. Connect the solar panels to the designated solar input port on the R2500.
3. Position the solar panels in direct sunlight for maximum charging efficiency.

The R2500 supports super fast charging via AC, solar, or a combination of both, achieving a full charge in as little as 1 hour with combined input.

5. Operating Instructions

Powering On/Off

• To power on, press and hold the main power button until the display illuminates.
• To power off, press and hold the main power button until the display turns off.

Using Outputs

Activate specific output groups (AC, DC, USB) by pressing their respective buttons on the control panel. The display will show active outputs and power consumption.

The R2500 can power a wide range of appliances, including air fryers, coffee makers, electric drills, microwave ovens, refrigerators, hair dryers, CPAP machines, and electric heaters.

Uninterruptible Power Supply (UPS) Function

The R2500 features a UPS function with a switchover time of less than 15ms, ensuring continuous power for critical devices during outages.

When the main power grid fails, the R2500 automatically switches to battery power within 15 milliseconds, protecting connected appliances like CPAP machines, fish tanks, or computers.

Smart Control via ALLPOWERS APP

Monitor and control your R2500 remotely using the ALLPOWERS mobile application, available for both iOS and Android devices.

The ALLPOWERS app allows for power monitoring, function settings, remote control, and system upgrades via Wi-Fi or Bluetooth.

Quiet Operation

The R2500 is designed for quiet operation, making it suitable for indoor use.

The R2500 operates at low noise levels, comparable to a whisper at 800W (40dB) and a normal chat at 2000W (50dB), ensuring minimal disturbance.

6. Maintenance

Battery Care

The ALLPOWERS R2500 uses durable LiFePO4 batteries, designed for longevity.

• For optimal battery life, avoid fully discharging the unit frequently.
• Store the unit in a cool, dry place away from direct sunlight.
• Recharge the unit every 3-6 months if not in use to maintain battery health.
• The LiFePO4 battery maintains over 80% capacity after 3500 charge cycles and 50% after 6500 cycles, ensuring a lifespan of up to 10 years with regular use.

Cleaning

Use a dry, soft cloth to clean the exterior of the unit. Do not use liquid cleaners or immerse the unit in water.

Storage

If storing the R2500 for an extended period, ensure it is charged to approximately 50-80% and stored in a temperature-controlled environment.

7. Troubleshooting

If you encounter issues with your ALLPOWERS R2500, please refer to the following common troubleshooting steps:

• Unit not turning on: Ensure the battery is charged. If not, connect to an AC outlet for charging.
• No output from ports: Verify that the specific output group (AC, DC, USB) is activated. Check if the connected device's power consumption exceeds the R2500's output limit.
• Charging issues: Ensure all charging cables are securely connected. For solar charging, confirm panels are in direct sunlight and clean.
• Error codes on display: Note the error code and refer to the full user manual (if available) or contact customer support for specific guidance.
• App connectivity issues: Ensure Bluetooth and/or Wi-Fi are enabled on your device and the R2500. Try restarting both the app and the power station.

8. Specifications

Detailed technical specifications for the ALLPOWERS R2500 Portable Power Station.

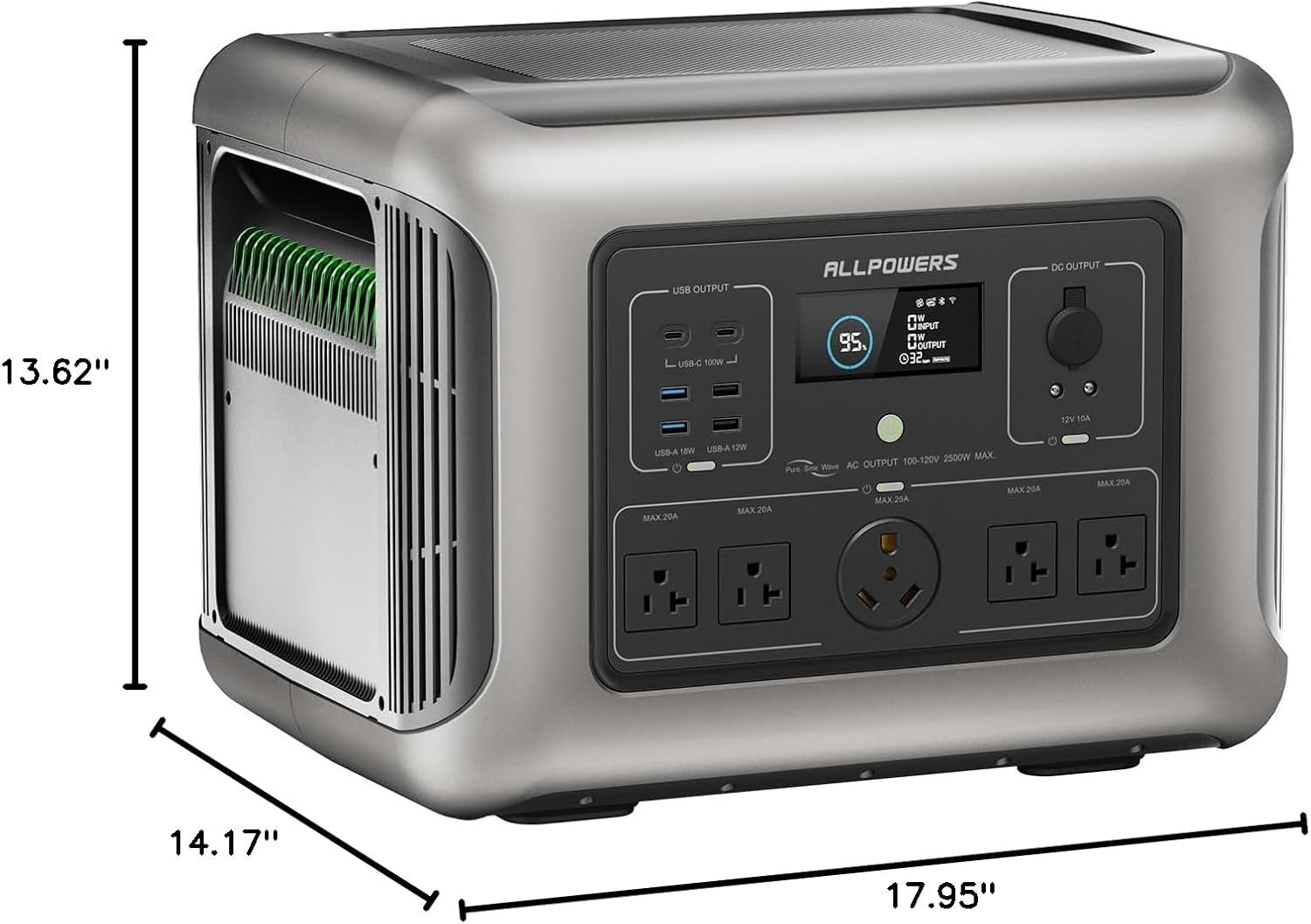

Dimensions

The physical dimensions of the ALLPOWERS R2500 unit.

9. Official Product Videos

Watch these official videos from ALLPOWERSDirect for more information on the R2500 Portable Power Station.

10. Warranty & Support

ALLPOWERS stands behind the quality of its products.

Warranty Information

The ALLPOWERS R2500 comes with an amazing 5-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures peace of mind for your investment.

Customer Support

For any questions, technical assistance, or warranty claims, please contact ALLPOWERS customer service. Refer to the contact information provided in your product packaging or visit the official ALLPOWERS website for the most up-to-date support details.

We are committed to providing friendly and responsive customer service.
