Introduction
This user manual provides essential information for the safe and effective use of your SuperHandy 24V 6Ah Lithium Wheelchair Replacement Battery. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your battery.
Important Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the battery and wheelchair.
WARNING
- DO NOT short-circuit the positive and negative terminals of the battery.
- DO NOT expose the battery to high temperatures or chemicals.
- Avoid exposure to rain or water.
- DO NOT disassemble the battery pack without authorization.
- If the battery is not used for an extended period, store it in a cool and dry place and recharge it every two months for maintenance.
- Use a compatible charger for charging.
CAUTION
Must close the switch when the battery is not in use.
Product Features
- Maximized Mobility: Our 24V 6Ah lithium battery ensures prolonged wheelchair use, boosting user independence and minimizing frequent recharges.
- Simple Swap System: Experience a seamless battery transition. Designed for user ease, it effortlessly replaces old batteries, restoring wheelchair functionality in no time.

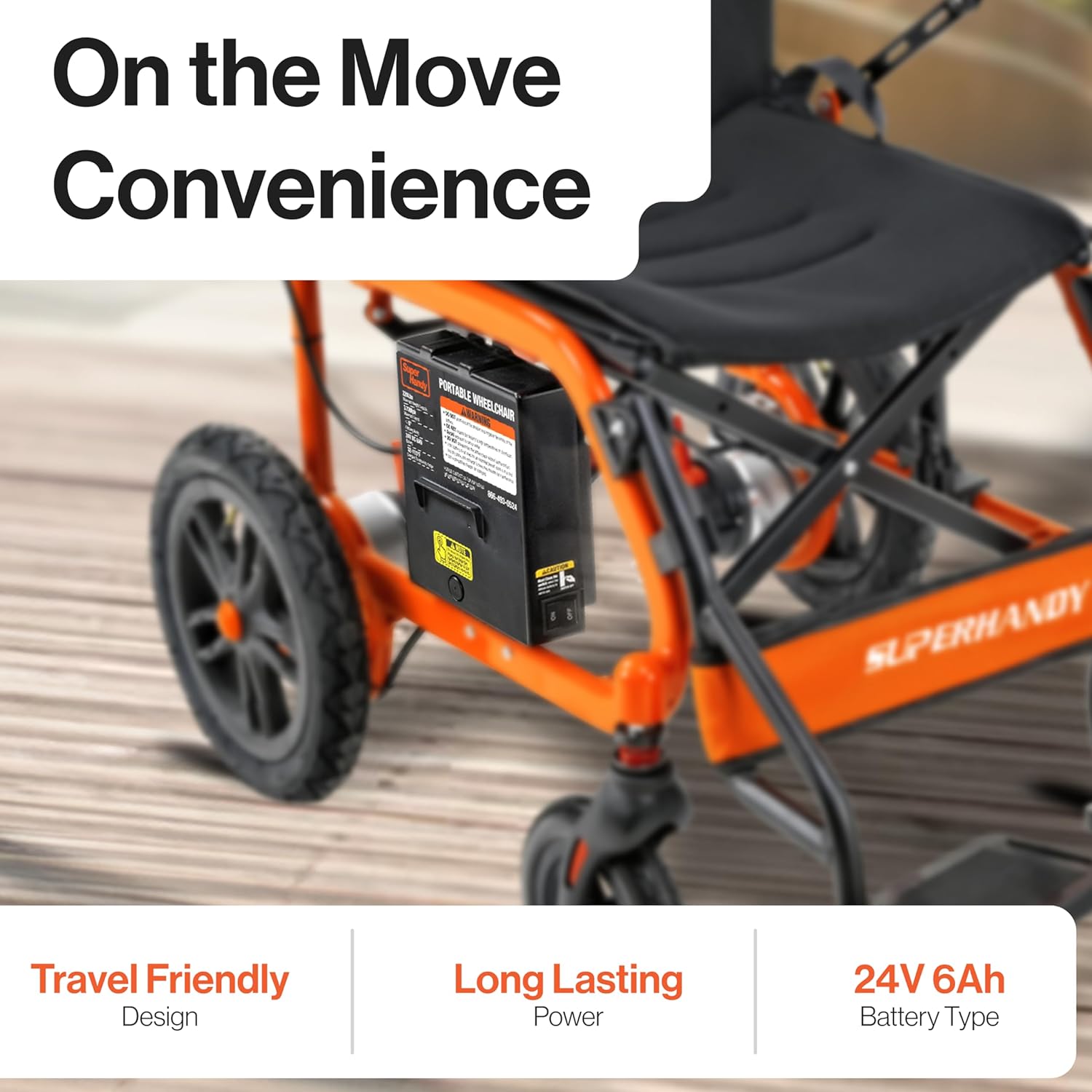

- Travel-Friendly Design: Crafted for on-the-move convenience. Whether you're traveling or navigating daily routines, our portable battery ensures unhindered mobility in all environments.

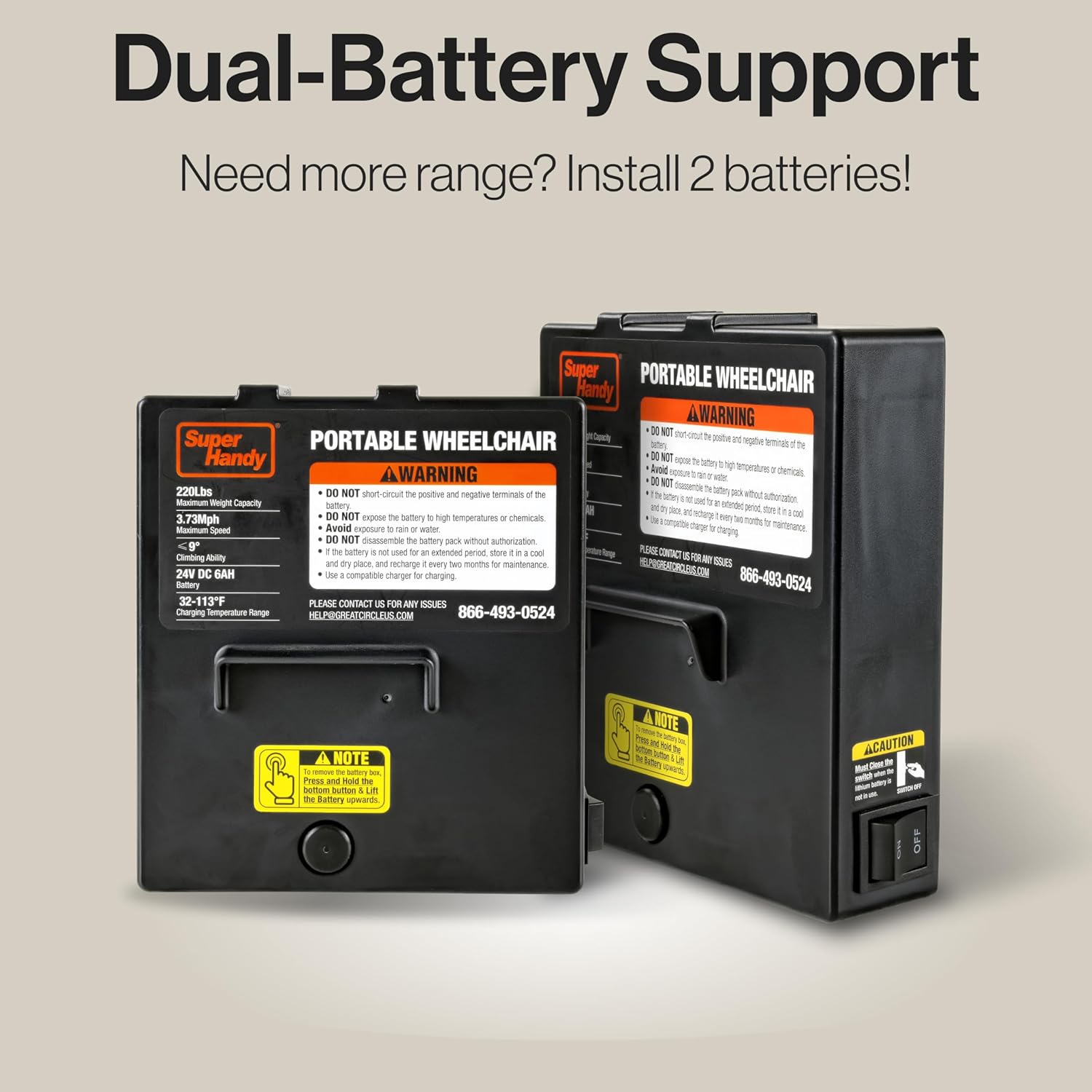

- Dual-Battery Support: Need more range? Install two batteries simultaneously for an extended drive range or extra power backup, offering ultimate flexibility and uninterrupted use.

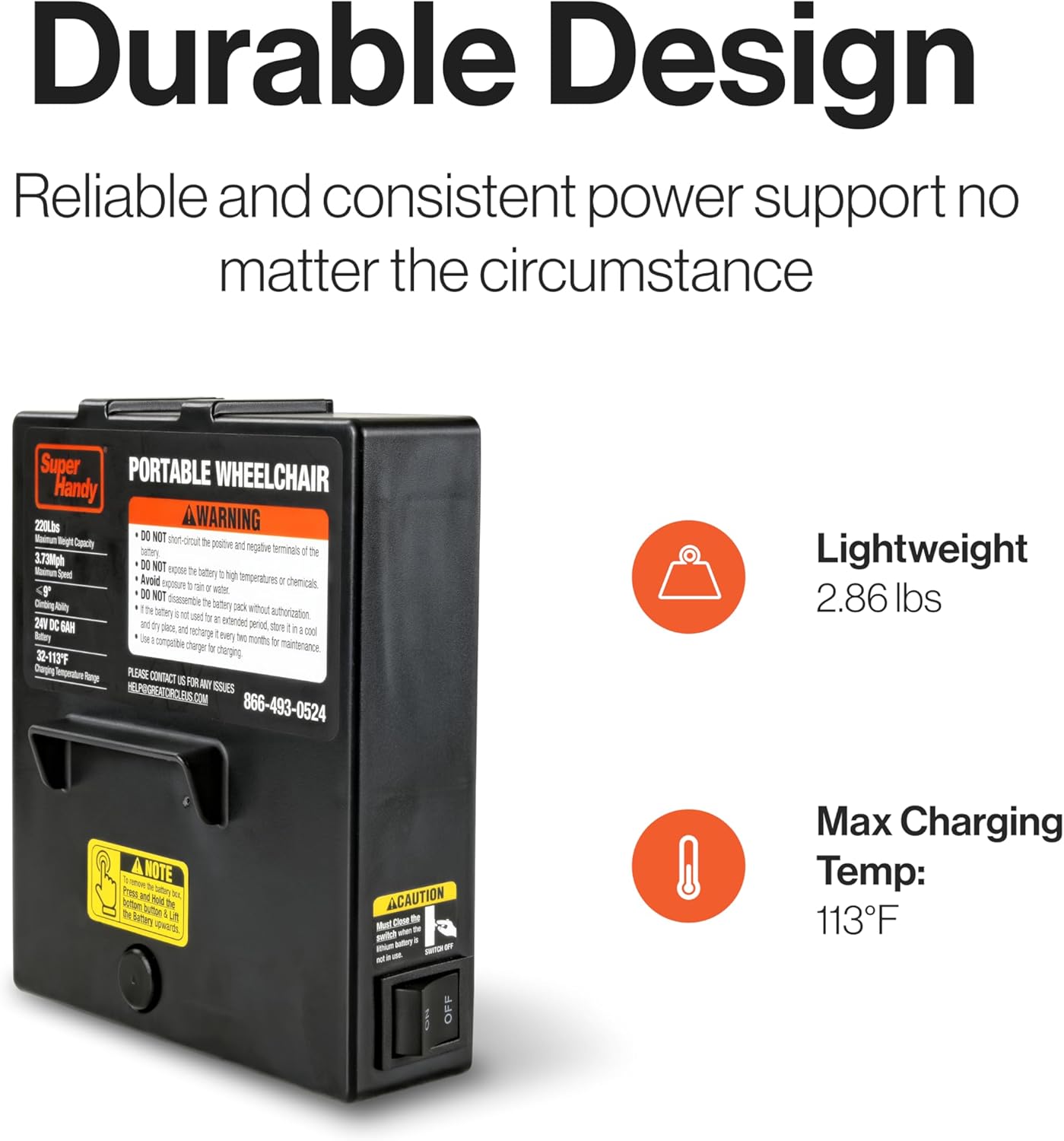

- Durability Meets Lightweight: While being easy to carry, our battery stands up to daily wear and tear, promising reliable and consistent power support no matter the circumstance.
Setup and Installation

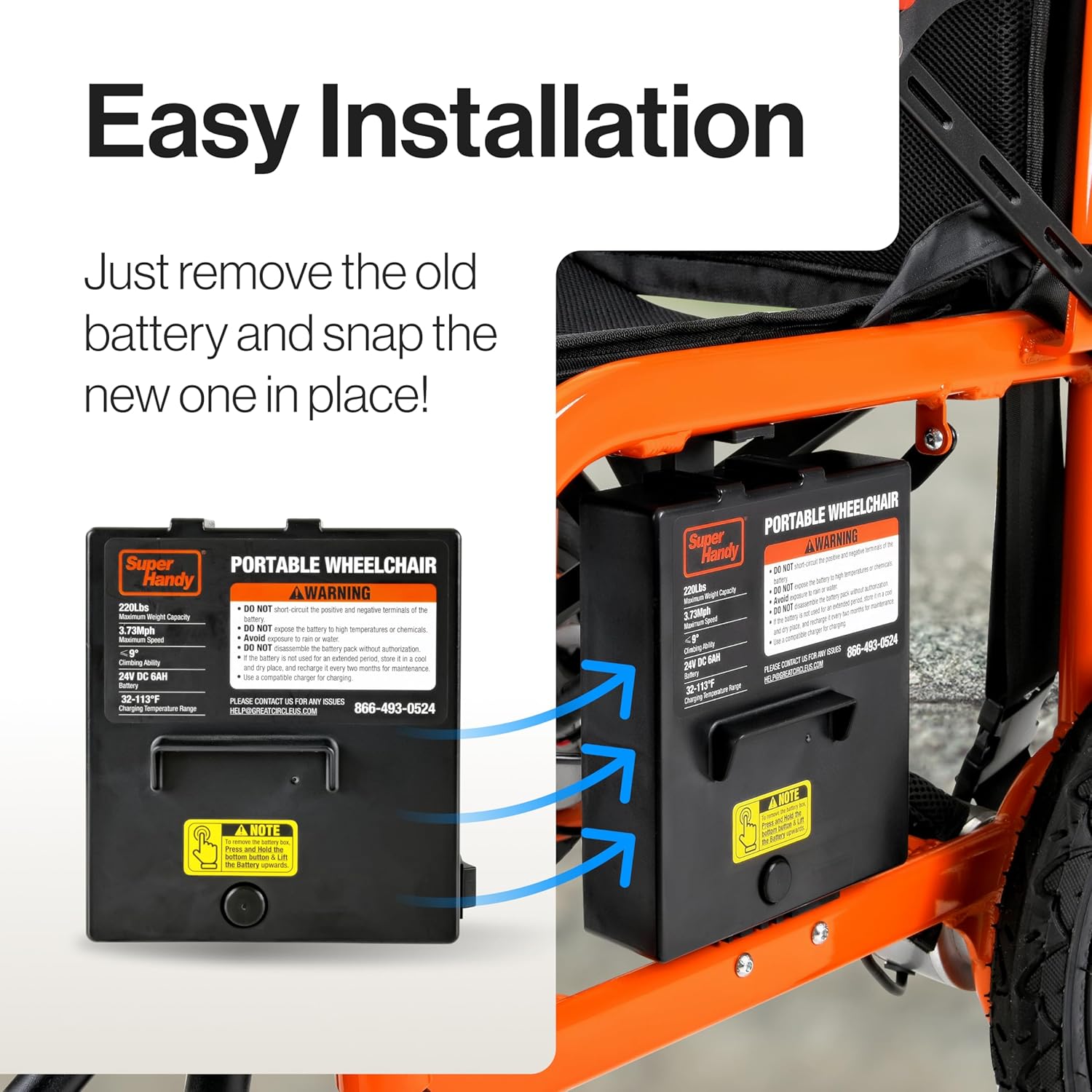

The SuperHandy replacement battery features a simple swap system for easy installation.
- Ensure the wheelchair is powered off and disconnected from any charging source.
- Locate the existing battery compartment on your SuperHandy wheelchair.
- Carefully remove the old battery by pressing the release button (if applicable) and sliding it out.
- Align the new SuperHandy 24V 6Ah Lithium Battery with the compartment and slide it in until it clicks securely into place.
- Ensure the battery switch is in the "OFF" position before initial use or charging.
Operation
Charging the Battery
To charge your SuperHandy 24V 6Ah Lithium Battery:
- Ensure the battery is securely installed in the wheelchair or connected to a compatible external charger.
- Connect the charger to a standard power outlet.
- Connect the charger's output plug to the charging port on the battery or wheelchair.
- Monitor the charger's indicator lights for charging status. Disconnect once fully charged.
Using the Battery
After installation and charging:

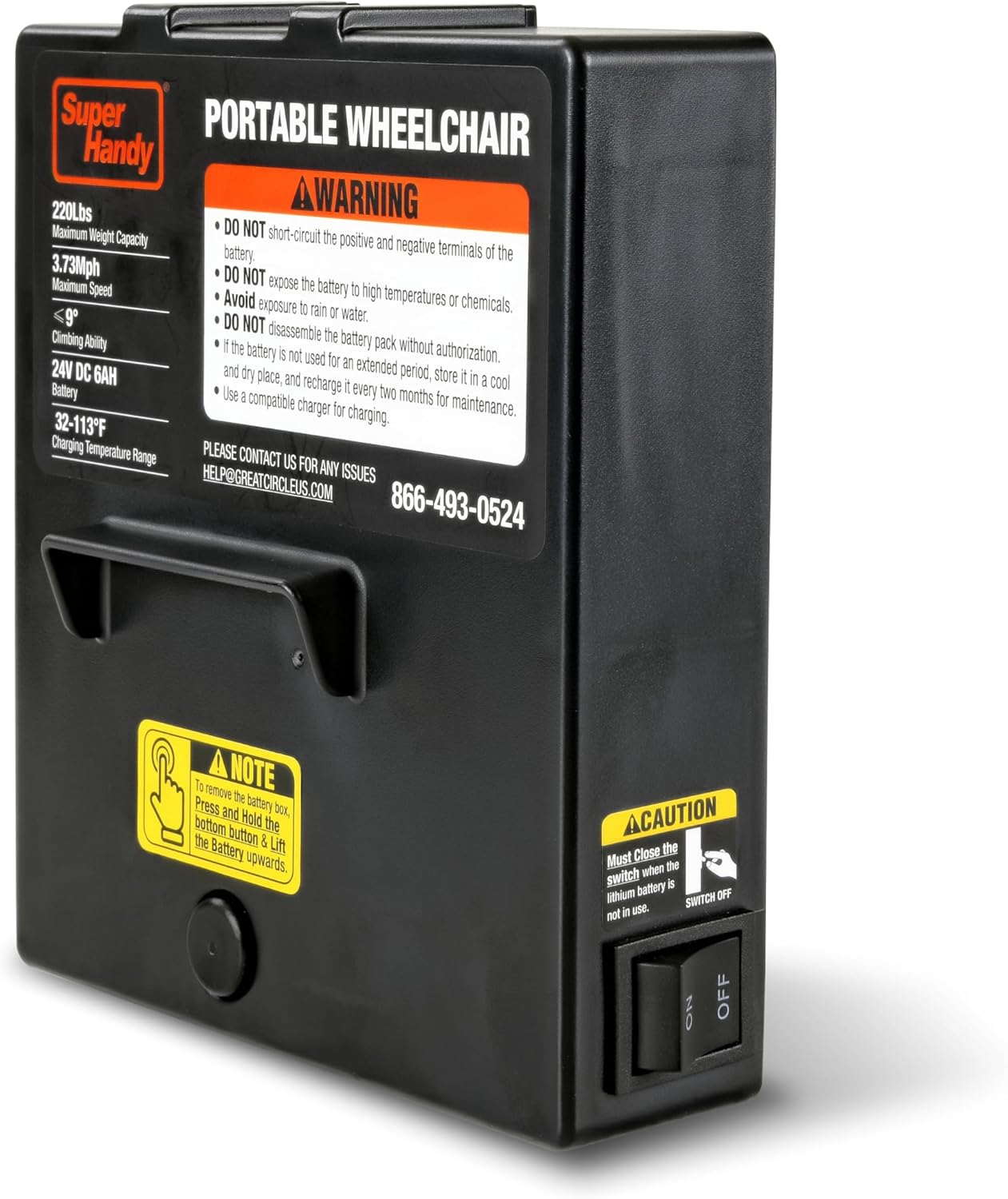

- Locate the power switch on the battery (typically on the side).
- Flip the switch to the "ON" position to power the wheelchair.
- When not in use, always switch the battery to the "OFF" position to conserve power and ensure safety.
- For extended range, a second battery can be installed simultaneously (if your wheelchair supports dual batteries).
Maintenance
Proper maintenance ensures the longevity and performance of your lithium battery.
- Regular Charging: For optimal battery life, avoid fully discharging the battery frequently. Recharge it after each significant use.
- Storage: If the battery will not be used for an extended period (more than 2 months), store it in a cool, dry place (between 32-113°F or 0-45°C) and recharge it every two months to maintain its charge level and prevent deep discharge.
- Cleaning: Keep the battery and its terminals clean and dry. Use a soft, dry cloth to wipe away any dust or debris. Do not use liquid cleaners.
- Inspection: Periodically inspect the battery for any signs of damage, swelling, or corrosion. If any issues are observed, discontinue use and contact support.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger not connected properly; Faulty charger; Battery switch off; Battery deeply discharged. | Ensure all connections are secure. Try a different outlet. Verify battery switch is ON. If deeply discharged, try a compatible charger or contact support. |
| Wheelchair not powering on with new battery | Battery not installed correctly; Battery switch off; Battery not charged. | Re-install battery, ensuring it clicks into place. Flip battery switch to ON. Charge the battery fully. |
| Reduced operating time | Battery not fully charged; Battery aging; Extreme temperatures. | Ensure full charge before use. Consider replacing battery if significantly aged. Operate within recommended temperature range. |
Specifications
| Attribute | Detail |
|---|---|
| Model | 24V 6Ah Lithium Battery |
| Battery Type | Lithium Ion |
| Battery Capacity | 6 Amp Hours (6Ah) |
| Nominal Voltage | 24V |
| Item Weight | 2.86 pounds |
| Package Dimensions | 12.9 x 9.1 x 5.1 inches |
| Recommended Use | Wheelchair |
| Charging Temperature Range | 32-113°F (0-45°C) |
| Manufacturer | GCM (Brand: SuperHandy) |
| Date First Available | August 17, 2023 |
Warranty and Support
For any issues, questions, or warranty claims regarding your SuperHandy Wheelchair Replacement Battery, please contact our support team.
- Phone Support: 866-493-0524
- Email Support: HELPER@GREATCIRCLEUS.COM
Protection plans may be available for extended coverage. Please refer to your purchase documentation for details on applicable warranties and service agreements.
