Mars Gaming MC-VIEW Micro-ATX Gaming Mini Tower Case Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Mars Gaming MC-VIEW Micro-ATX Gaming Mini Tower Case. Designed for custom PC configurations, the MC-VIEW offers a unique blend of compact size, aesthetic appeal, and high performance for gaming enthusiasts. Please read this manual thoroughly before beginning assembly to ensure proper setup and to maximize the lifespan of your components.

Figure 1.1: The Mars Gaming MC-VIEW Micro-ATX Gaming Mini Tower Case.

2. Key Features

• Continuous Frameless Tempered Glass Design: Showcases internal components with a 90-degree frameless tempered glass panel, offering an unobstructed view of your build.
• Modular Dual-Chamber Structure: Optimizes cooling and space by separating the power supply and storage drives into a hidden side compartment, ensuring efficient airflow and clean aesthetics.
• Expanded Micro-ATX Capacity: Compatible with Micro-ATX and Mini-ITX motherboards. Supports up to 7 fans, 5 storage drives, VGA cards up to 330mm in length and 148mm in width, and CPU coolers up to 158mm in height.
• Optimal Cooling and Liquid Cooling Support: Engineered for superior thermal performance, supporting liquid cooling systems with radiators up to 240mm at the rear and top.

Figure 2.1: Continuous frameless tempered glass design.

Figure 2.2: Expanded Micro-ATX capacity for various components.

3. Technical Specifications

Figure 3.1: Internal dimensions and component compatibility.

4. Setup and Installation

Before starting, ensure you have all necessary components and tools. It is recommended to work on a clean, static-free surface.

4.1. Preparing the Case

1. Unpack the Case: Carefully remove the MC-VIEW case from its packaging. Inspect for any damage.
2. Remove Side Panels: The tempered glass side panels are typically secured with thumbscrews or a latch mechanism. Remove them to access the interior.
3. Accessory Kit: Locate the accessory kit, which usually contains screws, standoffs, and cable ties.

4.2. Motherboard Installation

1. Install Standoffs: Ensure the correct standoffs are installed for your Micro-ATX or Mini-ITX motherboard. The case may have pre-installed standoffs.
2. Install I/O Shield: Snap your motherboard's I/O shield into the rear opening of the case.
3. Mount Motherboard: Carefully place your motherboard onto the standoffs, aligning the screw holes. Secure it with the provided screws.

4.3. Power Supply Unit (PSU) Installation

The MC-VIEW features a dual-chamber design, with the PSU mounted in a separate compartment.

1. Position PSU: Slide the PSU into its designated compartment at the bottom rear of the case. Ensure the fan faces the correct direction for optimal airflow (usually downwards or towards the side panel vent).
2. Secure PSU: Fasten the PSU with screws from the rear of the case.
3. Cable Routing: Route the necessary PSU cables through the cutouts into the main chamber for component connection.

Figure 4.1: Power Supply Unit (PSU) installation in the dedicated compartment.

4.4. Storage Drive Installation

The case supports up to 5 x 2.5-inch drives. Refer to the case's internal structure for specific mounting points, typically located in the secondary chamber.

1. Locate Drive Bays: Identify the 2.5-inch drive mounting locations.
2. Mount Drives: Secure your SSDs or HDDs using the provided screws.
3. Connect Cables: Attach SATA data and power cables to the installed drives.

4.5. Graphics Card (VGA) Installation

1. Remove Expansion Slot Covers: Remove the necessary expansion slot covers at the rear of the case. Note that these are typically break-away covers and cannot be reattached.
2. Insert VGA Card: Align your graphics card with the PCIe slot on the motherboard and press firmly until it clicks into place.
3. Secure VGA Card: Fasten the graphics card to the case with screws.
4. Connect Power: Attach any required PCIe power cables from the PSU to the graphics card.

4.6. Cooling System Installation (Fans & Radiators)

The MC-VIEW supports up to 7 fans and liquid cooling radiators up to 240mm.

1. Fan Placement: Install fans in the designated locations (front, top, rear, bottom) using fan screws. Consider airflow direction (intake/exhaust).
2. Radiator Placement: For liquid cooling, mount radiators (up to 240mm) at the top or rear of the case. Secure them with screws.
3. Connect Fans/Pumps: Connect fan and pump cables to your motherboard or a fan controller.

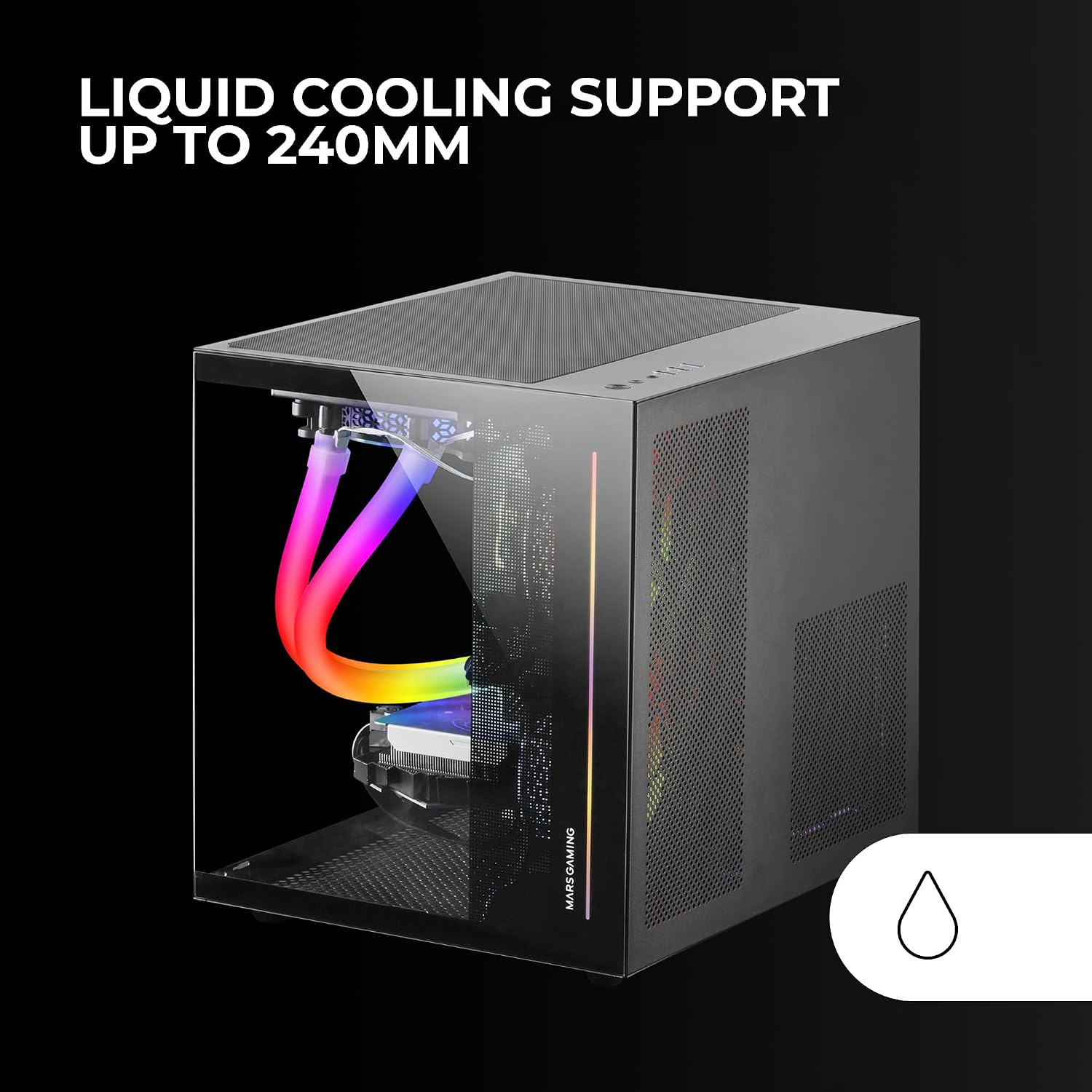

Figure 4.2: Liquid cooling system installed in the MC-VIEW case.

4.7. Cable Management

Utilize the dual-chamber design and cable routing cutouts to manage cables neatly. This improves airflow and aesthetics.

1. Route Cables: Pass cables through the grommets and tie-down points behind the motherboard tray.
2. Secure Cables: Use cable ties (often included in the accessory kit) to bundle and secure cables.
3. Connect Front Panel I/O: Connect the front panel USB, audio, power, and reset cables to the appropriate headers on your motherboard.

Figure 4.3: Modular dual-chamber structure for efficient cable management.

4.8. Final Assembly

1. Reattach Panels: Once all components are installed and cables managed, carefully reattach the tempered glass side panels.
2. Connect Peripherals: Connect your monitor, keyboard, mouse, and other peripherals to the rear I/O ports.

5. Operating Instructions

5.1. Powering On/Off

• Power On: Press the power button located on the front I/O panel.
• Power Off: Initiate a shutdown from your operating system. For a forced shutdown, press and hold the power button for several seconds.
• Reset: Use the reset button on the front I/O panel for a system restart if needed.

5.2. Front Panel Connectivity

The front I/O panel provides convenient access to essential ports:

• USB 3.0 Port (x1): For high-speed data transfer with compatible devices.
• USB 2.0 Ports (x2): For connecting standard USB peripherals.
• Audio Jack: For connecting headphones or a headset.

6. Maintenance

Regular maintenance helps ensure optimal performance and longevity of your PC components.

6.1. Dust Management

• Dust Filters: The case includes a magnetic dust filter on the top panel. Regularly remove and clean this filter to prevent dust buildup.
• Internal Cleaning: Periodically open the case and use compressed air to remove dust from fans, heatsinks, and other components. Ensure the system is powered off and unplugged before cleaning.

6.2. Tempered Glass Care

• Cleaning: Use a soft, lint-free cloth and a mild glass cleaner (or water) to clean the tempered glass panels. Avoid abrasive materials or harsh chemicals.
• Handling: Handle tempered glass panels carefully to prevent scratches or breakage.

7. Troubleshooting

This section addresses common issues you might encounter.

7.1. System Does Not Power On

• Power Connections: Verify that the PSU is properly connected to the wall outlet and switched on. Check all internal power connections to the motherboard, CPU, GPU, and drives.
• Front Panel Headers: Ensure the front panel power button cable is correctly connected to the motherboard's power header.

7.2. Overheating Issues

• Fan Configuration: Check that all installed fans are operating and configured for optimal airflow (e.g., front/bottom intake, top/rear exhaust).
• Dust Buildup: Clean any dust filters and internal components as described in the Maintenance section.
• Component Clearance: Ensure no cables or other obstructions are blocking airflow to critical components.

7.3. Component Fitment Problems

• Check Specifications: Refer to the Technical Specifications section for maximum supported dimensions for VGA cards, CPU coolers, and radiators.
• Cable Obstruction: Ensure cables are not interfering with component installation.
• Expansion Slot Covers: Note that PCI expansion slot covers are break-away type. Once removed, they cannot be reattached. Plan accordingly before removing them.

8. Warranty Information

The Mars Gaming MC-VIEW case comes with a 3-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, accidents, misuse, abuse, negligence, unauthorized modification, or natural disasters.

9. Support and Contact

For further assistance, technical support, or to inquire about replacement parts, please visit the official Mars Gaming website or contact their customer service department. You can also find additional resources and product information on the Mars Gaming Store on Amazon.
