Carburetor Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your Kacarber replacement carburetor, designed for Generac 7000EXL generators with 14HP Briggs & Stratton engines.

A carburetor is a device that blends air and fuel for an internal combustion engine. It is crucial for the proper functioning and efficiency of your generator.

Package Contents:

• 1 x Carburetor
• 1 x Fuel Filter
• 1 x Fuel Shut Off Valve
• 1 x Spark Plug
• 2 x Clamps
• 1 x Fuel Hose
• 1 x Gasket

Image 1.1: Overview of the Kacarber Carburetor Replacement Kit components.

2. Compatibility

This carburetor is designed as a direct replacement for specific Generac generator models. Please verify your generator's model number before installation to ensure proper fitment.

Applicable Models:

• Generac 7000EXL, 7000, 12250 Watts Generator (Replaces Part Numbers 01095, 01470 Carburetor)
• Generac 5500xl Generator Model 09778-6
• Generac 7550EXL, 8000EXL, 6500XL, 5500XL, XG8000E, GP8000, GP6500, GP7000E
• Generac 410cc Generator (Part Number: 0G95940SRV, 0A4600, 410HS, GN410, GN360, GH360)

3. Setup and Installation

WARNING: Professional installation is highly recommended for this component. Improper installation can lead to engine damage, fuel leaks, or personal injury. Always disconnect the spark plug wire and ensure the engine is cool before beginning any work.

General Installation Steps:

1. Safety First: Ensure the generator is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting. Disconnect the battery if applicable.
2. Drain Fuel: Drain the fuel tank and carburetor float bowl to prevent spills.
3. Remove Air Filter Assembly: Carefully remove the air filter housing and air filter to access the carburetor.
4. Disconnect Linkages and Hoses: Disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Note their positions for reassembly.
5. Remove Old Carburetor: Unbolt the old carburetor from the engine manifold. Be mindful of gaskets.
6. Install New Gaskets: Place the new gaskets provided with the kit in their correct positions between the engine, carburetor, and air filter housing.
7. Mount New Carburetor: Install the new Kacarber carburetor, ensuring it is seated correctly and bolted securely.
8. Reconnect Linkages and Hoses: Reconnect the fuel line, throttle linkage, and choke linkage to the new carburetor. Install the new fuel filter and fuel shut-off valve as needed.
9. Install New Spark Plug: Replace the old spark plug with the new one provided.
10. Reassemble Air Filter: Reinstall the air filter and air filter housing.
11. Refill Fuel: Add fresh, clean fuel to the tank.
12. Test Operation: Reconnect the spark plug wire and attempt to start the generator. Check for fuel leaks and proper engine operation. Adjust idle speed if necessary.

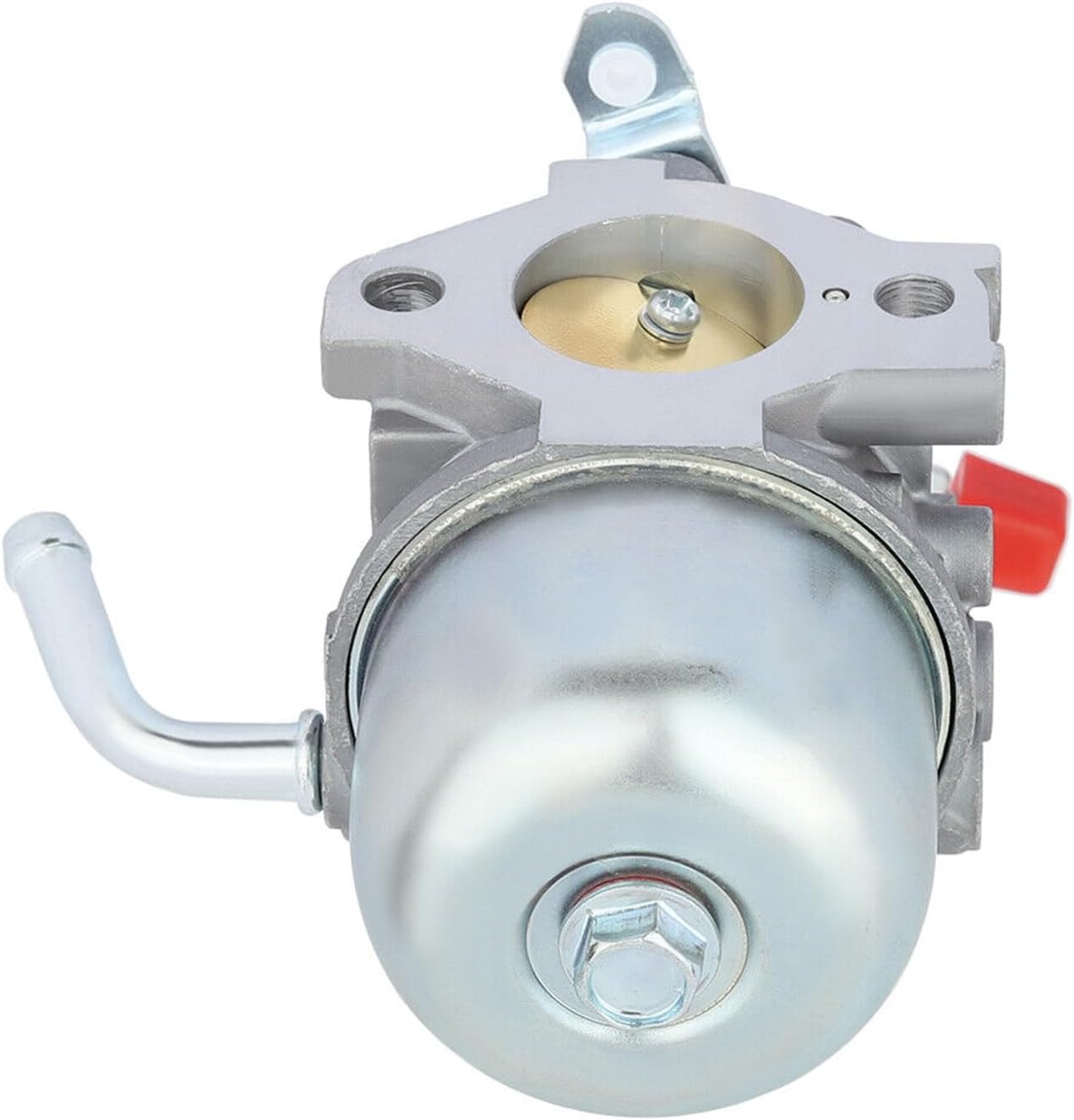

Image 3.1: Side view of the carburetor, showing fuel inlet and mounting points.

Image 3.2: Top view of the carburetor, highlighting the air intake and linkage points, along with included gaskets.

4. Operating Principles

The carburetor's primary function is to mix air and fuel in the correct ratio for combustion. Once installed, the carburetor operates automatically based on engine demand.

• Choke: Used for cold starts to enrich the fuel mixture.
• Throttle: Controls the amount of air-fuel mixture entering the engine, thereby regulating engine speed.
• Float Bowl: Maintains a constant level of fuel for the carburetor jets.

Refer to your generator's original owner's manual for specific starting and operating procedures.

5. Maintenance

Regular maintenance of your carburetor and associated fuel system components will ensure optimal performance and longevity of your generator.

• Fuel Quality: Always use fresh, clean, unleaded gasoline. Stale fuel can cause deposits that clog carburetor jets. Consider using a fuel stabilizer if the generator will be stored for extended periods.
• Fuel Filter: The included fuel filter should be inspected and replaced periodically (e.g., annually or every 100 hours of operation) to prevent contaminants from reaching the carburetor.
• Air Filter: A clean air filter is vital for proper air-fuel mixture. Inspect and clean/replace the generator's air filter regularly according to your generator's manual.
• Spark Plug: The included spark plug should be checked for wear and fouling. Replace it as part of routine maintenance to ensure efficient ignition.
• Carburetor Cleaning: If the generator experiences performance issues, the carburetor may need cleaning. This typically involves disassembling the carburetor and cleaning jets and passages with carburetor cleaner. This task is best performed by a qualified technician.

6. Troubleshooting

If your generator experiences issues after carburetor replacement, consider the following common problems and solutions:

If issues persist after basic troubleshooting, it is advisable to consult a qualified small engine mechanic.

7. Specifications

8. Warranty Information

Specific warranty details for Kacarber products are typically provided at the point of purchase or on the manufacturer's official website. Please retain your proof of purchase for any warranty claims.

This carburetor is a replacement part. Its warranty may be separate from the original generator's warranty.

9. Customer Support

For technical assistance, installation guidance, or questions regarding your Kacarber carburetor, please contact the seller or manufacturer directly. Professional customer service technical guidance is recommended for complex issues.

Refer to your purchase documentation for specific contact details.
