Introduction
The FECiDA Grow Light is a full-spectrum desk grow lamp designed for indoor plants, houseplants, bonsai, vegetables, and seedlings. It features 208 high-quality LEDs providing 2000 lumens of brightness, equivalent to a 200W incandescent lamp. This model includes a convenient 4/8/12 hour timer function and an adjustable height stand, making it suitable for various plant growth stages and environments. Its stable base and flexible gooseneck allow for versatile placement and light direction.
Figure 1: FECiDA Desk Grow Light in use with various indoor plants.
Safety Information
- Ensure the power source matches the product's voltage requirements (220 Volts AC).
- Do not expose the light to water or high humidity. This product is not water resistant.
- Keep out of reach of children and pets.
- Do not stare directly into the LED lights when illuminated, as intense light can cause eye strain.
- Always unplug the device before cleaning or performing any maintenance.
- Ensure proper ventilation around the lamp head to prevent overheating.
- Do not attempt to modify or disassemble the product beyond the intended assembly steps.
- For daisy chain function, do not exceed connecting more than 3 lamps for the timer model.
Package Contents
Verify that all components are present before assembly:
- 1 x LED Grow Light Head (208PCS LEDs)
- 1 x Adjustable Gooseneck Stand with Telescopic Rod
- 1 x Metal Base (Round)
- 1 x Inline Controller with 4/8/12 Hr Timer
- 1 x Power Cable (2.5m/8.2ft)
- 1 x User Manual (this document)
Setup Instructions
Follow these steps to assemble your FECiDA Grow Light:
- Connect the Base: Screw the telescopic rod into the metal base. Ensure it is securely tightened.
- Attach the Gooseneck: Screw the gooseneck portion of the stand onto the top of the telescopic rod.
- Mount the Light Head: Attach the LED grow light head to the top of the gooseneck. Ensure the female end of the power cable from the light head is securely inserted into the bottom of the socket in the lamp head.
- Connect Power: Plug the power cable into a compatible electrical outlet.

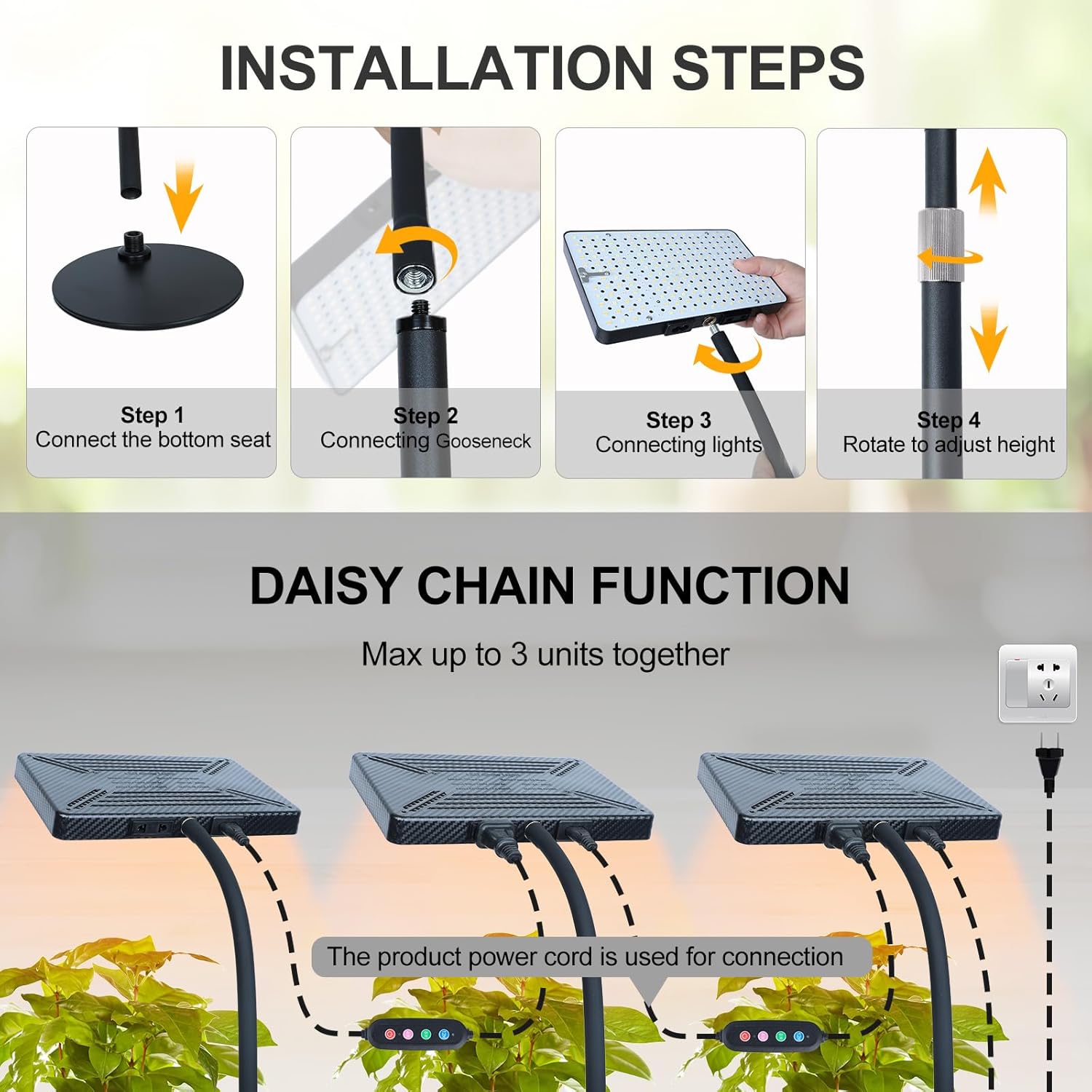

Figure 2: Visual guide for connecting the base, gooseneck, and light head.
Figure 3: Simplified installation steps for quick setup.
Operating Instructions
Timer Function
The grow light features an automatic timer function with three settings: 4 hours, 8 hours, and 12 hours. Once set, the light will automatically turn ON and OFF at the same time every day.
- 4H: Light operates for 4 hours, then turns off for 20 hours.
- 8H: Light operates for 8 hours, then turns off for 16 hours.
- 12H: Light operates for 12 hours, then turns off for 12 hours.
- Press the ON/OFF button to manually turn the light on or off, overriding the timer.

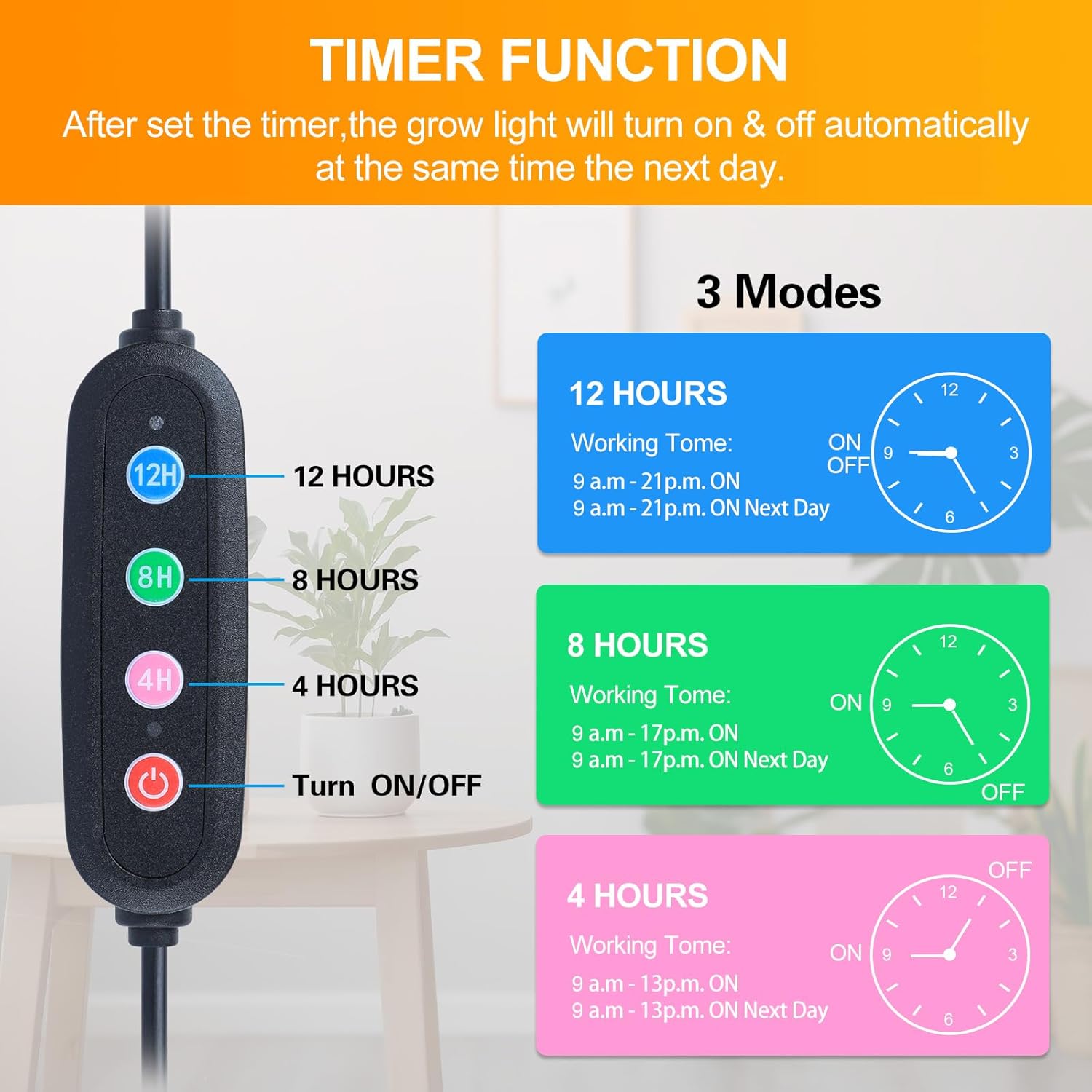

Figure 4: Detailed view of the inline controller with timer buttons.
Daisy Chain Function
Multiple FECiDA Grow Lights can be connected together using a single power outlet. The power cable provided with each unit can be used to link up to 3 timer models (or up to 5 inline On/Off switch models) in a series.
Figure 5: Illustration of connecting multiple grow lights in a daisy chain configuration.
Figure 6: Close-up of the input and output ports for daisy chain functionality.
Height Adjustment and Gooseneck Flexibility
The grow light features an adjustable height telescopic rod and a 360° flexible gooseneck, allowing you to position the light precisely for optimal plant growth. The height can be adjusted from 16 inches (40cm) to 24 inches (60cm) by rotating the metal connector on the stand.
Figure 7: Demonstrates the adjustable height range and flexible gooseneck.
Video 1: Official FECiDA video showcasing the grow light's ability to beautify plants and homes, highlighting its versatile design and light output.
Full Spectrum Light
The FECiDA Grow Light provides a full spectrum of light, mimicking natural sunlight. This spectrum is crucial for all stages of plant growth, from sprouting and vegetative growth to flowering and fruiting. The 208 LEDs include a balanced mix of wavelengths to support photosynthesis and healthy development.
Figure 8: Diagram illustrating the full spectrum light output and its suitability for various plant types and growth stages.
Maintenance
- Cleaning: Ensure the light is unplugged and cool before cleaning. Use a soft, dry cloth to wipe the light head and stand. Do not use abrasive cleaners or liquids directly on the LEDs or electrical components.
- Storage: When not in use for extended periods, store the grow light in a cool, dry place, away from direct sunlight and moisture.
- Cable Care: Regularly inspect the power cable for any signs of damage, fraying, or exposed wires. If damage is found, discontinue use immediately and contact customer support.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, loose connection, faulty switch. | Check if the power cable is securely plugged into the outlet and the lamp head. Ensure the outlet is functional. Press the ON/OFF button on the inline controller. |
| Light flickers or dims intermittently. | Unstable power connection, damaged cable. | Ensure all connections are tight. Inspect the power cable for any visible damage. If damaged, discontinue use. |
| Timer function is not working correctly. | Incorrect timer setting, power interruption. | Re-set the desired timer duration (4H/8H/12H). Ensure the light is not manually turned off after setting the timer. |
| Light head feels hot. | Normal operation, insufficient ventilation. | A slight warmth is normal. Ensure the lamp head has adequate airflow and is not covered. If excessively hot, unplug and allow to cool. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | Zinqolay |
| Light Source Type | LED (208 PCS) |
| Brightness | 2000 Lumen |
| Wattage | 25 Watts |
| Voltage | 220 Volts (AC) |
| Height Adjustment | 16" - 24" (40cm - 60cm) |
| Timer Settings | 4H / 8H / 12H |
| Material | Acrylonitrile Butadiene Styrene, Metal |
| Product Dimensions | 8.4 x 5.2 x 0.8 inches (Light Head) |
| Item Weight | 2.16 pounds |
| Indoor/Outdoor Usage | Indoor Only |
Warranty and Support
FECiDA is committed to providing high-quality products and excellent customer service. For any questions, concerns, or warranty claims regarding your grow light, please contact FECiDA-US customer support through the Amazon online message system via your purchased link. Our professional and reliable team is dedicated to ensuring your satisfaction and providing the best possible experience with your FECiDA grow light.
For more information about FECiDA Grow Light products, visit the official FECiDA Store on Amazon.
