1. Introduction
Thank you for choosing the E-SMARTER LIUFR-8003 Digital 12V Car Tire Inflator. This device is designed to provide quick and accurate tire inflation for various vehicles and inflatable items. It features a powerful 22mm cylinder, a dual digital display for precise pressure monitoring, and an automatic shut-off function for convenience and safety. Please read this manual thoroughly before use to ensure proper operation and maintenance.
2. Safety Information
- Always operate the inflator in a well-ventilated area.
- Do not leave the inflator unattended while in operation.
- Keep out of reach of children.
- Ensure the power source (12V car cigarette lighter) is clean and free of debris.
- Avoid over-inflating tires. Always refer to your vehicle's recommended tire pressure.
- The inflator may become warm during prolonged use. Allow it to cool down between uses.
- Do not use the inflator if it is damaged or if the power cord is frayed.
- This product is not suitable for large trucks or motor trucks.
3. Package Contents
Verify that all items are present in your package:
- E-SMARTER LIUFR-8003 Digital Car Tire Inflator
- Air Hose with Screw Connector
- 4 x Additional Nozzle Adapters (for bicycles, balls, inflatable boats, etc.)
- 1 x Spare Fuse
- Storage Bag
- User Manual
4. Product Overview
The E-SMARTER LIUFR-8003 tire inflator is designed for ease of use and efficiency. Key features include:
- Dual Display: Shows both the current tire pressure and the target preset pressure simultaneously.
- 22mm Cylinder: Provides faster and more efficient inflation.
- Auto Shut-off: Automatically stops inflation once the preset pressure is reached.
- LED Light: Integrated for illumination during night-time or low-light conditions.
- Integrated Storage: Convenient storage for the 3m cigarette lighter cord and air hose.
Figure 4.1: Front view of the inflator with controls labeled. The display shows preset pressure value, real-time pressure value, and unit. Buttons include ON/OFF, '+', '-', LED Light, and 'R' for switching units.
Figure 4.2: The dual display screen, clearly showing the 'Required Tyre Value' (preset) and 'Current Tyre Value' (real-time) in BAR units.
5. Setup and Operating Instructions
Follow these steps to properly set up and operate your tire inflator:
- Start the Car: Ensure your vehicle's engine is running to provide stable power to the inflator.
- Connect Power: Plug the power connector (cigarette lighter plug) into your car's 12V accessory socket.
- Attach Air Hose: Connect the air hose nozzle tightly to the tire valve stem. Press down the buckle to secure it.
- Set Desired Pressure: The dual display will show the current tire pressure. Use the '+' and '-' buttons to set your desired target pressure. Press the 'R' button to cycle through pressure units (PSI, BAR, KPA, kg/cm²).
- Start Inflation: Press the ON/OFF button to begin inflation. The inflator will automatically stop once the preset pressure is reached.
- Disconnect: Once inflation is complete, disconnect the air hose nozzle from the tire valve and unplug the power connector from the car's socket. Store the hose and cord in their designated compartments.

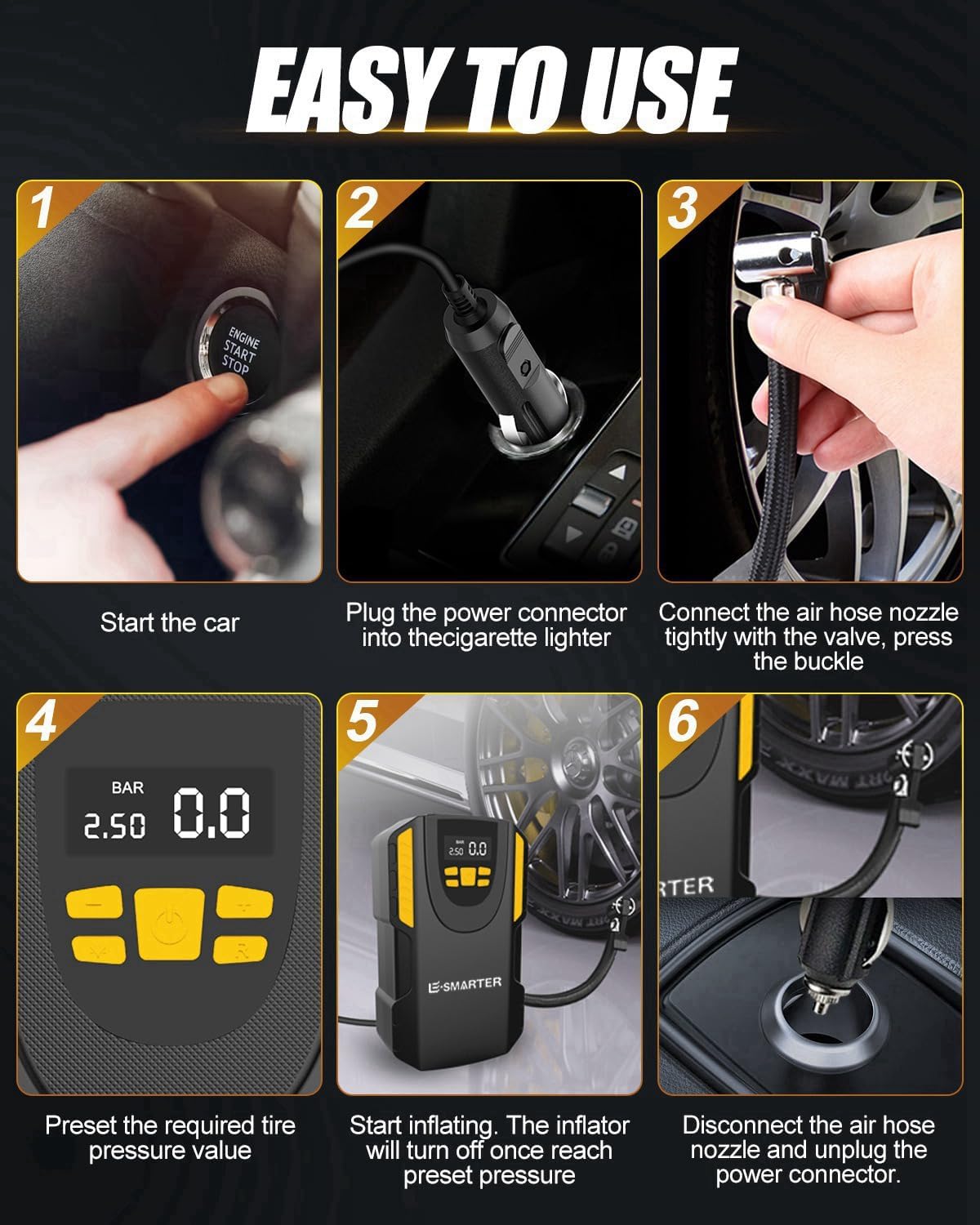

Figure 5.1: Step-by-step guide for operating the tire inflator, from starting the car to disconnecting the device.
Memory Function
The inflator features a memory function. Once a target pressure is set, it will be remembered for subsequent uses, eliminating the need to reset it each time for the same pressure.
LED Light Operation
Press the LED Light button to turn on the integrated LED light for visibility in dark conditions. Press it again to turn it off.
6. Maintenance
- Cleaning: Wipe the exterior of the inflator with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the inflator in its provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the power cord and air hose are neatly stored in their compartments.
- Fuse Replacement: If the inflator stops working, check the fuse in the cigarette lighter plug. Replace it with the provided spare fuse if necessary.
- Recommended Working Time: To prevent overheating and prolong the product's lifespan, it is recommended to operate the inflator for a maximum of 10 minutes at a time. After 10 minutes of continuous use, allow the device to rest for 5-10 minutes before resuming operation.
Figure 6.1: Important note regarding the recommended working time of 10 minutes per session to prevent overheating.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Inflator does not turn on. | No power from 12V socket; Blown fuse in plug; Loose connection. | Ensure car engine is running. Check 12V socket for power. Replace fuse in cigarette lighter plug. Ensure plug is fully inserted. |
| Slow inflation or no air output. | Air hose not securely connected; Tire valve stem damaged; Inflator overheating. | Ensure air hose is tightly connected to the tire valve. Check tire valve for damage. Allow inflator to cool down for 5-10 minutes. |
| Inflator does not stop at preset pressure. | Sensor malfunction; Extreme pressure difference. | Manually stop the inflator once the desired pressure is reached. Contact customer support if the issue persists. |
| Inaccurate pressure reading. | Loose connection; Sensor calibration issue. | Ensure air hose is securely connected. Compare reading with a known accurate gauge. |
8. Specifications
- Model: LIUFR-8003
- Brand: E-SMARTER
- Voltage: 12 Volts DC
- Cylinder Size: 22mm
- Inflation Rate: 25 L/min
- Max Pressure: Up to 150 PSI
- Noise Level: 92 Decibels
- Color: Black
- Package Dimensions: 23.4 x 13.7 x 7.7 cm
- Weight: 910 grams
Figure 8.1: Illustration of the upgraded 22mm cylinder, indicating increased inflation speed and reduced inflation time.
Figure 8.2: Visual representation of the inflator's capability to reach up to 150 PSI and its 25 L/min inflation rate.
9. Warranty and Support
E-SMARTER products are manufactured to high-quality standards. For any questions, concerns, or technical support regarding your LIUFR-8003 Digital 12V Car Tire Inflator, please refer to the contact information provided with your purchase or visit the official E-SMARTER website. Please retain your proof of purchase for warranty claims.
