Contour Design Wireless Black Balance Keyboard User Manual

Introduction

This manual provides detailed instructions for the Contour Design Wireless Black Balance Keyboard (Model 102104). This keyboard is engineered to complement Contour Design RollerMouse and SliderMouse products, promoting an ergonomic workspace by minimizing reach and supporting a natural hand position.

Key Features

• Ergonomic Design: Reduces forward reach to minimize wrist and shoulder strain, especially when paired with RollerMouse or SliderMouse.
• Adjustable Tilt: Offers negative, neutral, and positive tilt options for personalized comfort and optimal typing posture.
• Full Functionality: Includes a numeric keypad, function keys (F1-F12), media controls, and shortcut keys.
• Wireless Connectivity: Supports both USB-A receiver (2.4GHz Contour protocol) and Bluetooth connections.
• Cross-Platform Compatibility: Works with both PC and Mac operating systems.
• Compact Profile: Low-profile keys and a slim design optimize desk space.

Package Contents

• Contour Design Wireless Black Balance Keyboard
• USB-A Receiver
• 2 x AAA Batteries (pre-installed or included separately)
• User Manual (this document)

Setup

1. Battery Installation

The keyboard requires 2 AAA batteries. These are typically included with your purchase.

1. Locate the battery compartment on the underside of the keyboard.
2. Open the compartment cover.
3. Insert the 2 AAA batteries, ensuring correct polarity (+/-).
4. Close the battery compartment cover securely.

2. Connecting the Keyboard

The Balance Keyboard offers two wireless connection methods: via USB-A receiver or Bluetooth.

Option A: USB-A Receiver (2.4GHz Wireless)

1. Locate the USB-A receiver, usually found in the battery compartment or packaged separately.
2. Plug the USB-A receiver into an available USB port on your computer (PC or Mac).
3. Turn on the keyboard using the power switch, typically located on the side or back.
4. The keyboard should automatically connect to your computer. No additional drivers are usually required.

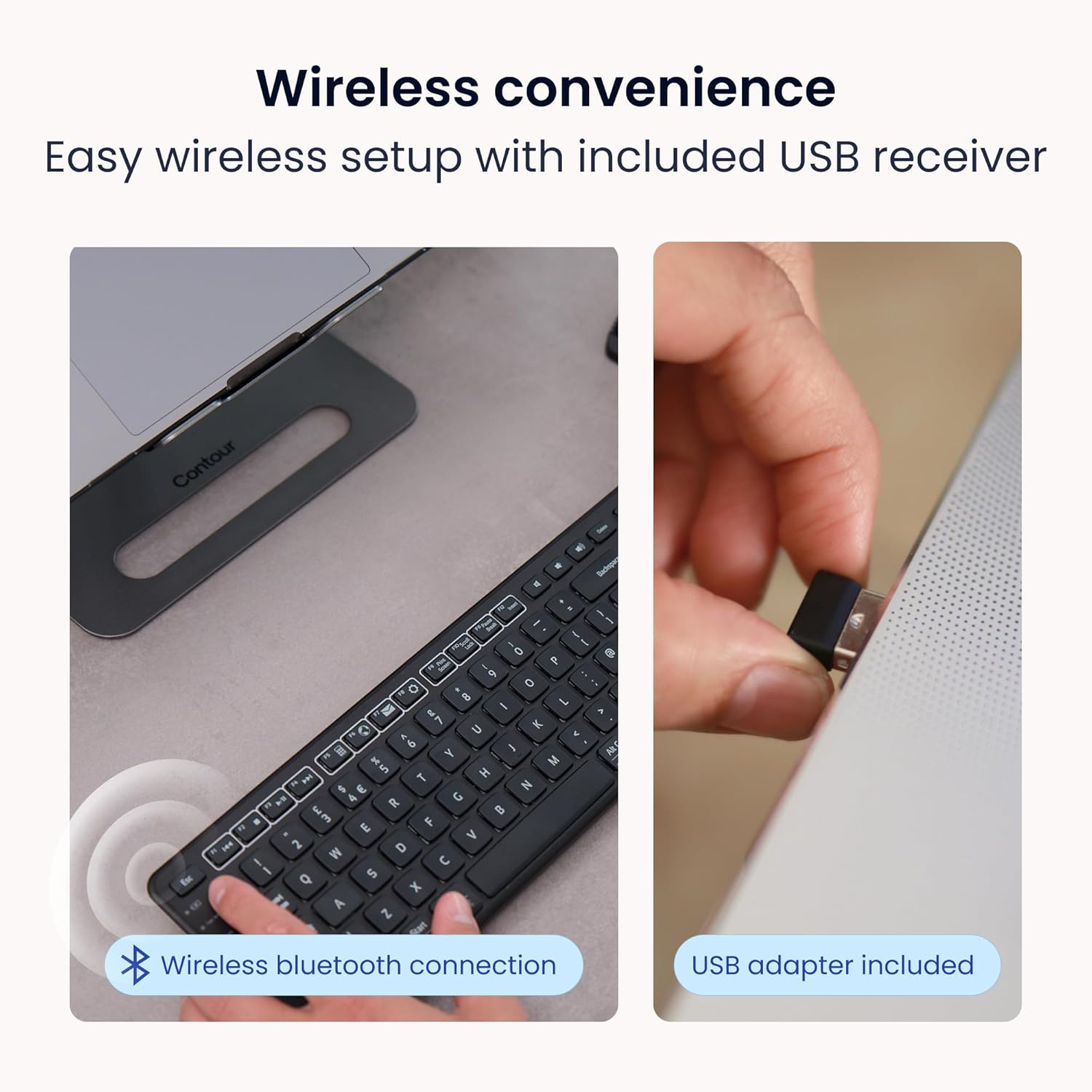

Image: Wireless convenience with USB adapter. This image shows the USB receiver being inserted into a computer port, illustrating the plug-and-play setup for wireless connectivity.

Option B: Bluetooth Connection

1. Ensure the keyboard is powered on.
2. Activate Bluetooth pairing mode on the keyboard. (Refer to the keyboard's specific button for Bluetooth pairing, often indicated by a Bluetooth icon or a dedicated pairing button).
3. On your computer (PC or Mac), open Bluetooth settings.
4. Search for available devices and select "Contour Balance Keyboard" or a similar name.
5. Follow any on-screen prompts to complete the pairing process.

Operating Instructions

Basic Typing and Layout

The Balance Keyboard features a standard QWERTY layout with a full numeric keypad.

Image: Top-down view of the Contour Design Wireless Black Balance Keyboard. This image displays the full keyboard layout, including the numeric keypad and function keys.

Function Keys (F1-F12) and Media Controls

The top row of keys serves dual functions. By default, they may act as media controls (e.g., volume, play/pause) or shortcuts. To access the traditional F1-F12 functions, use the Fn key, typically located near the bottom left of the keyboard. Some keyboards feature an Fn Lock feature to toggle between these modes.

Adjustable Tilt

The keyboard is designed with adjustable legs to allow for three different tilt positions: negative, neutral, and positive. Adjusting the tilt can help optimize your typing posture and reduce wrist strain.

1. Negative Tilt: Tilts the keyboard downwards towards the user, often considered optimal for a natural hand angle.
2. Neutral Tilt: The keyboard lies flat on the desk.
3. Positive Tilt: Tilts the keyboard upwards away from the user, a more traditional keyboard angle.

To adjust, locate the adjustable feet on the underside of the keyboard and extend or retract them as desired.

Image: Adjustable tilt options. This diagram illustrates the three available tilt positions: positive, neutral, and negative, demonstrating how to customize the keyboard angle for comfort.

Pairing with RollerMouse and SliderMouse

The Balance Keyboard is specifically designed to integrate seamlessly with Contour Design RollerMouse Pro and SliderMouse Pro devices. Its compact design minimizes the distance you need to reach, promoting a more centralized and ergonomic workspace.

Image: Seamless RollerMouse pairing. This image shows the Balance Keyboard positioned directly above a RollerMouse, demonstrating an ideal ergonomic setup.

Image: Natural hand position. This image illustrates a user typing on the Balance Keyboard with a RollerMouse, highlighting how the setup keeps hands close and promotes a healthier posture.

Image: Slim profile. A side view of the keyboard on a desk, emphasizing its low-profile keys and compact design that saves desk space.

Image: Ergonomic design in use. This image shows a user working with the Balance Keyboard and a RollerMouse, demonstrating how the setup reduces forward reach and minimizes wrist and shoulder strain. It also highlights compatibility with Mac and Windows, and multiple screens.

Maintenance

To ensure the longevity and optimal performance of your Balance Keyboard, follow these maintenance guidelines:

• Cleaning: Use a soft, lint-free cloth slightly dampened with water or a mild, non-abrasive cleaner to wipe the surface of the keyboard. Avoid excessive moisture. Do not spray cleaners directly onto the keyboard.
• Dust Removal: Use compressed air to remove dust and debris from between the keys.
• Battery Replacement: Replace AAA batteries when the low battery indicator (if present) illuminates, or when keyboard responsiveness decreases.
• Storage: When not in use for extended periods, store the keyboard in a dry, cool place away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter issues with your Balance Keyboard, refer to the following common solutions:

Specifications

Warranty Information

The Contour Design Wireless Black Balance Keyboard is backed by a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its specified performance standards under normal use. Please retain your proof of purchase for warranty claims.

Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Contour Design's customer support team.

• Website: Visit the official Contour Design website for support resources, FAQs, and contact information.
• Contact: Refer to the packaging or the official website for specific contact methods (phone, email, support portal).

Our friendly and professional support team is available to assist you.
