Veken High Pressure Rain Shower Head Combo

1. Introduction

Thank you for choosing the Veken High Pressure Rain Shower Head Combo with Extension Arm. This product is designed to enhance your showering experience with its versatile spray modes, adjustable features, and robust construction. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your shower system.

2. Product Features

• Multiple Spray Modes: Enjoy 23 customizable spray modes, including 5 handheld, 3 rainfall, and 15 combo settings, allowing for a personalized and refreshing shower experience.
• Height and Angle Adjustable: The 11-inch extension arm provides height adjustment, while the overhead and handheld mount angle adjustment knobs allow you to customize the spray angle.
• Powerful Flow: Engineered for high pressure with anti-clog nozzles, ensuring consistent and efficient water flow.
• Built to Last: Constructed from durable Acrylonitrile Butadiene Styrene (ABS) with a polished chrome finish, designed to resist wear and tear and maintain performance over time.

Figure 2.1: Illustration of the 2 rainfall modes (Rain, Heavy Rain) and 5 handheld modes (Rain, Mist, Massage, Rain + Mist, Rain + Massage) available with the Veken shower head. The main shower head can be rotated 90 degrees to switch between modes.

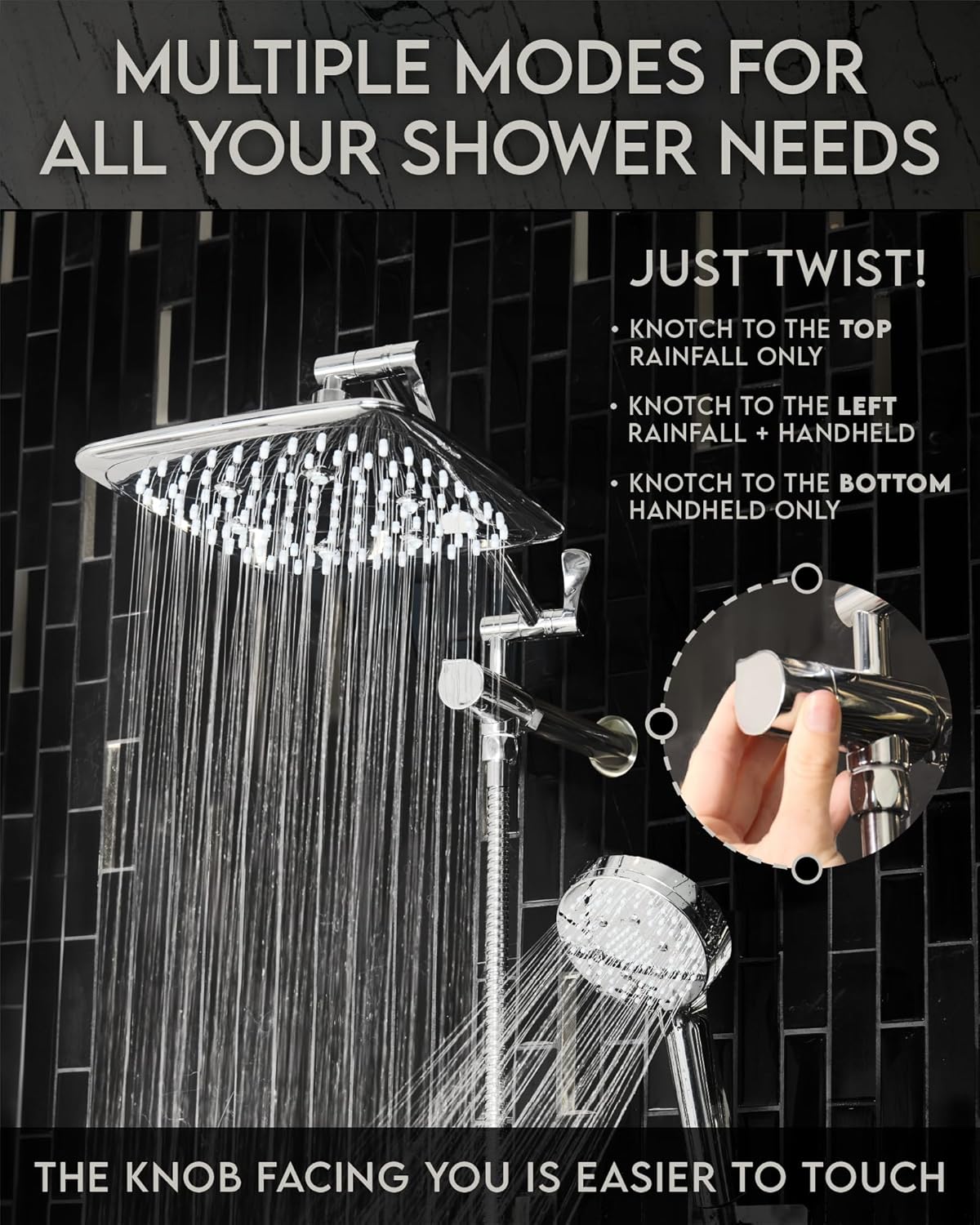

Figure 2.2: The control knob allows for easy switching between rainfall only, rainfall + handheld, and handheld only modes. The knob facing the user is designed for easy access.

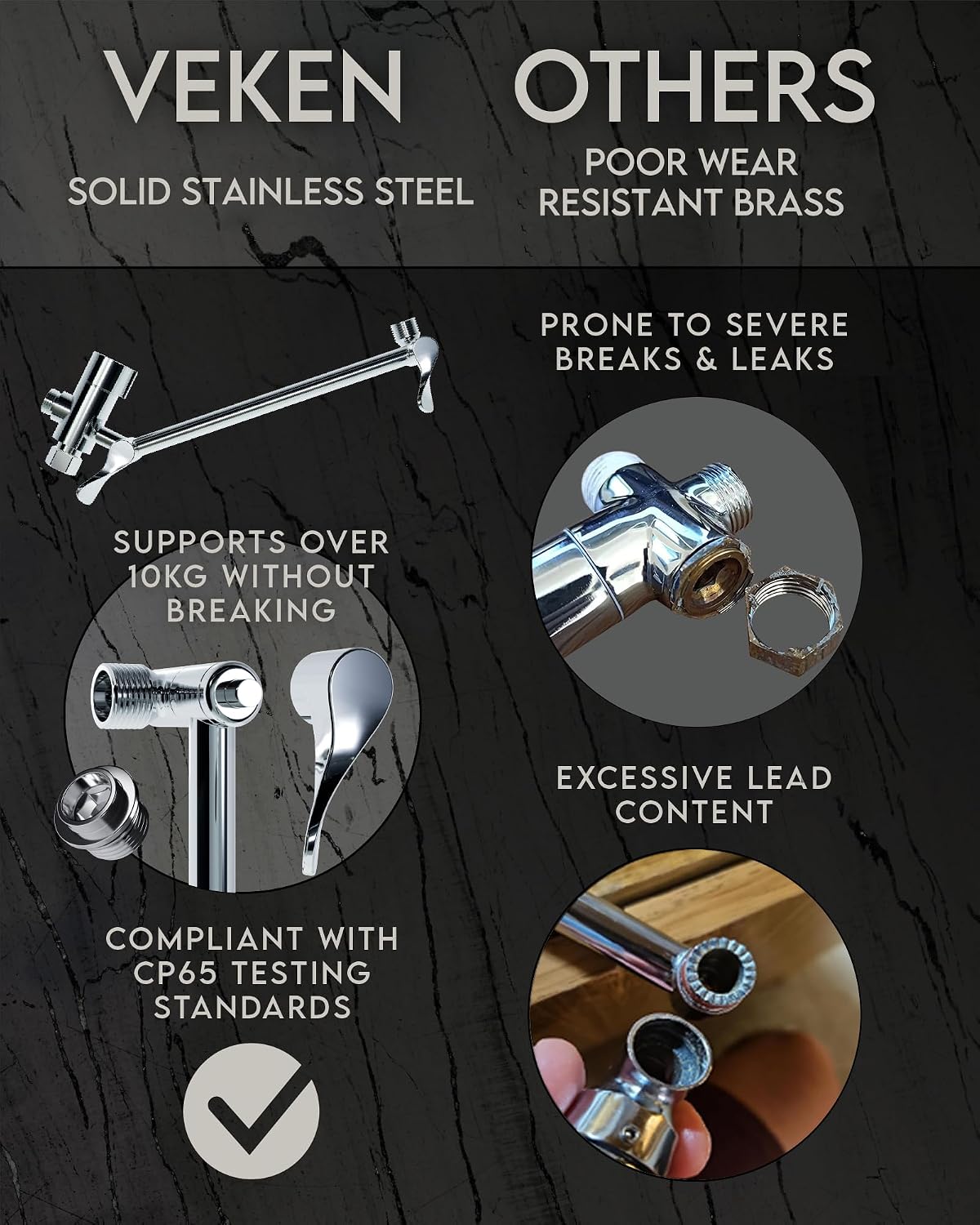

Figure 2.3: Comparison highlighting Veken's use of solid stainless steel for durability and compliance with CP65 testing standards, in contrast to some other products that may use less durable materials prone to leaks.

3. Package Contents

Please verify that all components are present before beginning installation:

• Rain Shower Head x 1
• Handheld Shower Head x 1
• Integrated Tri-Arm Extension x 1
• 71" Hose x 1
• Teflon Tape x 1
• Spare Washers x 2

Figure 3.1: All components included in the Veken shower head combo package, laid out for inspection.

4. Setup & Installation

The Veken shower head combo is designed for easy, tool-free installation. Follow these steps for a quick setup:

1. Prepare Shower Arm: Remove your existing shower head. Clean any old sealant or debris from the shower arm threads.
2. Apply Teflon Tape: Wrap the provided Teflon tape clockwise around the threads of your existing shower arm 3-5 times. This helps prevent leaks.
3. Install Integrated Tri-Arm Extension: Screw the integrated tri-arm extension onto your shower arm. Hand-tighten firmly. Ensure the diverter knob is facing a convenient direction.
4. Connect Main Shower Head: Screw the large rain shower head onto the top outlet of the tri-arm extension. Hand-tighten.
5. Connect Handheld Hose: Attach one end of the 71-inch hose to the side outlet of the tri-arm extension. Attach the other end of the hose to the handheld shower head. Hand-tighten both connections.
6. Mount Handheld Holder: Secure the adhesive wall mount for the handheld shower head to a clean, dry, flat shower wall surface at a comfortable height. Allow adhesive to set for 24 hours before use.
7. Test for Leaks: Turn on the water and check all connections for leaks. If leaks occur, tighten connections slightly or reapply Teflon tape.

Figure 4.1: Visual steps for installation: 1. Bracket Installation, 2. Hose Connection, 3. Main Head Installation, 4. Handheld Attachment.

5. Operating Instructions

Your Veken shower head combo offers multiple ways to enjoy your shower:

• Switching Between Shower Heads: Use the diverter knob on the integrated tri-arm extension to select your desired water flow:
  • Knob to the TOP: Rainfall only.
  • Knob to the LEFT: Rainfall + Handheld (both active).
  • Knob to the BOTTOM: Handheld only.
• Adjusting Rainfall Modes: The main rain shower head can be rotated 90 degrees to switch between different rainfall patterns (e.g., Rain, Heavy Rain).
• Adjusting Handheld Modes: The handheld shower head features a selector on its face to cycle through its 5 spray modes (Rain, Mist, Massage, Rain + Mist, Rain + Massage).
• Adjusting Height and Angle: The extension arm allows you to adjust the height of the main shower head. The angle of both the main shower head and the handheld mount can also be adjusted for optimal spray direction.

6. Maintenance

Regular cleaning will help maintain the performance and appearance of your Veken shower head combo:

• Cleaning Nozzles: The anti-clog nozzles are designed to resist mineral buildup. Periodically rub the rubber nozzles with your finger or a soft brush to dislodge any deposits.
• General Cleaning: Clean the chrome finish with a soft cloth and mild soap or a non-abrasive bathroom cleaner. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Hose Care: Ensure the hose is not kinked or twisted during use or storage to prevent damage.

7. Troubleshooting

8. Specifications

9. Warranty & Support

Veken products are manufactured with quality and durability in mind. For any questions, concerns, or warranty inquiries regarding your Veken High Pressure Rain Shower Head Combo, please contact Veken customer support through the retailer's platform or the official Veken website. Please have your model number (SHC5V210) and purchase information ready when contacting support.
