Important Safety Information
Read all instructions before using this appliance to ensure safe and effective operation.
- Do not use the massager for more than 15 minutes at a time to prevent overheating.
- Ensure the massager is on a stable, level surface to prevent tipping during use.
- The massager has a weight capacity of 17 pounds. Do not exceed this weight limit when using it as an ottoman.
- Always unplug the massager when not in use and before performing any assembly, disassembly, or cleaning.
Legal Disclaimer: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.
Product Overview
The Carepeutic KH351 is a versatile foot and leg massager designed to provide a comprehensive massage experience. It combines Shiatsu, air kneading, vibration, and optional heat therapy to relieve fatigue and improve circulation in your feet and calves. Its 2-in-1 design allows it to function as both a massager and a stylish ottoman.
Key Features
- Multifunctional Comfort: Features deep-kneading Shiatsu massage for feet and air kneading massage for calves, ideal for reflexology and daily stress relief.
- Ergonomic Wellness Support: Designed to elevate your legs, promoting better circulation and comfort during massage sessions.
- Complete Massage Experience: Offers rolling, kneading, high-frequency vibration, and optional heat therapy for feet, complemented by kneading massage for calves.
- Customizable Settings: Choose from four massage modes and three intensity levels, with the flexibility to target feet, calves, or both simultaneously.
Product Components
Setup
Follow these steps to set up your Carepeutic KH351 Foot & Leg Massager:
- Unpack: Carefully remove the massager from its packaging. Verify that all components are present and undamaged.
- Placement: Position the massager on a stable, level surface near a readily accessible electrical outlet. Ensure adequate space around the unit for comfortable use.
- Power Connection: Plug the power cord securely into a standard electrical outlet.

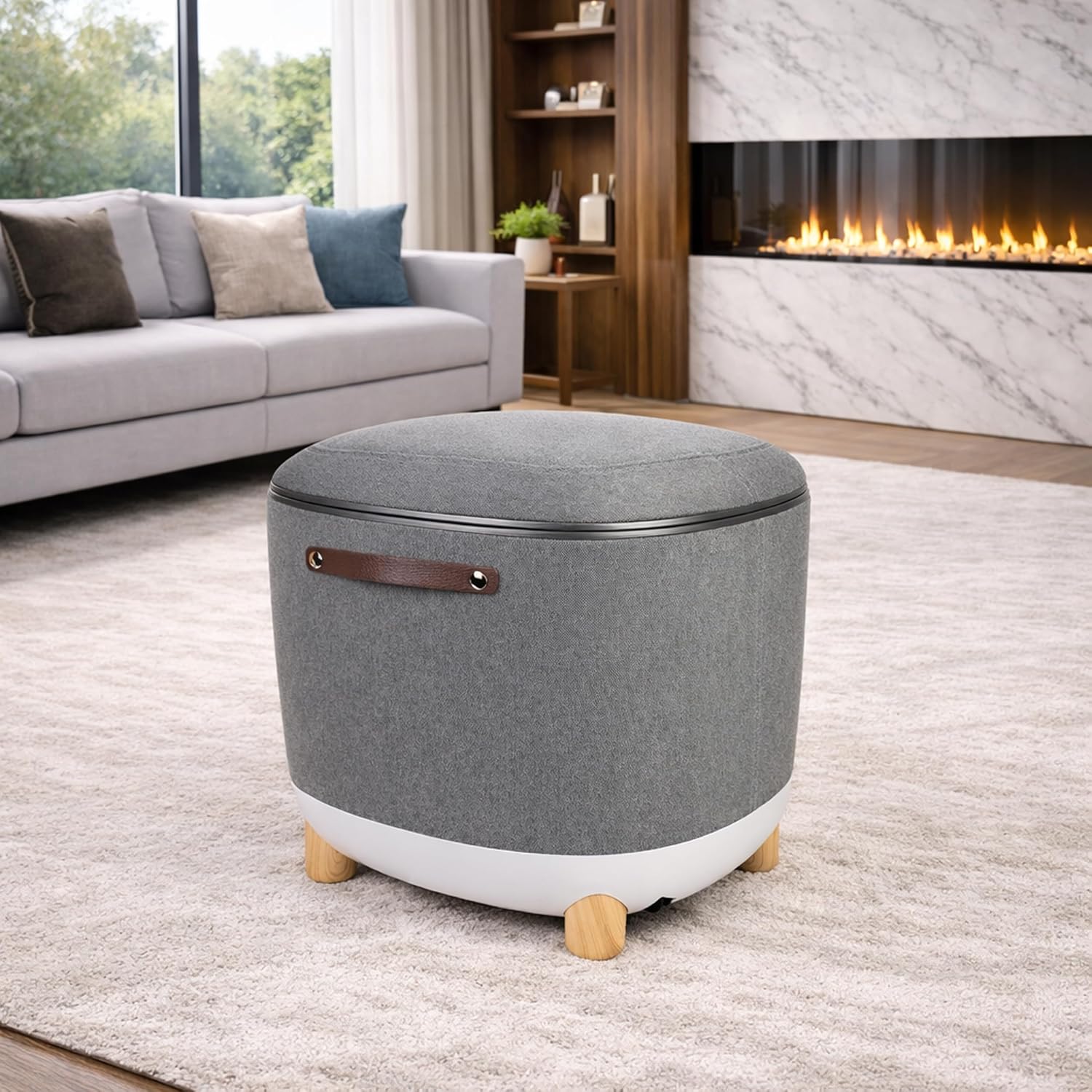

- Prepare for Use: To use as a massager, open the top cover. To use as an ottoman, keep the cover closed.
Operating Instructions
The Carepeutic KH351 offers various massage functions and customizable settings for a personalized experience.
Basic Operation
- Power On/Off: Press the power button on the control panel to turn the unit on or off.
- Select Mode: Use the mode selection button to cycle through the four available massage modes.
- Adjust Intensity: Press the intensity button to choose from three intensity levels for your massage preference.
- Target Area: The massager can target feet, calves, or both simultaneously. Adjust settings as desired using the control panel.
- Heat Function: Activate the optional heat therapy button for added comfort and relaxation.
Massage Functions
- Shiatsu & Rolling Foot Massage: Deeply kneads and rolls the soles of your feet to relieve tension and aches.
- Air Kneading & Vibration Calf Massage: Air compression gently squeezes and releases your calves, combined with vibration to soothe muscle fatigue.
- Optional Heat Therapy: Provides gentle warmth to the feet, enhancing comfort and circulation.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your massager.
Cleaning
- Unplug: Always unplug the massager from the power outlet before cleaning.
- Exterior: Wipe the exterior surface with a soft, damp cloth. Do not use abrasive cleaners, harsh chemicals, or solvents.
- Removable Sleeves: The internal foot and calf sleeves are removable and washable. Follow the care instructions on the sleeve label for cleaning. Ensure they are completely dry before reattaching them to the unit.
Storage
When not in use, store the massager in a cool, dry place, away from direct sunlight and moisture. Ensure the power cord is neatly coiled to prevent damage.
Troubleshooting
If you encounter any issues with your massager, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Massager does not turn on. | Not plugged in; Power outlet malfunction; Unit overheating. | Ensure power cord is securely plugged in. Test the outlet with another device. Unplug the unit and allow it to cool for 30 minutes before attempting to restart. |
| Massage intensity feels too weak or too strong. | Incorrect intensity setting; Improper leg/foot positioning. | Adjust the intensity level using the control panel. Reposition your feet/legs for optimal contact with the massage nodes. |
| Heat function is not working. | Heat function not activated; Unit not warmed up yet. | Ensure the heat function is turned on via the control panel. Allow a few minutes for the heating elements to reach their operating temperature. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | KH351 |

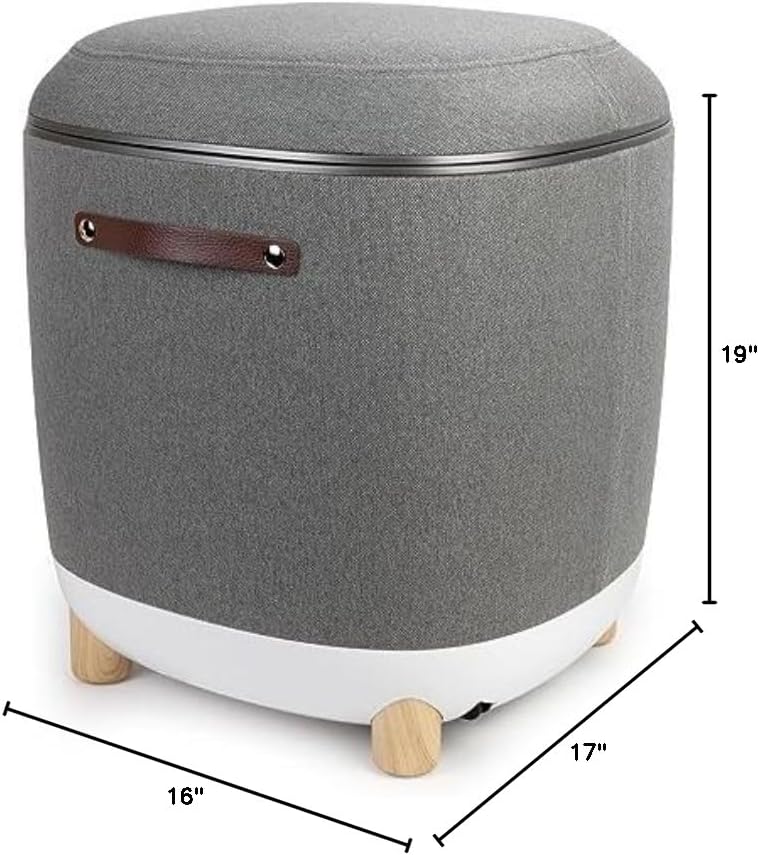

| Product Dimensions (L x W x H) | 16" x 17" x 19" |
| Item Weight | 18 pounds |
| Power Source | Corded Electric |
| Massage Techniques | Compression, Rolling, Shiatsu, Vibration |
| Target Use Body Part | Calf, Feet, Heel, Legs |
| Material Type | Acrylonitrile Butadiene Styrene, Plastic, Polyester |
| UPC | 891856103348 |
Warranty and Support
For warranty information or technical support regarding your Carepeutic KH351 Foot & Leg Massager, please contact Carepeutic customer service directly. Refer to the product packaging or the official Carepeutic website for the most current contact details.
Online Resources: You may find additional support and frequently asked questions on the Carepeutic Store on Amazon.
