1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and care of your Xmatch BSH 4-Wheel Mobility Scooter. Please read this manual thoroughly before using the scooter and retain it for future reference.
The Xmatch BSH 4-Wheel Mobility Scooter is designed for adults and seniors, offering heavy-duty performance with battery power, a front basket, a compact rear box, and a 360-degree adjustable seat for enhanced comfort and convenience.
A full view of the Xmatch BSH 4-Wheel Mobility Scooter in black, featuring a comfortable seat, front basket, and a remote key fob.
2. Safety Information
Your safety is paramount. Always operate the mobility scooter with caution and adhere to all local traffic laws and regulations. Before each use, perform a quick check of the brakes, tires, and battery level.
- Always wear appropriate safety gear, including a helmet if required by local regulations.
- Ensure the battery is fully charged before long trips.
- Avoid operating the scooter under the influence of alcohol or medication that may impair your judgment.
- Do not exceed the maximum weight capacity of 350 lbs.
- Exercise caution on uneven terrain, steep inclines, or slippery surfaces.
- Always use the safety belt provided.
3. Setup and Assembly
Follow these steps to assemble your mobility scooter:
- Unpacking: Carefully remove all components from the packaging. Retain packaging for potential future transport or returns.
- Battery Connection: Locate the battery compartment (usually under the seat). Ensure all battery connections are secure.
- Seat Adjustment: Adjust the seat to your preferred position. The seat is 360-degree adjustable and can be moved forward/backward.
- Tiller Adjustment: Adjust the steering column (tiller) to a comfortable height and angle.
- Rear Box Installation: Secure the compact rear box to the back of the seat.
- Front Basket Attachment: Attach the front basket to the tiller for convenient storage.
- Mirror Installation: Install the rearview mirrors onto the handlebars.
Video: This video demonstrates the assembly process and initial setup of the Xmatch BSH Mobility Scooter, including seat and tiller adjustments.
4. Operating Instructions
Familiarize yourself with the controls before operating the scooter.
- Power On: Insert the key into the ignition slot and turn it clockwise to power on the scooter. The digital display will illuminate.
- Seat and Tiller Adjustment: Adjust the seat position (forward/backward) and steering column (tiller) to ensure a comfortable and safe riding posture.
- Safety Belt: Fasten the car-style safety belt securely across your lap.
- Lights:
- Use the high/low beam switch for appropriate headlight illumination.
- Activate the left/right turn signal switch when changing direction.
- Press the emergency flashers button for hazard warning.
- Speed Control: Use the oval throttle control to adjust your speed. The scooter offers 3 grades of speed, with a maximum of 9.3 mph.
- Driving: Gently engage the throttle to begin moving. The 4-wheel design and tubeless tires provide stable turning and powerful climbing capabilities.
- Braking: The scooter features automatic electromagnetic braking. Releasing the throttle will engage the brakes.
- Power Off: Turn the key counter-clockwise to power off the scooter when finished.
Video: This video provides a detailed demonstration of the Xmatch BSH Mobility Scooter's operational features, including starting, controls, and driving.
5. Features Overview
- Powerful Motor: Equipped with a 500W differential brushless motor for reliable performance.
- Long Range Battery: Features a 48V Lead acid battery (12V*4/20AH pcs by TIANNENG) providing up to 25 miles per charge.

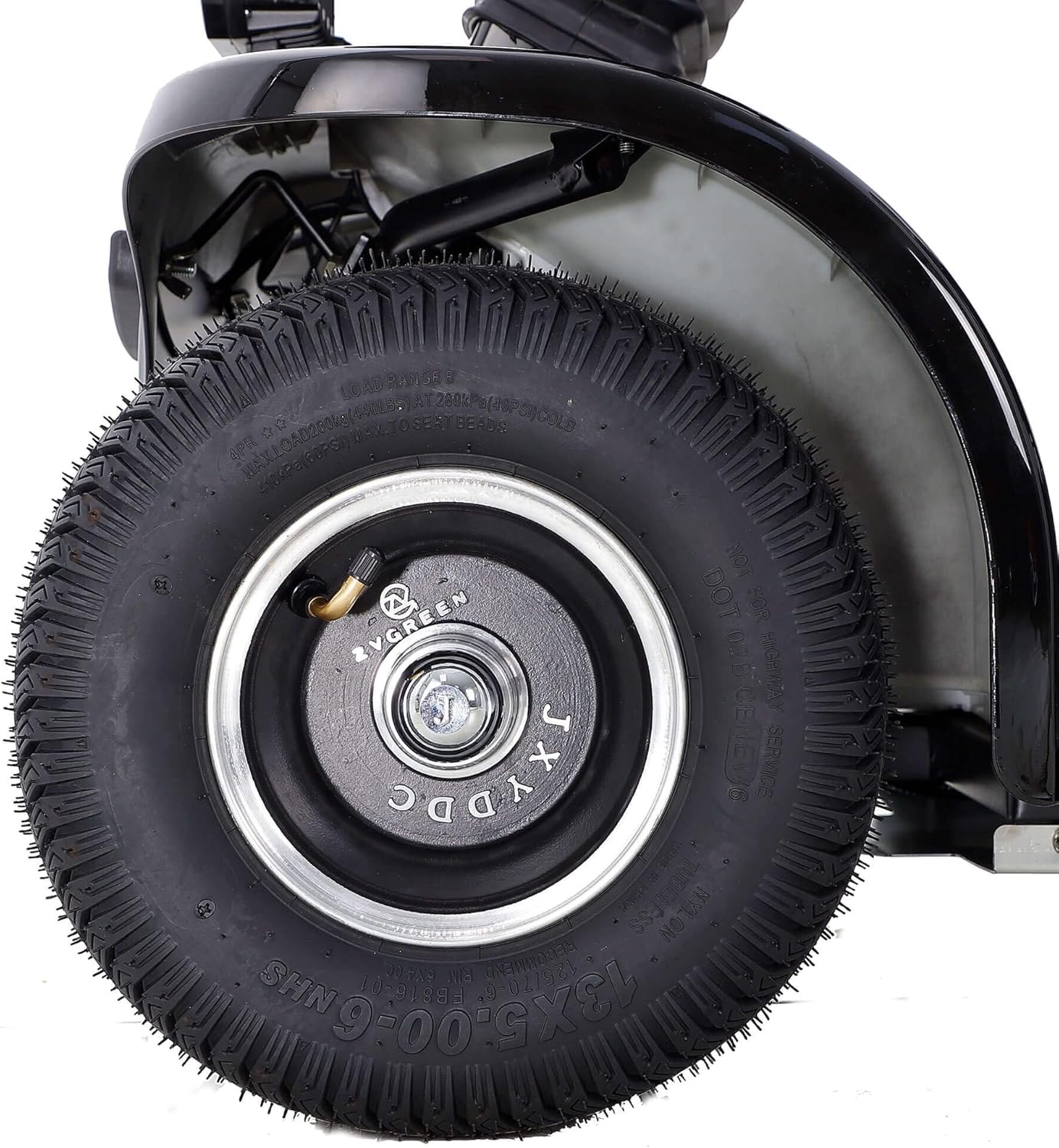

- All-Terrain Tires: AT13x5-6” (x4) tubeless tires allow for smooth operation on various surfaces including sand, snow, grass, and muddy roads.
- High Weight Capacity: Supports a weight capacity of up to 350 lbs.
- Impressive Incline Capacity: Capable of handling inclines up to 20%.
- Adjustable Comfort: Fully 360-degree adjustable seat, rear tilt, and adjustable lift-up armrests. Leg room accommodates drivers from 5.2-6.3 ft tall.
- Safety Features: Includes a car seat belt, H/L beam headlights, 4 security reflectors, and automatic electromagnetic braking.
- Convenience: Features a USB charge port, key fob, front basket, and compact rear box for storage.
An image illustrating the key performance specifications of the Xmatch BSH Mobility Scooter.
This image showcases several safety and design features: the electromagnetic brake for reliable stopping, anti-tip wheels for enhanced stability, an anti-slip pedal for secure foot placement, and durable tubeless tires.
The Xmatch BSH Mobility Scooter is depicted ascending an incline, highlighting its powerful motor and ability to navigate varied terrain with a 20% incline capacity.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your scooter.
- Battery Care: Always charge the battery fully after each use. Avoid completely draining the battery. Store the scooter in a dry, cool place when not in use.
- Tire Pressure: Periodically check tire pressure and inflate to the recommended levels.
- Cleaning: Clean the scooter regularly with a damp cloth. Avoid using harsh chemicals or high-pressure water.
- Inspections: Regularly inspect all moving parts, connections, and fasteners for wear or looseness.
- Spare Parts: Spare parts are available from our US distribution center. Detailed troubleshooting instructions and video guides are available to assist with part replacement.
7. Troubleshooting
If you encounter any issues with your scooter, refer to the detailed troubleshooting instructions and video guides available. Many common issues can be resolved with DIY solutions. For complex problems, consider visiting a local vehicle garage for professional assistance.
8. Specifications
| Feature | Specification |
|---|---|
| Product Dimensions | 56.7"D x 25.2"W x 48.4"H |
| Item Weight | 286 Pounds |
| Motor | 500W Differential Brushless Motor |
| Battery | 48V Lead acid battery (12V*4/20AH pcs) |
| Max Speed | 9.3 mph (3 grades: 8mph-10mph) |
| Range | Up to 25 miles per charge |
| Weight Capacity | 350 lbs |
| Incline Capacity | 20% |
| Tire Size | AT13x5-6” (x4) tubeless tires |
| Seat | 360-degree adjustable, Rear Tilt, Adjustable lift-up armrest |
| Charging | Smart charge 110v/220v |
A technical diagram providing precise measurements of the Xmatch BSH Mobility Scooter.
9. Warranty and Support
Xmatch has 10 years of manufacturing experience with a proven low failure rate. We are committed to providing excellent after-sales support.
- Spare Parts: Available from our US distribution center.
- Technical Support: Detail Trouble Shooting Instructions and video guides are available to assist with replacing spare parts.
- Customer Service: For any questions or assistance, please contact Xmatch USA customer support.
10. Important Information
Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is a mobility aid and should be used according to the instructions provided.
