Hoenofly 52” Smart Wood Flush Mount Ceiling Fan Instruction Manual

Product Overview

The Hoenofly 52” Smart Wood Flush Mount Ceiling Fan is designed for both indoor and outdoor covered spaces, offering advanced control options and efficient air circulation. Featuring a quiet DC motor, dimmable and color-changing LED lights, and compatibility with voice assistants, this fan provides comfort and convenience for modern living environments.

Figure 1: Hoenofly 52-inch Smart Wood Flush Mount Ceiling Fan with included remote control and compatible smart home devices (Alexa, Google Home).

Setup and Installation

This ceiling fan is designed for flush mounting and is suitable for various ceiling types including metal, concrete, and wood. It is not suitable for sloped or vaulted ceilings. The low-profile design, with a height of only 8.3 inches, makes it ideal for rooms with lower ceilings.

Pre-Installation Checklist:

• Ensure power is disconnected at the circuit breaker before installation.
• Verify ceiling structure can support the fan's weight (approximately 11 pounds).
• Gather necessary tools: screwdriver, wire strippers, electrical tape.
• Two AAA batteries are required for the remote control (not included).

Installation Steps:

1. Attach the mounting bracket to the ceiling junction box. Ensure the junction box is fan-rated.
2. Connect the fan's wiring to the household wiring according to local electrical codes.
3. Secure the fan motor assembly to the mounting bracket.
4. Install the three wood blades onto the motor housing.
5. Attach the LED light kit and light cover.
6. Restore power and test the fan's functions.

Figure 2: Illustration of compatible ceiling types (metal, concrete, wood) and incompatible sloped/vaulted ceilings for flush mount installation.

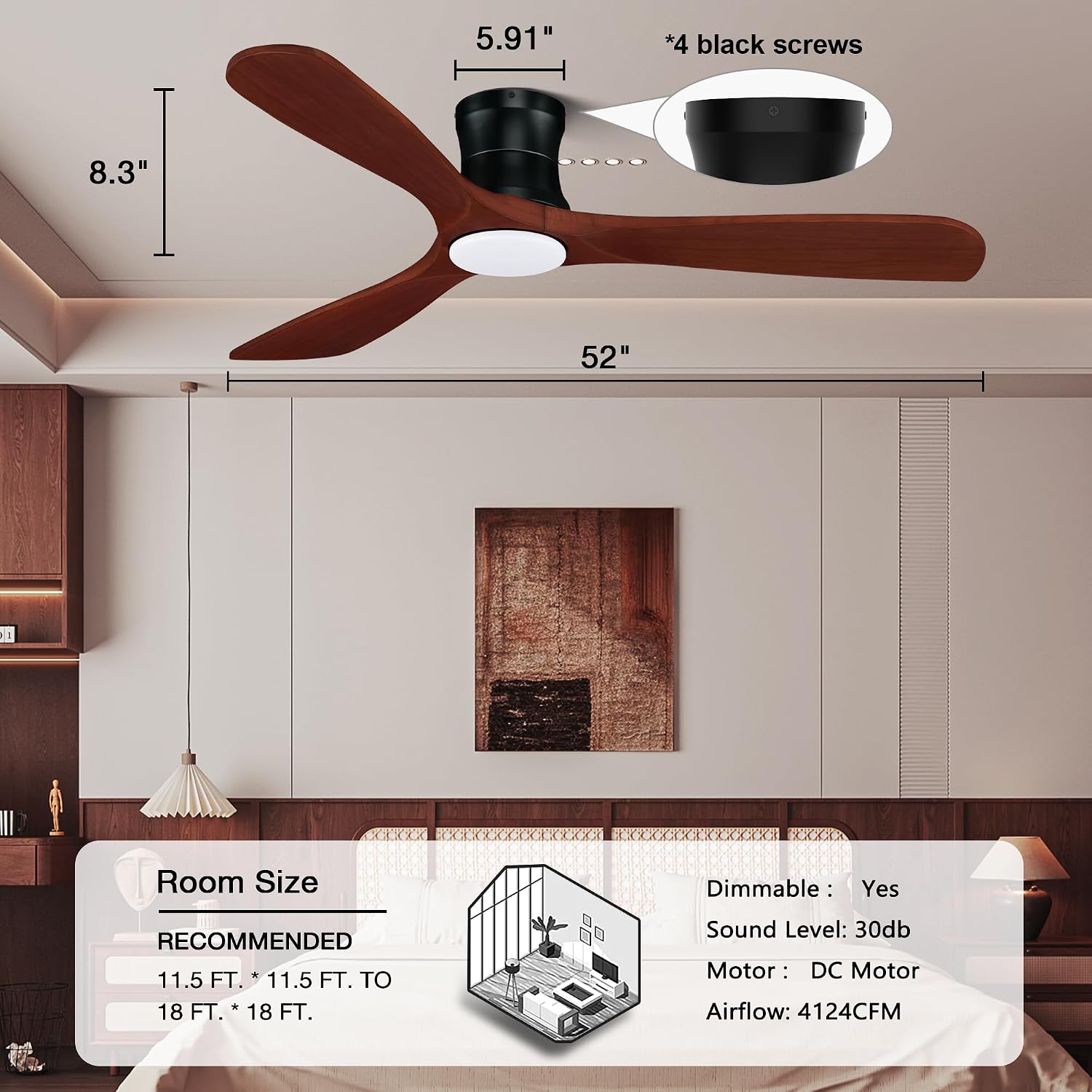

Figure 3: Fan dimensions (52"D x 52"W x 8.3"H) and recommended room sizes for optimal airflow.

Operating Instructions

Your Hoenofly Smart Ceiling Fan offers multiple convenient control methods to suit your preferences.

Control Methods:

• Remote Control: Use the included handheld remote for direct control of fan speeds, light settings, and other functions. The remote can also be wall-mounted for easy access.
• Smartphone App: Download the dedicated app (e.g., Tuya App) to control the fan from anywhere via Wi-Fi. The app allows for fan speed adjustment, light dimming, color temperature changes, and setting timers.
• Voice Control: Integrate with smart home systems like Amazon Alexa or Google Assistant for hands-free operation using simple voice commands.

Figure 4: Demonstrating voice control functionality with Amazon Alexa, allowing users to operate the fan with simple commands.

Figure 5: The smartphone app interface showing various control options for the fan, including speed, timing, light color, and temperature.

Fan Speed and Direction:

• The fan features a quiet 6-speed DC motor, delivering airflow up to 4124 CFM with noise levels under 30dB.
• Utilize the reversible function to change blade direction for year-round comfort (downward airflow for cooling in summer, upward airflow for heat distribution in winter).

Figure 6: Visual representation of the fan's 6 wind speeds and its power reversible function for seasonal use.

LED Light Features:

• The integrated LED light is dimmable from 0-100% and offers three color temperature settings: 3000K (warm yellow light), 4000K (bright daylight), and 5000K (cool white light).
• The 2000 lumen LED light is bright enough to illuminate a master bedroom.

Figure 7: Display of the three adjustable light color temperatures: 3000K (warm), 4000K (daylight), and 5000K (cool white).

Maintenance

Regular maintenance ensures optimal performance and longevity of your ceiling fan.

• Cleaning: Dust the fan blades and motor housing regularly with a soft, damp cloth. Avoid using abrasive cleaners that could damage the finish.
• Blade Inspection: Periodically check that all blade screws are tight. Loose screws can cause wobbling and noise.
• Light Cover: Ensure the light cover is securely attached and free from dust or debris to maintain optimal light output.
• Electrical Connections: Annually, inspect all electrical connections for tightness. If you are unsure, consult a qualified electrician.

Troubleshooting

If you encounter issues with your Hoenofly ceiling fan, refer to the following common troubleshooting steps:

• Fan Not Operating:
  • Check the circuit breaker to ensure power is supplied to the fan.
  • Verify all wiring connections are secure.
  • Ensure remote control batteries are correctly installed and not depleted.
• Light Not Working:
  • Check the light switch on the remote or app.
  • Ensure the LED light kit connections are secure.
• Fan Wobbles or is Noisy:
  • Ensure all blade screws are tightened.
  • Check that the mounting bracket is securely fastened to the ceiling.
  • Verify the fan is installed on a flat, compatible ceiling surface.
• Wi-Fi Connectivity Issues:
  • Ensure your Wi-Fi network is 2.4GHz, as the fan may not support 5GHz networks.
  • Restart your Wi-Fi router and the fan (by cycling power at the breaker).
  • Follow the app's instructions for re-pairing the device if necessary.

Specifications

Warranty and Support

Hoenofly offers a 1-year quality period for the entire smart ceiling fan, ensuring high quality and customer satisfaction. Our dedicated 24/7 customer support team is available to provide excellent after-sales service and assist with any inquiries or issues you may have.

For support, please refer to the contact information provided on your product packaging or visit the official Hoenofly website.
