1. Introduction
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your Atomberg Renesa Prime 1200mm BLDC Ceiling Fan. Please read this manual thoroughly before installation and use, and retain it for future reference. This fan is designed for energy efficiency and high air delivery, compatible with standard step regulators.

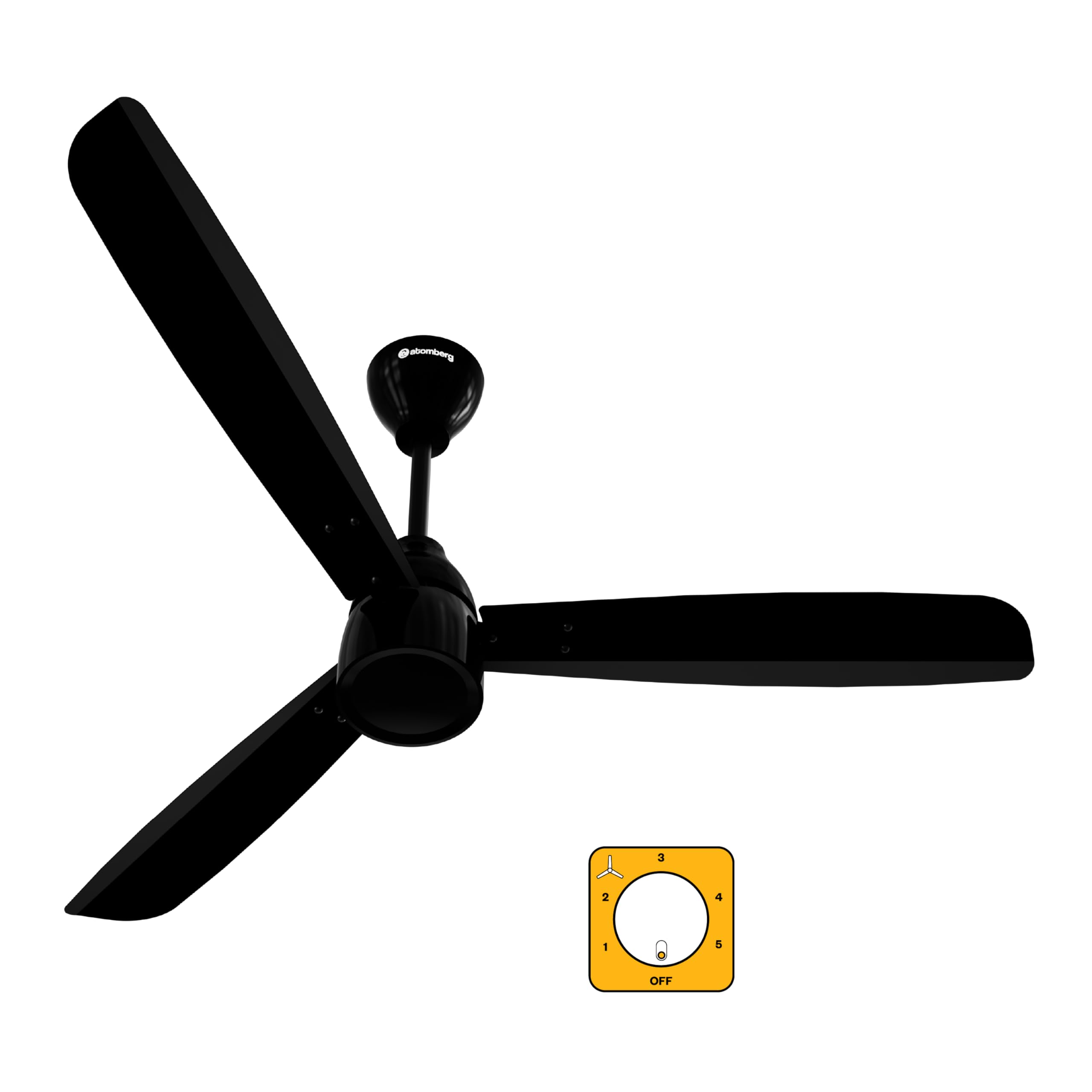

Image: Atomberg Renesa Prime 1200mm BLDC Ceiling Fan in Gloss Black.
2. Product Features
- Energy Efficient BLDC Technology: Equipped with a BEE 5-Star rated BLDC motor, consuming only 35W and providing superior air delivery of 225 CMM with 350 RPM. This results in significant power savings, up to 65% compared to conventional fans.
- Regulator Operated: The fan is compatible with any standard step regulator for speed control. It does not operate with a remote control.
- Sleek and Unique Design: Features a modern aesthetic with a compact body, sleek blades, and a premium finish to complement various room decors.
- Consistent Speed: Maintains consistent speed even during voltage fluctuations (220V-240V).
- Inverter Compatibility: Operates up to 3 times longer on an inverter battery compared to ordinary fans, ensuring cool air during power outages.
- Low Noise Operation: Engineered for quiet performance, with a noise level of 57 decibels.
Image: Close-up views highlighting the compact body, sleek blades, and premium finish of the Atomberg Renesa Prime fan.
Image: Diagram illustrating the fan's performance features: regulator operation, 225 CMM high air delivery, and 57 dB low noise.
Image: Illustration of the BLDC motor with ATOMsense Algorithm.
Image: Icon indicating 65% electricity savings.
Image: Icon showing a regulator dial, signifying regulator compatibility.
3. What's in the Box
Upon opening the package, please ensure all the following components are present and undamaged:
- 1 Blade set
- 1 Motor box
- 2 Canopies (top and bottom)
- 1 Downrod
- 1 Shackle kit
- Warranty card
Note: This specific model of the Atomberg Renesa Prime fan is designed for step regulator operation and does not include a remote control.
4. Setup and Installation
Installation of the Atomberg Renesa Prime ceiling fan should be performed by a qualified electrician to ensure safety and proper functioning. Follow all local electrical codes and safety regulations.
4.1 Safety Precautions
- Ensure the power supply is disconnected at the main circuit breaker before installation.
- Verify that the mounting structure can support the weight of the fan (approximately 3.6 kg).
- Do not connect the fan to a dimmer switch or any non-standard regulator not designed for ceiling fans.
4.2 Installation Steps (Overview)
- Mounting Bracket Installation: Securely attach the mounting bracket to the ceiling joist or a suitable support structure using appropriate hardware.
- Downrod and Motor Assembly: Insert the downrod through the canopy and motor box. Secure the downrod to the motor with the provided pins and screws.
- Wiring Connection: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full installation guide (refer to the product detail page for a complete guide). Ensure all connections are secure and insulated.
- Blade Attachment: Attach the fan blades to the motor hub using the screws provided. Ensure all blades are securely fastened.
- Canopy Installation: Slide the canopies up to cover the mounting bracket and wiring connections, securing them in place.
For detailed step-by-step installation instructions and diagrams, please refer to the comprehensive installation guide available on the Atomberg website or the product detail page.
5. Operation
The Atomberg Renesa Prime fan is operated using a standard step regulator. It does not feature remote control functionality.
5.1 Turning On/Off
- To turn the fan ON, rotate the step regulator dial from the 'OFF' position to your desired speed setting.
- To turn the fan OFF, rotate the step regulator dial to the 'OFF' position.
5.2 Adjusting Fan Speed
The fan offers 6 speed settings. Rotate the step regulator dial to increase or decrease the fan speed. Higher numbers on the regulator correspond to higher fan speeds.
Image: Illustration showing the fan's compatibility with a step regulator.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
6.1 Cleaning
- Always disconnect power before cleaning.
- Use a soft, damp cloth to wipe down the fan blades and motor housing.
- Do not use abrasive cleaners or solvents, as these can damage the finish.
- Ensure the fan is completely dry before restoring power.
6.2 Blade Balance
If the fan wobbles during operation, check that all blade screws are tightened. Refer to the full installation guide for detailed blade balancing instructions if necessary.
7. Troubleshooting
Before contacting customer support, please review the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply; Loose wiring; Faulty regulator. | Check circuit breaker; Verify all electrical connections; Test regulator or replace if faulty. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting. | Tighten all blade screws; Perform blade balancing (refer to full guide); Ensure mounting bracket is secure. |
| Low air delivery | Incorrect speed setting; Obstruction to airflow. | Increase regulator speed; Ensure no objects are blocking the fan's airflow. |
| Unusual noise | Loose screws; Internal component issue. | Check and tighten all visible screws; If noise persists, contact customer support. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Atomberg |
| Model Name | Renesa Prime |
| Blade Length | 1200 mm |
| Motor Type | Brushless DC (BLDC) |
| Wattage | 35 Watts |
| Air Flow Capacity | 225 Cubic Meters Per Minute (CMM) |
| Speed | 350 RPM |
| Noise Level | 57 Decibels |
| Number of Blades | 3 |
| Voltage | 220 Volts |
| Control Method | Step Regulator |
| Material | Aluminium |
| Item Weight | 3.6 Kilograms |
| Product Dimensions | 60D x 23W x 23H Centimeters |
| Country of Origin | India |
Image: Guide illustrating appropriate fan sweep sizes for various room dimensions.
9. Warranty & Support
The Atomberg Renesa Prime ceiling fan comes with a standard two-year warranty. An additional one-year warranty can be availed by registering your purchase on the official Atomberg website.
9.1 Onsite Warranty
This product includes a 3 Years Onsite Warranty (2 standard + 1 extended upon registration).
9.2 Customer Support
For any queries, service requests, or technical assistance, please contact Atomberg Customer Care:
- Email: support@atomberg.com
- Phone: 08448449442
- Manufacturer Address: Atomberg Technologies Pvt Ltd, Mind Space Shelters LLP/ Vithai Developers LLP, Gat No. 51-59, Village Bhamboli, Chakan, Pune, Maharashtra-410507.
9.3 Doorstep Installation
Easy doorstep installation can be initiated through Urban Company or directly through Atomberg. For Urban Company, book an installation visit via their app. This allows for rescheduling, cancellation, and service tracking.
