Introduction
This manual provides comprehensive instructions for setting up, operating, and maintaining your BOXPUT X98H PRO Android 12 Smart TV Box. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience.
Image: The X98H PRO Android 12 Smart TV Box, a black rectangular device with a hexagonal pattern on top and a digital display on the front showing time and Wi-Fi status.
Package Contents
Verify that all items listed below are included in your package:
- X98H PRO Smart TV Box
- Remote Control
- HDMI External Cable
- Power Adapter
- User Manual (this document)
Image: A visual representation of the X98H PRO TV Box package contents, including the TV box, remote control, HDMI cable, power adapter, and user manual.
Product Overview
The X98H PRO is a high-performance smart TV box designed for home entertainment. It features the Android 12.0 operating system and is powered by the Allwinner H618 Quad-Core Cortex-A53 CPU and Mali G31 MP2 GPU, ensuring smooth operation and excellent multimedia capabilities.

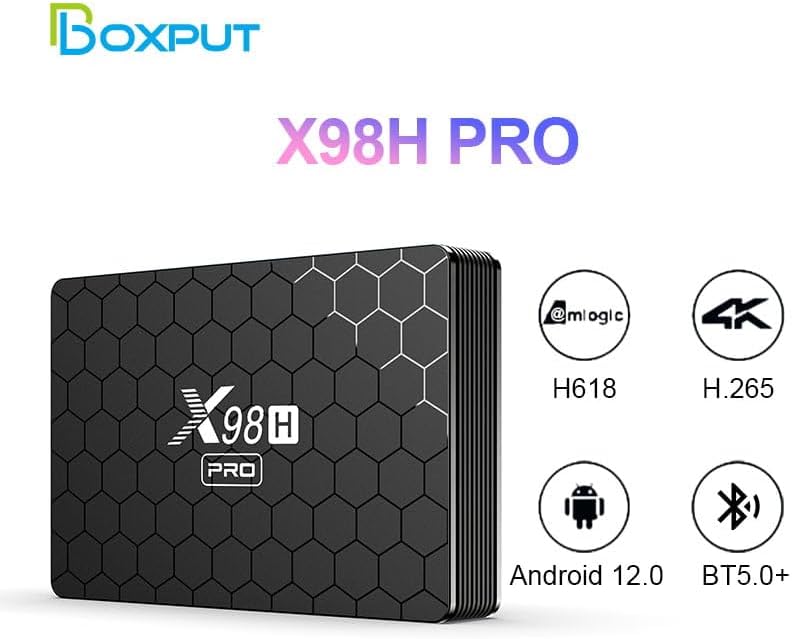

Image: The X98H PRO TV Box alongside icons highlighting its key features: Allwinner H618 chipset, H.265 decoding, Android 12.0 OS, and Bluetooth 5.0+ connectivity.
Ports and Interfaces
Familiarize yourself with the various ports on your X98H PRO device:
Image: Detailed views of the X98H PRO TV Box showing its various ports. The rear panel includes DC power input, Optical audio output, HDMI In, HDMI Out, Ethernet, AV, and USB. The side panel shows two additional USB ports and a TF/MicroSD card slot.
- DC Connector (5V 2A): For power input.
- HDMI Out (2.0a): Connects to your TV or display for video and audio output (up to 4K@60fps).
- HDMI In (2.0): Allows input from another HDMI source (supports 4K@60fps).
- Ethernet (LAN): For wired network connection (1000Mbps).
- USB 2.0 Ports (x3): For connecting external storage devices, keyboards, mice, or other USB peripherals.
- TF/MicroSD Card Slot: For expandable storage (up to 128GB).
- AV Port: For older analog video and audio connections (supports PAL/NTSC).
- Optical Audio Output: For digital audio output.
Setup Guide
1. Connecting the Device
- Connect one end of the HDMI cable to the HDMI Out port on the X98H PRO and the other end to an HDMI input port on your television or display.
- Connect the power adapter to the DC 5V port on the X98H PRO and then plug the adapter into a power outlet.
- Turn on your television and select the correct HDMI input source.
2. Network Connection
The X98H PRO supports both Wi-Fi and wired Ethernet connections.
Wi-Fi Connection:
- From the main screen, navigate to Settings.
- Select Network & Internet.
- Turn on Wi-Fi and select your desired network from the list.
- Enter the Wi-Fi password if prompted and select Connect.
Ethernet Connection:
- Connect an Ethernet cable from your router or modem to the Ethernet (LAN) port on the X98H PRO.
- The device will automatically detect and connect to the wired network.
3. Connecting Peripherals
You can connect various peripherals to your TV box:
- USB Devices: Plug USB flash drives, external hard drives, keyboards, or mice into the USB 2.0 ports.
- Bluetooth Devices:
- Go to Settings > Connected devices > Pair new device.
- Put your Bluetooth device into pairing mode.
- Select your device from the list to pair.
Operating Instructions
Navigating the Android 12 OS
The X98H PRO runs on Android 12, providing a user-friendly interface. Use the included remote control to navigate through menus and applications.
- Arrow Keys: Navigate up, down, left, and right.
- OK Button: Select an item or confirm an action.
- Back Button: Return to the previous screen.
- Home Button: Return to the main home screen.
- Menu Button: Access context-sensitive options (if available).
Media Playback
The device supports various multimedia formats:
- Video: H265 Main10@L5.1 (up to 4K@60fps or 6K@30fps), VP9 Profile 2 (up to 4K@60fps), AVS2 Jizhun 10bit (up to 4K@60fps), H.264 BP/MP/HP@L4.2 (up to 4K@30fps).
- Audio: MP3, AAC, WMA, FLAC, Ogg.
- Image: HD JPEG, BMP, GIF, PNG, TIF.
You can play media from connected USB storage devices or through installed streaming applications.
Application Management
Install new applications from the Google Play Store or other trusted sources. You can manage installed apps through the Android settings.
HDMI Input Switching
The X98H PRO features an HDMI input port, allowing you to connect another HDMI source (e.g., a game console or Blu-ray player) and switch between the TV box's output and the external HDMI input.
Image: A diagram illustrating the HDMI input and output functionality. The X98H PRO can display its own content or switch to an external HDMI source connected to its HDMI In port, controlled by a switch button on the device.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the device. Do not use liquid cleaners or aerosols.
- Ventilation: Ensure the device is placed in a well-ventilated area to prevent overheating. Do not block ventilation openings.
- Power Off: When not in use for extended periods, it is recommended to unplug the power adapter.
- Software Updates: Periodically check for system updates in the device settings to ensure optimal performance and security.
Troubleshooting
| Problem | Possible Solution |
|---|---|
| No power |
|
| No display on TV |
|
| Wi-Fi connection issues |
|
| Remote control not responding |
|
| Applications freezing or crashing |
|
Specifications
| Feature | Detail |
|---|---|
| Model | X98H PRO |
| Operating System | Android 12.0 |
| CPU | Allwinner H618 Quad-core ARM Cortex A53 |
| GPU | Mali G31 MP2 |
| RAM Capacity | 2GB / 4GB (Optional) |
| ROM Capacity | 16GB / 32GB / 64GB (Optional) |
| External Storage | USB Storage Devices, MicroSD (up to 128GB) |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac (2.4G & 5G Dual Band) |
| Bluetooth | BT5.0+ |
| Video Output | HDMI 2.0a (up to 4K@60fps), CVBS (PAL/NTSC) |
| Video Input | HDMI 2.0 (supports 4K@60fps) |
| USB Ports | 3 x USB 2.0 |
| Dimensions | 135 x 90 x 23 mm (5.31 x 3.54 x 0.91 inches) |
| Weight | 0.15 Kg (0.33 lbs) |
| Color | Black |
Warranty and Support
Warranty Information
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or contact the seller for specific warranty terms and conditions.
Customer Support
For technical assistance, troubleshooting, or any inquiries regarding your X98H PRO Smart TV Box, please contact BOXPUT customer support or visit the official BOXPUT store on Amazon:
Visit the BOXPUT Store on Amazon
Image: A person using a computer, symbolizing customer support and online resources available for BOXPUT products.
