1. Introduction
Thank you for choosing the Turbionaire Enia 60 Built-In Kitchen Hood. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and retain them for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Ensure the power supply voltage matches the rating label on the hood.
- Installation must be performed by a qualified technician in accordance with local regulations.
- Do not operate the hood if the power cord is damaged.
- Regularly clean grease filters to prevent fire hazards.
- Do not flambé under the range hood.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Product Overview
The Turbionaire Enia 60 is a 60cm built-in kitchen hood designed for efficient air extraction and circulation. It features a powerful brushless motor, touch controls, and perimeter aspiration.
Key Features:
- Brushless Motor: 800 m³/h airflow capacity for high efficiency and low noise.
- Mobile Glass Panel: Black heat-treated safety glass panel for effective steam capture and direction.
- Touch Controls: Integrated on the mobile panel for easy access to speed, boost, and lighting functions.
- Perimeter Aspiration: Enhances extraction efficiency by concentrating airflow around the edges.
- LED Lighting: 4000K LED lights provide pleasant illumination and energy efficiency.
- Washable Grease Filters: 5-layer aluminum filters are removable and dishwasher-safe.
- Flexible Installation: Adaptable design for various kitchen cabinet configurations.
Figure 3.1: Overview of the Turbionaire Enia 60 Kitchen Hood highlighting its A++ energy rating, 800 m³/h brushless motor, 720 m³/h powerful boost function, mobile panel, matte black finish, and touch controls.
Figure 3.2: Angled view of the Turbionaire Enia 60 Built-In Kitchen Hood, showing its black finish and the internal structure with the mobile glass panel partially open.
4. Installation
The Turbionaire Enia 60 hood is designed for built-in installation within a kitchen cabinet. It supports both ducted (extraction) and recirculating (filter) modes. For recirculating mode, an optional carbon filter kit (Code: TCF1) is required.
4.1 Flexible Installation
The hood offers flexible installation options to adapt to various kitchen layouts. It includes an adapter for a 150mm to 120mm drain pipe.
Figure 4.1: Illustration demonstrating the flexible installation capabilities of the hood, showing different configurations for ducting connections.
4.2 Access and Integration
The design allows for easy access and maximizes storage space within the furniture body where it is integrated.
Figure 4.2: The hood integrated into a kitchen cabinet, illustrating how the design provides easy access and preserves storage space above the cooking area.
5. Operation
The hood is operated via intuitive touch controls located on the mobile glass panel.
5.1 Touch Controls
The touch control panel allows you to manage the hood's functions, including power, fan speed, boost function, and lighting.
Figure 5.1: Close-up view of the touch control panel, indicating controls for power, fan speed (3 levels), boost function, and lighting.
5.2 Fan Speeds and Boost Function
The hood offers 3 regular fan speeds and an additional boost function for intensive extraction. Select the appropriate speed based on the intensity of cooking fumes.
- Speed 1-3: For general cooking and light fumes.
- Boost Function: Activates maximum extraction (720 m³/h) for heavy smoke or strong odors. This function typically runs for a set period before returning to the previous speed.
5.3 LED Lighting
Press the light button on the touch panel to turn the LED lights on or off. The 4000K LED illumination provides clear visibility over your cooking area.

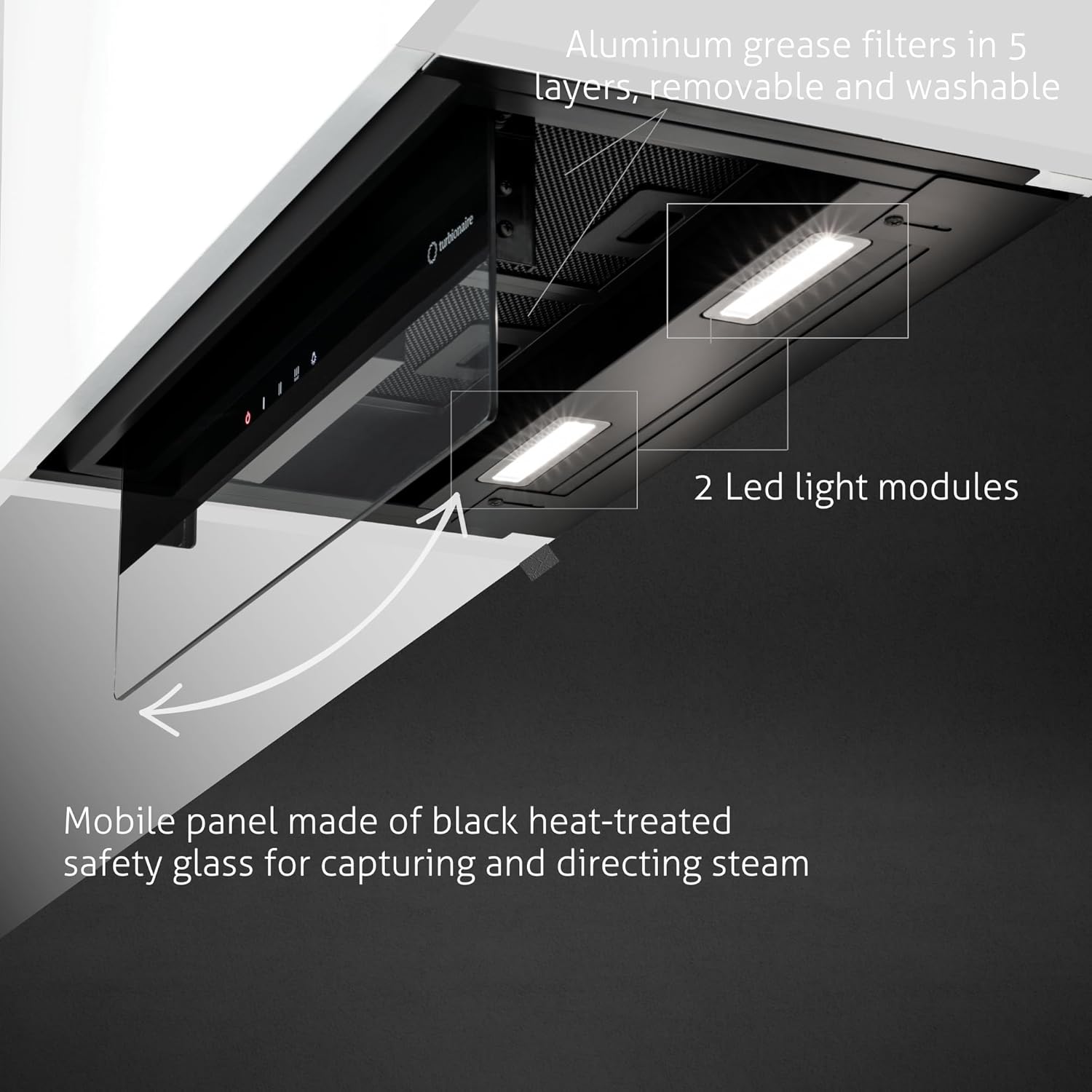

Figure 5.2: Internal view of the hood with the mobile panel open, showing the two LED light modules and the aluminum grease filters.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your Turbionaire Enia 60 kitchen hood.
6.1 Cleaning Grease Filters
The 5-layer aluminum grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain extraction efficiency and prevent grease buildup.
- Turn off the power supply to the hood before cleaning.
- Open the mobile glass panel.
- Remove the grease filters by releasing their latches.
- Wash the filters by hand with warm soapy water or in a dishwasher.
- Allow filters to dry completely before re-installing.
Figure 6.1: Illustration of a removable 5-layer aluminum grease filter being cleaned, highlighting its washable nature and suitability for dishwasher cleaning.
6.2 Cleaning the Hood Exterior
Wipe the exterior surfaces of the hood with a soft cloth and a mild, non-abrasive cleaner. Do not use harsh chemicals or abrasive pads, especially on the matte black finish or glass panel.
6.3 Carbon Filter Replacement (Recirculating Mode Only)
If your hood is operating in recirculating mode with optional carbon filters (TCF1), these filters cannot be washed and must be replaced periodically (typically every 3-6 months, depending on usage). Refer to the carbon filter instructions for specific replacement procedures.
7. Troubleshooting
Before contacting customer service, please refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on. | No power supply; power cord disconnected; fuse blown. | Check power connection; ensure plug is fully inserted; check household fuse/circuit breaker. |
| Low suction power. | Grease filters are dirty; carbon filters (if used) are saturated; ducting obstruction. | Clean grease filters; replace carbon filters; check ducting for blockages. |
| Excessive noise. | Loose components; improper installation; ducting issues. | Ensure all components are securely fastened; verify correct installation; check ducting for kinks or restrictions. |
| Lights not working. | LED module failure; power issue. | Check power supply; contact customer support for LED module replacement. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | TEN60BB |
| Dimensions (L x W x H) | 60 x 60 x 60 cm |
| Weight | 12 kg |
| Brand | Turbionaire |
| Color | Matte Black |
| Finish Type | Lacquered |
| Airflow Capacity | 800 m³/h |
| Material | Alloy Steel |
| Noise Level | 49 Decibels |
| Mounting Type | Under Cabinet Mount |
| Control Type | Touch |
| Voltage | 230 Volts |
| Number of Speeds | 3 + Boost |
| Light Source Type | LED (4000K) |
| Wattage | 124 Watts |
| Filter Type | Mesh (5-layer Aluminum) |
| Ventilation Type | Forced Ventilation (Ducted/Recirculating) |
9. Included Accessories
The following items are included with your Turbionaire Enia 60 kitchen hood:
- TAF9B Aluminum Grease Filters (2 pcs)
- Reduction Adapter (150mm to 120mm)
- Anti-return Valve
- Protective Side Panels
- Pipe Mask
- Fixing Elements
- User and Installation Manual (this document)
Figure 9.1: Contents of the Turbionaire Enia 60 package, including the hood, grease filters, reduction adapter, and other installation components.
10. Warranty and Support
For warranty information, please refer to the separate warranty card included with your product or visit the official Turbionaire website. For technical support, spare parts, or service inquiries, please contact Turbionaire customer service through their official channels.
Keep your purchase receipt as proof of purchase for warranty claims.
