1. Product Overview
The SANIFLO Sanicompact 4C is a self-contained dual-flush macerating toilet system designed for residential applications. This compact unit integrates a vitreous china toilet bowl with a macerator/pump, enabling the installation of a half-bathroom in locations where traditional gravity-fed plumbing is not feasible. It can discharge waste up to 9 feet below the sewer line or up to 120 feet away from a soil stack.
The system is engineered to handle human waste and toilet paper efficiently. Its hardened stainless-steel blade ensures reliable operation without the need for frequent service or replacement. The Sanicompact 4C also features an eco-friendly design, utilizing a minimal amount of water per flush.
Image 1: Front view of the SANIFLO Sanicompact 4C toilet system.
Image 2: The Sanicompact 4C, highlighting its capability to install a half-bathroom below the sewer line or away from a soil stack.
2. Setup and Installation
The Sanicompact 4C is designed for floor-mounted installation in residential settings. It requires a 120 Volts (AC) electrical supply for operation.
2.1 Plumbing Connections
- Waste discharge occurs through a 1-inch rigid pipe. A non-return valve is integrated into the discharge elbow assembly to prevent backflow.
- The unit can also manage gray water from a sink. Wastewater from a sink drains into a 1-1/4 inch hose connection located at the back of the toilet.
Image 3: Diagram illustrating the plumbing connections for the Sanicompact 4C, including the 1-inch discharge pipe and 1-1/4 inch sink connection.
Image 4: Icons indicating sink connection capability and residential application for the Sanicompact 4C.
2.2 Pre-Installation Considerations
- Ensure the installation area has adequate space for the unit's dimensions (refer to Section 5: Specifications).
- Verify that a dedicated 120V AC electrical outlet is available near the installation site.
- Consult local plumbing codes to ensure compliance with all regulations.
3. Operating Instructions
The Sanicompact 4C features a dual-flush mechanism for water conservation.
3.1 Flushing Operation
- To flush, press the flush button located on the unit.
- The system offers two flush volumes: 1.28 gallons per flush (gpf) or 1 gpf, activated by the push button.
- Pressing the button activates a timer and a solenoid valve, which controls the water fill and bowl wash cycles.
3.2 Macerating Function
The Sanicompact 4C incorporates a macerating system to process waste. Inside the pump, a rotating stainless-steel blade grinds human waste and toilet paper into a fine slurry. This slurry is then quietly pumped away through the discharge pipe to the sanitary line.

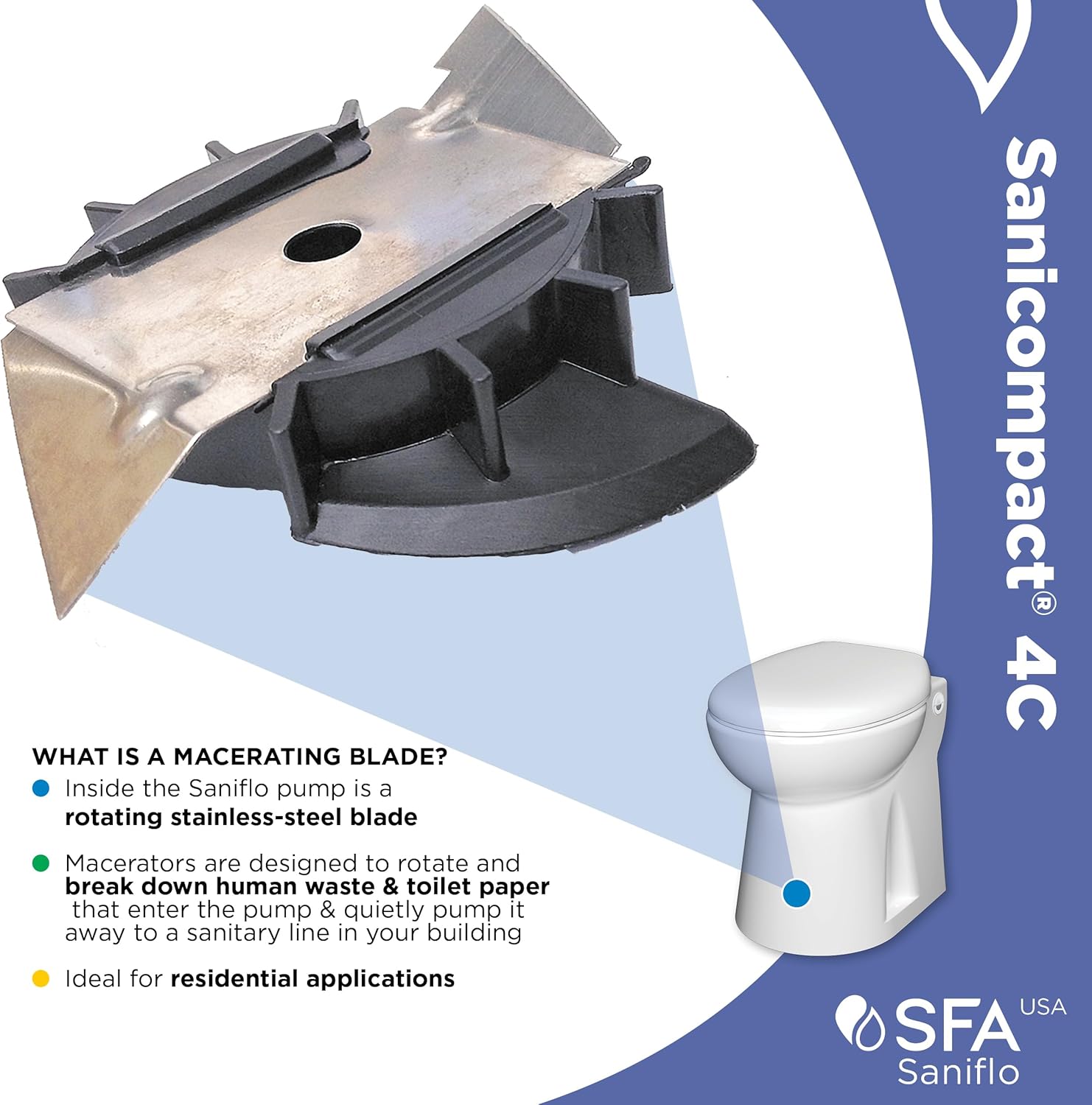

Image 5: Illustration of the macerating blade within the Saniflo pump, demonstrating its function in breaking down waste.
4. Maintenance
Regular maintenance ensures the longevity and efficient operation of your Sanicompact 4C system.
4.1 Cleaning
- Clean the vitreous china bowl regularly using standard toilet bowl cleaners. Avoid abrasive cleaners that could damage the glossy porcelain finish.
- For external cleaning, use a soft cloth and mild detergent.
4.2 Preventing Blockages
- Only human waste and toilet paper should be flushed.
- Do not flush sanitary products, wet wipes, paper towels, dental floss, cotton balls, or any other non-biodegradable items, as these can cause blockages and damage the macerator.
5. Troubleshooting
If you encounter issues with your Sanicompact 4C, consider the following common troubleshooting steps:
- No Power: Check if the unit is properly plugged into a 120V AC outlet and if the circuit breaker has tripped.
- Unit Not Flushing: Ensure the water supply valve is open. Check for any obstructions in the bowl or macerator.
- Unusual Noises: This may indicate a foreign object has entered the macerator. Disconnect power immediately and contact customer support.
- Leaks: Inspect all plumbing connections for tightness. If leaks persist, contact customer support.
For persistent problems or issues not covered here, please contact SANIFLO customer support.
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | 024 |
| Color | White |
| Product Dimensions (D x W x H) | 16.5" x 14.5" x 18.25" |
| Material (Bowl) | Vitreous China (Porcelain) |
| Material (Seat) | Plastic |
| Installation Type | Floor Mounted |
| Shape | Oval |
| Item Weight | 61.9 pounds |
| Voltage | 120 Volts (AC) |
| Motor | 0.5 HP oil-filled thermally protected |
| Noise Level | ≤ 53 dBA (Lp) (measured at 3 ft.) |
| Discharge Rate (at 9 ft) | 24 GPM |
| Certification Code | CSA (IPC, NSPC) |
| Connections | Sink |
Image 6: Detailed dimensions of the Sanicompact 4C unit.
7. Warranty Information
All SANIFLO products come with a standard 2-year warranty upon purchase. An additional 2 years can be added to the warranty period by registering your product. This warranty program is designed to provide peace of mind in the event of a product issue.
8. Support
For technical assistance, parts, or warranty claims, SANIFLO operates a service center based in the United States. Please refer to the contact information provided with your product packaging or visit the official SANIFLO website for support details.
