TEYES CC3 2K Car Multimedia System User Manual

Important Notice

This product is designed exclusively for Right Hand Drive Toyota Hilux Pick Up AN120 models manufactured between 2015 and 2020. It is not compatible with Left Hand Drive vehicles.

Image: Incompatibility warning for Left Hand Drive vehicles. The system is only for Right Hand Drive models.

Package Contents

Verify that all items listed below are included in your package:

• 1* Head unit (TEYES CC3 2K)
• 1* USB cable
• 1* GPS antenna
• 1* AUX cable
• 1* 4G WiFi antenna
• 1* E-book (digital manual)
• 1* Frame (OEM Panel)
• 1* Power cable
• 1* AHD 1080p rear camera
• Screws & Screwdriver
• Audio & Video harness + RCA
• Cleaning cloth
• Wiring diagram

Image: Visual representation of the TEYES CC3 2K package contents, including the head unit, cables, and accessories.

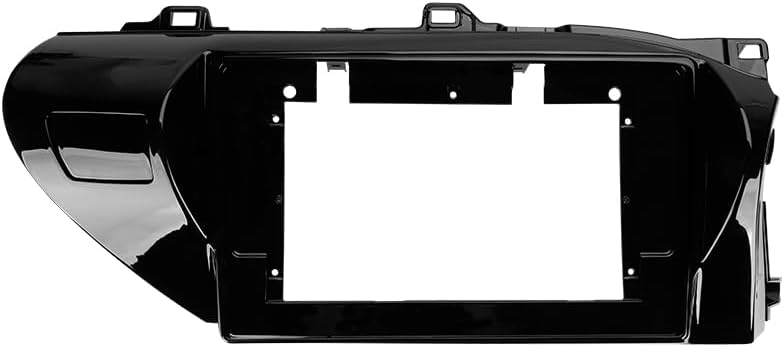

Image: The OEM panel frame, designed to integrate the head unit seamlessly into the Toyota Hilux dashboard.

Specifications

Image: Dimensions of the 10.36-inch TEYES CC3 2K head unit, providing measurements for installation planning.

Setup and Installation

Professional installation is highly recommended for this car multimedia system. Incorrect installation can lead to damage to the unit or your vehicle's electrical system.

Pre-Installation Checks:

• Ensure the vehicle's ignition is off and the battery is disconnected.
• Confirm all package contents are present.
• Review the provided wiring diagram thoroughly.

Installation Steps (General):

1. Carefully remove the original car radio and dashboard trim.
2. Connect the power cable, GPS antenna, 4G WiFi antenna, and other necessary harnesses to the TEYES CC3 2K head unit according to the wiring diagram.
3. Install the AHD 1080p rear camera (if applicable) and route its cable to the head unit.
4. Mount the TEYES CC3 2K head unit into the OEM panel frame.
5. Secure the assembly into the dashboard opening.
6. Reconnect the vehicle battery and test the system before fully reassembling the dashboard trim.

Image: Visual comparison of the car interior before and after the TEYES CC3 2K system installation, demonstrating seamless integration.

Operating Instructions

This section provides an overview of the main functions and how to operate your TEYES CC3 2K system.

Power On/Off and Basic Navigation:

Press the power button to turn the unit on or off. Use the touchscreen to navigate through the Android interface. Swipe gestures and taps are used for app selection and menu navigation.

Display and User Interface:

The 2K In-cell Display offers vivid colors and sharp resolution. You can customize the user interface with various color styles to match your preference.

Image: Examples of various customizable color styles and themes for the system's user interface.

Connectivity (CarPlay, Android Auto, Bluetooth, 4G, WiFi):

• Wireless CarPlay & Android Auto: Connect your compatible smartphone wirelessly for seamless integration of navigation, music, and communication apps.
• Bluetooth: Pair your phone for hands-free calling and audio streaming. The upgraded QCC3031QFN Qualcomm module ensures stable connection.
• 4G Internet: Insert a SIM card (not included) into the designated slot to enable 4G internet access directly on the head unit.
• WiFi: Connect to a local WiFi hotspot for internet access.

Audio Features:

The system features dual DSP (ADAU1701 + ROHM32107) for enhanced audio processing.

• 27-Segment EQ: Fine-tune your audio output with the comprehensive 27-segment equalizer.
• Optical and Coaxial Digital Audio Output: For high-fidelity audio systems, connect via digital outputs.
• Sound Filtering: Adjust sound filters for optimal audio quality.

Image: Digital Sound Processor (DSP) interface for advanced audio adjustments.

Image: The 27-segment Equalizer (EQ) for precise sound customization.

Image: Settings for optical and coaxial digital audio output, enabling connection to external high-quality audio systems.

Steering Wheel Control:

The system supports original car steering wheel buttons. You can configure these buttons to control various functions of the multimedia system.

Image: Steering wheel controls, demonstrating the system's ability to integrate with existing vehicle buttons.

USB Data Transfer:

The unit provides multiple USB outputs for high-speed data transmission, allowing connection of USB drives for media playback or other peripherals.

Image: Multiple USB outputs for connecting external devices and high-speed data transfer.

Split Screen Mode:

Utilize the split-screen feature to run two applications simultaneously, such as navigation and media playback.

Image: Split-screen functionality, allowing two applications to be viewed concurrently on the display.

Rear View Camera:

The included AHD 1080p rear camera provides real-time viewing of the vehicle's rear. The system also supports video recording from the camera.

Image: Real-time display of the rear view camera feed, assisting with parking and maneuvering.

Maintenance

Cleaning the Display:

Use the provided cleaning cloth or a soft, lint-free cloth to gently wipe the screen. Avoid using harsh chemicals or abrasive materials that could damage the display.

Software Updates:

Periodically check for software updates through the system settings or the official TEYES website to ensure optimal performance and access to new features.

Troubleshooting

If you encounter issues with your TEYES CC3 2K system, refer to the following common solutions. For more detailed troubleshooting, consult the included e-book.

Common Issues and Solutions:

• No Power: Check all power connections and fuses. Ensure the vehicle battery is properly connected.
• No Sound: Verify speaker connections, volume settings, and audio output selections. Check if the mute function is active.
• GPS Signal Loss: Ensure the GPS antenna is properly installed and has a clear view of the sky.
• Touchscreen Unresponsive: Try restarting the unit. If the issue persists, a factory reset might be necessary (note: this will erase user data).
• Bluetooth/WiFi Connection Issues: Ensure the respective modules are enabled in settings. Try re-pairing devices or reconnecting to networks.

If these steps do not resolve the problem, please contact customer support.

Warranty Information

The TEYES CC3 2K Car Multimedia System comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.

Please retain your proof of purchase for warranty claims.

Customer Support

For further assistance, technical support, or warranty inquiries, please contact TEYES customer service through their official website or the contact information provided with your purchase.

When contacting support, please have your product model (CC3 2K) and purchase details ready.
