Olympus Lock Cascade Series 960 5-Disc Tumbler Cam Lock Instruction Manual

1. Introduction

This instruction manual provides detailed information for the installation, operation, and maintenance of your Olympus Lock Cascade Series 960 5-Disc Tumbler Cam Lock. Please read this manual thoroughly before installation and use to ensure proper function and security.

2. Product Overview

The Olympus Lock Cascade Series Cam Lock is designed for securing drawers, cabinets, and lockers. It features a 5-disc tumbler key system for enhanced security and durability.

2.1 Key Features

• Adaptable Fit: Compatible with C8053 or similar disc tumbler locks.
• Cylinder Length: 1-3/4" cylinder length, suitable for material thickness up to 1-7/16".
• Secure Installation: Includes patented anti-rotation eyelet spur washer.
• Enhanced Security: 5-Disc Tumbler Key System designed to resist picking and manipulation.
• Durability: ANSI/BHMA tested, surpassing 20,000 cycles for reliability.
• Versatile Application: Ideal for cabinets, lockers, and safes.
• Easy Installation: Pre-assembled cam locks with 90-degree cam rotation.
• Key Removability: Keys can be removed in both locked and unlocked positions.

2.2 Components

The lock set includes the following components:

Figure 1: Included Accessories and Exploded View. This image displays the individual components of the Olympus Lock Cascade Series Cam Lock, including the cylinder, cam, fixing nut, eyelet spur washer, retainer staple, and plug extender. It illustrates how the parts fit together for assembly.

1. Change keys (2 per lock)
2. 1-1/2" Straight Cam
3. 1-1/8" Long with 11/32" Offset Cam
4. Eyelet spur washer
5. Fixing nut
6. Trim ring
7. Cam screw with star washer
8. Retainer staple
9. Plug extender (if required)

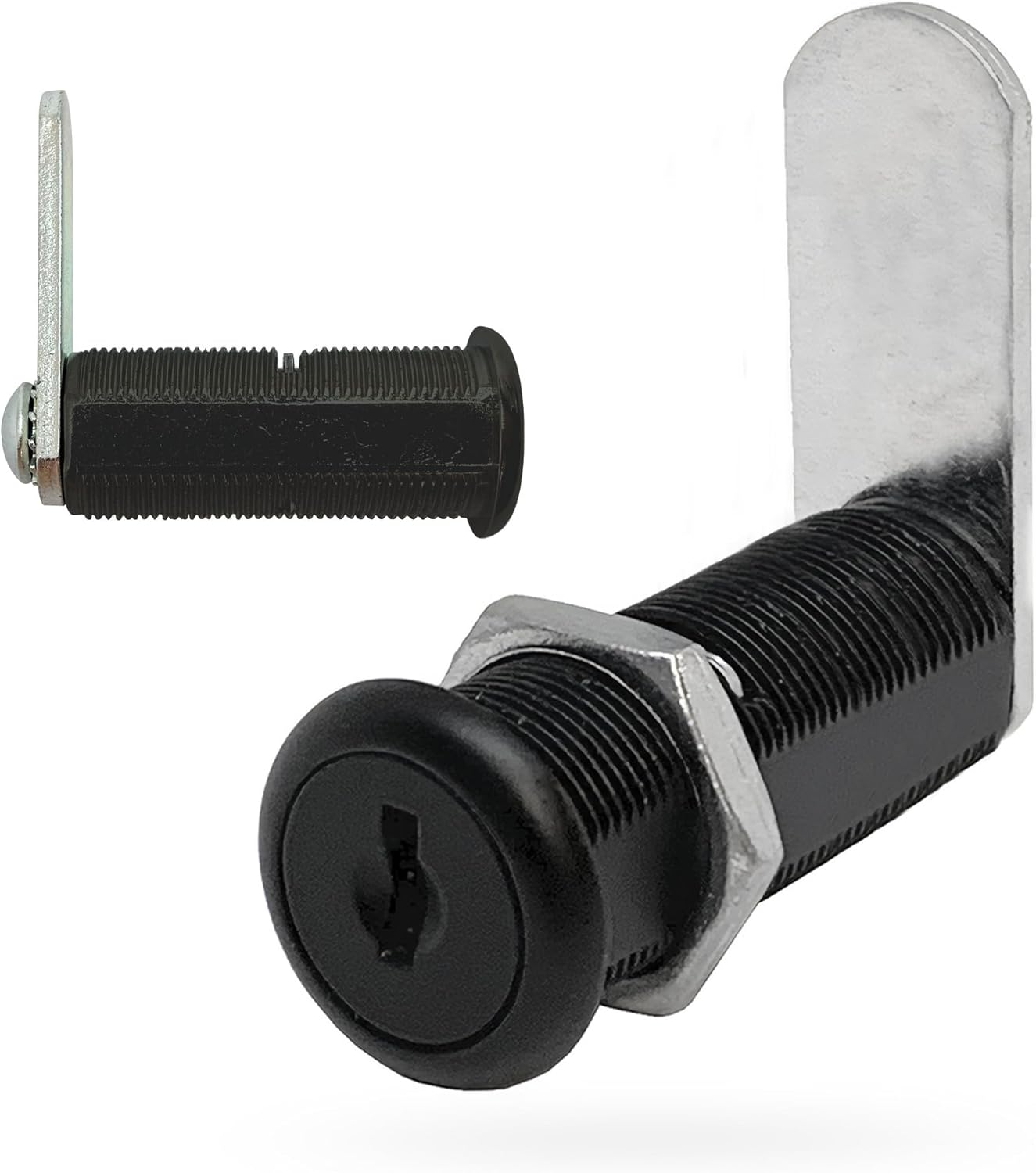

Figure 2: Olympus Lock Cascade Series 960 Cam Lock. This image shows the assembled cam lock with its cylinder and the attached cam arm, ready for installation.

3. Setup and Installation

The Olympus Lock Cascade Series Cam Locks are shipped with the body and cylinder pre-assembled for quick installation. Follow these steps for proper setup:

3.1 Preparation

• Ensure the mounting surface (drawer, cabinet door, locker) has a standard 3/4" diameter hole.
• Verify the material thickness is suitable for the 1-3/4" cylinder length (up to 1-7/16" maximum material thickness).

Figure 3: Compatibility and Mounting Hole. This diagram illustrates that the lock is compatible with C8053 or similar disc tumbler locks and mounts in a standard 3/4" diameter hole.

3.2 Installation Steps

1. Insert the pre-assembled lock body into the 3/4" diameter mounting hole from the front of the cabinet/drawer.
2. From the inside of the cabinet/drawer, slide the eyelet spur washer over the back of the lock cylinder. Ensure the spurs engage with the mounting surface to prevent rotation.
3. Thread the fixing nut onto the cylinder and tighten it securely by hand, then with a wrench, ensuring the lock is firmly seated.
4. Attach the desired cam (straight or offset) to the back of the cylinder using the cam screw and star washer. Ensure the cam is oriented correctly for your application (e.g., to engage with the cabinet frame when locked).
5. Test the lock operation with the key to ensure the cam rotates 90 degrees and engages properly.

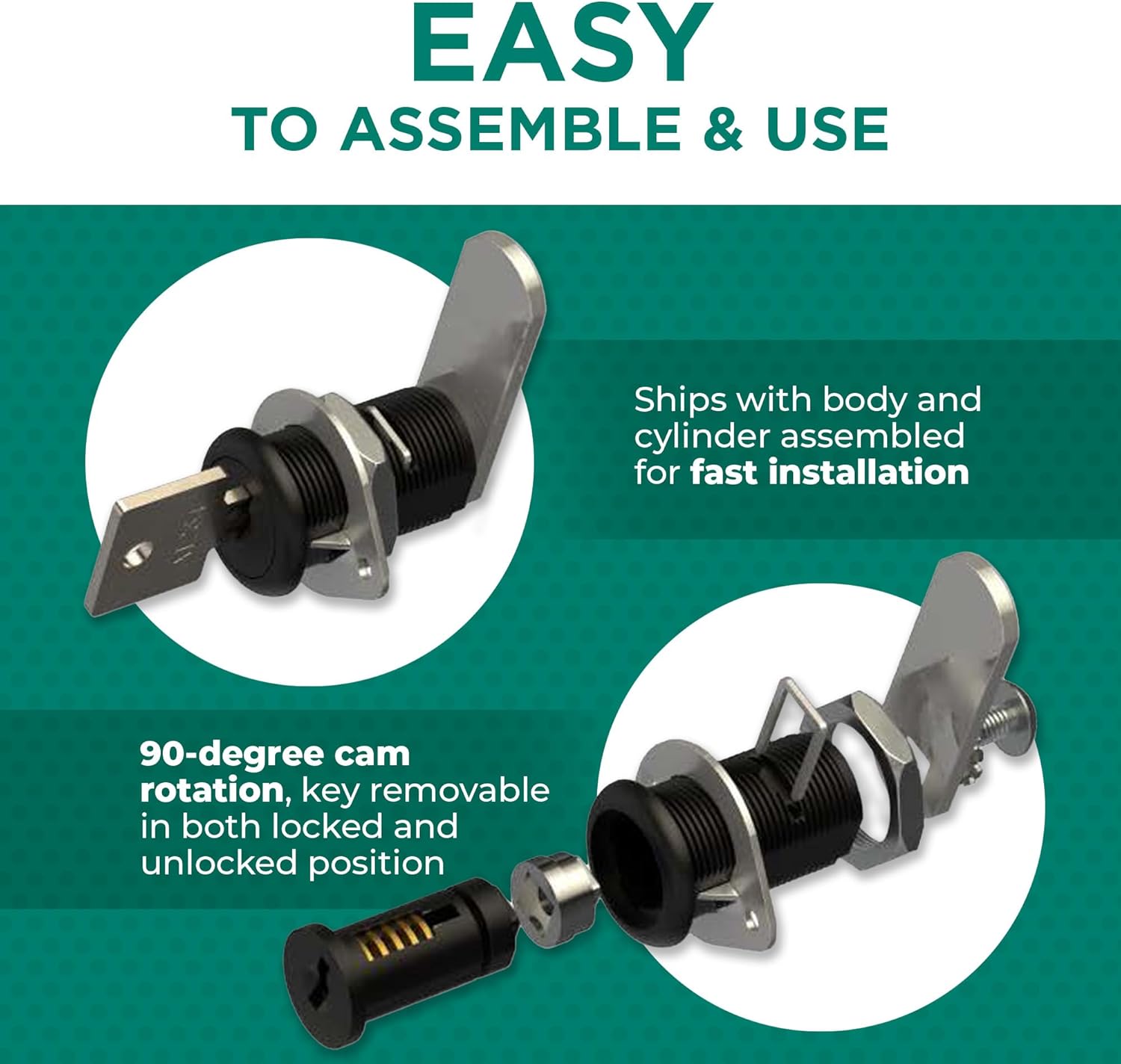

Figure 4: Assembly and Cam Rotation. This image demonstrates the pre-assembled nature of the lock for fast installation and highlights the 90-degree cam rotation, with keys removable in both locked and unlocked positions.

4. Operating Instructions

Operating the Olympus Lock Cascade Series 960 Cam Lock is straightforward:

1. To Lock: Insert the key into the keyway. Turn the key 90 degrees clockwise (or counter-clockwise, depending on installation) until the cam engages with the cabinet frame or strike plate. Remove the key.
2. To Unlock: Insert the correct key into the keyway. Turn the key 90 degrees counter-clockwise (or clockwise) until the cam disengages. The key can be removed in both the locked and unlocked positions.

Figure 5: Key Insertion. A close-up view showing a hand inserting a key into the lock cylinder, demonstrating the initial step for locking or unlocking.

5. Maintenance

Regular maintenance ensures the longevity and smooth operation of your cam lock:

• Cleaning: Wipe the exterior of the lock with a soft, dry cloth. Avoid abrasive cleaners or solvents.
• Lubrication: If the key rotation becomes stiff, apply a small amount of graphite-based lubricant or a specialized lock lubricant into the keyway. Do not use oil-based lubricants as they can attract dust and debris.
• Inspection: Periodically check the fixing nut and cam screw for tightness. Ensure the cam is not bent or damaged.
• Key Care: Avoid forcing the key if it does not turn easily. Inspect the key for damage or bending.

6. Troubleshooting

7. Specifications

Figure 6: Dimensional Diagram. This diagram provides detailed measurements for the lock cylinder and cam, including maximum material thickness and cylinder length.

Figure 7: Cascade Series Cylinder Length Options. This image shows various models (954, 953, 955, 960, 961) with their corresponding maximum material thickness and cylinder lengths, illustrating the range of available options.

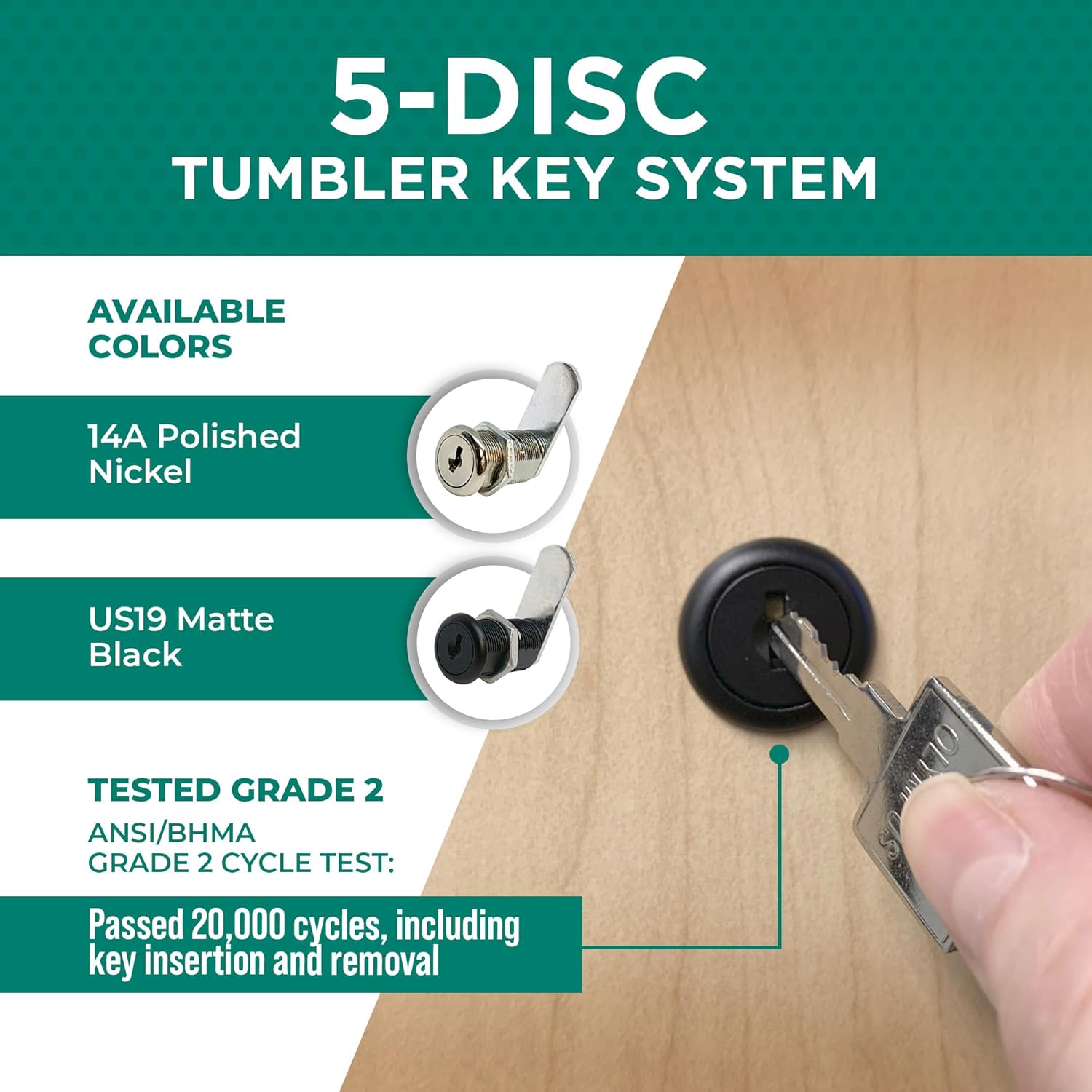

Figure 8: Security Features and Finishes. This image highlights the 5-Disc Tumbler Key System, available finishes (Polished Nickel and Matte Black), and confirms the lock has passed Grade 2 cycle testing (20,000 cycles).

8. Warranty and Support

For warranty information or technical support, please contact Olympus Lock directly. Refer to the official Olympus Lock website or your purchase documentation for specific warranty terms and contact details.

Manufacturer: OLYMPUS LOCK

Website: www.olympuslock.com (Example link, verify actual website)
