1. Introduction
This manual provides essential information for the safe and efficient use of your FLEXISPOT 42-inch Sit-to-Stand Desk Riser. This height-adjustable computer workstation is designed to promote a healthy balance between sitting and standing throughout your workday. Please read these instructions thoroughly before assembly and operation.
2. Safety Information
- Ensure all components are securely fastened before use.
- Do not exceed the maximum weight capacity of 33 lbs for the desktop and 4.4 lbs for the keyboard tray.
- Keep hands and fingers clear of moving parts during height adjustment to prevent injury.
- Place the desk riser on a stable, level surface.
- Distribute weight evenly on the desktop to maintain stability.
- Keep children and pets away from the unit during operation.
3. Package Contents
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Main Desk Riser Unit
- Removable Keyboard Tray
- Assembly Hardware (screws for keyboard tray)
- Instruction Manual
4. Setup Instructions
The FLEXISPOT Sit-to-Stand Desk Riser is designed for quick and straightforward assembly. Two people are recommended for easier setup.
- Unpack the Unit: Carefully remove all components from the packaging.
- Position the Main Unit: Place the main desk riser unit on your existing desk or workstation. Ensure it is centered and stable.
- Attach the Keyboard Tray: Align the removable keyboard tray with the designated slots on the underside of the main unit. Slide the tray into place until it clicks securely. Use a Phillips screwdriver (not included) to fasten any provided screws for additional stability.
- Organize Cables: Utilize the included cable management loops to organize your monitor, keyboard, and mouse cables. Ensure cables have enough slack to accommodate the full range of height adjustment.
5. Operating Instructions
The desk riser features a spring-assisted lifting mechanism for smooth and effortless height adjustments.
- Adjusting Height: To raise or lower the desk, locate the lever on the right side of the main unit. Squeeze the lever firmly.
- Raising the Desk: While squeezing the lever, gently lift the desktop to your desired standing height. The spring-assisted mechanism will help elevate the unit. Release the lever to lock the desk in place.
- Lowering the Desk: While squeezing the lever, gently push down on the desktop to lower it to your desired sitting height. Release the lever to lock the desk in place.
- Vertical Movement: The desk riser moves straight up and down within its own footprint, requiring no additional spatial accommodations. The height can be adjusted between 4.7 inches (minimum) and 19.7 inches (maximum).
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your desk riser.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Tighten if necessary.
- Moving Parts: The lifting mechanism is designed to be maintenance-free. Do not attempt to lubricate or disassemble it.
7. Troubleshooting
If you encounter any issues with your desk riser, refer to the following common solutions:
- Desk is difficult to adjust: Ensure no objects are obstructing the lifting mechanism. Verify that the weight on the desktop does not exceed the maximum capacity.
- Desk feels unstable: Check that the unit is placed on a flat, stable surface. Ensure all components, especially the keyboard tray, are securely attached. Redistribute weight evenly on the desktop.
- Keyboard tray is loose: Re-check the connection points of the keyboard tray and ensure any fastening screws are tightened.
If problems persist, please contact FLEXISPOT customer support for assistance.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | FLEXISPOT |
| Model | B0CDWSPYKQ |

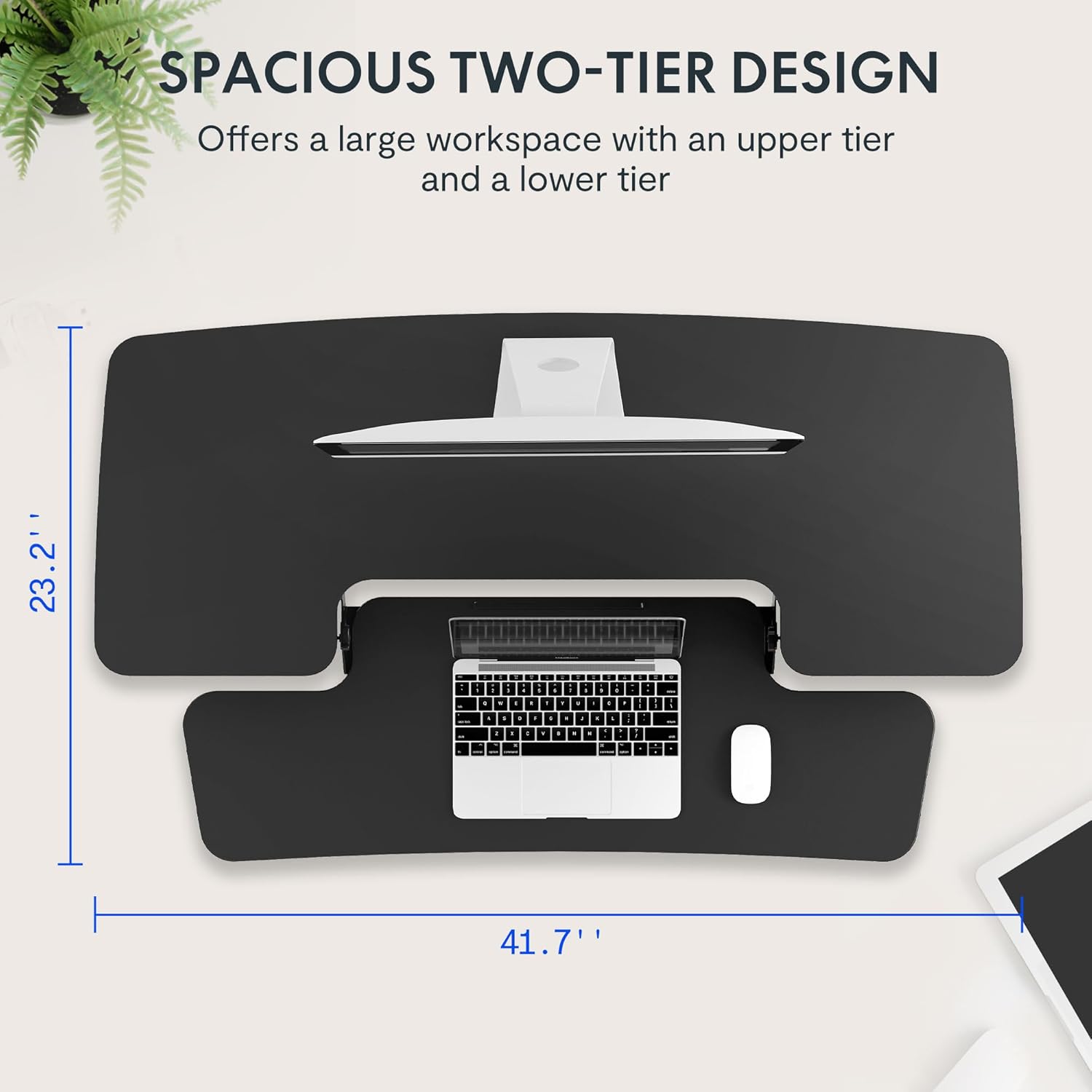

| Product Dimensions (D x W x H) | 24"D x 42"W x 19.7"H |
| Color | Black |
| Top Material Type | Engineered Wood |
| Item Weight | 52 Pounds |
| Minimum Height | 4.7 Inches |
| Maximum Height | 19.7 Inches |
| Desktop Load Capacity | 33 lbs |
| Keyboard Tray Load Capacity | 4.4 lbs |
| Required Assembly | Yes (Keyboard Tray) |
| Recommended Number of People for Assembly | 2 |
9. Warranty and Support
Your FLEXISPOT Sit-to-Stand Desk Riser comes with a limited warranty. For specific details regarding warranty coverage, please refer to the warranty documentation included with your purchase or visit the official FLEXISPOT website.
For technical support, troubleshooting assistance, or warranty claims, please contact FLEXISPOT customer service. You can typically find contact information on the manufacturer's website or through your purchase platform.
Online Support: Visit the FLEXISPOT Store on Amazon for product information and support resources.
