Wedinard Dpofirs 1080P WiFi Security Camera User Manual

1. Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Wedinard Dpofirs 1080P WiFi Security Camera. Please read this manual carefully before using the product to ensure proper functionality and safety.

Package Contents

Upon unboxing, please verify that all items listed below are present and in good condition:

• 1 x Wedinard Dpofirs 1080P WiFi Security Camera
• 1 x Charging Cable (Type-C)
• 1 x Camera Base
• 1 x User Manual
• 1 x Double-Sided Adhesive

Image: The Wedinard Dpofirs 1080P WiFi Security Camera, showing its compact design and the included base.

2. Setup Guide

Follow these steps to set up your security camera for the first time:

1. Download and Install the Application: Search for the official camera application on your mobile device's app store (e.g., Google Play Store for Android). Download and install the application.
2. Power On the Camera: Connect the camera to a power source using the provided Type-C charging cable. The camera will power on automatically.
3. Check the Network Environment: Ensure your Wi-Fi network is stable and within range of the camera. The camera supports Wi-Fi connectivity.
4. Network Access Settings:
   • Open the installed application on your mobile device.
   • Follow the on-screen instructions to add a new device. This typically involves scanning a QR code on the camera or manually entering its device ID.
   • Select your Wi-Fi network and enter the password when prompted.
   • Wait for the camera to connect to the network. A confirmation message or indicator light will signal a successful connection.
5. Mounting the Camera: Use the included camera base and double-sided adhesive to mount the camera on a flat surface or wall. The swivel base allows for flexible positioning.

Image: The Wedinard Dpofirs camera positioned on a surface, illustrating its readiness for setup and use.

3. Operating the Camera

Your Wedinard Dpofirs security camera offers several advanced features for enhanced monitoring:

3.1. 1080P Full HD Image Quality

The camera is equipped with premium lenses, providing 1080P Full HD resolution. This ensures clear, vivid, and realistic image effects for detailed monitoring.

Image: A visual comparison demonstrating the superior clarity and detail of 1080P Full HD image quality provided by the camera.

3.2. Mobile Detection and Push Notifications

When the camera detects abnormal movement within its shooting area, it immediately triggers an alarm message. This message is sent as a push notification to your mobile phone application, allowing for real-time viewing and immediate response.

Image: An illustration of the camera's mobile detection feature, showing an alert being sent to a smartphone when motion is detected.

3.3. Infrared Night Vision with Automatic Switching

The camera features an infrared night vision mode that automatically activates in low-light conditions. This mode provides clear visibility up to 5-10 meters, ensuring monitoring even in complete darkness.

Image: A split image demonstrating the automatic switching of the camera's infrared night vision, showing a scene in both illuminated and dark conditions.

3.4. Two-Way Intercom

With a built-in microphone, the camera supports two-way voice real-time calls. This allows you to communicate with individuals or pets near the camera as if you were face-to-face, providing interactive monitoring.

Image: An illustration of the two-way intercom feature, showing a user interacting with a pet through the camera's audio capabilities.

3.5. Self-Contained AP Hotspot

The camera features its own AP (Access Point) hotspot. This allows the camera to continue recording even when your main Wi-Fi network is disconnected, ensuring continuous security and convenient data transmission.

3.6. Additional Features

• Wireless Connection: Seamless integration with your home Wi-Fi network.
• Video Playback: Review recorded footage directly from the application.
• Swivel Base: Flexible positioning for optimal viewing angles.
• Type-C Interface: Modern and convenient charging/power interface.
• Storage: Supports up to 128GB Micro Memory Card (not included) for local storage.

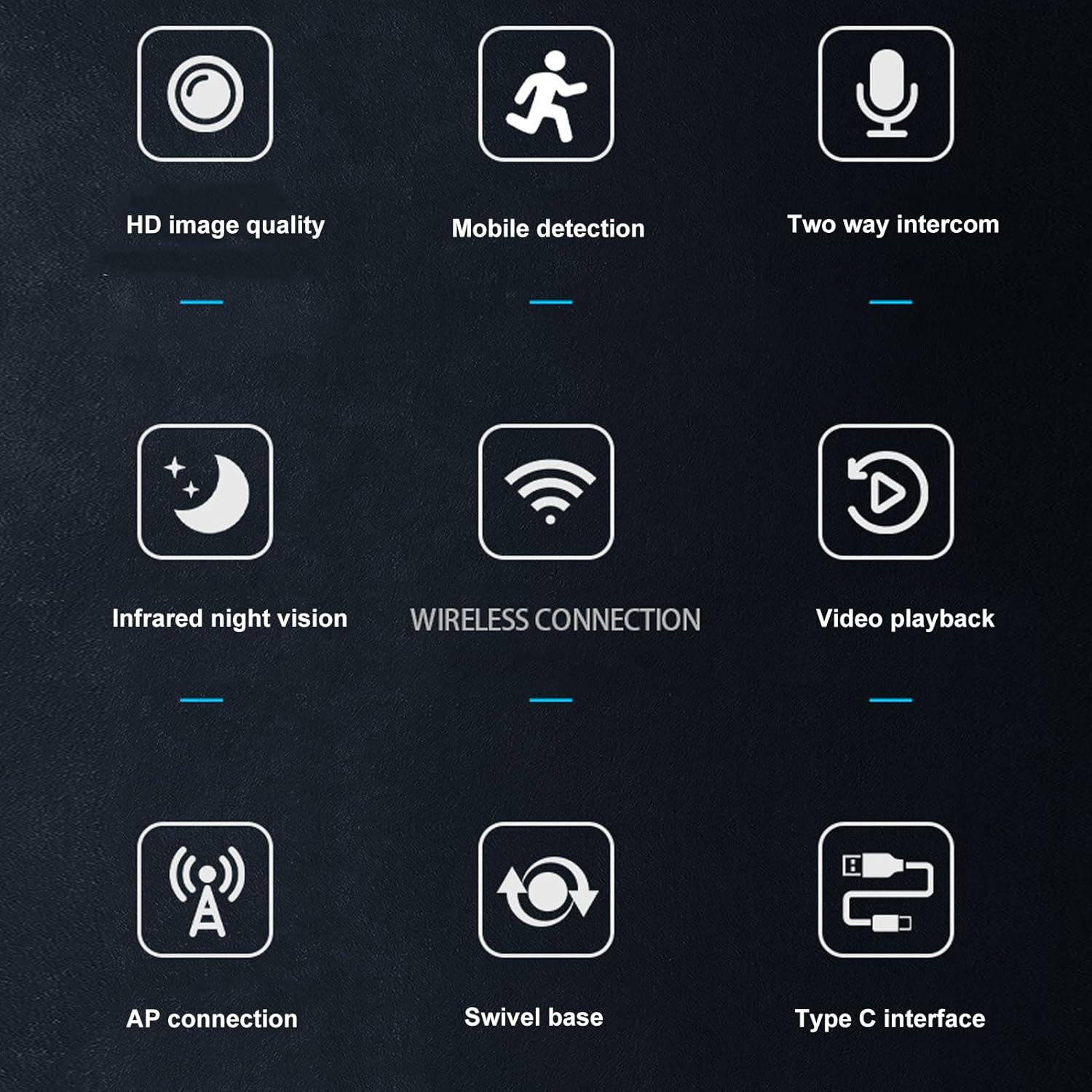

Image: A visual summary of the camera's key features, depicted through illustrative icons.

4. Maintenance

Proper maintenance ensures the longevity and optimal performance of your camera:

• Cleaning: Use a soft, dry cloth to clean the camera lens and body. Avoid using liquid cleaners or abrasive materials that could damage the surface or lens.
• Placement: While suitable for indoor and outdoor use, avoid placing the camera in direct sunlight for extended periods or in areas with extreme temperatures or humidity.
• Firmware Updates: Regularly check the mobile application for available firmware updates to ensure your camera has the latest features and security enhancements.
• Storage Card Management: If using a memory card, periodically review and manage stored footage to prevent the card from becoming full, which could stop recording.

5. Troubleshooting

If you encounter issues with your camera, refer to the following common solutions:

• Camera Not Connecting to Wi-Fi:
  • Ensure the Wi-Fi password is entered correctly.
  • Check if the camera is within range of your Wi-Fi router.
  • Restart your Wi-Fi router and the camera.
  • Verify that your Wi-Fi network is 2.4GHz, as most security cameras do not support 5GHz networks.
• Poor Image Quality:
  • Clean the camera lens with a soft, dry cloth.
  • Ensure there is adequate lighting in the monitored area, especially for non-night vision footage.
  • Check your internet connection speed, as a slow connection can affect streaming quality.
• No Motion Detection Alerts:
  • Verify that motion detection is enabled in the camera's app settings.
  • Check the sensitivity settings for motion detection; adjust if necessary.
  • Ensure the app has permission to send notifications on your mobile device.
• Two-Way Audio Not Working:
  • Check the volume settings on your mobile device and within the camera app.
  • Ensure the microphone and speaker on the camera are not obstructed.
  • Verify that the app has microphone permissions on your mobile device.
• Camera Not Recording:
  • If using a memory card, ensure it is inserted correctly and not full.
  • Check the recording settings in the app (e.g., continuous recording, motion-activated recording).
  • If using cloud storage, verify your subscription status and internet connection.

6. Specifications

Detailed technical specifications for the Wedinard Dpofirs 1080P WiFi Security Camera:

Image: Diagram showing the approximate dimensions of the camera: 45mm (1.8 inches) in width and 85mm (3.3 inches) in height.

7. Warranty and Support

For information regarding warranty coverage and technical support, please refer to the warranty card included in your product packaging or visit the official Wedinard website. You may also contact customer service through the contact information provided on the product packaging or within the mobile application.

Please retain your purchase receipt as proof of purchase for any warranty claims.
