Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your DELIPOP 16W Modern LED Wall Sconce. Please read this manual thoroughly before installation and retain it for future reference.
Important Safety Information
- Always disconnect the power supply at the main circuit breaker before installing, cleaning, or performing any maintenance on the light fixture.
- Installation should be performed by a qualified electrician or a person with adequate knowledge of electrical systems to ensure safety and compliance with local electrical codes.
- Do not modify the fixture in any way. Any modifications may void the warranty and pose a safety risk.
- Ensure the mounting surface is structurally sound and can support the weight of the fixture.
- This product is designed for indoor use only. Do not expose to moisture or extreme temperatures.
- Keep packaging materials out of reach of children.
Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- 1x DELIPOP LED Wall Sconce
- 1x Set of Mounting Accessories (screws, wall anchors)
- 1x Installation Manual (this document)
Product Specifications
| Feature | Specification |
|---|---|
| Brand | DELIPOP |
| Model Number | LED-16W-WSD |
| Power Consumption | 16 Watts |
| Luminous Flux | 1800 Lumens |
| Color Temperature | 3000K Warm White |
| Material | Aluminum, Acrylic |
| Dimensions (L x W x H) | 35 x 11.5 x 11.5 cm (13.78 x 4.53 x 4.53 inches) |
| Weight | 500 grams (1.1 lbs) |
| Voltage | 220 Volts |
| Light Source Type | Integrated LED |
| Installation Type | Wall Mount |
| Energy Efficiency Class | E |
Energy Efficiency Information
The DELIPOP LED Wall Sconce has an energy efficiency class of E. More detailed information can be found via the EPREL database.
Image: Energy label for DELIPOP LED-16W-WSD, indicating an energy efficiency class E and consumption of 16 kWh per 1000 hours.
For detailed product information, please visit the EPREL database.
Installation Instructions
WARNING: Ensure the power supply is completely disconnected at the circuit breaker before beginning installation to prevent electric shock.
- Prepare the Installation Area: Choose a suitable location on the wall. Ensure there are no hidden electrical wires or pipes in the drilling path.
- Mount the Mounting Plate: Securely attach the mounting plate to the wall using the provided screws and wall anchors. Ensure it is level and firmly fixed.
- Connect Electrical Wires: Carefully connect the household electrical wires to the corresponding wires of the light fixture. Typically, this involves connecting live to live, neutral to neutral, and ground to ground. If you are unsure, consult a qualified electrician.
- Secure the Fixture: Once the wiring is complete, carefully align the light fixture with the mounting plate and secure it using the provided screws. Ensure the fixture is stable and flush against the wall.
- Restore Power: Once the fixture is securely installed, restore power at the circuit breaker and test the light.
Product Dimensions and Components
Image: Detailed dimensions of the wall sconce, measuring approximately 37cm (14.57in) in height, 15cm (5.91in) in width from the wall, and 10cm (3.94in) in depth.
Image: Breakdown of the wall sconce's construction, highlighting the aluminum lamp body, the built-in LED chip, and the acrylic lampshade.
Operating Your Wall Sconce
The DELIPOP LED Wall Sconce is designed for simple operation via a standard wall switch.
- Turning On: Flip the connected wall switch to the 'ON' position. The LED wall sconce will illuminate with a warm white light.
- Turning Off: Flip the connected wall switch to the 'OFF' position. The LED wall sconce will turn off.
Image: Visual representation of the wall sconce in its illuminated state (TURN ON) and its unlit state (TURN OFF).
Care and Maintenance
To ensure the longevity and optimal performance of your DELIPOP LED Wall Sconce, follow these simple maintenance guidelines:
- Cleaning: Before cleaning, always ensure the power supply to the fixture is disconnected. Use a soft, dry, or slightly damp cloth to wipe the surface of the fixture. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician for repair.
- LED Longevity: The integrated LED chips are designed for long-term use and do not require replacement.
Troubleshooting
If you encounter any issues with your DELIPOP LED Wall Sconce, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers or dims. |
|
|
| Fixture is hot to the touch. |
|
|
If the problem persists after attempting these solutions, please contact customer support.
Warranty and Customer Support
Specific warranty details for your DELIPOP LED Wall Sconce may vary by region and retailer. Please refer to your purchase documentation or contact your point of sale for warranty information.
For technical assistance, replacement parts, or any other inquiries, please contact DELIPOP customer support through the retailer where the product was purchased or visit the official DELIPOP website (if available).
Product Application Examples
The DELIPOP 16W Modern LED Wall Sconce is versatile and suitable for various indoor settings, providing warm and inviting illumination.
Image: Two wall sconces installed along a modern staircase, providing ambient lighting.

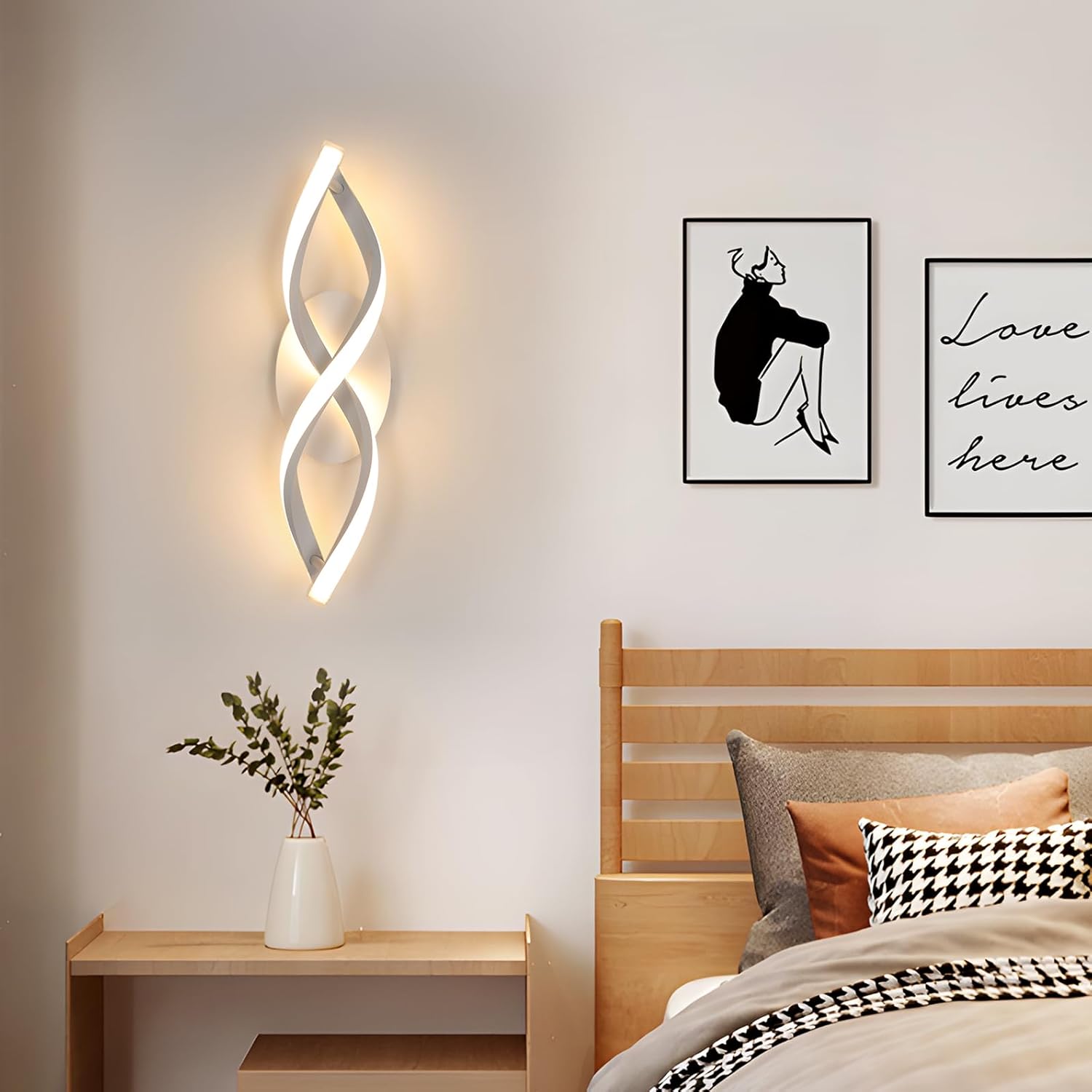

Image: A single wall sconce mounted in a bedroom, casting warm light above a bedside table.

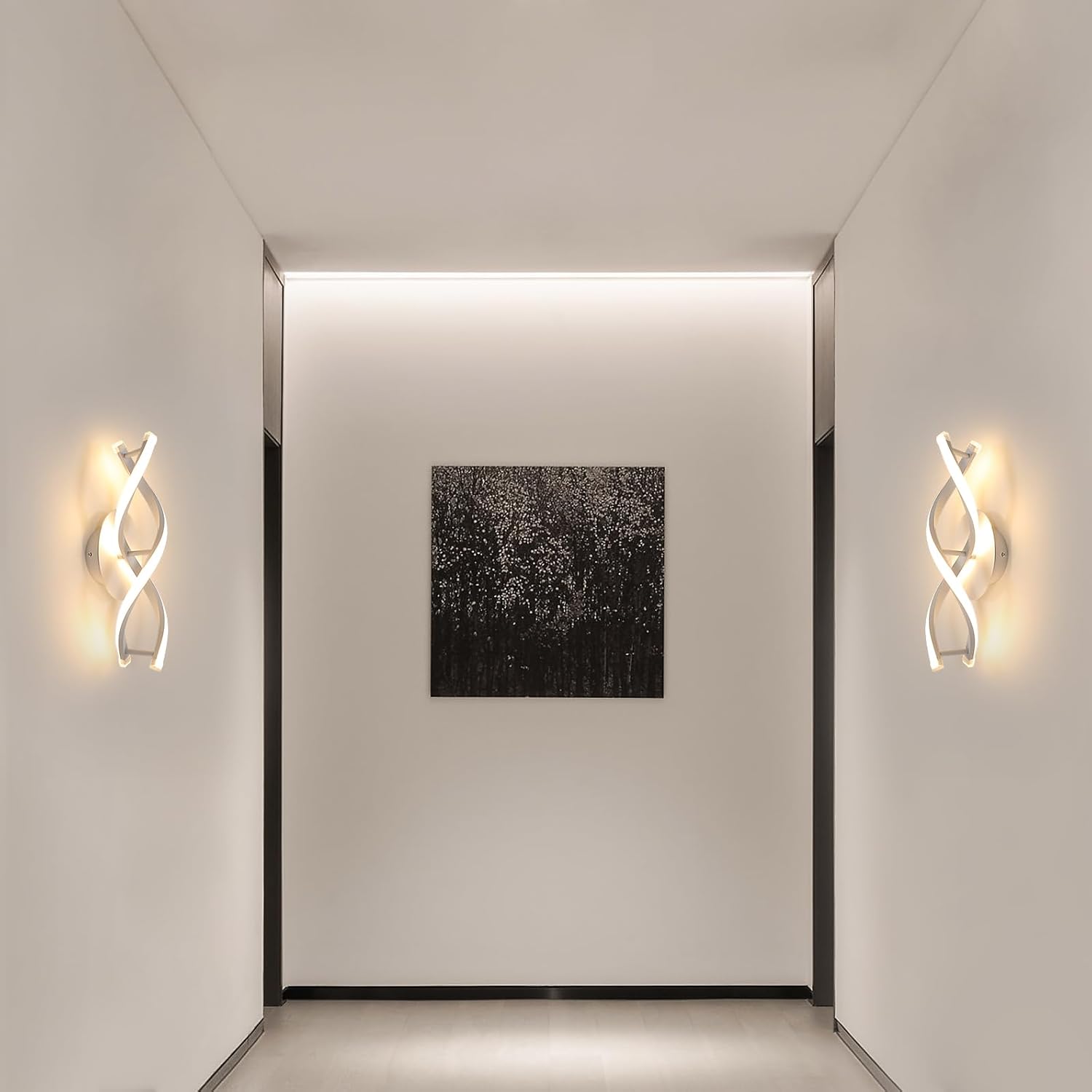

Image: Two wall sconces illuminating a long, modern hallway, enhancing the architectural features.
Image: Two wall sconces positioned symmetrically in a bathroom, providing light above a vanity mirror.
Product Overview
Image: The DELIPOP 16W Modern LED Wall Sconce, showcasing its elegant white aluminum design and warm light output.
