TEYES CC3 2K

TEYES CC3 2K Car Radio Multimedia System User Manual

Model: CC3 2K

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your TEYES CC3 2K Car Radio Multimedia Video Player Navigation Stereo GPS Headunit. Please read this manual thoroughly before using the device to ensure proper functionality and safety.

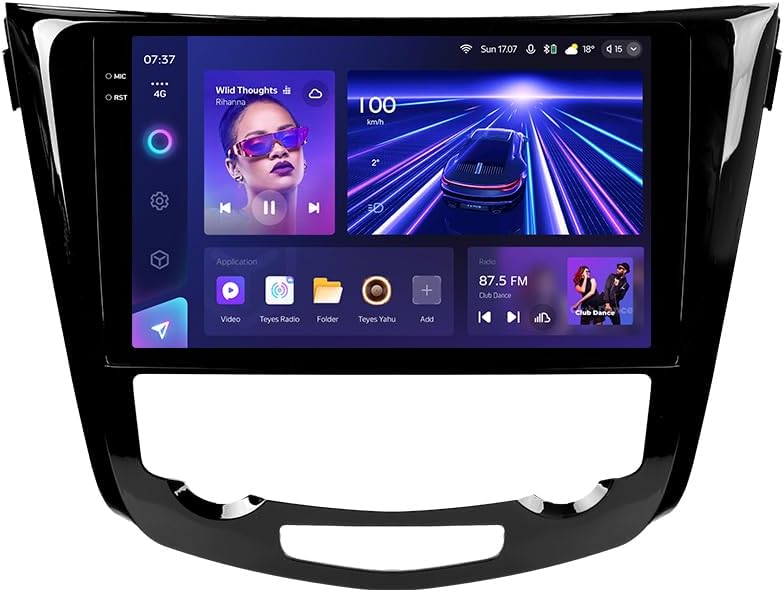

Image: Front view of the TEYES CC3 2K Car Radio Multimedia System, showcasing its large display and sleek design.

Package Contents

Verify that all items listed below are included in your package. If any items are missing or damaged, please contact customer support.

1x TEYES CC3 2K Head Unit
1x OEM Panel (Frame)
1x Power Cable
1x USB Cable
1x GPS Antenna
1x AUX Cable
1x 4G WiFi Antenna
1x AHD 1080p Rear Camera
1x E-book (Digital Manual)
1x Wiring Diagram
1x Cleaning Cloth

Setup and Installation

Professional installation is recommended for this device. Ensure the vehicle's battery is disconnected before beginning installation.

Compatibility

This unit is designed for Nissan X-Trail 3 (T32) 2013-2022 and Qashqai 2 (J11) models. Please verify your vehicle's compatibility before installation.

Before and After Installation of TEYES CC3 2K in a car dashboard

Image: A side-by-side comparison showing a car's dashboard before and after the installation of the TEYES CC3 2K unit, highlighting the integrated look.

Installation Steps (General)

Disconnect Battery: Before starting, disconnect the negative terminal of your vehicle's battery to prevent electrical shorts.
Remove Old Head Unit: Carefully remove the existing car radio and trim panels. Refer to your vehicle's service manual for specific instructions.
Connect Wiring Harness: Connect the provided power cable, USB cable, GPS antenna, AUX cable, and 4G WiFi antenna to the TEYES CC3 2K head unit. Ensure all connections are secure.
Install Rear Camera: If installing the AHD 1080p rear camera, route its cable to the desired mounting location (typically near the license plate) and connect it to the head unit.
Mount Head Unit: Secure the TEYES CC3 2K head unit into the dashboard using the provided OEM panel (frame) and mounting hardware.
Reconnect Battery: Once all connections are made and the unit is securely mounted, reconnect the vehicle's battery.
Test Functionality: Turn on the vehicle and test all functions of the new head unit, including audio, navigation, camera, and connectivity.

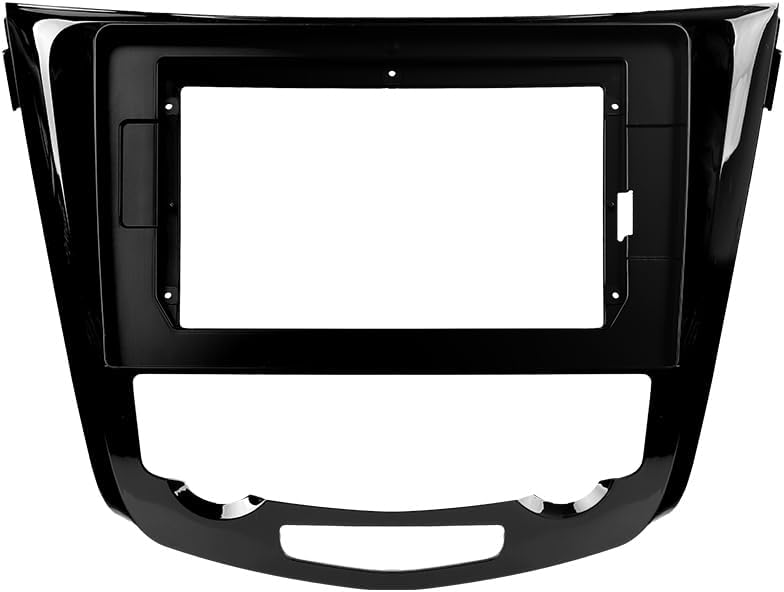

Image: The OEM panel (frame) included with the TEYES CC3 2K, designed for seamless integration into compatible vehicle dashboards.

Image: Technical drawing showing the dimensions of the TEYES CC3 2K head unit, including its 10.36-inch screen size.

Important Installation Note

Image: Three USB output cables provided with the TEYES CC3 2K for data transfer and connectivity.

The unit provides multiple USB outputs for data transfer. While designed for broad compatibility, some original car USB functions may not be fully supported across all vehicle models. An included USB adapter cable can be used to ensure compatibility where needed.

Steering wheel controls for TEYES CC3 2K

Image: A close-up of a car's steering wheel with controls, indicating support for steering wheel button integration with the TEYES CC3 2K.

The unit supports original car steering wheel buttons. Basic functions like volume and track control are supported. Advanced functions may require additional configuration or may not be fully compatible with all vehicle models.

Operating Instructions

Display and Interface

The TEYES CC3 2K features a 10.36-inch 2K In-cell display, offering vivid colors and accurate touch response. The Android 10 operating system provides a user-friendly interface.

Image: A promotional image highlighting the TEYES CC3 2K's 2K In-cell display, showing a vibrant user interface.

Connectivity

Bluetooth: Connect your smartphone via the upgraded Qualcomm QCC3031QFN Bluetooth module for hands-free calling and audio streaming.
Wi-Fi/4G Internet: The unit supports 4G internet connectivity (SIM card not included) and Wi-Fi for online navigation, app downloads, and streaming.
USB: Use the USB ports for media playback, data transfer, and connecting external devices.

Navigation and Multimedia

GPS: Built-in GPS with North America map type support for accurate navigation.
CarPlay & Android Auto: Enjoy seamless integration with your smartphone via built-in wireless Apple CarPlay and Android Auto.
Radio: Access local radio stations with the premium local radio feature.
Split Screen Mode: Utilize the freestyle combination split screen mode to run two applications simultaneously, such as navigation and media playback.

Image: The TEYES CC3 2K display showing split-screen functionality, with navigation on one side and video playback on the other.

Image: The TEYES CC3 2K display showing the premium local radio interface with various station icons.

Audio Features

The unit is equipped with dual DSP (ADAU1701 + ROHM32107) for enhanced audio processing, offering optical and coaxial digital audio output.

27-Segment EQ: Fine-tune your audio experience with the comprehensive 27-segment equalizer.
Sound Filtering: Advanced sound filtering options are available to optimize audio output.

Image: The TEYES CC3 2K display showing the DSP audio settings interface, indicating dual DSP processors.

Image: The TEYES CC3 2K display showing the 27-segment equalizer interface for detailed audio customization.

TEYES CC3 2K Optical and Coaxial Digital Audio Output

Image: The TEYES CC3 2K display showing audio output settings, indicating support for optical and coaxial digital audio output.

Image: The TEYES CC3 2K display showing sound filtering options, allowing users to refine audio quality.

Camera and Recording

The unit supports real-time viewing of the vehicle's rear view and video recording with the included AHD 1080p rear camera.

Image: The TEYES CC3 2K display showing the real-time feed from the rear view camera, with recording options.

Maintenance

Screen Cleaning: Use the provided cleaning cloth or a soft, lint-free cloth to gently wipe the screen. Avoid abrasive cleaners or solvents.
Software Updates: Periodically check for software updates from TEYES to ensure optimal performance and access to new features.
Environmental Conditions: Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.

Troubleshooting

If you encounter issues with your TEYES CC3 2K, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Unit does not power on.	Loose power connection, blown fuse, vehicle battery issue.	Check power cable connections. Inspect vehicle fuses. Ensure vehicle battery is charged.
No audio output.	Volume too low, incorrect audio source selected, speaker wiring issue.	Increase volume. Select correct audio source. Check speaker connections.
GPS signal lost or inaccurate.	GPS antenna obstructed or improperly installed.	Ensure GPS antenna has a clear view of the sky and is securely connected.
Touchscreen unresponsive.	Temporary software glitch, screen protector interference.	Restart the unit. Remove any screen protectors to test.
Bluetooth connection issues.	Device not in pairing mode, interference, outdated firmware.	Ensure device is in pairing mode. Move closer to the unit. Check for firmware updates.

Image: An icon representing Frequently Asked Questions, indicating further support resources.

Specifications

Feature	Detail
Model Number	CC3 2K
Operating System	Android 10
Processor	8 Cores 2.0GHz
RAM	6GB
ROM	128GB
Display Size	10.36 Inches
Display Type	2K In-cell Display
Connectivity	Bluetooth (QCC3031QFN Qualcomm), USB, Wi-Fi, Hotspot, 4G Internet
Audio Output Mode	Stereo
DSP	2*DSP ADAU1701 + ROHM32107
Audio Output	Optical and Coaxial Digital Audio Output
Navigation	Built-in GPS, North America Map Type
Special Features	Touchscreen, Bluetooth, Wireless CarPlay, Android Auto, RDS, Real-time Rear View, Video Recording, TEYES Vision & TEYES Yahu software.
Vehicle Service Type	Car

Warranty and Support

The TEYES CC3 2K comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.

For technical support, troubleshooting assistance, or warranty claims, please contact TEYES customer service through the official TEYES store on Amazon or their official website.

Visit the TEYES Store on Amazon for more information and support resources.
