Polibi Queen Size Murphy Bed Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Polibi Queen Size Murphy Bed. This convertible chest bed is designed to offer a space-saving sleeping solution with integrated storage and a charging station, ideal for small bedrooms or apartments. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Image 1.1: The Polibi Queen Size Murphy Bed in its open configuration, ready for use. The bed features a headboard and a pull-out mattress frame, with a storage drawer visible at the base.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in injury or damage to the product.

• Read all instructions thoroughly before assembly and use.
• Assembly requires two adults. Do not attempt to assemble alone.
• Keep children and pets away from the assembly area. Small parts can be a choking hazard.
• Ensure all fasteners are securely tightened before using the bed. Periodically check and retighten as needed.
• This Murphy bed must be securely anchored to a wall stud to prevent tipping. Use the provided anti-tip hardware.
• Do not exceed the recommended weight capacity (refer to specifications for details).
• Unplug the charging station from the wall outlet before cleaning or performing any maintenance.
• Use only the mattress size specified for this bed (Queen size).

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer service immediately.

• Cabinet Panels (Side panels, back panel, top panel, front panels)
• Mattress Frame Components
• Drawer Components (Front, sides, back, bottom, glides)
• Hardware Pack (Screws, bolts, cam locks, dowels, brackets, handles)
• Charging Station Unit
• Anti-tip Hardware
• Assembly Tools (Allen wrench, screwdriver - may be included or required)

4. Setup Instructions

Follow these steps carefully for proper assembly. It is recommended to assemble the bed in the room where it will be used.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface to prevent scratches. Compare each part to the parts list in your separate assembly guide.
2. Assemble the Cabinet Frame: Begin by connecting the side panels to the base and top panels using the provided hardware. Ensure all connections are secure.
3. Install Mattress Frame Mechanism: Attach the folding mattress frame and its support mechanisms to the inside of the cabinet, following the specific diagrams in your assembly guide. Ensure all hinges and moving parts are correctly aligned.
4. Assemble the Drawer: Construct the storage drawer using the drawer panels and glides. Install the drawer into the designated slot at the bottom of the cabinet.
5. Install Charging Station: Secure the built-in charging station into its designated cutout on the side of the cabinet. Connect the power cord as instructed.
6. Attach Front Panels: Secure the decorative front panels to the folding mattress frame. These panels form the cabinet exterior when the bed is closed.
7. Secure to Wall: This is a critical safety step. Position the assembled unit against a wall. Using the anti-tip hardware, securely fasten the top of the cabinet to at least two wall studs. This prevents the bed from tipping forward when opened or closed.
8. Final Checks: Ensure all screws and bolts are tight. Test the opening and closing mechanism of the bed several times to confirm smooth operation.

Video 4.1: An instructional video demonstrating the assembly process and key features of the Polibi Queen Size Murphy Bed.

Image 4.2: Side profile of the Murphy bed when fully extended, illustrating the support structure and how the bed folds out from the cabinet.

5. Operating Instructions

5.1 Opening the Bed

1. Ensure the area in front of the cabinet is clear of obstructions.
2. Unlatch any securing mechanisms on the top or sides of the cabinet that hold the bed in the closed position.
3. Gently pull the front panels of the cabinet downwards. The mattress frame will unfold and extend towards the floor.
4. Once fully extended, ensure the support legs are properly engaged and the bed is stable before use.

5.2 Closing the Bed

1. Remove any bedding or pillows that might obstruct the closing mechanism.
2. Lift the mattress frame from the foot end, guiding it upwards into the cabinet.
3. As the bed folds, the front panels will close, forming the cabinet exterior.
4. Secure the bed in the closed position using the latches or locking mechanisms.

Image 5.1: The Murphy bed in its compact, closed cabinet form, showcasing the integrated storage drawer pulled open.

5.3 Using the Built-in Charging Station

The bed includes a built-in charging station with USB ports and power outlets.

• Ensure the bed's power cord is plugged into a functional wall outlet.
• Connect your devices to the available USB ports or power outlets on the charging station.
• Always unplug the bed from the wall outlet when not in use or before cleaning.

Image 5.2: Detail of the integrated charging station, featuring USB ports and standard electrical outlets for convenient device charging.

5.4 Using the Storage Drawer

The large drawer located at the base of the cabinet provides convenient storage.

• Pull the drawer handles to open the drawer.
• Store bedding, pillows, or other items as needed.
• Push the drawer firmly to close it completely.

Video 5.3: A short demonstration of the Polibi Murphy Bed's features, including the smooth operation of the bed and the functionality of the storage drawer.

6. Maintenance

Proper maintenance ensures the longevity and safe operation of your Murphy bed.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Fastener Checks: Periodically inspect all screws, bolts, and connections. Tighten any loose fasteners to maintain stability.
• Mechanism Inspection: Check the folding mechanism and hinges for any signs of wear or damage. If the mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to moving parts (avoid oil-based lubricants).
• Charging Station: Ensure the charging station and its cord are free from damage. Do not use if frayed or exposed wires are present.

7. Troubleshooting

Refer to this section for common issues and their solutions.

• Bed Does Not Open/Close Smoothly:
  • Check for any obstructions in the path of the folding mechanism.
  • Ensure all assembly hardware is correctly installed and tightened.
  • Verify that the bed is properly leveled and not binding against the wall or floor.
• Charging Station Not Working:
  • Confirm the bed's main power cord is securely plugged into a live wall outlet.
  • Check if the wall outlet itself is functional by plugging in another device.
  • Inspect the charging station unit for any visible damage.
• Squeaking Noises:
  • Tighten all visible fasteners on the frame and cabinet.
  • Apply a small amount of silicone lubricant to hinges or pivot points if the noise persists.

8. Specifications

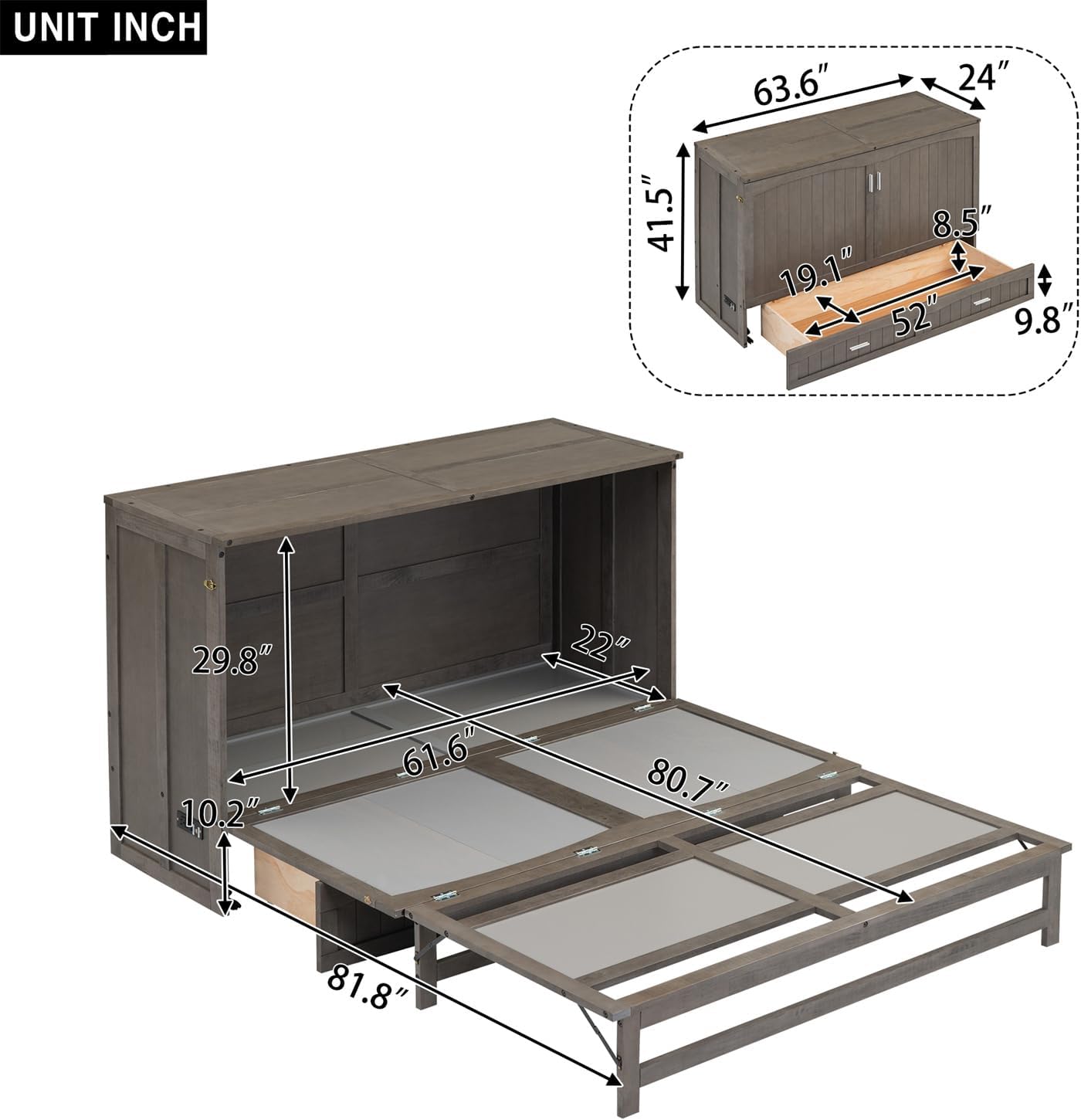

Image 8.1: Detailed dimension diagram for the Polibi Queen Size Murphy Bed, illustrating measurements for both the closed cabinet and extended bed positions.

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact the retailer. Polibi stands behind the quality of its products.

If you require assistance with assembly, have questions about operation, or need to report missing/damaged parts, please contact Polibi customer service. Contact details can typically be found on the packaging or the retailer's website.
