1. Product Overview
This manual provides essential information for the JUOPZKENN Rubber Piston Rings, designed as replacement components for 550w oil silent air compressors. These rings are crucial for maintaining optimal compression and efficiency in your air compressor.
Image 1.1: A set of ten JUOPZKENN rubber piston rings.
Key Features:
- Long Service Life: Manufactured from high-quality rubber material, ensuring stability, durability, and high reliability for extended use.
- Good Performance: Exhibits high temperature resistance and fatigue resistance, minimizing wear on contact surfaces and contributing to a longer service life for the air pump piston ring.
- Comprehensive Kit: Each package contains 10 rubber piston rings, providing sufficient replacements for maintenance needs.
- Easy to Use: These high-insulation pump piston rings feature a simple structure, making them user-friendly for installation and replacement.
- Lightweight and Efficient: Small and light design with efficient performance, offering convenience and flexibility for various applications.
2. Package Contents
Verify that all components are present in your package:
- 10 x Rubber Piston Rings
Image 2.1: The complete set of 10 rubber piston rings included in the package.
3. Specifications
Detailed specifications for the JUOPZKENN Rubber Piston Rings:
| Attribute | Value |
|---|---|
| Item Type | Rubber Piston Ring |
| Material | Rubber |
| Size (Approx.) | 68 x 48 x 0.8mm / 2.7 x 1.9 x 0.03in |
| Item Weight | 1.34 ounces (for the set) |
| Manufacturer | JUOPZKENN |
| Model Number | JUOPZKENNxh38p9wgmd47865 |

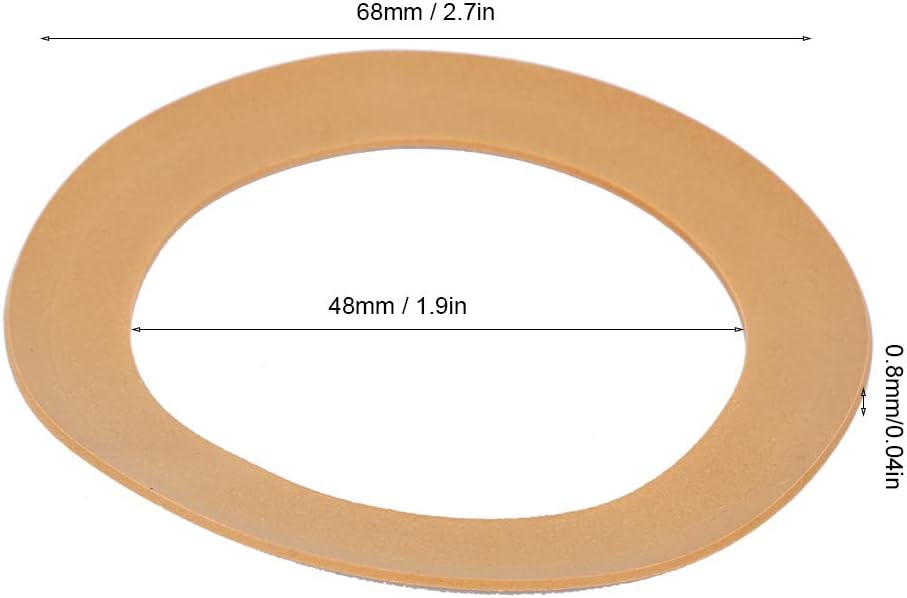

Image 3.1: Detailed dimensions of a single rubber piston ring.
4. Installation Instructions
These rubber piston rings are replacement parts for 550w oil silent air compressors. Proper installation is crucial for the compressor's performance and longevity. If you are unsure about any step, it is recommended to consult a qualified technician or refer to your air compressor's specific service manual.
Replacing the Piston Rings:
- Safety First: Ensure the air compressor is completely powered off and unplugged from its power source. Depressurize the air tank by opening the drain valve.
- Access the Compressor Head: Carefully locate and remove the bolts or fasteners securing the compressor head to the cylinder. Gently lift the head to expose the piston assembly.
- Remove Old Ring: Identify the existing piston ring on the piston. Carefully remove the old, worn-out rubber piston ring. Note its orientation for correct installation of the new ring.
- Clean Components: Thoroughly clean the piston, cylinder groove, and any other related components to remove debris, oil residue, or carbon buildup.
- Install New Ring: Carefully place the new JUOPZKENN rubber piston ring onto the piston, ensuring it sits correctly within its groove. Avoid stretching or deforming the ring excessively during installation.
- Reassemble: Reattach the compressor head to the cylinder, ensuring proper alignment. Tighten all fasteners evenly and securely according to the air compressor manufacturer's torque specifications.
- Test Operation: Once reassembled, plug in and power on the air compressor. Monitor for proper operation, checking for any unusual noises, air leaks, or reduced performance.
Image 4.1: Example of piston rings with air compressor components, illustrating the context of installation.
5. Maintenance
To ensure the longevity and optimal performance of your air compressor and the newly installed piston rings, follow these maintenance guidelines:
- Regular Inspection: Periodically inspect the piston rings for signs of wear, cracking, or deformation. Replace them promptly if any damage is observed.
- Cleanliness: Keep the air compressor and its components clean, especially around the cylinder and piston area, to prevent debris from affecting ring performance.
- Proper Lubrication: Ensure your air compressor's oil level is maintained according to the manufacturer's recommendations, as proper lubrication is vital for piston and ring health in oil-lubricated compressors.
- Timely Replacement: Piston rings are wear items. Replace them as part of routine maintenance or at the first sign of reduced compressor efficiency or increased noise.
6. Troubleshooting
Refer to the table below for common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced air compressor performance (e.g., slow pressure build-up, lower maximum pressure) | Worn or damaged piston ring; Incorrect piston ring installation | Inspect and replace piston rings if worn. Ensure rings are correctly seated during installation. |
| Air leakage from compressor head area | Damaged or improperly seated piston ring; Loose compressor head fasteners | Re-examine piston ring installation for proper seating. Tighten compressor head fasteners to specifications. Replace ring if damaged. |
| Unusual noise from compressor cylinder | Piston ring not seated correctly; Foreign object in cylinder | Disassemble and inspect piston and cylinder for proper ring seating and any obstructions. |
7. Safety Information
Always adhere to safety precautions when working with air compressors and their components:
- Disconnect Power: Always unplug the air compressor from its power source before performing any maintenance or installation.
- Depressurize System: Ensure the air tank is fully depressurized before opening any part of the compressor.
- Wear PPE: Use appropriate personal protective equipment, including safety glasses and gloves, to prevent injury.
- Consult Manuals: Refer to your specific air compressor's instruction manual for detailed safety warnings and procedures.
- Professional Assistance: If you are not confident in performing any repair or installation, seek assistance from a qualified service technician.
8. Warranty and Support
JUOPZKENN is committed to providing high-quality products. For any questions regarding the installation, performance, or replacement of your rubber piston rings, please contact JUOPZKENN customer service. Keep your purchase receipt for warranty claims, if applicable.
For further assistance, please visit the JUOPZKENN Store on Amazon.
