1. Introduction
This manual provides instructions for the assembly, operation, and maintenance of your DCCStands Newland N910 Freestanding Swivel and Tilt Stand. This robust mild steel stand is designed to securely hold your Newland N910 payment terminal, enhancing stability and security for in-store card transactions. It offers flexibility with its swivel and tilt capabilities, improving customer and merchant interaction during payment processing.
2. Setup Instructions
Follow these steps to assemble your Newland N910 Freestanding Swivel and Tilt Stand:
- Unpack Components: Carefully remove all components from the packaging. You should have the stand pole, the terminal mounting plate, an 8-inch round countertop base plate, and a set of screws.
- Attach Base Plate: Place the 8-inch round countertop base plate on a flat, stable surface. This plate allows the mount to be freestanding.
- Secure Stand to Base: Align the bottom of the stand pole with the central holes on the round base plate. Use the provided screws to firmly attach the stand pole to the base plate. Ensure all screws are tightened to prevent wobbling.
- Mount Terminal (Not Included): The stand is designed to fit the Newland N910 POS terminal. Carefully place your Newland N910 terminal onto the stand's mounting plate and secure it according to the terminal's own instructions. The stand's design helps keep the terminal secure, minimizing chances of damage and theft.
Image: The 8-inch round freestanding base plate and included screws for assembly.
Image: Front view of the fully assembled stand, ready for terminal mounting.
Image: Rear view of the assembled stand, highlighting the terminal mounting area and cable management.
3. Operating Instructions
The Newland N910 stand is designed for ease of use and improved customer interaction:
- Swivel Function: The stand can swivel a full 190 degrees. To swivel, gently rotate the terminal and its mounting plate to face either the merchant or the customer.
- Tilt Function: The stand can tilt up to 60 degrees. To tilt, grasp the terminal and adjust its angle up or down to achieve the desired viewing position for comfortable use by both merchant and customer.
- Cable Management: The stand features a flange cover to help hide and manage wires, contributing to a tidy and professional checkout area.

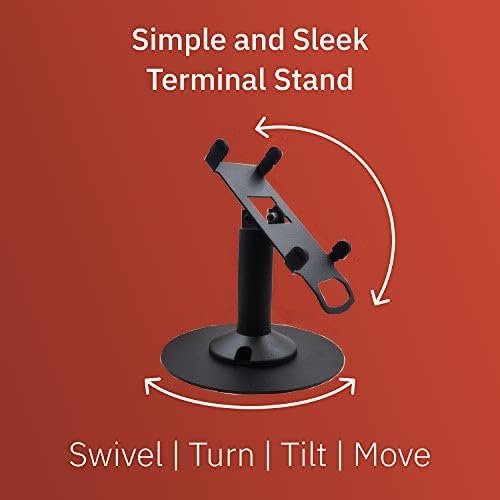

Image: Illustration showing the swivel and tilt capabilities of the stand.
4. Maintenance
To ensure the longevity and optimal performance of your stand:
- Cleaning: Wipe the stand regularly with a soft, damp cloth. Avoid using abrasive cleaners or solvents, as these may damage the durable powder-coated finish.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary to maintain stability.
- Movement: Ensure the swivel and tilt mechanisms move smoothly. If any resistance is felt, check for obstructions. Do not force movement.
5. Troubleshooting
If you encounter any issues with your stand, consider the following:
- Stand is not stable: Ensure the stand is placed on a flat, even surface. Check that all assembly screws are securely tightened.
- Swivel/Tilt movement is stiff: Verify that no cables are caught in the mechanism. Ensure the terminal is correctly mounted and not obstructing movement. Do not apply excessive force.
- Terminal feels loose on the stand: Re-check the mounting of your Newland N910 terminal to the stand's plate, following the terminal's specific instructions for secure attachment.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | DCCStands |
| Model Compatibility | Newland N910 POS Terminal |
| Color | Black |
| Material | Alloy Steel |
| Base Type | Pedestal with 8" Round Countertop Plate |
| Swivel Angle | 190 degrees |
| Tilt Angle | Up to 60 degrees |
| Pole Height | 7 inches |
| Assembly Required | Yes (minimal) |
| UPC | 667758701865 |
7. Warranty and Returns
Specific warranty information for this product is not provided in the available details. For return inquiries, please refer to the retailer's return policy. Typically, products may be eligible for a refund or replacement within 30 days of purchase, but this can vary by seller and platform.
8. Support
For further assistance, technical support, or inquiries regarding your DCCStands Newland N910 Freestanding Swivel and Tilt Stand, please contact the seller, DCCSupply, through the platform where the purchase was made. Provide your order details and a clear description of your issue for prompt support.
