Ducati Semi-Rigid Side Panniers Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Ducati Semi-Rigid Side Panniers, specifically designed for the Diavel V4 motorcycle. These panniers offer enhanced storage capacity and durability for your rides.

2. Safety Information

• Professional Installation Recommended: For optimal safety and performance, installation of these panniers should be performed by a qualified Ducati technician or an experienced motorcycle mechanic.
• Required Accessory: These panniers MUST BE INSTALLED WITH the Ducati Passenger Rear Backrest (Part Number: 96782121AA). Failure to install this required accessory may compromise safety and proper fitment.
• Weight Limits: Do not exceed the maximum weight capacity specified for each pannier. Overloading can affect motorcycle handling and stability.
• Secure Attachment: Always ensure panniers are securely attached to the motorcycle before riding. Regularly check mounting points for tightness.
• Motorcycle Handling: Be aware that adding panniers can alter the motorcycle's center of gravity and handling characteristics, especially at high speeds or during cornering. Practice riding with loaded panniers in a safe environment.

3. Package Contents

Verify that all components are present in your package:

• Left Semi-Rigid Side Pannier
• Right Semi-Rigid Side Pannier
• Integrated Tail Light (replaces OEM headlight)
• Mounting Hardware (specific to Diavel V4)
• Instruction Manual

Image 3.1: Contents of the Ducati Semi-Rigid Side Panniers kit, including both panniers and the replacement tail light.

4. Setup and Installation

The installation process involves mounting the pannier frames, connecting the tail light, and attaching the panniers. Due to the complexity and safety implications, professional installation is strongly recommended.

1. Preparation: Ensure the motorcycle is on a stable stand. Disconnect the battery if working with electrical components.
2. Install Passenger Rear Backrest (P/N 96782121AA): If not already installed, mount the required passenger rear backrest according to its specific instructions. This component provides the necessary mounting points for the panniers.
3. Mount Pannier Frames: Attach the dedicated pannier mounting frames to the motorcycle's chassis, utilizing the provided hardware. Refer to the detailed diagrams in the included installation guide for precise locations and torque specifications.
4. Tail Light Installation: Carefully remove the original tail light assembly. Install the new integrated tail light provided with the pannier kit, ensuring all electrical connections are secure and properly insulated. Test the brake light and turn signals.
5. Attach Panniers: Align each semi-rigid pannier with its respective mounting frame. Secure the panniers using the quick-release mechanisms or locking points. Ensure a firm, rattle-free fit.
6. Final Check: Before riding, double-check all fasteners, connections, and the security of the panniers. Verify that the tail light functions correctly.

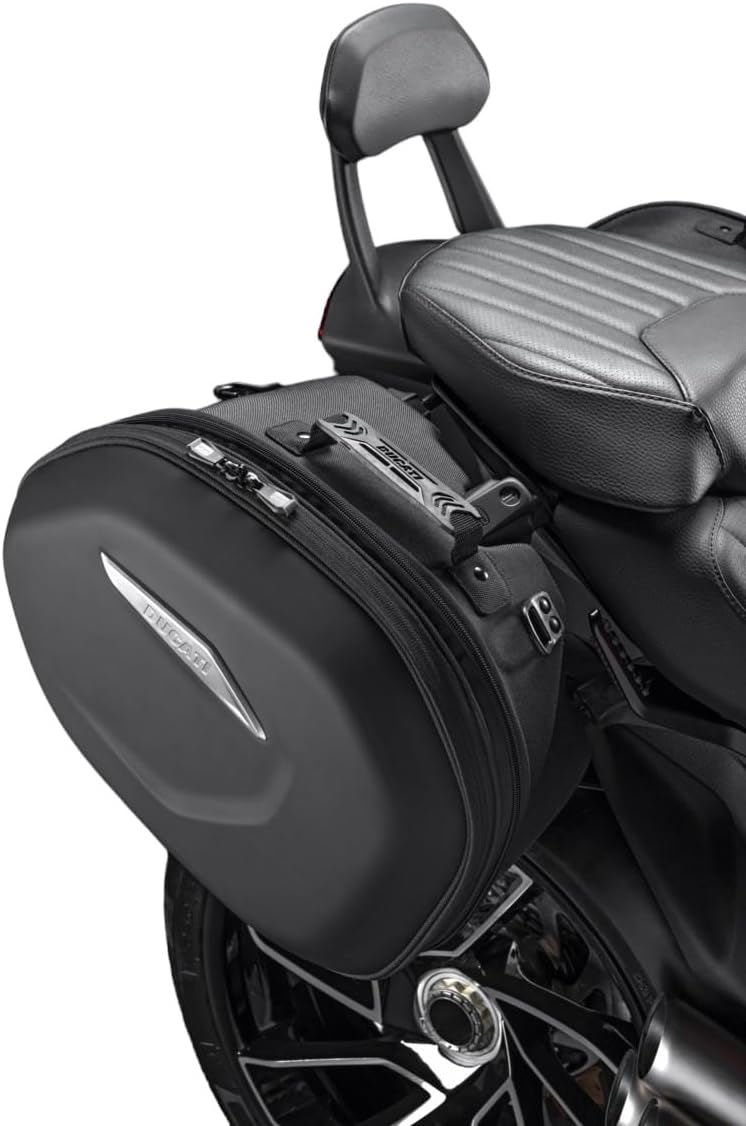

Image 4.1: Side view of a Ducati Diavel V4 with the semi-rigid side pannier correctly installed.

Image 4.2: Close-up side view illustrating the integration of the pannier with the motorcycle's design.

Image 4.3: Rear view of the Ducati Diavel V4 showcasing both semi-rigid side panniers mounted.

Image 4.4: Top-down perspective of the Ducati Diavel V4 with the semi-rigid side panniers, highlighting their profile.

5. Operating Instructions

• Opening and Closing: The panniers feature a zipper closure system. Ensure zippers are fully closed to protect contents from elements and prevent accidental opening during travel.
• Capacity: Each pannier has a capacity of 20 liters. Distribute weight evenly between both panniers to maintain motorcycle balance.
• Waterproofing: While semi-rigid, for maximum waterproofing during heavy rain, it is recommended to use appropriate waterproof covers (sold separately) or internal dry bags for sensitive items.
• Removal: To remove the panniers, unlock the securing mechanism (if applicable) and disengage them from the mounting frames.

6. Maintenance

• Cleaning: Clean the exterior of the panniers with a mild soap solution and a soft cloth. Avoid abrasive cleaners or solvents that could damage the material. Rinse thoroughly and allow to air dry.
• Zipper Care: Periodically clean and lubricate zippers with a silicone-based spray to ensure smooth operation and prevent corrosion.
• Inspection: Regularly inspect the panniers and mounting hardware for any signs of wear, damage, or loose fasteners. Address any issues promptly to prevent further damage or safety hazards.
• Storage: When not in use, store panniers in a cool, dry place away from direct sunlight to prolong their lifespan.

7. Troubleshooting

• Panniers feel loose: Check all mounting bolts and quick-release mechanisms for proper engagement and tightness. Ensure the passenger rear backrest (P/N 96782121AA) is securely installed.
• Tail light not functioning: Verify all electrical connections are secure. Check the motorcycle's fuse box for any blown fuses. If the issue persists, consult a qualified technician.
• Difficulty with zippers: Clean zippers and apply a silicone lubricant. Avoid forcing stuck zippers.
• Water ingress: Ensure zippers are fully closed. For heavy rain, use external waterproof covers or internal dry bags. Inspect pannier material for any tears or damage.

8. Specifications

9. Warranty and Support

For warranty information, claims, or technical support regarding your Ducati Semi-Rigid Side Panniers, please contact your authorized Ducati dealer or visit the official Ducati website. Ensure you have your proof of purchase and the product model number (96782131AA) available when seeking assistance.
