SHLUCE 19" Farmhouse Fandelier Ceiling Fan with Light
Model: FLA003 | Brand: SHLUCE
Introduction
Thank you for choosing the SHLUCE 19" Farmhouse Fandelier Ceiling Fan with Light. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read this manual thoroughly before beginning installation and retain it for future reference.
Image: The SHLUCE 19" Farmhouse Fandelier Ceiling Fan with Light, showcasing its caged design and integrated lighting.
Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always turn off power at the main circuit breaker or fuse box before beginning installation. All wiring must be in accordance with national and local electrical codes. If you are unfamiliar with wiring, consult a qualified electrician. Ensure the installation location can support the weight of the fan. Do not bend fan blades when installing, balancing, or cleaning the fan. Do not insert foreign objects between rotating fan blades.
What's in the Box
- Caged Ceiling Fan with Lights
- Remote Control
- Mounting Hardware
- Instruction Manual
Image: A close-up view of the fan's components, highlighting the sturdy metal frame, the 8 ABS blades, and the E12 light bases.
Specifications
| Feature | Description |
|---|---|
| Brand | SHLUCE |
| Model Name | FLA003 |
| Color | Black Gold |
| Material | Metal |
| Product Dimensions | 19"L x 19"W x 16.7"H |
| Light Source Type | E12 light bulb (bulbs not included) |
| Number of Light Sources | 6 |
| Control Method | Remote Control |
| Motor Type | Upgraded DC motor (Ultra-quiet) |
| Noise Level | Below 30 decibels |
| Special Features | Reversible Motor, 6 Speed Control, 2/4H Timing Setting, No Beeping Mode |
| Certification | ETL certified |
Image: Diagram illustrating product dimensions, remote control features, and ETL certification.
Image: A visual representation comparing the low noise level of the SHLUCE ceiling fan (below 30dB) to common sounds.
Setup and Installation
The SHLUCE Fandelier is designed for easy installation, with most functional components pre-assembled. All necessary mounting hardware is included.
Installation Steps:
- Install Hardware: Prepare all components and tools as per the included instruction manual.
- Install the Mounting Bracket: Secure the mounting bracket to your ceiling junction box. Ensure it is firmly attached and can support the fan's weight.
- Install the Downrod: Attach the downrod to the fan motor assembly, feeding the wires through the downrod. Secure it with the provided screws.
- Install the Ceiling and Connect AC Wires: Lift the fan assembly and connect the AC power wires (Live, Neutral, Ground) from the ceiling to the fan's wiring. Carefully tuck the wires into the junction box and secure the canopy to the mounting bracket.
- Install Light Bulbs: Insert 6 E12 light bulbs (not included) into the sockets.
Video: Official installation guide for the SHLUCE Fandelier, demonstrating the step-by-step assembly and wiring process.
Operating Instructions
Your SHLUCE Fandelier is controlled by a remote, offering convenient operation of both the fan and light functions.
Remote Control Functions:
- ALL ON/OFF: Turns on/off both lights and fan simultaneously.
- Light On/Off: Controls the light independently.
- Fan Reverse Transmission: Changes fan direction for winter (updraft mode).
- Fan Forward Transmission: Changes fan direction for summer (downdraft mode).
- Mute: Activates/deactivates the no-beeping mode.
- Fan On/Off: Controls the fan independently.
- Fan Speed Control (LV1-6): Adjusts fan speed from gentle (1-2) to strong (5-6).
- Natural Wind: Simulates natural breeze.
- Timer (2H/4H): Sets the fan and light to turn off automatically after 2 or 4 hours.
Note: 2*AAA batteries are not included for the remote control.

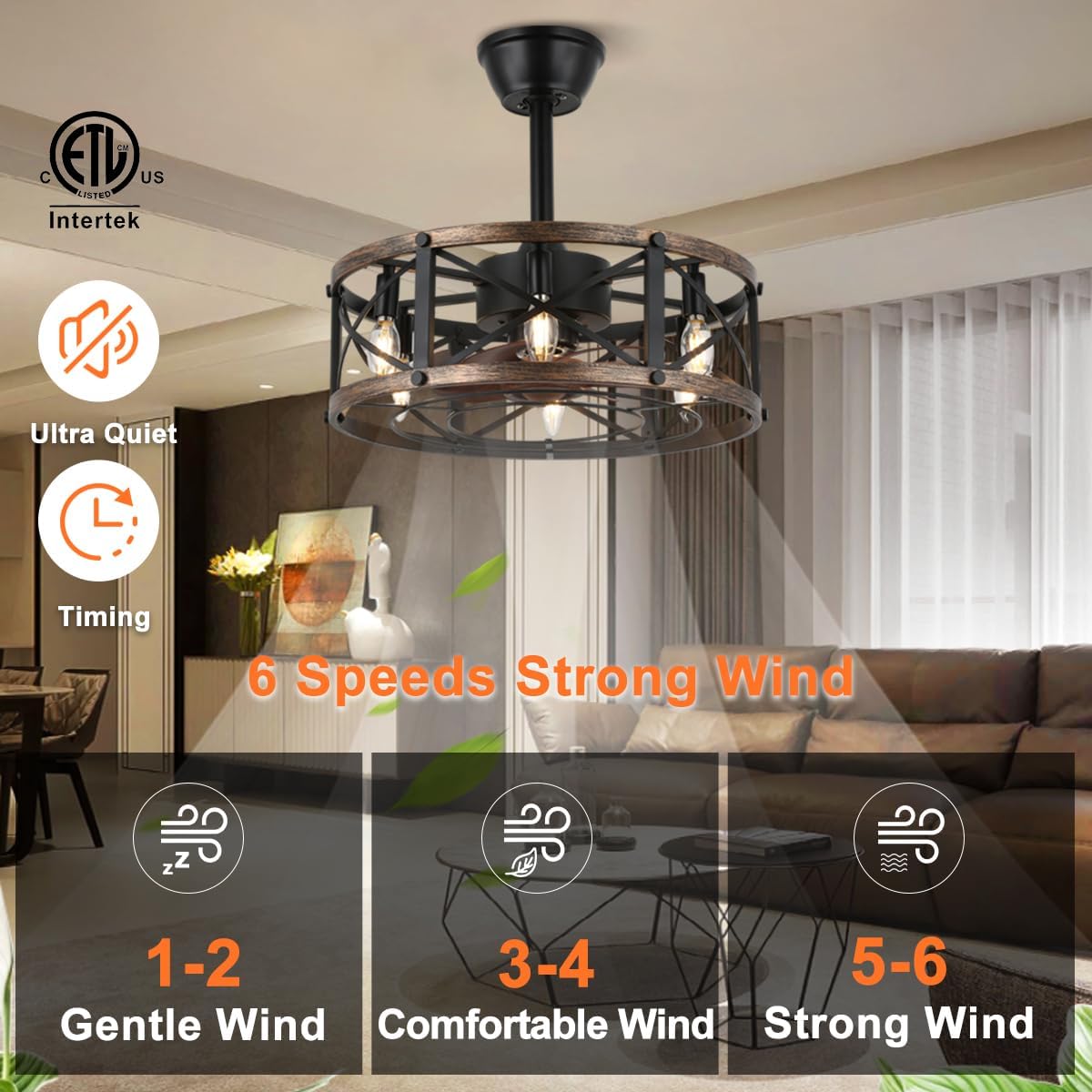

Image: Visual guide to the fan's 6-speed settings, categorizing them into gentle, comfortable, and strong wind modes.

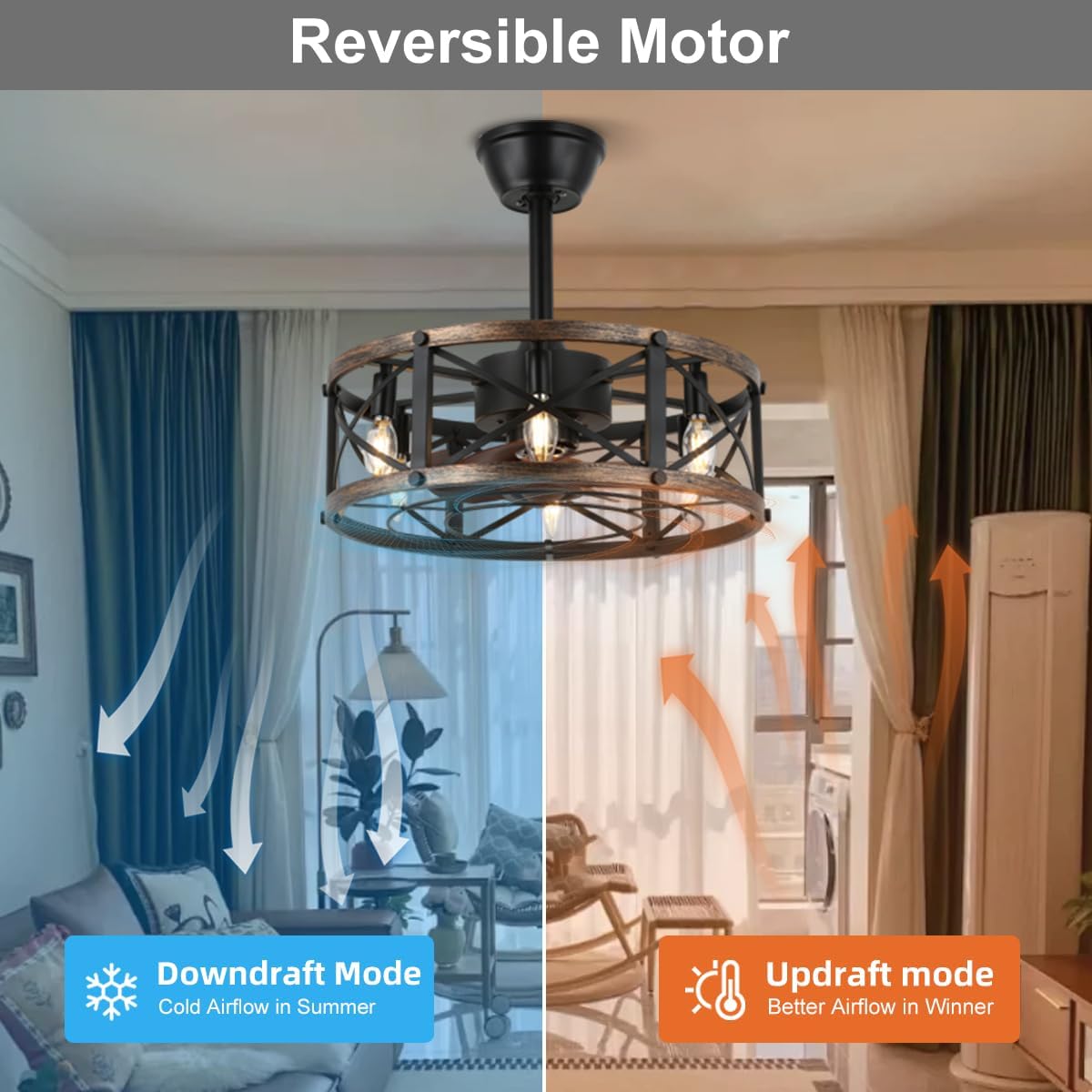

Image: Illustration of the reversible motor function, demonstrating downdraft mode for cooling in summer and updraft mode for air circulation in winter.
Maintenance
Regular maintenance ensures optimal performance and longevity of your fan.
- Cleaning: To clean the fan, wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents as they may damage the finish. Ensure power is off before cleaning.
- Blade Cleaning: The 8 ABS blades are hidden within the caged design, making them safe from direct touch. Clean them gently if accessible, ensuring no dust accumulation affects performance.
- Light Bulbs: Replace E12 bulbs as needed. Always turn off power and allow bulbs to cool before replacing.
- Tightness Check: Periodically check all screws and connections for tightness.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control battery low or not paired. | Check circuit breaker/fuse; Verify all wire connections are secure; Replace remote battery or re-pair remote. |
| Lights do not work | Bulbs are faulty or not installed correctly; Loose wire connections; Remote control issue. | Replace bulbs; Check light fixture wiring; Ensure remote is functioning and paired. |
| Fan makes noise | Loose screws; Fan not properly balanced; Obstruction in fan blades. | Tighten all screws; Check for obstructions; Ensure fan is installed level. |
| Remote control not working | Low or dead batteries; Remote not paired with fan; Interference. | Replace batteries; Follow pairing instructions in the manual; Reduce interference from other electronic devices. |
Warranty and Support
SHLUCE offers a 2-year warranty and a 30-day refund policy for this product. We also provide free spares support. If you experience any lost, defects, or missing parts (e.g., remote control) for your enclosed ceiling fan with light, please contact us through your Amazon orders for assistance.
Contact Information
For further assistance or inquiries, please refer to your purchase platform or contact SHLUCE customer support directly.
SHLUCE Lighting Direct
Website: SHLUCE Store on Amazon
