KTEBO Rechargeable Bike Lights Front and Back

Introduction

Thank you for choosing KTEBO Rechargeable Bike Lights. This manual provides essential information for the safe and effective use of your new bicycle lights. Designed for both front and rear visibility, these lights enhance safety during night riding on roads and mountain trails.

Safety Information

• Always ensure lights are securely mounted before riding.
• Do not look directly into the LED light beam to avoid eye strain.
• Keep the lights clean for optimal visibility.
• Charge the lights fully before first use and regularly thereafter.
• These lights are water-resistant (IPX5), but avoid prolonged submersion.

Package Contents

• 1 x KTEBO Rechargeable Front Bike Light
• 1 x KTEBO Rechargeable Rear Bike Light
• USB Charging Cable(s)
• Mounting Straps/Bases

Image: Contents of the KTEBO bike light bundle, including front light, rear light, and charging cable.

Setup and Installation

The KTEBO bike lights feature a quick-release design for easy installation and removal.

1. Front Light Installation:
   a. Insert the rubber strap into the mounting slot on the front light.
   b. Position the light on your handlebar and wrap the strap around, securing it to the hook on the light's base. Ensure the light is facing forward and is level.
2. Rear Light Installation:
   a. Insert the rubber strap into the mounting slot on the rear light.
   b. Position the light on your seat post and wrap the strap around, securing it to the hook on the light's base. Ensure the light is facing backward and is level.

Image: Step-by-step visual guide for installing both the front and rear bike lights using rubber straps.

Operating Instructions

Charging the Lights

Both the front and rear lights are rechargeable via USB. A full charge typically takes 1-2 hours.

1. Locate the USB charging port on each light (usually covered by a rubber flap).
2. Connect the provided USB cable to the light and to a USB power source (e.g., computer, wall adapter, power bank).
3. The indicator light will show charging status (e.g., red for charging, green/blue for fully charged).
4. Once fully charged, disconnect the cable and ensure the rubber flap covers the port to maintain water resistance.

Image: The front and rear bike lights connected to a power bank and wall adapter for USB charging.

Front Light Operation (Headlight)

The front light provides 250 lumens of brightness and features multiple modes:

• Power On/Off: Press and hold the power button for approximately 2 seconds.
• Mode Cycling: Short press the power button to cycle through the modes:
• Strong Light Mode
• Moderate Light Mode
• Flash Mode

Image: Visual representation of the front bike light's Strong, Moderate, and Flash modes.

Rear Light Operation (Taillight)

The rear light offers four distinct flashing modes for enhanced visibility:

• Power On/Off: Press and hold the power button for approximately 2 seconds.
• Mode Cycling: Short press the power button to cycle through the modes:
• Slow Flash Mode
• Fast Flashing Mode
• Highlight Mode
• Blink Mode

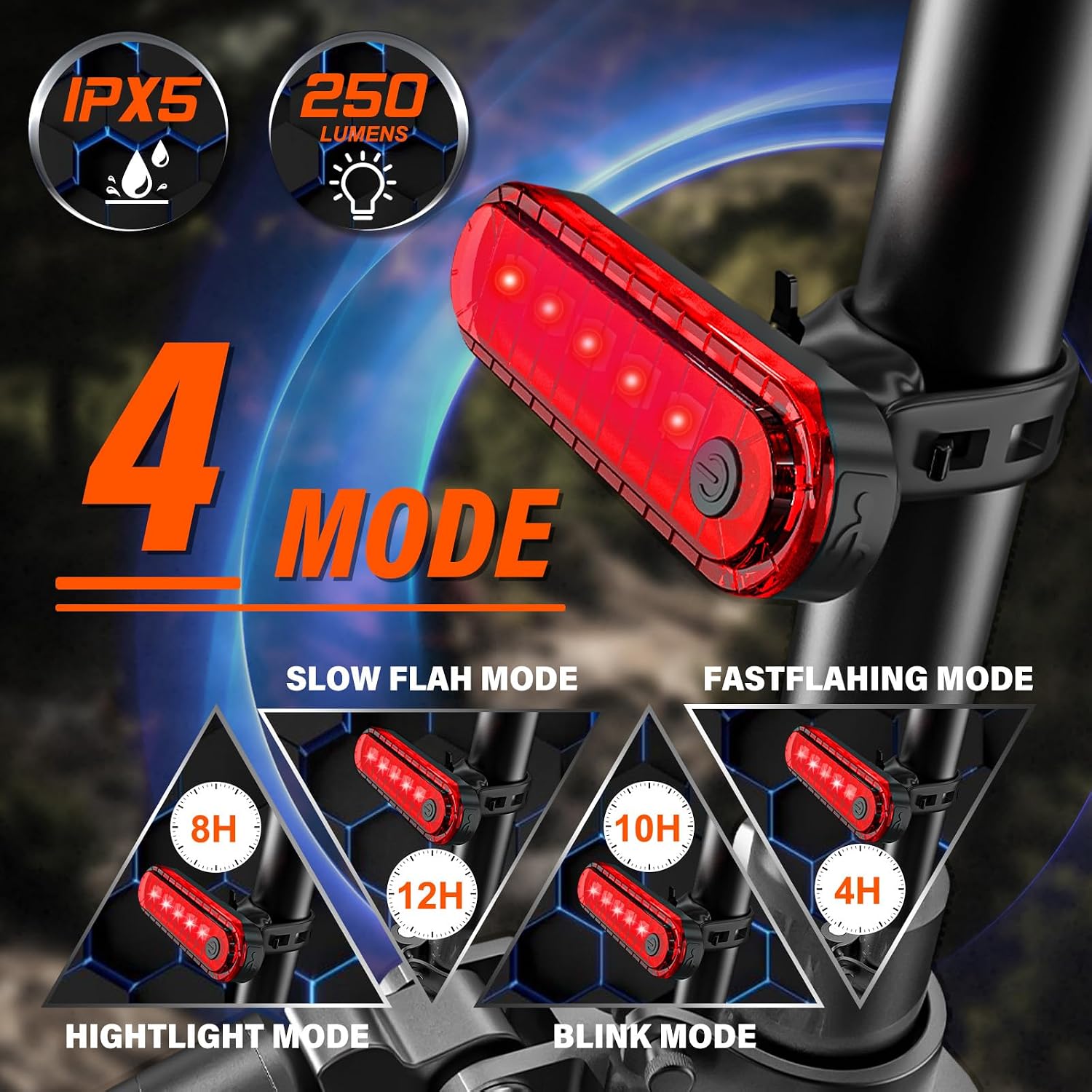

Image: The rear bike light illustrating its four flashing modes and estimated battery durations for each.

Maintenance

• Cleaning: Wipe the lights with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the lights in a cool, dry place when not in use. If storing for extended periods, charge them every 3-6 months to maintain battery health.
• Battery Care: Avoid fully depleting the battery frequently. Recharge promptly when the low battery indicator appears.

Troubleshooting

• Light not turning on:
  - Ensure the battery is charged. Connect to a USB power source.
  - Press and hold the power button for a few seconds to ensure it's not a short press.
• Light not charging:
  - Check the USB cable for damage.
  - Try a different USB power source.
  - Ensure the charging port is clean and free of debris.
• Light flickering or dim:
  - The battery may be low. Recharge the light.
• Light detaches during ride:
  - Ensure the rubber strap is securely fastened and tightened around the handlebar/seat post.

Specifications

Warranty and Support

KTEBO provides a one-year manufacturer guarantee for these bike lights. If you encounter any issues with your product, please contact our customer support team. We are committed to providing a solution within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official KTEBO website.
