PayLessHere 5-Tier Adjustable Wire Shelving Unit (24x14x60 Chrome) Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your PayLessHere 5-Tier Adjustable Wire Shelving Unit. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation. Keep this manual for future reference.

Image: The PayLessHere 5-Tier Adjustable Wire Shelving Unit in chrome finish, shown in a kitchen setting.

Safety Information

• Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Assemble the unit on a soft, clean surface to prevent scratches.
• Distribute weight evenly across shelves. Do not exceed the maximum weight capacity per shelf or for the entire unit.
• Always place heavier items on lower shelves for stability.
• Keep children and pets away from the assembly area.
• Periodically check all connections to ensure they remain secure.

Package Contents

Verify that all the following components are included in your package:

• Wire Shelves (5 pieces)
• Upper Poles (4 pieces)
• Lower Poles (4 pieces)
• Plastic Clips (enough for 5 shelves, typically 4 clips per shelf)
• Leveling Feet (4 pieces)
• Casters (optional, if included in your specific model)

Setup and Assembly

No tools are required for assembly. Follow these steps for quick and easy setup:

1. Attach Leveling Feet: Screw the leveling feet into the bottom of the lower poles. If using casters, screw them in instead.
2. Assemble Poles: Connect the upper poles to the lower poles by screwing them together. Ensure they are securely tightened.
3. Install Plastic Clips: Snap the plastic clips onto the pole grooves at your desired height for the bottom shelf. Ensure both halves of each clip are securely closed around the pole and that all clips for one shelf are at the same height.
4. Place First Shelf: Slide the first wire shelf down over the poles until it rests firmly on the plastic clips. Press down on the shelf to ensure it is fully seated.
5. Repeat for Remaining Shelves: Install plastic clips for the next shelf at the desired height, then slide the shelf into place. Repeat this process for all five shelves.
6. Adjust Shelf Height: To adjust a shelf's height, remove any items from the shelf, lift the shelf off the clips, reposition the clips to a new groove, and then re-seat the shelf.

Image: Visual guide for assembling the shelving unit, demonstrating how to mount clips, attach poles, and secure shelves for height adjustment.

Image: Detail of the adjustable leveling feet, which can be twisted to stabilize the unit on uneven surfaces.

Operating and Usage

Your PayLessHere shelving unit is designed for versatile storage in various environments.

• Load Capacity: Each shelf can hold up to 250 lbs when weight is evenly distributed. The total weight capacity for the entire unit is 1250 lbs when using leveling feet. If casters are installed, the total weight capacity is 220 lbs.
• Adjustable Height: The shelves can be adjusted to any desired height along the poles to accommodate items of various sizes.
• Versatile Placement: Suitable for use in kitchens, garages, pantries, home offices, and other areas requiring organized storage.

Image: Illustration detailing the 5-tier design, indicating a load capacity of 100 lbs per shelf and a total capacity of 500 lbs. Note: Refer to the specifications section for the maximum load capacity of 250 lbs per shelf and 1250 lbs total.

Image: Examples of the shelving unit being used in various settings: a kitchen, a living room, and a balcony, demonstrating its multi-occasion utility.

Maintenance

To ensure the longevity and appearance of your shelving unit:

• Cleaning: Wipe the shelves and poles with a dry cloth to remove dust and debris. For stubborn marks, use a damp cloth with mild soap and dry immediately. Avoid abrasive cleaners.
• Inspection: Periodically check all connections, especially the plastic clips, to ensure they are secure and the shelves are stable.
• Rust Prevention: The unit features a polished chrome finish designed to resist rust. However, avoid prolonged exposure to excessive moisture to maintain its condition.

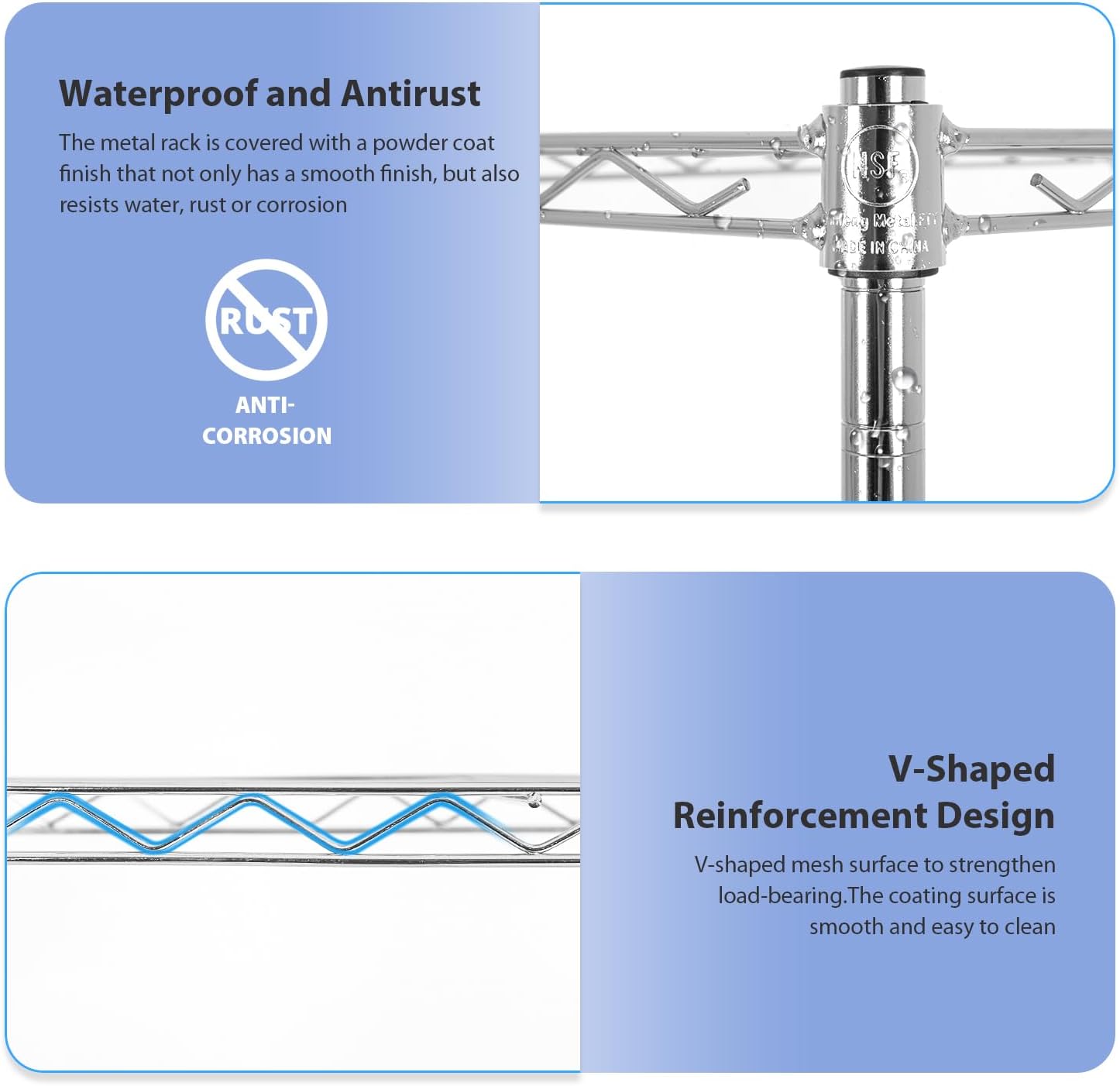

Image: Detailed view of the shelving unit's construction, highlighting high-density steel, solid and stable connections, threaded interfaces, and fine mesh workmanship.

Troubleshooting

If you encounter any issues with your shelving unit, refer to the following common problems and solutions:

• Unit is Unstable/Wobbly:
  • Ensure all poles are fully screwed together and tightened.
  • Verify that all plastic clips are securely snapped onto the pole grooves at the same height for each shelf.
  • Adjust the leveling feet on the bottom of the unit to compensate for uneven floor surfaces.
• Shelf Not Sitting Evenly:
  • Check that the plastic clips for that shelf are all at the exact same height groove on each pole.
  • Ensure the shelf is fully pressed down onto the clips.
• Missing Parts:
  • Carefully check all packaging materials. If parts are genuinely missing, contact customer support.

Specifications

Warranty Information

Specific warranty details for the PayLessHere 5-Tier Adjustable Wire Shelving Unit are typically provided at the point of purchase or within the product packaging. Please refer to your purchase documentation or contact the seller/manufacturer directly for information regarding warranty coverage, terms, and conditions.

Customer Support

For any questions, concerns, or assistance with your PayLessHere shelving unit, please contact the seller through the platform where you made your purchase. If you encounter missing parts or assembly issues, reach out to the seller via buyer message for prompt resolution.
