1. Introduction
The CMTOOL Fuel Injector Cleaner Kit, Model AQ-93, is designed for non-dismantle cleaning of automotive fuel systems. This kit effectively removes carbon deposits from intake valves, fuel injectors, combustion chambers, and piston rings. It is compatible with various carbureted cars, electronic/mechanical fuel injection cars, and light trucks. This manual provides essential information for the safe and proper operation and maintenance of the device.
Image 1.1: Overview of the CMTOOL Fuel Injector Cleaner Kit and its application.
2. Safety Information
Read all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Personal Protective Equipment: Always wear appropriate personal protective equipment, including safety glasses, gloves, and protective clothing, when handling cleaning fluids and operating the kit.
- Ventilation: Use the kit in a well-ventilated area to avoid inhaling fumes from cleaning fluids.
- Flammable Liquids: Cleaning fluids are often flammable. Keep away from open flames, sparks, and other ignition sources. Do not smoke while operating the kit.
- Pressure System: The kit operates under pressure. Ensure all connections are secure before applying pressure. Do not exceed the maximum recommended pressure (150 PSI).
- Engine Type: This kit is suitable for gasoline engines only. Do not use with diesel fuel injectors.
- Cleaning Fluid: This kit does not contain cleaning fluid. Use only approved automotive fuel system cleaning fluids.
- Air Connector: The air quick connect fitting is a standard American air connector. Ensure compatibility with your air source.
- Vehicle Stability: Ensure the vehicle is parked on a level surface with the parking brake engaged.
3. Package Contents
Verify that all components are present and undamaged upon unpacking. The kit includes:
- 1000ML Stainless Steel Canister with Pressure Gauge and Regulator Valve
- Hose with quick connect fittings
- Various adapters for wide compatibility
- Cleaning nozzle
- Funnel
- Heavy-duty plastic carrying case
Image 3.1: Complete set of components included in the CMTOOL Fuel Injector Cleaner Kit.
4. Setup Instructions
Follow these steps to prepare the kit for operation:
- Prepare the Canister: Unscrew the top cap of the 1000ML stainless steel canister. Ensure the canister is clean internally before first use.
- Add Cleaning Fluid: Use the provided funnel to pour the appropriate fuel system cleaning fluid into the canister. Do not overfill.
- Secure the Canister: Screw the top cap back onto the canister tightly. The hook design allows for easy hanging and movement of the canister during use.
- Connect Air Source: Connect an external air source to the air quick connect fitting on the pressure regulator valve. The pressure gauge will display the air pressure.
- Attach Cleaning Nozzle/Adapter: Select the appropriate cleaning nozzle or adapter for your specific cleaning task (e.g., intake system, fuel system). Connect it securely to the outlet hose of the canister.
Video 4.1: Demonstrates the initial setup of the CMTOOL Fuel Injector Cleaner Kit, including adding cleaning fluid and connecting components.

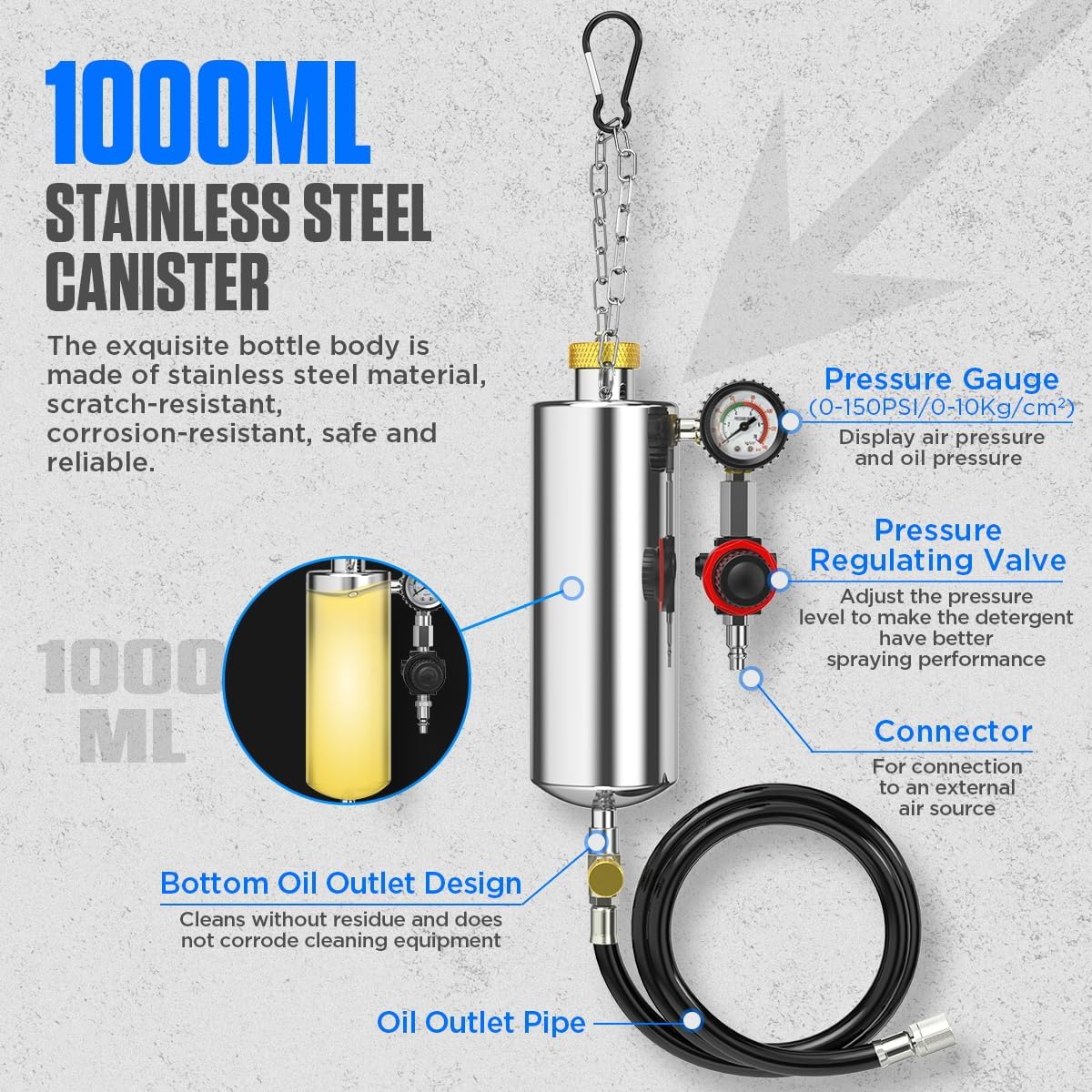

Image 4.2: Detailed view of the canister features, including the pressure gauge and regulator.
Image 4.3: Exploded view of the canister's user-friendly design elements.
5. Operating Instructions
Perform cleaning procedures carefully, following all safety guidelines.
- Connect to Vehicle: Depending on the cleaning task, connect the appropriate adapter/nozzle to the vehicle's fuel system or intake manifold. Ensure a secure connection to prevent leaks.
- Adjust Pressure: Rotate the pressure regulating valve to adjust the pressure to the recommended level for the cleaning fluid and vehicle type. The customized pressure gauge provides clear readings.
- Start Cleaning (Intake System): For intake system cleaning, insert the cleaning nozzle into the intake manifold. Start the vehicle's engine. The pneumatic cleaning technology will atomize the cleaning fluid, removing carbon deposits.
- Start Cleaning (Fuel System): For fuel system cleaning, connect the kit to the fuel rail. Remove the vehicle's fuel pump fuse to prevent the vehicle's fuel pump from operating. Start the vehicle's engine and allow it to run until it stalls naturally, indicating the cleaning fluid has been consumed.
- Monitor Process: Observe the cleaning process. The kit is designed for efficient and thorough cleaning of various components including TWC, intake manifold, throttle valve, and exhaust pipe.
- Finish Cleaning: Once cleaning is complete, turn off the engine. Relieve any remaining pressure in the system before disconnecting the kit.
- Reassemble: Reinstall the vehicle's fuel pump fuse (if removed) and reconnect any disconnected fuel lines or intake components.
Video 5.1: Illustrates the operational steps for using the CMTOOL Fuel Injector Cleaner Kit, including connecting to the vehicle and initiating the cleaning process.

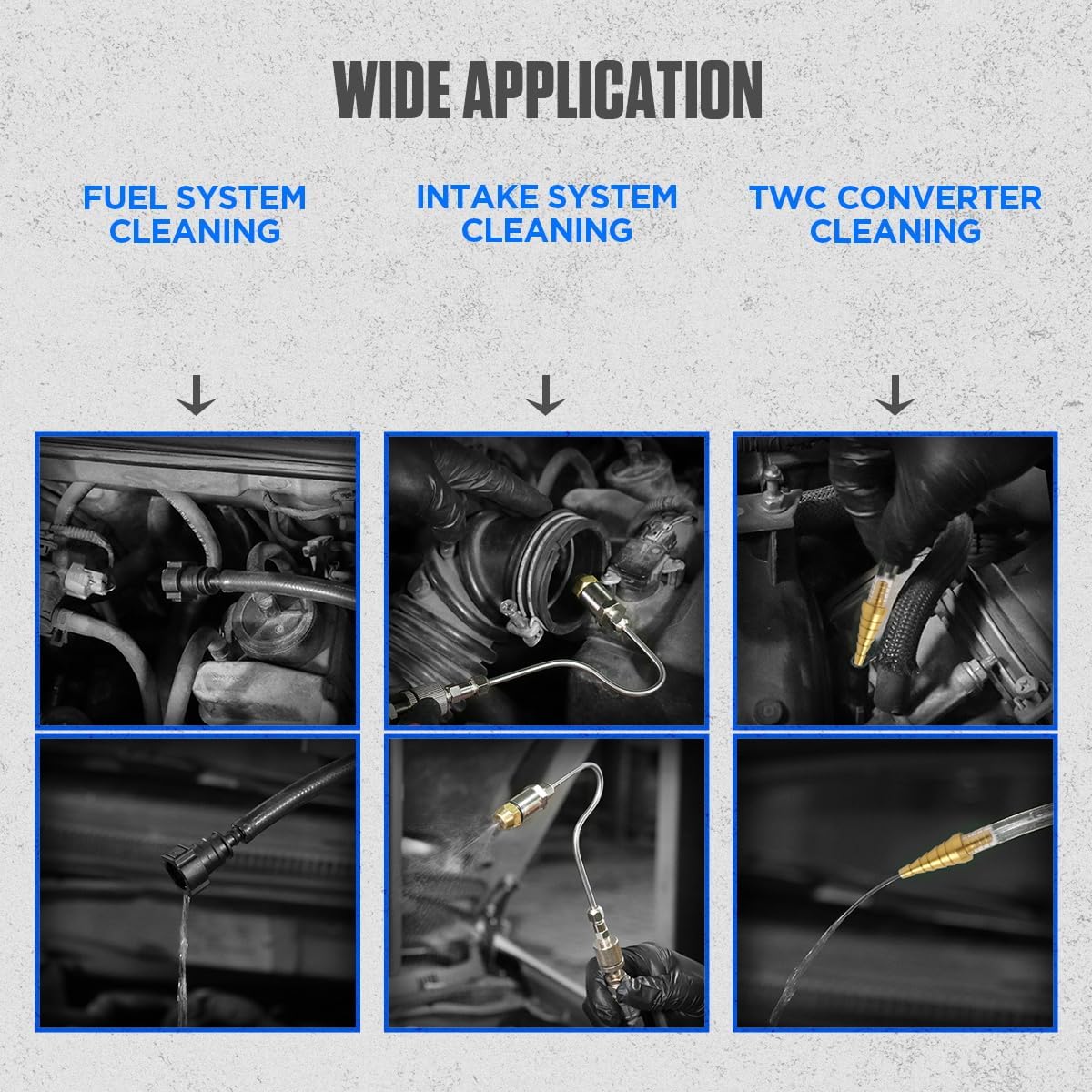

Image 5.2: Examples of the kit's wide application across different vehicle systems.
Image 5.3: Features of the throttle cleaning nozzle and industrial hoses.
Image 5.4: Visual comparison of cleaning effectiveness on various components.
Image 5.5: Examples of vehicle types compatible with the cleaning kit.
6. Maintenance
Proper maintenance ensures the longevity and reliable performance of your CMTOOL Fuel Injector Cleaner Kit.
- Clean After Use: After each use, thoroughly clean the canister and all adapters to remove any residual cleaning fluid. The bottom oil outlet design helps minimize residue.
- Inspect Components: Regularly inspect hoses, seals, and fittings for signs of wear, cracks, or damage. Replace any damaged parts immediately.
- Storage: Store the kit in its customized heavy-duty plastic carrying case in a dry, cool place, away from direct sunlight and extreme temperatures.
- Pressure Gauge: Protect the HD gauge with its shockproof rubber protective cover to prevent damage from drops.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fluid leakage from connections | Loose connections, worn seals, incorrect adapter. | Ensure all connections are tightened. Inspect seals and O-rings for damage and replace if necessary. Verify the correct adapter is used for the vehicle. |
| No pressure or low pressure | Air source not connected, regulator valve closed, leak in the system. | Check air compressor connection. Open the regulator valve. Inspect all hoses and fittings for leaks. |
| Cleaning fluid not spraying effectively | Insufficient pressure, clogged nozzle, incorrect fluid viscosity. | Increase pressure using the regulator. Clean the nozzle. Ensure the cleaning fluid is suitable for the kit. |
| Fittings do not match vehicle fuel lines | Vehicle-specific fuel line design, incorrect fitting selection. | The kit includes a variety of adapters. Carefully select the correct adapter for your vehicle's make and model. Some vehicle models may require specialized adapters not included in this universal kit. |
8. Specifications
- Model: AQ-93
- Canister Capacity: 1000ML
- Pressure Gauge: Up to 150 PSI (0-10 kg/cm²)
- Material: Stainless Steel canister, Brass main parts and joints, Perfluoro rubber connecting tubes and seals.
- Product Dimensions: 41.5 x 35 x 10.5 cm
- Item Weight: 3.92 kg
- Country of Origin: China
9. Warranty and Support
CMTOOL is committed to providing professional pre-sales services and satisfactory after-sales solutions. For warranty information, technical support, or inquiries regarding your CMTOOL Fuel Injector Cleaner Kit (Model AQ-93), please refer to the contact information provided with your purchase or visit the official CMTOOL website. This product typically includes a 30-day refund/replacement return policy.
