Tineco Floor One S7 Steam User Manual

1. Product Overview

The Tineco Floor One S7 Steam is a versatile 3-in-1 cordless floor cleaner designed to vacuum, mop, and steam hard floors simultaneously. It features advanced technologies such as 140°C HyperSteam for dissolving tough stains, MHCBS (Multi-stage Cleaning Brush System) for continuous clean brush washing, and an iLoop Smart Sensor for intelligent dirt detection and power adjustment. This manual provides essential information for the safe and efficient operation and maintenance of your device.

Figure 1.1: Tineco Floor One S7 Steam Cordless Floor Cleaner

This image displays the main unit of the Tineco Floor One S7 Steam, showcasing its sleek design and primary components including the handle, main body with water tanks, and the floor head with the brush roller.

2. What's in the Box

Before setting up your Tineco Floor One S7 Steam, please ensure all components are present and undamaged. The standard package includes:

• Tineco Floor One S7 Steam Main Unit
• Charging Station
• Power Adapter
• Replacement Brush Roller
• Dry Filter
• Cleaning Tool

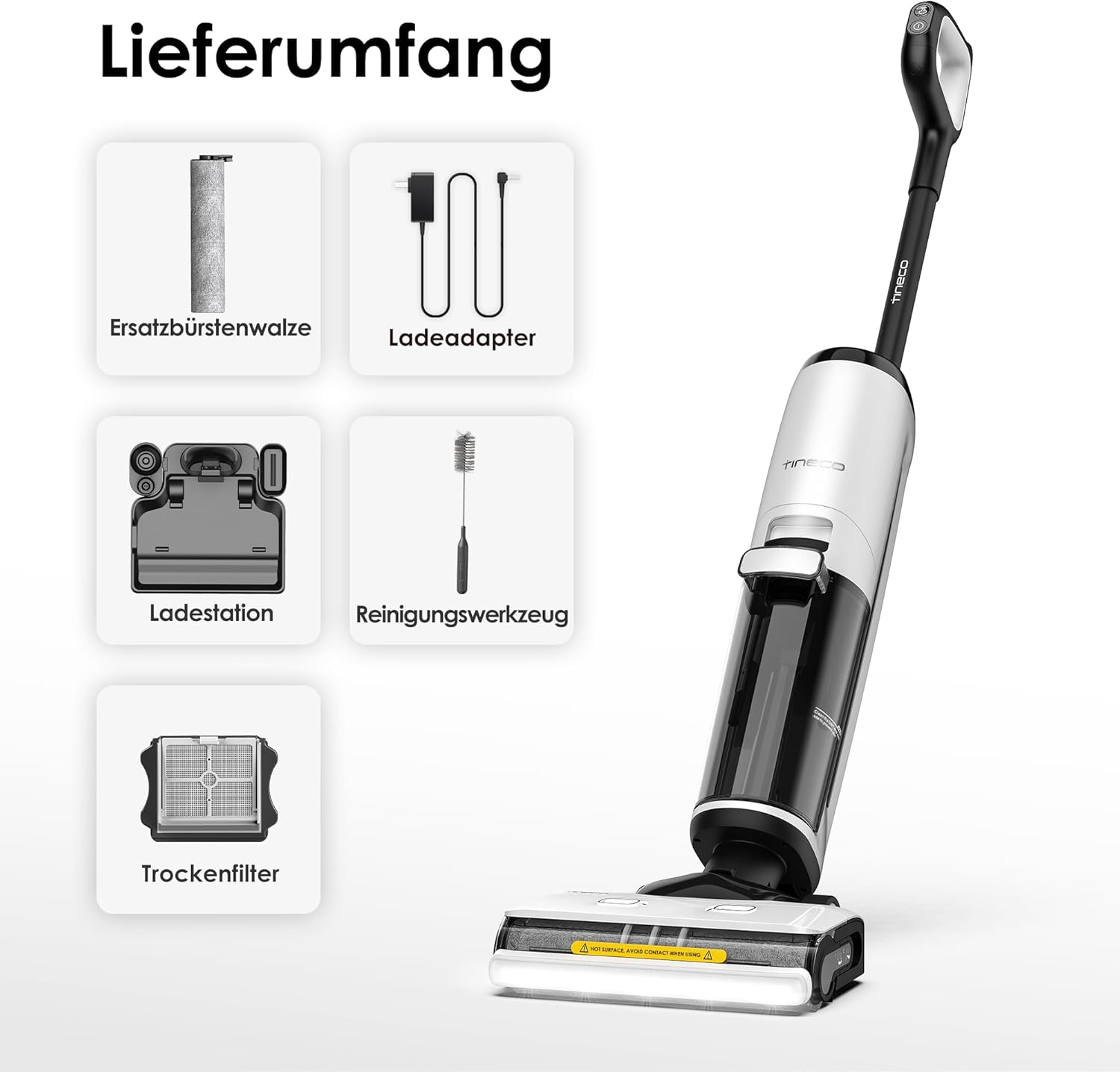

Figure 2.1: Package Contents

This image illustrates the various components included in the Tineco Floor One S7 Steam package, such as the main unit, charging station, power adapter, replacement brush roller, dry filter, and cleaning tool.

3. Setup and Initial Use

3.1 Assembly

1. Carefully remove all components from the packaging.
2. Insert the handle into the main unit until it clicks securely into place.
3. Place the assembled unit onto the charging station.

3.2 Charging the Battery

Before first use, fully charge the device. Connect the power adapter to the charging station and plug it into a wall outlet. The battery indicator on the display will show charging status. A full charge typically takes approximately 5 hours.

3.3 Filling the Clean Water Tank

The Tineco Floor One S7 Steam uses a clean water tank (0.8L capacity) and a dirty water tank (0.72L capacity). For optimal performance, fill the clean water tank with tap water. Do not add cleaning solutions to the clean water tank as the device uses steam for cleaning and disinfection.

4. Operating Instructions

4.1 Power On/Off

Press the Power button on the handle to turn the device on or off. The intelligent LED display will illuminate upon activation.

4.2 Operating Modes

The Floor One S7 Steam offers multiple cleaning modes to suit different needs:

• Auto Mode: The device intelligently detects dirt levels using the iLoop Smart Sensor and automatically adjusts suction power and water flow. This mode is suitable for general cleaning and provides up to 40 minutes of runtime.
• Steam Mode: Ideal for everyday cleaning with steam. The device heats water to 140°C to effectively clean and sanitize hard floors.
• HyperSteam Mode: For stubborn stains and heavily soiled areas, this mode provides concentrated, high-temperature steam for enhanced cleaning power.
• Suction Mode: Activated via the Tineco App, this mode allows the device to only vacuum liquids without wetting the roller, useful for spills.

Switch between Auto, Steam, and HyperSteam modes using the dedicated button on the handle. The display will indicate the active mode.

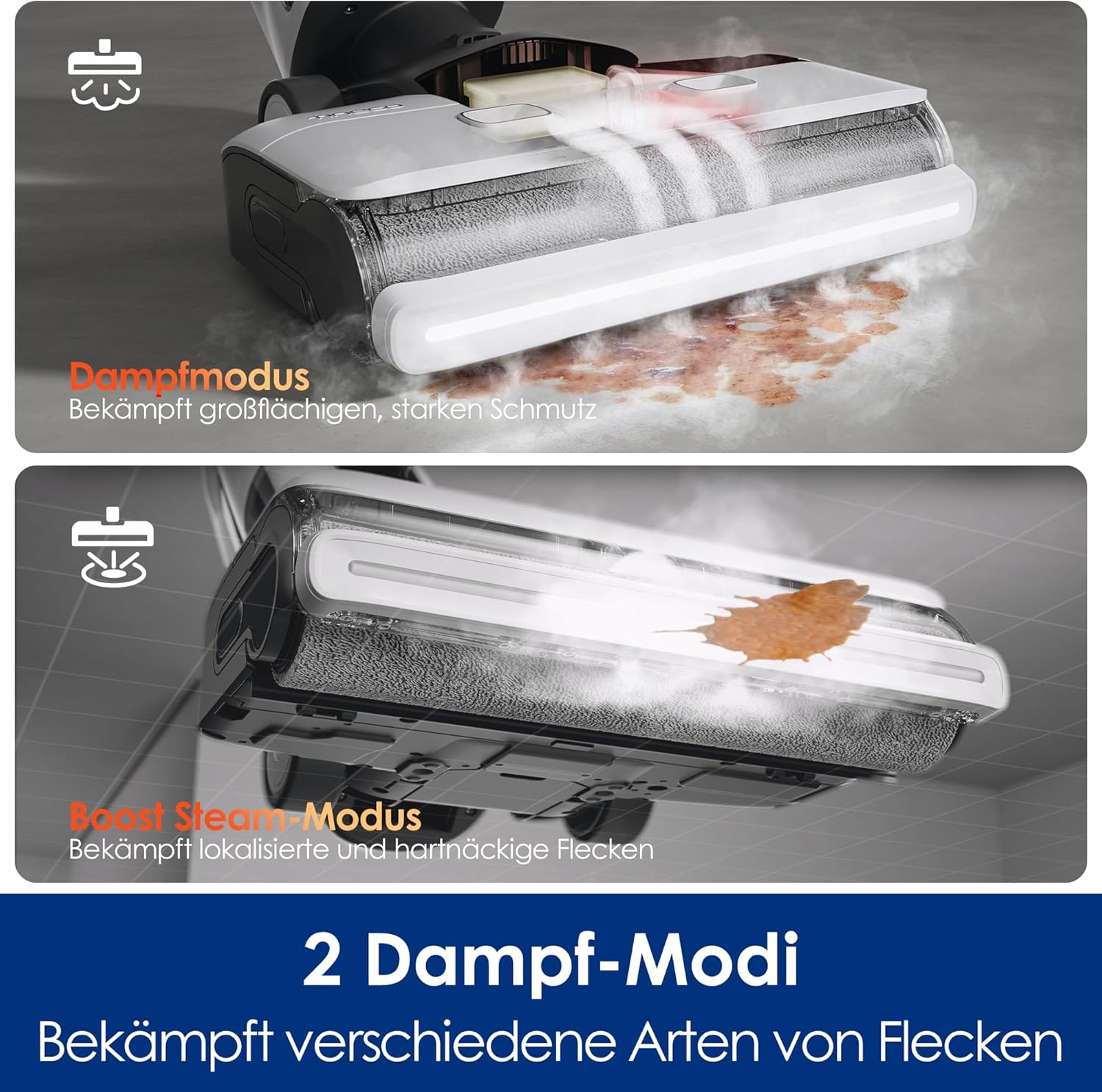

Figure 4.1: Two Steam Modes

This image highlights the two primary steam modes: standard Steam Mode for general cleaning and Boost Steam Mode for tackling localized, stubborn stains.

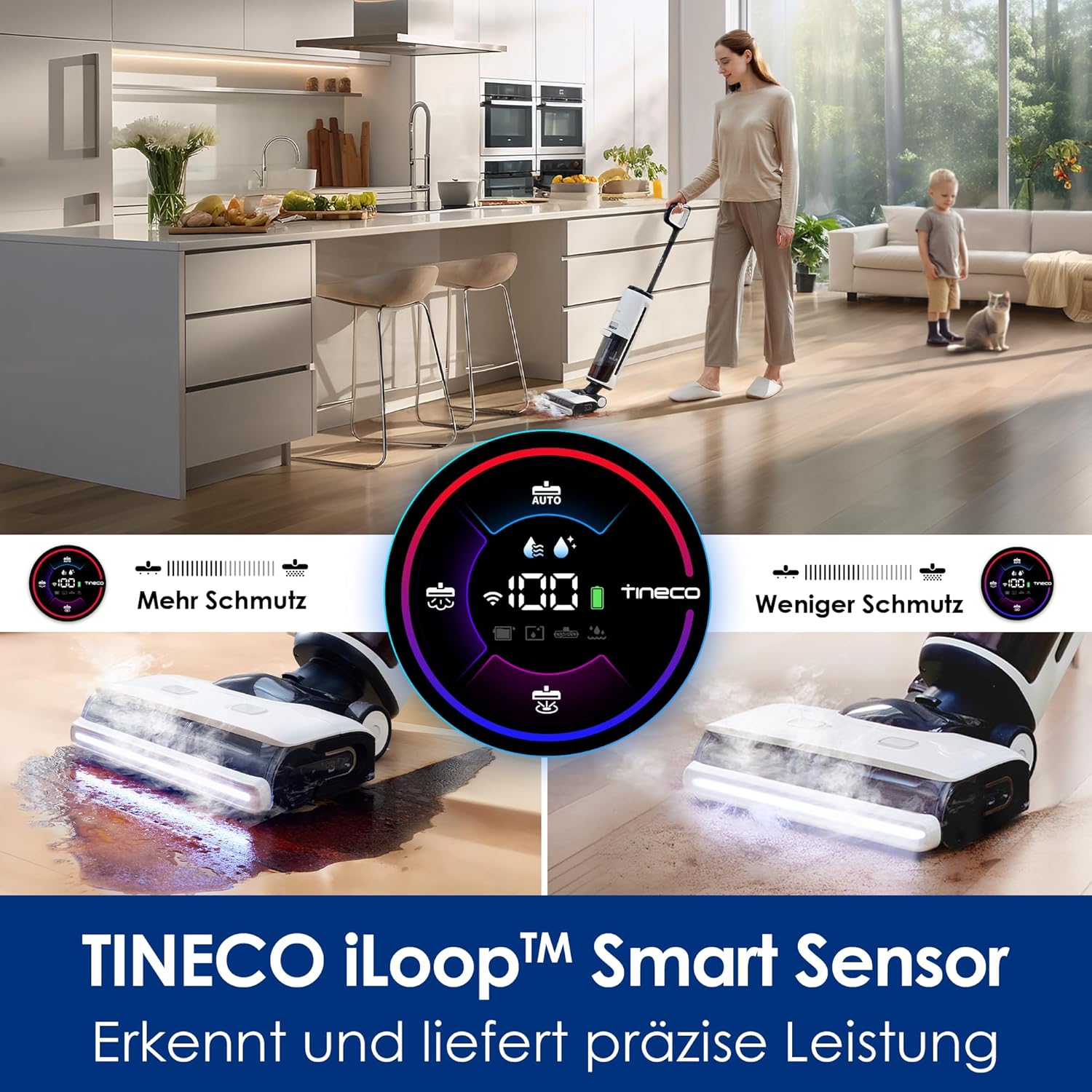

Figure 4.2: iLoop Smart Sensor

This image demonstrates the Tineco iLoop Smart Sensor in action, showing how it detects varying levels of dirt on the floor and adjusts the cleaning power accordingly, indicated by the color changes on the display ring.

4.3 Cleaning Process

Tilt the device back to activate the brush roller and begin cleaning. The self-propelled design assists in movement, reducing user effort. The MHCBS technology ensures the brush roller is continuously washed with clean water at 450 rotations per minute, preventing the spread of dirty water.

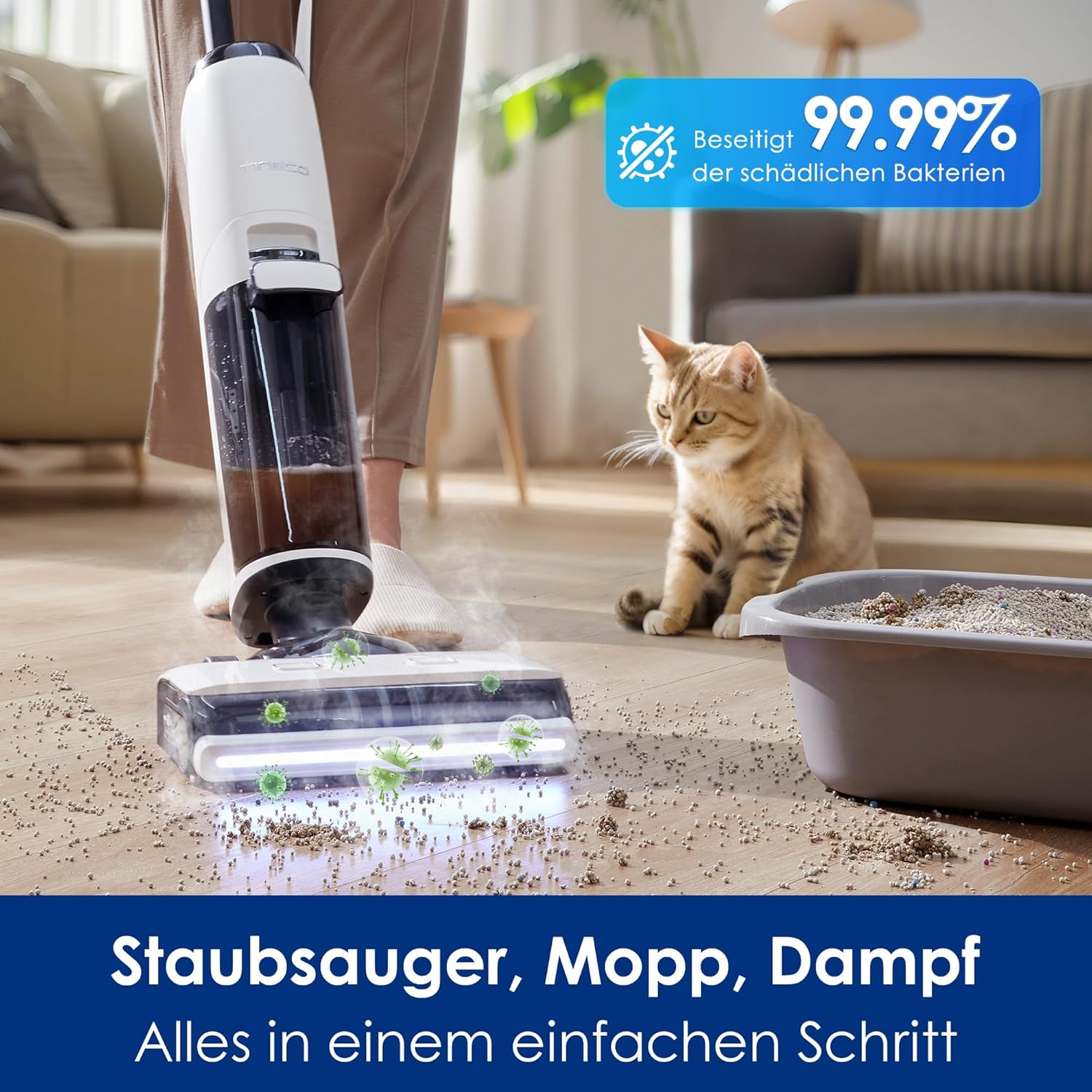

Figure 4.3: Simultaneous Cleaning

This image shows the Tineco Floor One S7 Steam in operation, simultaneously vacuuming, mopping, and steaming a hard floor, effectively removing dirt and sanitizing the surface.

Figure 4.4: 140°C HyperSteam Technology

This image illustrates the internal mechanism of the 140°C HyperSteam technology, showing how high-temperature steam is generated and applied to the floor to melt grease and tough stains for effective removal.

4.4 Edge Cleaning

The Floor One S7 Steam is designed for enhanced edge cleaning, allowing it to clean close to baseboards and into difficult-to-reach corners, leaving only a minimal gap of 0.5 cm on each side.

Figure 4.5: Two-Sided Edge Cleaning

This image highlights the device's ability to clean close to edges and furniture, showing the brush head reaching into tight spaces for comprehensive floor coverage.

5. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your Tineco Floor One S7 Steam.

5.1 Self-Cleaning Cycle

After each use, place the device on its charging station and initiate the multi-stage self-cleaning cycle. This process uses clean water and steam to thoroughly wash the brush roller and internal pipes, followed by a centrifugal drying process to remove excess water and minimize odors.

Figure 5.1: Self-Cleaning System

This image illustrates the automatic self-cleaning process, showing how the device cleans and disinfects its brush roller and internal components while docked on the charging station.

5.2 Cleaning Water Tanks

Empty and rinse the dirty water tank after each use. For thorough cleaning, remove the filter from the dirty water tank and rinse both the tank and filter under running water. The clean water tank should also be rinsed periodically.

5.3 Cleaning the Brush Roller and Filter

Even with self-cleaning, it is recommended to manually remove the brush roller and its cover after the self-cleaning cycle. Rinse them under water and allow them to air dry completely before reinserting. The dry filter should also be cleaned regularly and allowed to dry.

5.4 Storage

Store the Tineco Floor One S7 Steam on its charging station in a dry, cool place. Ensure all tanks are empty and components are dry to prevent odor and bacterial growth.

6. Troubleshooting

If you encounter issues with your Tineco Floor One S7 Steam, refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or visit the official Tineco website. Tineco offers customer support for product inquiries, troubleshooting assistance, and spare parts. While information on spare parts availability was not immediately available, Tineco typically provides support for their products.

For further assistance, please contact Tineco Customer Service through their official channels.
