PRIOS Helinova Wake-Up Light Alarm Clock User Manual

1. Introduction

The PRIOS Helinova is a versatile device designed to enhance your daily routine with its multi-functional capabilities. It combines a wake-up light, alarm clock, FM radio, and mood lighting, all integrated into a sleek, user-friendly design. This manual provides detailed instructions for the proper setup, operation, and maintenance of your Helinova device.

Figure 1.1: The PRIOS Helinova Wake-Up Light Alarm Clock. This image shows the front view of the device, highlighting its minimalist design and touch-sensitive control buttons at the base.

2. Safety Instructions

Please read these safety instructions carefully before using the device to ensure safe and proper operation.

• Do not expose the device to water or excessive moisture.
• Avoid placing the device near heat sources or in direct sunlight.
• Use only the provided USB charging cable for power.
• Do not attempt to disassemble or repair the device yourself. Contact qualified service personnel.
• Keep out of reach of children.

3. Package Contents

Verify that all items are present in the package:

• PRIOS Helinova Wake-Up Light Alarm Clock
• USB Charging Cable
• User Manual (this document)

Figure 3.1: The USB charging cable included with the PRIOS Helinova. This cable is used to power and charge the device.

4. Product Overview

Familiarize yourself with the components and controls of your Helinova device.

4.1 Front Panel Controls

• Time/Alarm Button: Used to set time and alarm functions.
• Minus (-) Button: Decreases values, volume, or brightness.
• Light Button: Activates and adjusts the light functions.
• Plus (+) Button: Increases values, volume, or brightness.
• Radio/Bluetooth Button: Controls FM radio and Bluetooth functions.

4.2 Rear Panel Ports

• Micro-USB Charging Input (DC 5V): For connecting the power cable.
• USB Charging Output (Output: 5V 1A): For charging external devices.
• MicroSD Card Slot: For playing audio from a MicroSD card.

Figure 4.1: Rear view of the PRIOS Helinova Wake-Up Light Alarm Clock. This image displays the USB output port and the device's stable stand.

Figure 4.2: Close-up of the DC 5V input and USB output ports on the PRIOS Helinova. This shows where to connect the power cable and external devices.

5. Setup

5.1 Initial Power On

1. Connect the provided USB charging cable to the Micro-USB input port on the back of the Helinova.
2. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a powered USB port.
3. The device will power on, and the LED display will illuminate.

5.2 Setting the Time

1. Press and hold the Time/Alarm Button until the hour display starts flashing.
2. Use the Plus (+) or Minus (-) Buttons to adjust the hour.
3. Press the Time/Alarm Button again to switch to minute setting.
4. Use the Plus (+) or Minus (-) Buttons to adjust the minutes.
5. Press the Time/Alarm Button one more time to confirm and exit time setting mode.

6. Operation

6.1 Basic Light Functions

1. Turn On/Off: Briefly press the Light Button to turn the light on or off.
2. Adjust Brightness (Touch Dimmer): When the light is on, press and hold the Light Button. The brightness will cycle through levels. Release the button at your desired brightness. Alternatively, use the Plus (+) or Minus (-) Buttons to adjust brightness in steps.
3. Mood Light: Press the Light Button multiple times to cycle through different mood light colors.

Figure 6.1: The PRIOS Helinova Wake-Up Light Alarm Clock displaying various LED mood light colors. This collage shows the device emitting yellow, green, pink, and blue light, demonstrating its mood lighting capabilities.

6.2 Alarm Clock Settings

1. Set Alarm Time: Press the Time/Alarm Button once to enter alarm setting mode. The alarm hour will flash. Adjust with Plus (+) or Minus (-) Buttons. Press Time/Alarm Button again for minutes, adjust with Plus (+) or Minus (-) Buttons. Press again to confirm.
2. Activate/Deactivate Alarm: After setting the alarm, press the Time/Alarm Button briefly to toggle the alarm on or off. An alarm icon will appear/disappear on the display.
3. Snooze Function: When the alarm sounds, press any button (except the Time/Alarm button) to activate snooze. The alarm will sound again after a set interval (e.g., 9 minutes).
4. Stop Alarm: To completely stop the alarm, press the Time/Alarm Button when it is sounding.

Figure 6.2: The PRIOS Helinova Wake-Up Light Alarm Clock in use, displaying time and emitting warm light. This image shows the device on a bedside table, indicating its function as a wake-up light.

Figure 6.3: The PRIOS Helinova Wake-Up Light Alarm Clock on a bedside table, unlit, displaying time. This image provides a view of the device in a typical bedroom setting when the light function is not active.

6.3 FM Radio Operation

1. Turn On/Off: Press the Radio/Bluetooth Button briefly to turn the FM radio on or off.
2. Auto Scan: Press and hold the Radio/Bluetooth Button to automatically scan and save available FM stations.
3. Change Station: Use the Plus (+) or Minus (-) Buttons to cycle through saved stations.
4. Adjust Volume: While the radio is playing, press and hold the Plus (+) or Minus (-) Buttons to adjust the volume.

6.4 Sunrise Simulation

The Helinova can simulate a sunrise to gently wake you up. This function typically starts gradually increasing light intensity before your set alarm time.

• When setting an alarm, the sunrise simulation will automatically activate a set time (e.g., 30 minutes) before the alarm sounds, gradually brightening the light.
• Refer to the on-screen indicators or specific alarm settings for customization options regarding the duration or intensity of the sunrise simulation.

6.5 Sunset Simulation (Sleep Timer)

The sunset simulation helps you fall asleep by gradually dimming the light over a set period.

• Activate the sleep timer function (often by pressing a dedicated button or holding the light button in a specific mode).
• Select the desired duration for the dimming process (e.g., 15, 30, 60 minutes).
• The light will gradually dim until it turns off completely.

6.6 Bluetooth Function

The Helinova features a hands-free Bluetooth function for audio playback.

1. Press and hold the Radio/Bluetooth Button to enter Bluetooth pairing mode. The display will indicate 'BT'.
2. On your smartphone or other Bluetooth-enabled device, search for 'Helinova' in the Bluetooth settings and pair.
3. Once paired, you can play audio from your device through the Helinova speaker.
4. Use the Plus (+) or Minus (-) Buttons to adjust volume.

7. Maintenance

To ensure the longevity and optimal performance of your PRIOS Helinova, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the surface of the device. Do not use abrasive cleaners, solvents, or harsh chemicals.
• Storage: When not in use for extended periods, store the device in a cool, dry place away from direct sunlight.
• Power: Always disconnect the power cable before cleaning or if the device will not be used for a long time.

8. Troubleshooting

If you encounter any issues with your Helinova, refer to the following common problems and solutions:

9. Specifications

Technical details of the PRIOS Helinova Wake-Up Light Alarm Clock:

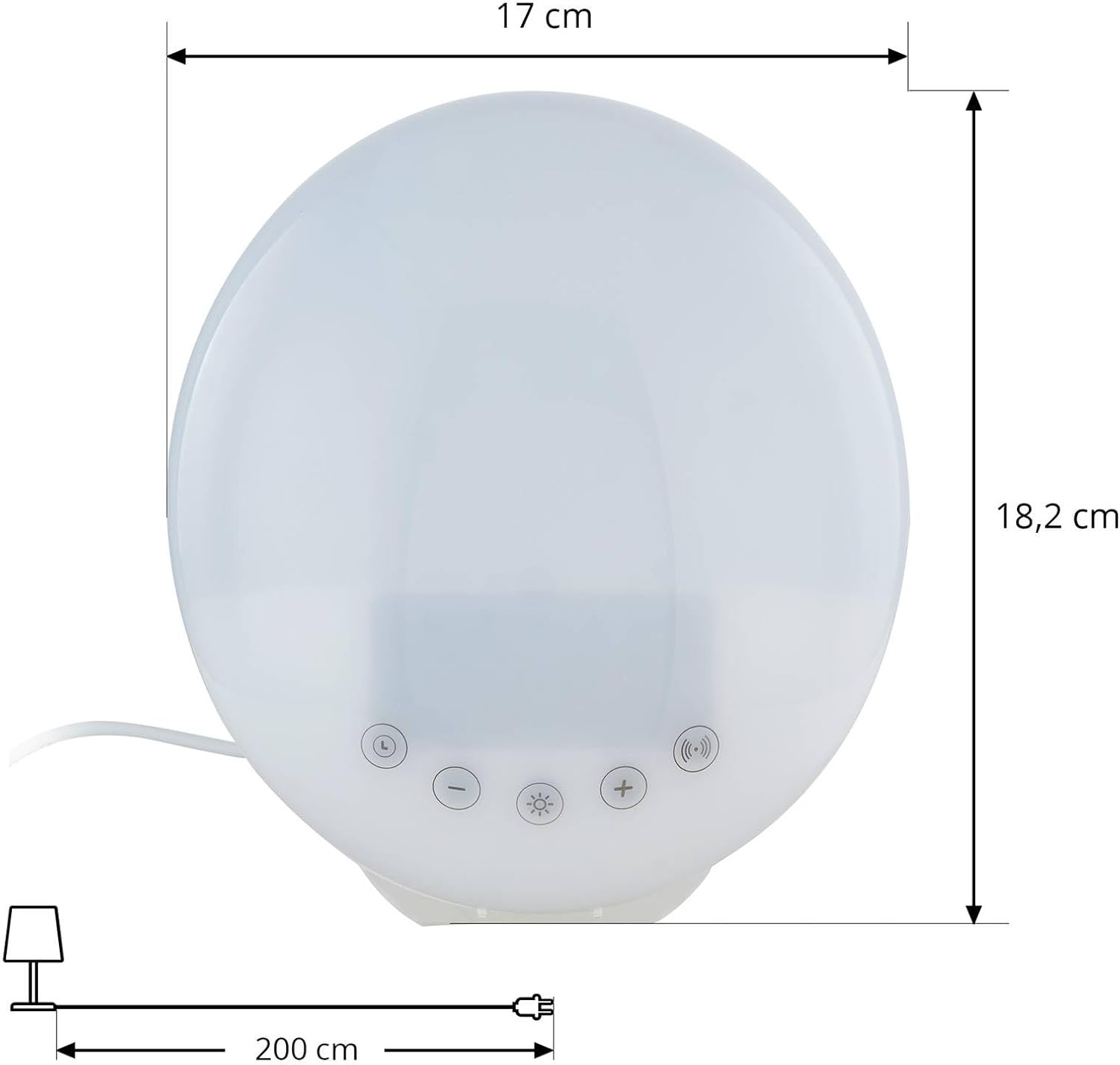

Figure 9.1: Dimensions of the PRIOS Helinova Wake-Up Light Alarm Clock. This image provides a visual representation of the device's width (17 cm) and height (18.2 cm), along with the cable length (200 cm).

• Model: Helinova
• Manufacturer Reference: 9933013
• Material: Plastic
• Color: White
• Width: 17 cm
• Height: 18.2 cm
• Light Source: Integrated LED
• Total LED Wattage: 2 W
• Power Input: DC 5V (via Micro-USB)
• USB Output: 5V 1A
• IP Code: IP20 (Not protected against water)
• Protection Class: II
• Functions: FM Radio, Alarm Clock, Light Alarm, Snooze, Sleep Timer, LED Mood Light (Dimmable), LED Display (Dimmable), Sunrise Simulation, Sunset Simulation, Hands-free Bluetooth, MicroSD Playback

10. Warranty and Support

PRIOS products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for warranty claims.
