1. Introduction
This manual provides instructions for the installation, operation, and maintenance of your STRONG SW8000M 8-Port Gigabit Desktop Switch. This device is designed to expand your network connectivity with high-speed Gigabit Ethernet ports, suitable for home and office environments.
2. Product Features
- Gigabit Speed: Provides 10/100/1000 Mbps for fast network connections.
- 8-Port Connectivity: Expands network with 8 Gigabit Ethernet ports.
- Plug and Play: No software or configuration required for basic operation.
- Robust Metal Design: Durable metal housing for longevity.
- Flexible Mounting: Supports desktop placement or wall mounting.
- Fanless Operation: Ensures quiet performance, ideal for noise-sensitive areas.
- Optimized Data Traffic: Supports QoS, IGMP, and VLAN functions.

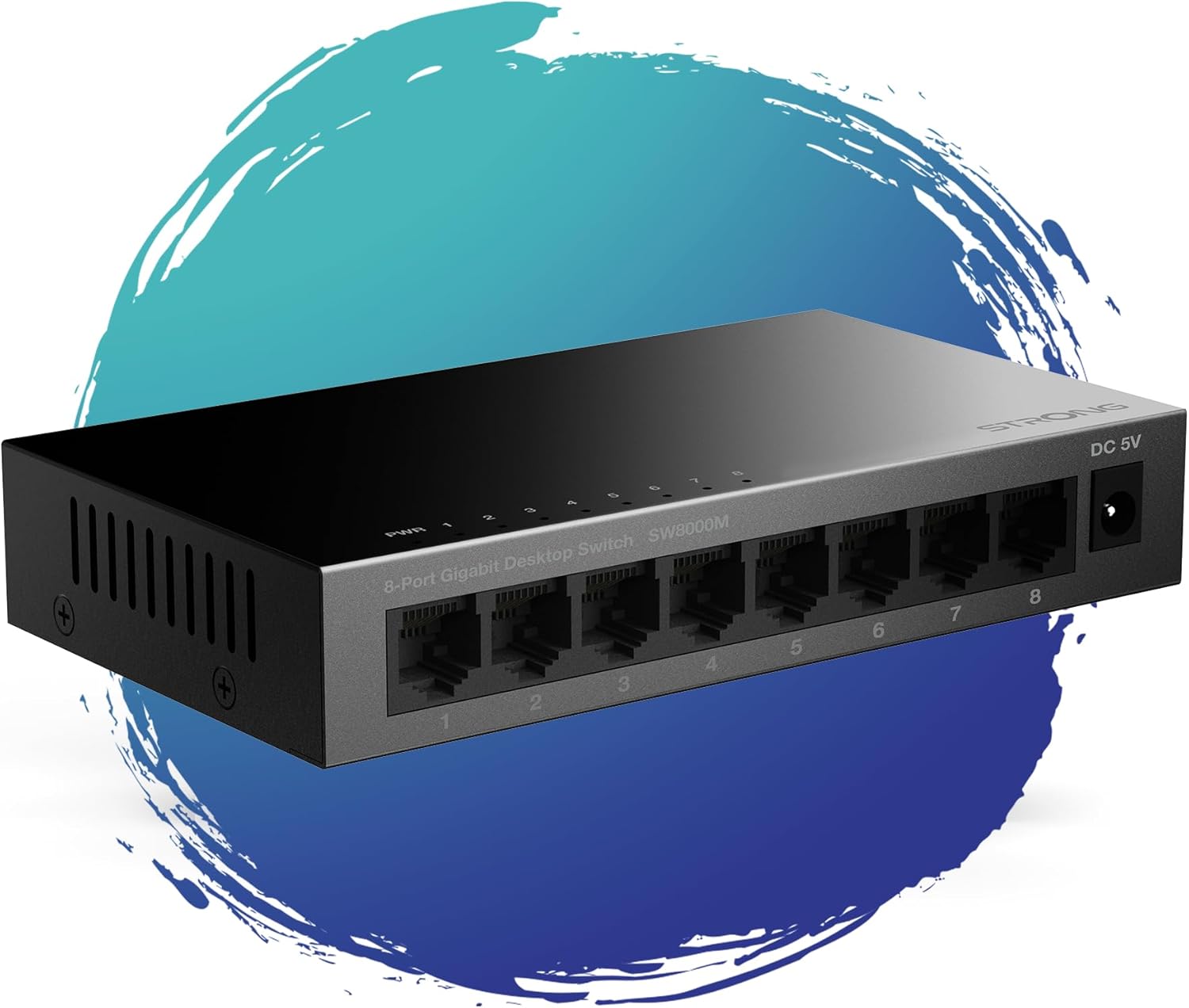

Figure 1: Front view of the STRONG SW8000M 8-Port Gigabit Desktop Switch, highlighting its compact design and 8 RJ45 ports.
3. Package Contents
Verify that all items are present in the package:
- STRONG SW8000M 8-Port Gigabit Desktop Switch
- Power Adapter (Mains plug)
- Installation Instructions (this manual)
- Warranty Card
4. Setup and Installation
4.1 Physical Placement
The SW8000M switch can be placed on a desktop or mounted on a wall. Ensure the location is well-ventilated and away from direct heat sources or moisture.
- Desktop Placement: Place the switch on a flat, stable surface.
- Wall Mounting: Use the provided mounting options (if applicable) to secure the switch to a wall.
Figure 2: Illustrates the switch's advanced features like QoS, traffic optimization, and IEEE 802.3x flow control.
4.2 Connecting the Switch
- Connect the power adapter to the DC 5V port on the switch and then plug it into a power outlet. The Power LED (PWR) on the switch will illuminate.
- Connect your network devices (e.g., computers, printers, network-attached storage, routers) to any of the 8 Gigabit RJ45 ports using standard Ethernet cables.
- The corresponding LED indicator for each connected port will light up, indicating an active connection. A blinking LED indicates data activity.
Figure 3: Rear view of the switch, detailing the 8 Gigabit RJ45 ports and the DC 5V power input.
5. Operating the Switch
The STRONG SW8000M is a plug-and-play device. Once connected, it automatically detects the speed and duplex mode of connected devices, providing optimal performance without manual configuration.
- LED Indicators: Each port has an LED indicator. A solid light indicates a link, and a blinking light indicates data transmission. The PWR LED indicates the device is powered on.
- Data Flow: The switch intelligently manages data traffic to ensure smooth and efficient communication between all connected devices.
6. Maintenance
- Cleaning: Use a soft, dry cloth to clean the exterior of the switch. Do not use liquid or aerosol cleaners.
- Ventilation: Ensure that the ventilation openings on the sides of the switch are not blocked to prevent overheating.
- Fanless Design: The fanless design reduces dust accumulation and eliminates operational noise, requiring minimal internal maintenance.
7. Troubleshooting
- No Power: Ensure the power adapter is securely connected to the switch and a working power outlet. Check if the PWR LED is illuminated.
- No Link Light: Verify that the Ethernet cables are properly connected to both the switch and the network device. Try a different port or cable. Ensure the connected device is powered on.
- Slow Connection: Ensure all connected devices and cables support Gigabit Ethernet for optimal speed. Check for excessive network traffic or faulty cables.
- Intermittent Connection: Check cable connections. Ensure the switch is placed in a stable environment, free from strong electromagnetic interference.
8. Specifications
| Feature | Description |
|---|---|
| Model | SW8000M |
| Number of Ports | 8 x RJ45 Gigabit Ethernet |
| Data Transfer Rate | 10/100/1000 Mbps |
| Interface Type | RJ45 |
| Power Input | 5 Volts, 1 Amp |
| Case Material | Metal |
| Product Dimensions (L x W x H) | 3.07" x 0.98" x 5.43" |
| Item Weight | 240 Grams (8.5 ounces) |
| Operating Temperature | Up to 50 Degrees Celsius |
| Included Components | Switch, Power Adapter, Manual, Warranty Card |
9. Warranty and Support
The STRONG SW8000M switch comes with a manufacturer's warranty. Please refer to the included Warranty Card for specific terms and conditions. For technical support or further assistance, please visit the official Strong website or contact their customer service.
EU Spare Part Availability Duration: 2 Years
