Introduction
The TONOR TC310+ Gaming USB Microphone Set is designed to deliver high-fidelity audio for gaming, streaming, podcasting, and recording. Equipped with premium chips and core, it ensures ultra-low noise levels and crystal-clear sound reproduction. This set features vibrant RGB lighting, convenient sound controls, and an enhanced boom arm kit for optimal positioning and an immersive user experience.
What's in the Box
- Microphone x 1
- Pop filter x 1
- Mic stand x 1
- Shockmount x 1
- USB cable x 1
- Manual x 1

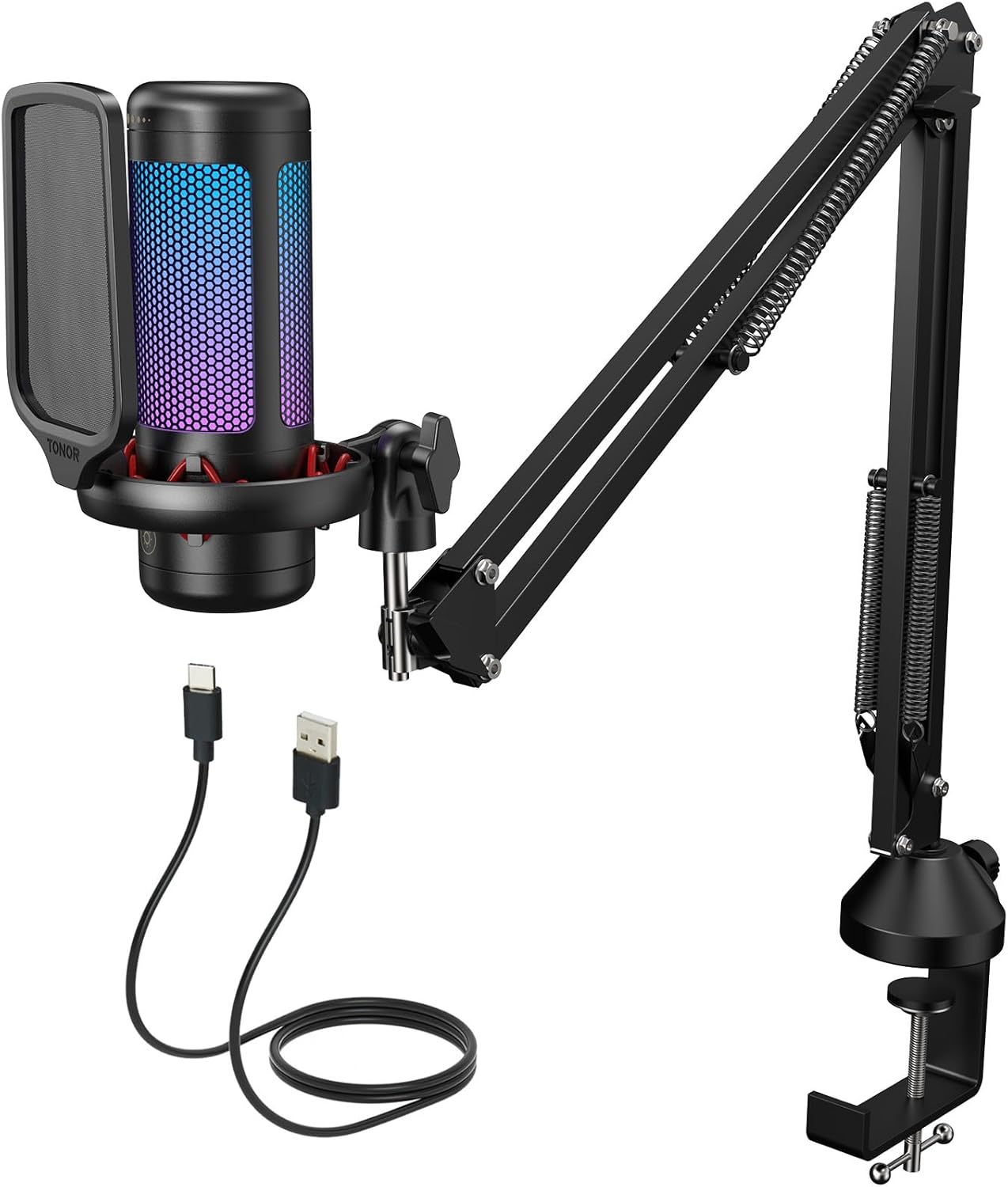

Image: All components included in the TONOR TC310+ Gaming USB Microphone Set.
Setup Instructions
1. Assemble the Boom Arm and Microphone
Attach the microphone to the shock mount, and then secure the shock mount to the boom arm. The metal boom arm is designed to be sturdy and can be clamped to most desks with a thickness not exceeding 2.36 inches (6cm). Adjust the boom arm and microphone to your desired angle and height for optimal sound capture.

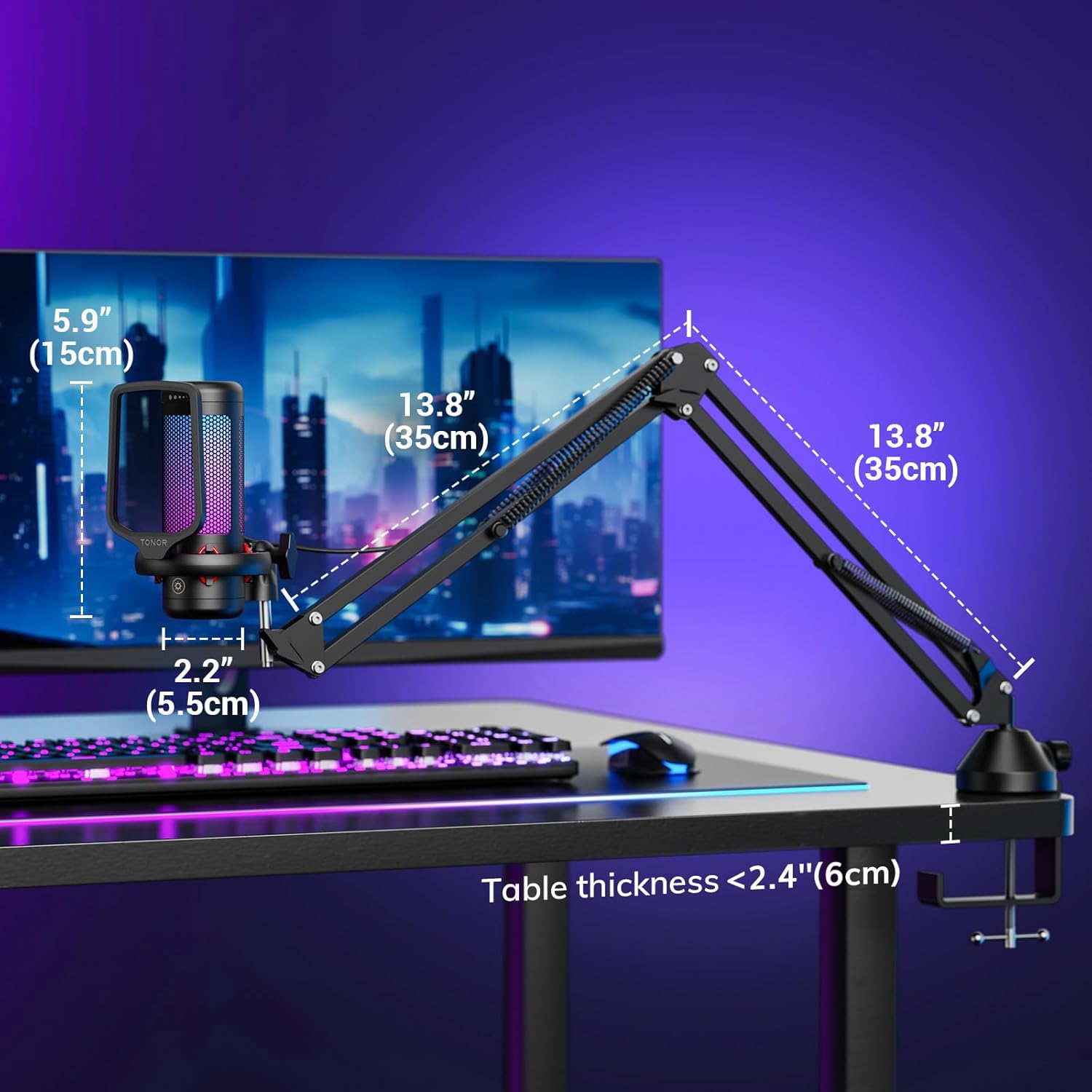

Image: Boom arm dimensions and setup on a desk, illustrating adjustability.
2. Connect to Your Computer
The TC310+ microphone is a plug-and-play USB device. Simply connect the provided USB cable from the microphone to an available USB port on your PC. No additional drivers are typically required for basic functionality.
Image: Compatibility overview for the microphone, showing supported platforms.
3. Initial Sound Check
After connecting, your operating system should recognize the microphone. You can then select it as your input device in your system sound settings or preferred recording/streaming software.
Video: Official product video demonstrating the setup and features of the Gaming USB Microphone Set for PC.
Operating Instructions
1. Vibrant RGB Lighting
The TC310+ features 4 RGB modes: six solid color static, single-color gradient, single-color breathing, and mix-color gradient. To change modes, simply short tap the lighting icon on the device. You can also long-tap the lighting icon to turn off the RGB lights.

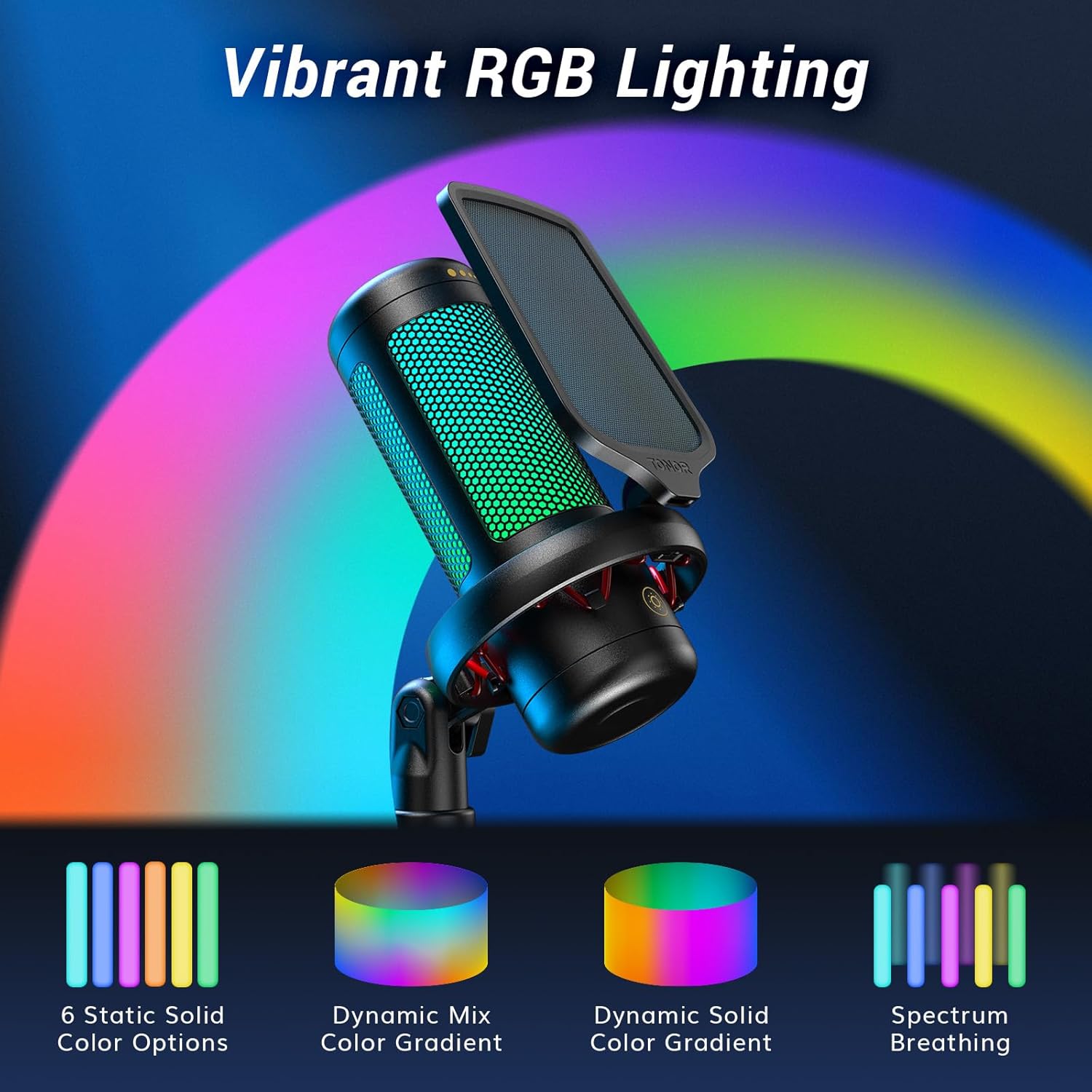

Image: The microphone displaying various vibrant RGB lighting options.

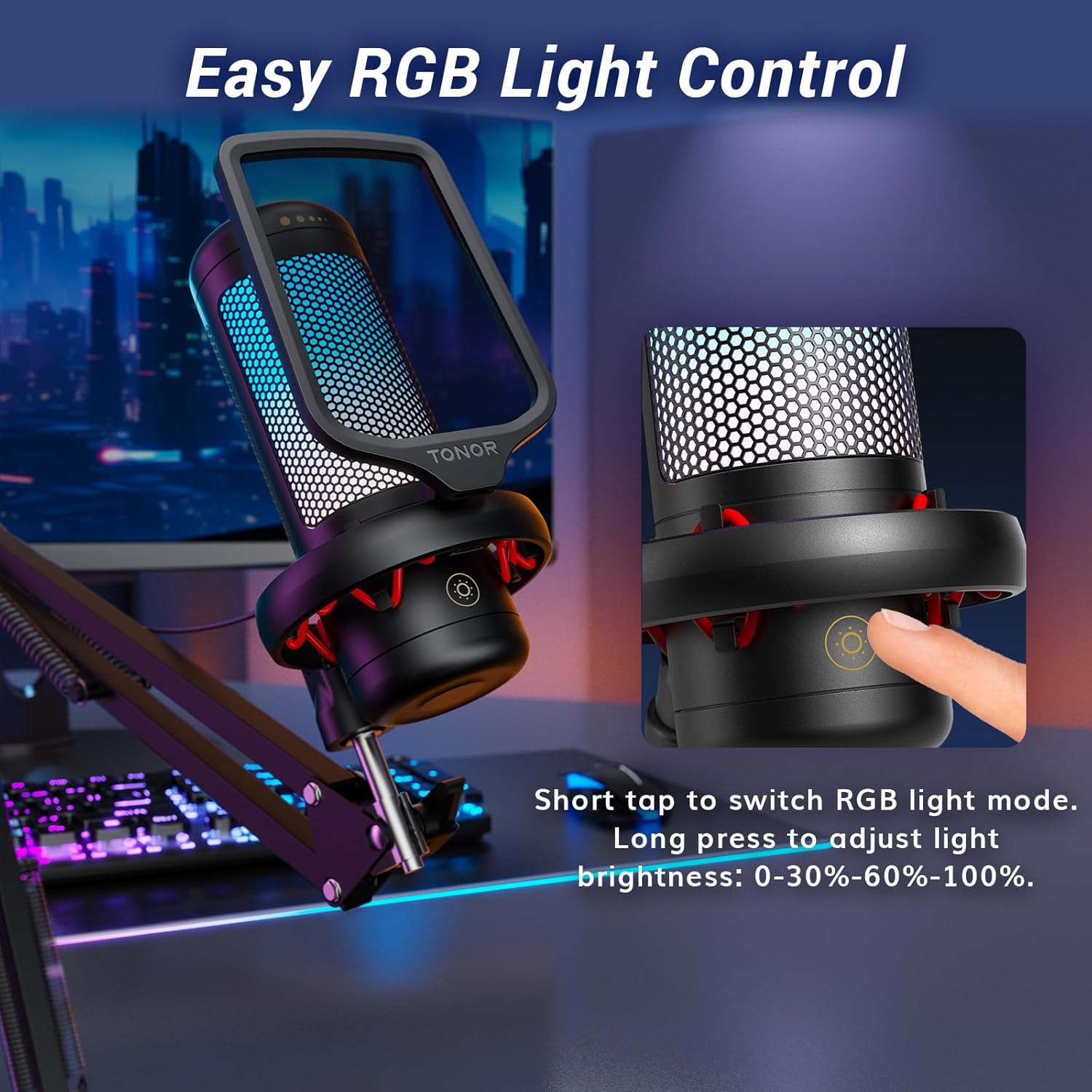

Image: Detail of the microphone's base with the lighting control button.
2. Brightness Control
Adjust the brightness of the RGB lights by rotating the bottom of the USB microphone. This allows you to create the perfect lighting atmosphere for your setup.
3. Convenient Sound Control
Easily mute the microphone by tapping the top. The light will turn red to indicate that the microphone is muted. Rotating the top of the microphone allows you to adjust the microphone's gain, ensuring an appropriate volume level at all times.
Image: Top view of the microphone highlighting the mute and gain control features.
4. Unrivaled Audio Quality
The TC310+ is equipped with premium chips and expert tuning, resulting in ultra-low noise levels and pure, clean sound. It delivers crystal-clear clarity and full-bodied sound, providing high-fidelity reproduction for your recordings.
Image: Visual representation of the microphone's superior audio quality and noise reduction capabilities.
Specifications
| Feature | Detail |
|---|---|
| Microphone Form Factor | Shotgun or Gooseneck |
| Item Dimensions (L x W x H) | 16 x 6 x 5.4 inches |
| Power Source | Corded Electric |
| Material | Alloy Steel, Acrylonitrile Butadiene Styrene |
| Signal-to-Noise Ratio | 78 dB |
| Hardware Platform | PC |
| Number of Channels | 1 |
| Noise Level | 78 dB |
| Manufacturer | TONOR |
| Item Weight | 2.65 pounds (1200 Grams) |
| ASIN | B0CCV74CL7 |
| Item Model Number | TC310+ |
| Date First Available | November 1, 2023 |
| Color Name | Black |
| Connectivity Technology | USB |
| Connector Type | USB |
| Special Feature | USB, Gaming |
| Compatible Devices | Personal Computer |
| Polar Pattern | Unidirectional |
| Audio Sensitivity | 10 dB |
Maintenance
To ensure the longevity and optimal performance of your TONOR TC310+ microphone, follow these simple maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe down the microphone and boom arm. Avoid using harsh chemicals or abrasive materials that could damage the finish.
- Storage: When not in use, store the microphone in a clean, dry place away from extreme temperatures and humidity.
- Cable Care: Avoid bending or kinking the USB cable excessively to prevent internal damage.
Troubleshooting
If you encounter any issues with your TONOR TC310+ microphone, please refer to the following common troubleshooting steps:
- No Sound Output:
- Ensure the USB cable is securely connected to both the microphone and your computer.
- Check if the microphone is muted by tapping the top button (the light should not be red if unmuted).
- Verify the gain control is adjusted to an audible level by rotating the top dial.
- Confirm the TONOR TC310+ is selected as the default input device in your computer's sound settings and in your recording/streaming software.
- Background Noise/Echo:
- Ensure the pop filter is correctly positioned to reduce plosive sounds.
- The shock mount helps absorb vibrations from the desk; ensure it is properly installed.
- Adjust the microphone's gain level to an appropriate setting to avoid picking up excessive background noise.
- Consider your environment; minimize external noise sources where possible.
- RGB Lights Not Working:
- Ensure the microphone is properly connected and receiving power.
- Short tap the lighting icon on the base to cycle through modes. Long-tap to ensure they haven't been turned off.
- Rotate the bottom dial to adjust brightness.
Warranty & Support
The TONOR TC310+ Gaming USB Microphone Set comes with a 2-Year Warranty from the date of purchase, covering manufacturing defects and malfunctions under normal use.
For technical support, warranty claims, or any inquiries, please contact TONOR customer service:
- Email: support@tonormic.com
- Website: www.tonormic.com
Please have your purchase receipt and product model number (TC310+) ready when contacting support.
