Introduction
This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your Alohappy Full Size Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This bed frame is designed to offer a comfortable sleeping solution with integrated features such as RGB LED lighting, a storage headboard with a charging station, and under-bed storage drawers.
Safety Information
- Do not load the bed frame with more than 1100 pounds (approximately 500 kg). Exceeding this weight limit may cause damage to the frame or lead to injury.
- Exercise caution regarding sharp edges during the assembly process. It is recommended to wear protective gloves.
- Ensure all support legs are correctly adjusted and firmly in contact with the floor to maintain stability and prevent wobbling.
- Keep small parts and packaging materials away from children to prevent choking hazards.
Package Contents
Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Bed Frame Components (metal frame, slats)
- Headboard with integrated storage shelves
- RGB LED Light Strip
- Power Strip with 2 Standard AC Outlets, 1 USB-A Port, and 1 USB-C Port
- 2 Under-bed Storage Drawers with Wheels
- Assembly Hardware Kit (screws, bolts, tools)
- Installation Manual
- Remote Control for LED Lights
Setup and Assembly
The Alohappy Full Size Bed Frame is designed for straightforward assembly. It is highly recommended that two people assemble this bed frame to ensure safety and efficiency. Please follow the detailed, step-by-step instructions provided in the included installation manual.
Key Assembly Points:
- Unpacking: Carefully remove all components from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Component Identification: Refer to the parts list in your manual to identify each component. Some parts may not be labeled, so compare them with the diagrams.
- Frame Construction: Assemble the main metal frame first, ensuring all connections are secure. The frame features a sturdy metal structure for durability.
- Headboard Attachment: Securely attach the headboard to the main frame. Ensure the power strip and LED light connections are accessible.
- Slat Installation: Install the 13 heavy-duty metal slats evenly across the frame. These slats are precisely arranged to provide strong support for various mattress types without needing a box spring.
- Support Legs: Ensure all 11 support legs, including the 3 adjustable middle legs, are properly installed and adjusted to provide stable support.
- Drawer Assembly: Assemble the two under-bed storage drawers. These drawers are designed with wheels for easy movement and include dust-proof black liners.
Image: Stable Construction and Assembly Details. This diagram illustrates the robust design and ease of assembly, emphasizing the noise-free and sturdy metal structure.
Image: Full Size Bed Frame Dimensions. This image provides an overview of the bed frame's dimensions and its 1100 LB weight capacity.
Operating Instructions
RGB LED Lighting System
The integrated RGB LED light strip offers customizable ambient lighting for your bedroom. It can be controlled via a dedicated remote control or a smartphone application.
- Power On/Off: Use the power button on the remote or app to turn the lights on or off.
- Color Selection: Choose from over 60,000 colors using the color wheel on the app or preset color buttons on the remote.
- Brightness Adjustment: Adjust the light intensity to your preference using the brightness controls.
- Mode Selection: Select various lighting modes, including static colors, dynamic color changes, and music synchronization modes. In music mode, the lights will change and flash with the rhythm of your music.
- Timing Function: Set a timer for the lights to automatically turn off.
Image: RGB LED Bed Frame Features. This image highlights the 60,000 color options and control functionalities including app control, adjustable brightness, mic mode, music mode, timing function, and remote control.
Charging Station
The headboard includes a convenient charging station to power your electronic devices.
- AC Outlets: Two standard AC outlets (125V/12A) are available for plugging in lamps, laptops, or other electronics.
- USB-A Port: One USB-A port (5V/2A) is provided for charging smartphones, tablets, and other USB-powered devices.
- USB-C Port: One USB-C port (5V/2A) is available for charging compatible devices.
- Power Cord: The charging station is powered by a 6.6-foot power cord. Ensure it is securely plugged into a wall outlet.
Image: Storage Headboard with Power Strip. This image details the charging station with 2 AC outlets, 1 USB-A port, and 1 USB-C port, along with the 6.6-foot power cord.
Storage Drawers
The two under-bed storage drawers are designed for easy access and organization.
- Access: The drawers are equipped with wheels, allowing them to roll in and out smoothly from under the bed.
- Dust Protection: Each drawer includes a dust-proof black liner to protect stored items.

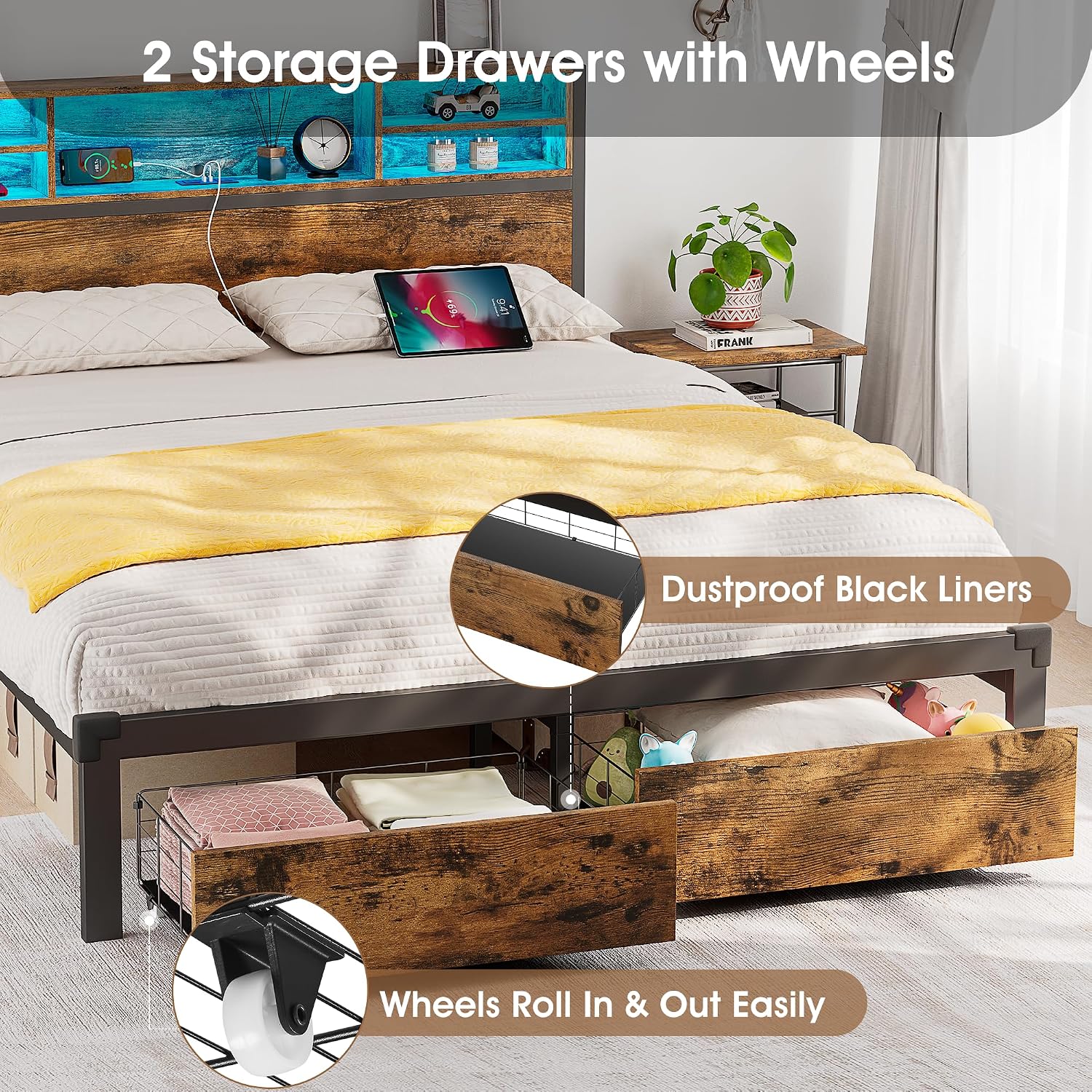

Image: Two Storage Drawers with Wheels. This image illustrates the functionality of the drawers, highlighting their wheels for easy access and dustproof liners.

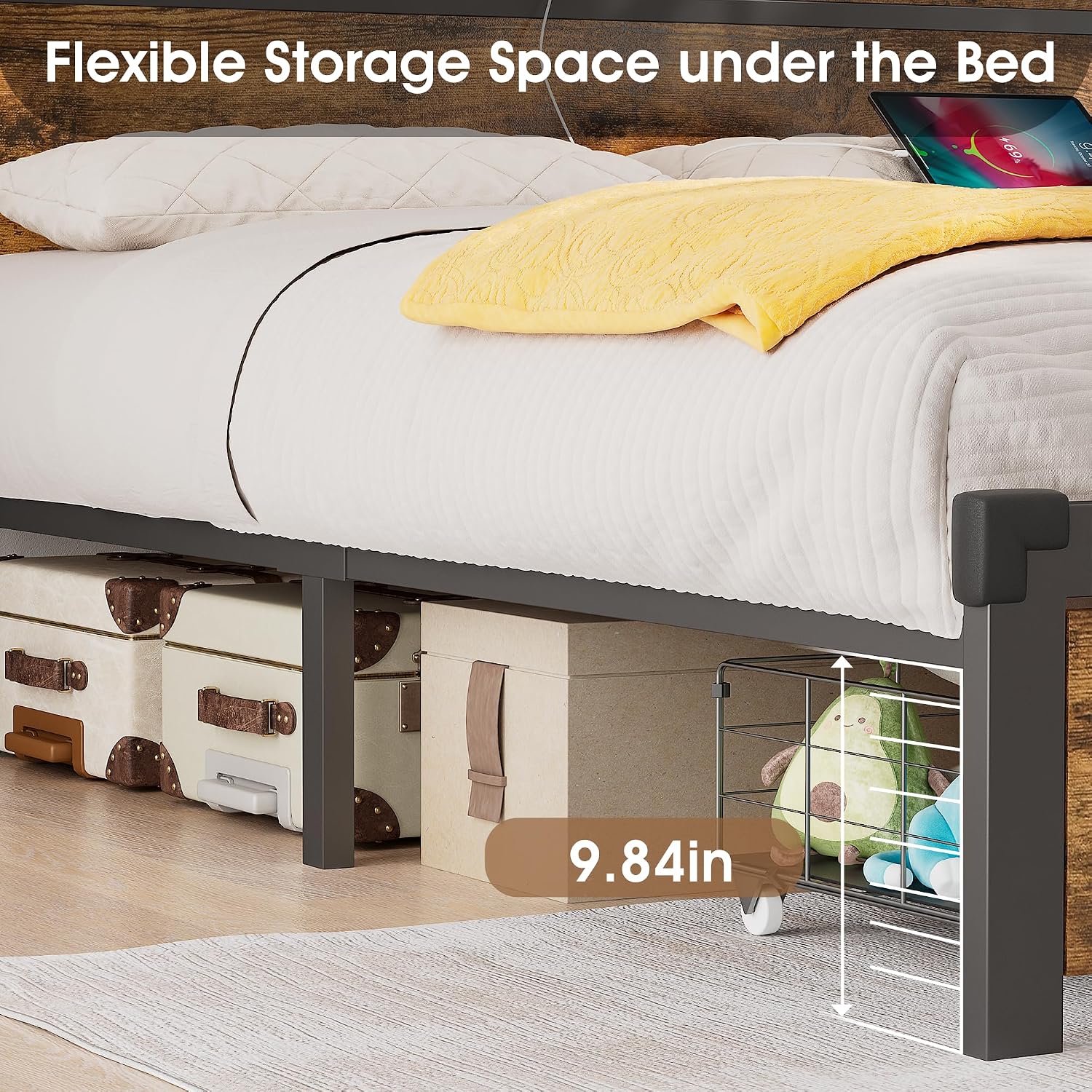

Image: Flexible Storage Space Under the Bed. This image demonstrates the 9.84-inch clearance under the bed, suitable for additional storage.
Maintenance
Regular maintenance will help prolong the life and appearance of your bed frame.
- Cleaning: Wipe the metal and wood surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Hardware Check: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent noise.
- LED Lights: If the LED strip becomes dusty, gently wipe it with a dry, soft cloth. Avoid direct contact with water.
- Drawers: Keep the drawer wheels clean and free of debris to ensure smooth operation.
Troubleshooting
If you encounter any issues with your bed frame, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or noisy. | Loose hardware; uneven support legs. | Check and tighten all screws and bolts. Ensure all support legs are evenly adjusted and firmly on the floor. |
| LED lights are not working. | Power connection issue; damaged LED strip pins; remote control battery dead. | Ensure the LED strip is correctly connected to the power pack. Check if the power pack is plugged in. Replace remote control batteries. If pins are crushed, contact customer support for a replacement. |
| Charging station is not working. | Power cord not plugged in; power outage. | Ensure the 6.6-foot power cord is securely plugged into a functional wall outlet. Check your home's power supply. |
| Drawers do not roll smoothly. | Debris in wheels; misaligned drawers. | Clean any debris from the drawer wheels. Ensure the drawers are correctly assembled and aligned within the bed frame. |
| Memory foam mattress sags. | Slats are too far apart for memory foam. | A bunkie board or additional support may be required for memory foam mattresses to prevent sagging between slats. |
Specifications
| Feature | Detail |
|---|---|
| Size | Full |
| Material | Metal and Wood (MDF) |
| Product Dimensions (L x W x H) | 81.5 inches x 55.1 inches x 39.4 inches |
| Compatible Mattress Size | Full, 75 inches L x 54 inches W |
| Style | Industrial Modern |
| Color | Vintage Brown and Black |
| Finish Type | Powder Coated |
| Special Features | Remote Control, Storage Drawers, Charging Station, No Box Spring Needed, Illuminated (RGB LED) |
| Maximum Weight Recommendation | 1100 pounds (approx. 500 kg) |
| Item Weight | 80 pounds (approx. 36.3 kg) |
| Under-bed Clearance | 9.84 inches |
| Assembly Required | Yes |
| Model Number | T-B8367F |
Warranty and Support
Alohappy is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, we are always ready to assist you with any issues or questions you may have regarding your product, both before and after purchase.
For support, please refer to the contact information provided with your purchase documentation or visit the official Alohappy website.
