Introduction
This instruction manual provides comprehensive guidance for the assembly, safe operation, and maintenance of your new BedStory Queen Bed Frame. Please read this manual thoroughly before beginning assembly and retain it for future reference. Proper assembly and care will ensure the longevity and stability of your bed frame.
Safety Information
- Handle with Care: Due to the weight of the metal components, exercise caution during unpacking and assembly. It is recommended to have two people for certain assembly steps.
- Proper Assembly: Ensure all parts are correctly aligned and all fasteners are securely tightened according to the instructions. Improper assembly can lead to instability and potential injury.
- Weight Capacity: The bed frame is designed to support up to 750 lbs (approximately 340 kg). Do not exceed this weight limit to prevent damage to the frame and potential injury.
- Metal Edges: Be mindful of metal edges during handling and assembly to avoid cuts or scrapes.
- Children and Pets: Keep small children and pets away from the assembly area to prevent accidents with small parts or tools.
- Regular Inspection: Periodically check all bolts and connections to ensure they remain tight. Retighten as necessary.
Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact BedStory customer support.
Image: All components of the BedStory Queen Bed Frame laid out, including the headboard, footboard, side rails, support legs, and metal slats, alongside the instruction manual and hardware.
The package should contain:
- Headboard sections
- Footboard sections
- Side rails
- Center support beams
- Metal slats
- Support legs
- All necessary bolts, washers, and nuts
- Assembly tools (e.g., Allen wrench)
- Instruction manual
Note: All parts are typically labeled with corresponding numbers or letters for easy identification during assembly.
Assembly Instructions
It is recommended to assemble the bed frame in the room where it will be used. Clear a spacious area and lay out all components. While basic tools are provided, having a quality metric hex key set may improve the assembly experience.
Step 1: Assemble Headboard and Footboard Sections
Connect the vertical and horizontal bars of the headboard and footboard sections using the provided bolts and Allen wrench. Ensure all connections are snug but do not fully tighten until all parts are aligned.
Step 2: Attach Side Rails
Connect the assembled headboard and footboard sections using the side rails. Align the holes and insert the bolts. This step may be easier with the assistance of a second person to hold the sections in place.
Image: An exploded diagram illustrating the various parts of the bed frame and their connection points, indicating the assembly sequence.
Step 3: Install Center Support Beams and Legs
Attach the center support beams to the main frame. Then, secure the support legs to the center beams and other designated points on the frame. These legs provide crucial stability and weight distribution.
Image: Detailed views of the bed frame's construction, highlighting the non-slip strips on the slats, heavy-duty connection points, and protective pads on the bottom of the legs.
Step 4: Place Metal Slats
Lay the metal slats across the frame. Ensure they are evenly spaced and securely fastened to the side rails or support beams as indicated in the detailed instructions. The metal slats provide direct support for your mattress, eliminating the need for a box spring.
Step 5: Final Tightening
Once all components are in place and aligned, systematically tighten all bolts and fasteners. Ensure every connection is firm to prevent wobbling or squeaking. Do not overtighten, as this can strip threads or damage components.
Image: A fully assembled BedStory Queen Bed Frame, showcasing its metal headboard, footboard, and slat support system, ready for a mattress.
Usage
Mattress Placement
Place your queen-size mattress directly onto the metal slats. The design of this bed frame eliminates the need for a box spring. The headboard and footboard provide a boundary to help keep the mattress in place.
Under-Bed Storage
This bed frame offers approximately 14.5 inches of clearance underneath, providing ample space for storage. Utilize storage bins or containers to keep your room organized.

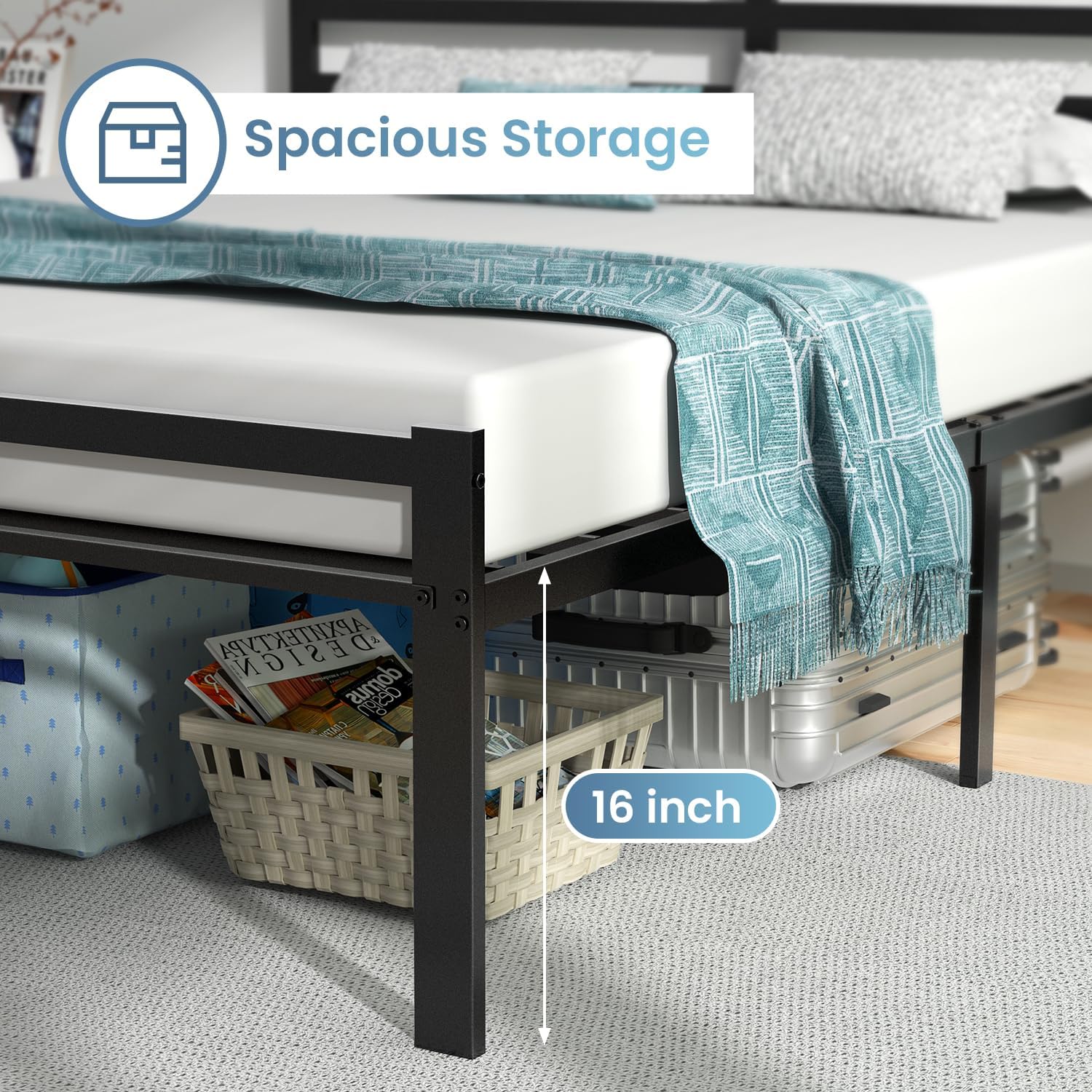

Image: A view of the bed frame from the side, illustrating the generous 16-inch clearance underneath, with various storage items like baskets and luggage placed neatly.
Maintenance
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
- Fastener Check: Every 3-6 months, inspect all bolts and connections. Over time, normal use can cause fasteners to loosen. Retighten any loose bolts to maintain the frame's stability and prevent squeaking.
- Weight Distribution: Avoid concentrating heavy loads in one area of the bed frame. Distribute weight evenly to prolong the life of the slats and frame.
Troubleshooting
- Squeaking Noises:
Solution: Squeaking is often caused by loose connections. Re-tighten all bolts, especially those connecting the side rails to the headboard and footboard, and the center support legs. Ensure all slats are properly seated.
- Instability/Wobbling:
Solution: This indicates loose fasteners or incorrect assembly. Review the assembly instructions to ensure all parts are correctly installed and all bolts are fully tightened. Ensure the bed frame is on a level surface.
- Mattress Sliding:
Solution: While the headboard and footboard help, some mattresses may still shift. Consider using a non-slip mattress pad between the mattress and the slats to minimize movement.
Specifications
| Feature | Detail |
|---|---|
| Brand | BedStory |
| Model Number | HKYBF004004-B-CA-1 |
| Size | Queen |
| Material | Metal (Steel) |
| Color | Black |
| Product Dimensions (L x W x H) | 207.7 x 152.4 x 94.5 cm (81.8 x 60 x 37.2 inches) |
| Under-Bed Clearance | Approximately 14.5 inches (36.8 cm) |
| Item Weight | 18.1 kg (39.9 lbs) |
| Weight Capacity | Up to 750 lbs (340 kg) |
| Box Spring Required | No |
Image: A detailed diagram illustrating the specific dimensions of the Queen size bed frame, including length, width, and height of the headboard and footboard.
Warranty and Support
BedStory provides a limited warranty for this product. For specific warranty terms, duration, and conditions, please refer to the warranty card included in your package or visit the official BedStory website. If you encounter any issues during assembly or use, or if you require replacement parts, please contact BedStory customer support directly. Have your model number (HKYBF004004-B-CA-1) and purchase information ready when contacting support.
Contact Information: Please refer to the contact details provided on the BedStory website or in your product packaging for the most up-to-date support information.
