Generic Black Crown Lever Action Fly Tying Vise with Base

Introduction

Thank you for choosing the Generic Black Crown Lever Action Fly Tying Vise with Base. This vise is designed for fly tying enthusiasts, offering a secure grip for a wide range of hook sizes and flexible adjustment options. This manual provides essential information for the proper setup, operation, and maintenance of your new fly tying vise.

Setup

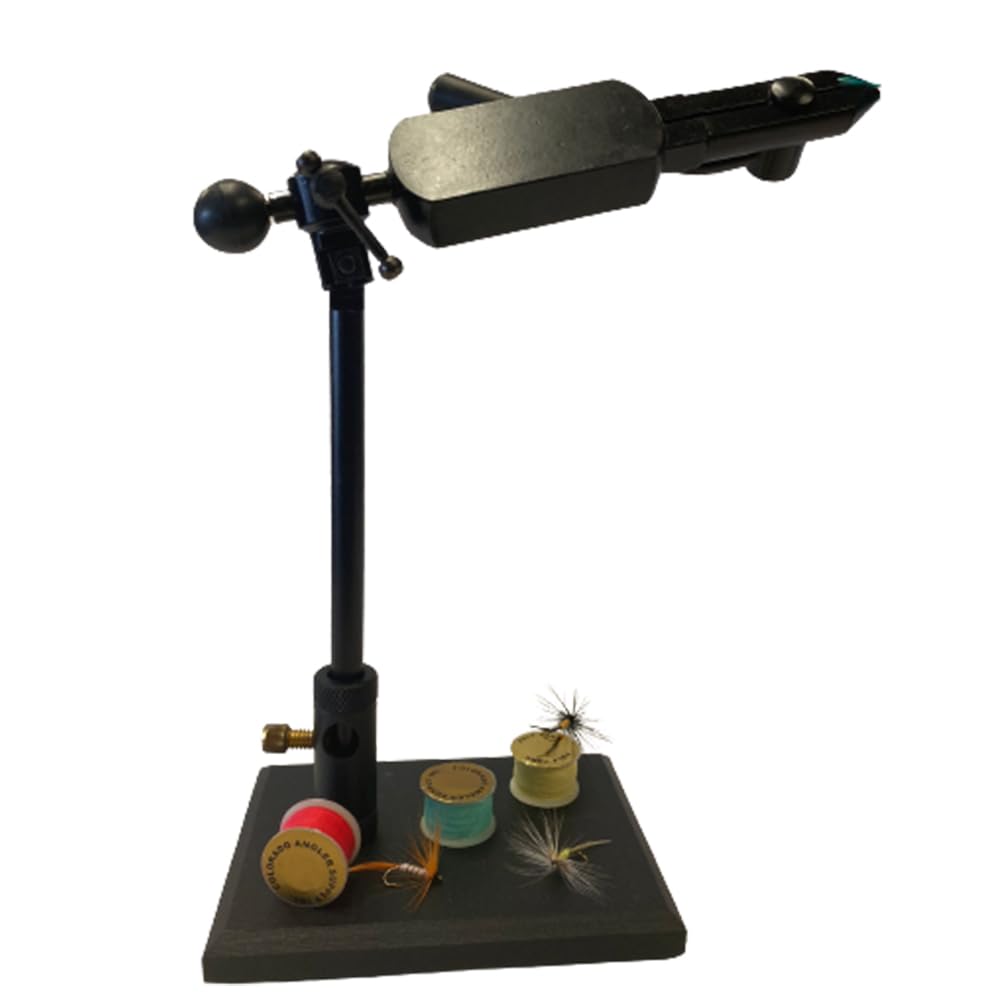

The Black Crown Lever Action Fly Tying Vise comes with a heavy, padded base for stability and protection of your work surface. Follow these steps to set up your vise:

1. Unpack all components: the vise head assembly, the vertical rod, and the padded base.
2. Insert the vertical rod into the designated hole in the padded base.
3. Tighten the collar screw on the base to secure the vertical rod firmly in place. Ensure the rod is stable and does not wobble.
4. Slide the vise head assembly onto the top of the vertical rod.
5. Adjust the height of the vise head to a comfortable working position and tighten the securing screw on the vise head assembly.

The heavy base ensures the vise remains stable during the tying process, protecting your table or tying station from scratches.

Operating Instructions

Jaw Operation

The vise features a lever action mechanism for quick and easy hook placement. A single action opens the jaws, allowing you to insert or remove hooks efficiently.

• To open the jaws, push the lever handle away from the vise head.
• Insert the hook shank into the open jaws.
• To close and secure the jaws, pull the lever handle towards the vise head until the hook is firmly gripped.

The vise jaws are designed to accommodate a wide range of hook sizes, from 1/0 down to size 26, without requiring manual adjustments for each size.

Vise Head Adjustment

The vise head offers significant flexibility for optimal tying angles:

• 360-Degree Rotation: The vise head can rotate a full 360 degrees. This allows you to inspect your fly from all angles without removing it from the jaws. A tension screw may be present to adjust the smoothness or tightness of this rotation.
• 180-Degree Vertical Angle Adjustment: The vertical angle of the vise head can be adjusted up to 180 degrees. Loosen the appropriate screw (typically a set screw on the side of the vise head assembly) to tilt the head, then re-tighten to secure it at your desired angle.

Video Guide: Using the Fly Tying Vise

Maintenance

Proper maintenance will ensure the longevity and optimal performance of your fly tying vise:

• Cleaning: After each use, wipe down the vise with a clean, dry cloth to remove any debris, thread, or dust.
• Lubrication: Periodically apply a small amount of light machine oil to moving parts, such as the rotation mechanism and jaw pivot points, to ensure smooth operation. Avoid over-lubricating the jaws themselves.
• Storage: Store the vise in a dry environment to prevent rust. If storing for extended periods, consider applying a thin layer of protective oil to exposed metal surfaces.
• Jaw Care: Avoid clamping objects larger than the recommended hook sizes or applying excessive force, as this can damage the jaws.

Troubleshooting

Here are solutions to common issues you might encounter:

• Hook Not Holding Securely: Ensure the lever is fully engaged. If the jaws feel loose over time, check for any debris obstructing the jaw mechanism. For persistent issues, inspect the jaws for wear or damage.
• Vise Head Wobbles: Check that all securing screws (for the vertical rod in the base and the vise head on the rod) are tightened properly. The collar screw on the base and the set screw for the head angle should be snug.
• Stiff Rotation/Adjustment: Apply a small amount of lubricant to the rotating parts and adjustment points. Ensure no debris is impeding movement.

Specifications

Warranty Information

Specific warranty details for this Generic product are not provided in the available information. Please refer to the retailer's return policy or contact the manufacturer, Colorado Angler, directly for any warranty-related inquiries.

Support

For further assistance, technical support, or inquiries regarding your Black Crown Lever Action Fly Tying Vise, please contact the manufacturer or your point of purchase. Always refer to the product's ASIN (B0CCJZMSFZ) when seeking support.

Manufacturer: Colorado Angler
