Product Overview
The Stens 280-631 Flat Idler is a replacement component designed for specific lawn mower decks. This idler pulley plays a crucial role in maintaining proper belt tension and routing within the mower deck system, ensuring efficient power transfer from the engine to the cutting blades. It is constructed from durable metal for longevity.
Compatibility: This flat idler is compatible with AYP 46-inch mower decks manufactured in 1999 and older. Please verify the part fits your specific model before installation.
Replaces OEM Numbers: AYP: 156493, 173901, 532173901.

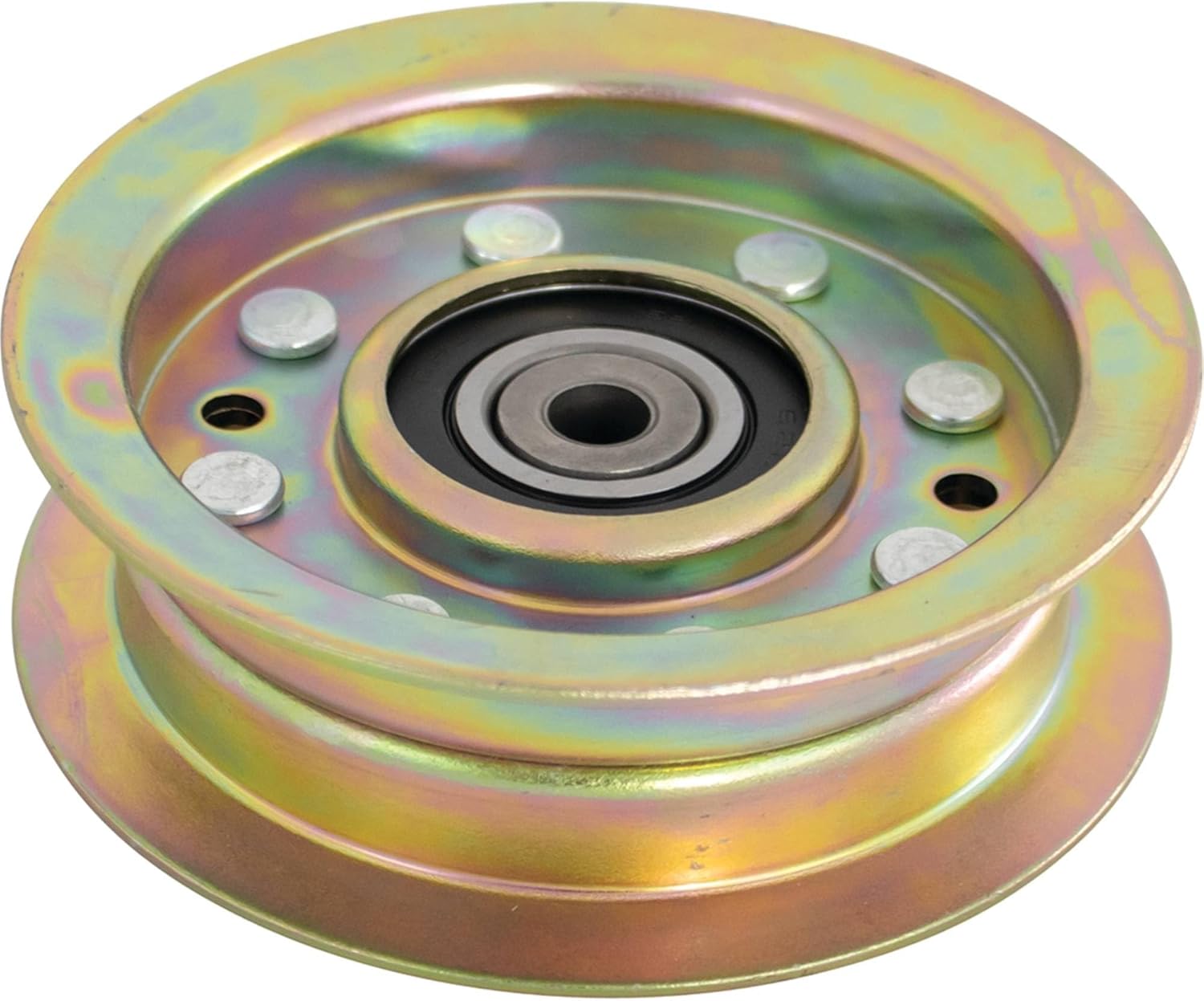

Figure 1: Top-down view of the Stens 280-631 Flat Idler, showing the central bearing and mounting holes.
Safety Information
Always prioritize safety when working with machinery. Read and understand all instructions before proceeding with installation or maintenance. Failure to follow safety guidelines can result in injury or damage to equipment.
- Disconnect the spark plug wire or remove the battery before performing any service or maintenance on the lawnmower.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the lawnmower is on a stable, level surface and cannot move unexpectedly.
- Refer to your lawnmower's original owner's manual for specific safety procedures and deck removal instructions.
Setup and Installation
This section provides general guidelines for replacing a flat idler pulley. Specific steps may vary depending on your lawnmower model. Always consult your equipment's service manual.
Tools Required (Typical):
- Socket wrench set
- Pry bar or similar tool (for belt removal)
- Gloves
- Safety glasses
Installation Steps:
- Prepare the Mower: Ensure the mower is turned off, the engine is cool, and the spark plug wire is disconnected or the battery is removed to prevent accidental starting.
- Access the Deck: If necessary, remove the mower deck from the tractor according to your mower's owner's manual. Place the deck on a clean, stable surface.
- Document Belt Routing: Before removing the old idler or belt, take a photograph or draw a diagram of the current belt routing. This will assist in correct reassembly.
- Remove Old Idler: Loosen and remove the bolt or nut securing the old idler pulley. Carefully remove the old pulley and any associated washers or spacers. Note their orientation.
- Inspect Mounting Area: Clean the mounting area and inspect for any damage or wear.
- Install New Idler: Place the new Stens 280-631 Flat Idler onto the mounting post. Ensure any washers or spacers are correctly positioned. Secure the pulley with the original bolt or nut. Do not overtighten; the pulley should spin freely but without excessive wobble.
- Reinstall Belt: Route the drive belt according to your diagram or photograph. Ensure the belt is properly seated in all pulley grooves.
- Verify Operation: Once the deck is reassembled and reattached to the mower (if removed), slowly rotate the blades by hand to ensure the belt moves freely and the idler pulley rotates smoothly without binding.
- Test Run: Reconnect the spark plug wire or battery. Start the mower and engage the blades briefly to confirm proper operation. Listen for unusual noises.
Figure 2: Side view of the Stens 280-631 Flat Idler, highlighting the bearing and overall profile.
Operating Principle
The flat idler pulley functions as a tensioner and guide for the drive belt within the lawnmower deck. It applies constant pressure to the belt, ensuring it remains taut and properly engaged with the other pulleys (e.g., engine pulley, blade pulleys). This tension is critical for efficient power transfer, preventing belt slippage, and maintaining consistent blade speed for an even cut. The smooth rotation of the idler pulley minimizes friction and wear on the belt.
Maintenance
Regular inspection and maintenance of the idler pulley can extend its lifespan and ensure optimal mower performance.
- Visual Inspection: Periodically inspect the idler pulley for signs of wear, cracks, chips, or damage to the pulley surface. Check for any buildup of grass clippings or debris around the pulley and belt.
- Bearing Check: With the belt removed, manually spin the idler pulley. It should rotate smoothly and quietly. Any grinding, squealing, or excessive play indicates a worn bearing, requiring replacement of the pulley.
- Cleanliness: Keep the pulley and surrounding area free of dirt, grass, and other debris. This prevents premature wear on both the pulley and the belt.
- Replacement: Replace the idler pulley if any signs of significant wear, damage, or bearing failure are observed. A worn idler can lead to belt slippage, increased noise, and potential damage to other mower components.
Troubleshooting
If you experience issues related to the mower deck's belt system, the idler pulley may be a contributing factor. Here are common symptoms and potential solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Squealing or Grinding Noise | Worn or seized idler bearing. | Inspect and replace the idler pulley if the bearing is faulty. |
| Belt Slipping or Coming Off | Worn idler pulley, incorrect belt tension, or improper installation. | Check idler for wear; ensure proper belt routing and tension. Reinstall if necessary. |
| Excessive Vibration from Deck | Damaged or unbalanced idler pulley. | Inspect idler for physical damage; replace if damaged. |
| Blades Not Engaging Properly | Insufficient belt tension due to a faulty idler or incorrect installation. | Verify idler function and belt tension. |
Specifications
Detailed specifications for the Stens 280-631 Flat Idler:
- Part Number: 280-631
- Replaces OEM Numbers: AYP: 156493, 173901, 532173901
- Material: Metal
- Heavy Duty: Yes
- Height: 1 3/8 inches
- Inner Diameter (ID): 3/8 inches
- Outer Diameter (OD): 4 3/8 inches
- Additional Dimensions (refer to diagram for visual explanation):
- A: 4 3/8"
- B: 3 3/4"
- C: 3/8"
- D: 1 1/4"
- E: 11/16"
- F: 9/32"
- H: 9/32"
- V: 1 3/8"
- Compatibility: AYP 46" deck, 1999 and older
- UPC: 023899585182

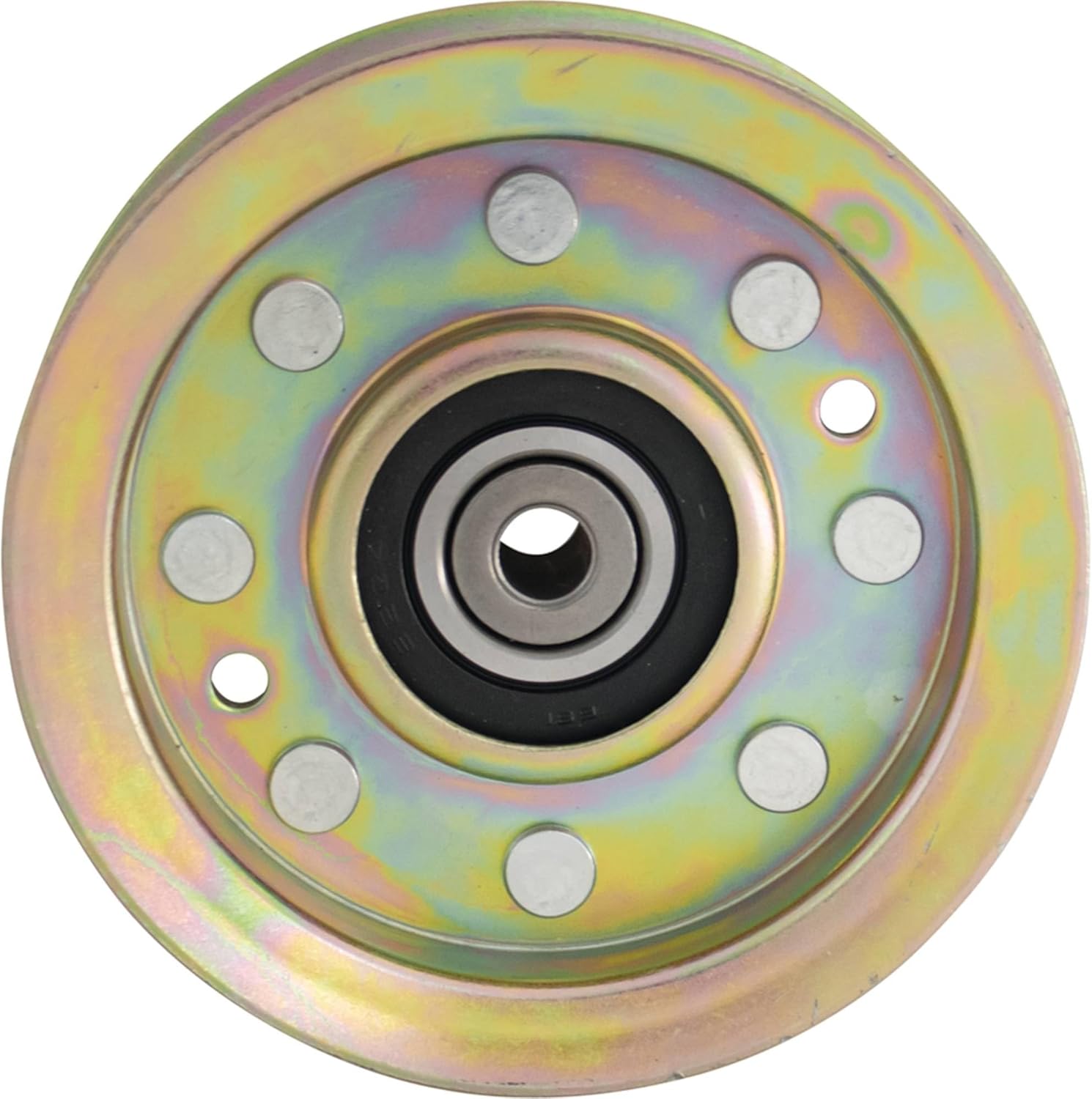

Figure 3: Bottom view of the Stens 280-631 Flat Idler, showing the underside of the pulley and bearing assembly.
Figure 4: Stens 280-631 Flat Idler in its retail packaging, displaying part number, compatibility, and UPC (023899585182).
Warranty Information
Specific warranty details for the Stens 280-631 Flat Idler are not provided in this manual. For information regarding product warranty, please refer to the official Stens website or contact your authorized Stens dealer or the original point of purchase.
Support and Contact
For technical assistance, replacement parts, or further inquiries regarding the Stens 280-631 Flat Idler, please contact Stens customer support directly or visit their official website. When contacting support, please have your product model number (280-631) and any relevant purchase information available.
Stens Official Website: www.stens.com
