1. Product Overview
The Brightever 10 Inch LED Ceiling Light Fixture is a modern flush mount lighting solution designed for various indoor spaces. It features adjustable color temperature and dimming capabilities to suit different lighting needs and preferences. This fixture provides high brightness and is designed for easy installation.
Image: Brightever 10 Inch LED Ceiling Light Fixture, brushed nickel finish.
Key Features:
- Versatile Lighting: Offers 5 color temperatures (2700K Warm White, 3000K Soft White, 4000K Neutral White, 5000K Daylight White, 6500K Cool White) to adapt to different environments.
- Powerful Illumination: Provides 4000 lumens of brightness with a 30W power consumption, ensuring efficient lighting.
- Stepless Dimmable: Allows brightness adjustment from 5% to 100% (dimmer not included) for customized ambiance.
- Modern Design: Features a sleek, contemporary design that integrates with various decor styles.
- Easy Installation: Designed for quick and straightforward flush mount installation.
2. Safety Information
Please read all instructions carefully before installation and use. Retain this manual for future reference.
- Always turn off the power at the circuit breaker before beginning installation or performing any maintenance.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all electrical connections are secure and comply with local codes and ordinances.
- Do not install this fixture in wet or damp locations. It is designed for indoor use only.
- Do not attempt to modify the fixture. Any modifications may void the warranty and pose a safety risk.
- Handle the light fixture with care to avoid damage.
3. Package Contents
Verify that all components are present before installation:
- LED Ceiling Light Fixture (2 units for 2-pack)
- Mounting Hardware
- Instruction Manual
4. Specifications
| Feature | Specification |
|---|---|
| Brand | Brightever |
| Model Name | 63025008-03 |
| Size | 10 Inch |
| Color | Brushed Nickel |
| Material | Plastic |
| Wattage | 30 Watts |
| Brightness | 4000 Lumens |
| Color Temperature | 2700K-6500K Adjustable |
| Dimmable | Yes (5%-100% Stepless, dimmer not included) |
| Installation Type | Flush Mount |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Light Source Type | LED |
5. Installation Instructions
Follow these steps for proper installation. Ensure power is OFF at the circuit breaker before starting.
Image: Step-by-step diagram for installing the ceiling light fixture.
- Prepare the Fixture: Unscrew the canopy screws on the fixture to remove the mounting plate.
- Mounting Plate Installation: Secure the mounting plate to the junction box on the ceiling using the provided screws. Before proceeding, select the desired color temperature using the switch located on the fixture (refer to Operating Instructions for details).
- Wire Connection: Connect the electrical wires from the ceiling to the corresponding wires on the fixture (typically black to black, white to white, and ground to ground). Use wire nuts to secure connections.
- Attach the Fixture: Carefully align the fixture with the mounting plate and secure it using the canopy screws.
- Power On: Once the fixture is securely installed, restore power at the circuit breaker.
Important Note: The color temperature selection switch must be set before the fixture is fully installed and covered. Once the cover is in place, the switch is not accessible.
6. Operating Instructions
Adjusting Color Temperature:
This fixture offers 5 selectable color temperatures. A switch is located on the fixture itself for this adjustment. This switch must be set during installation before the light cover is secured.

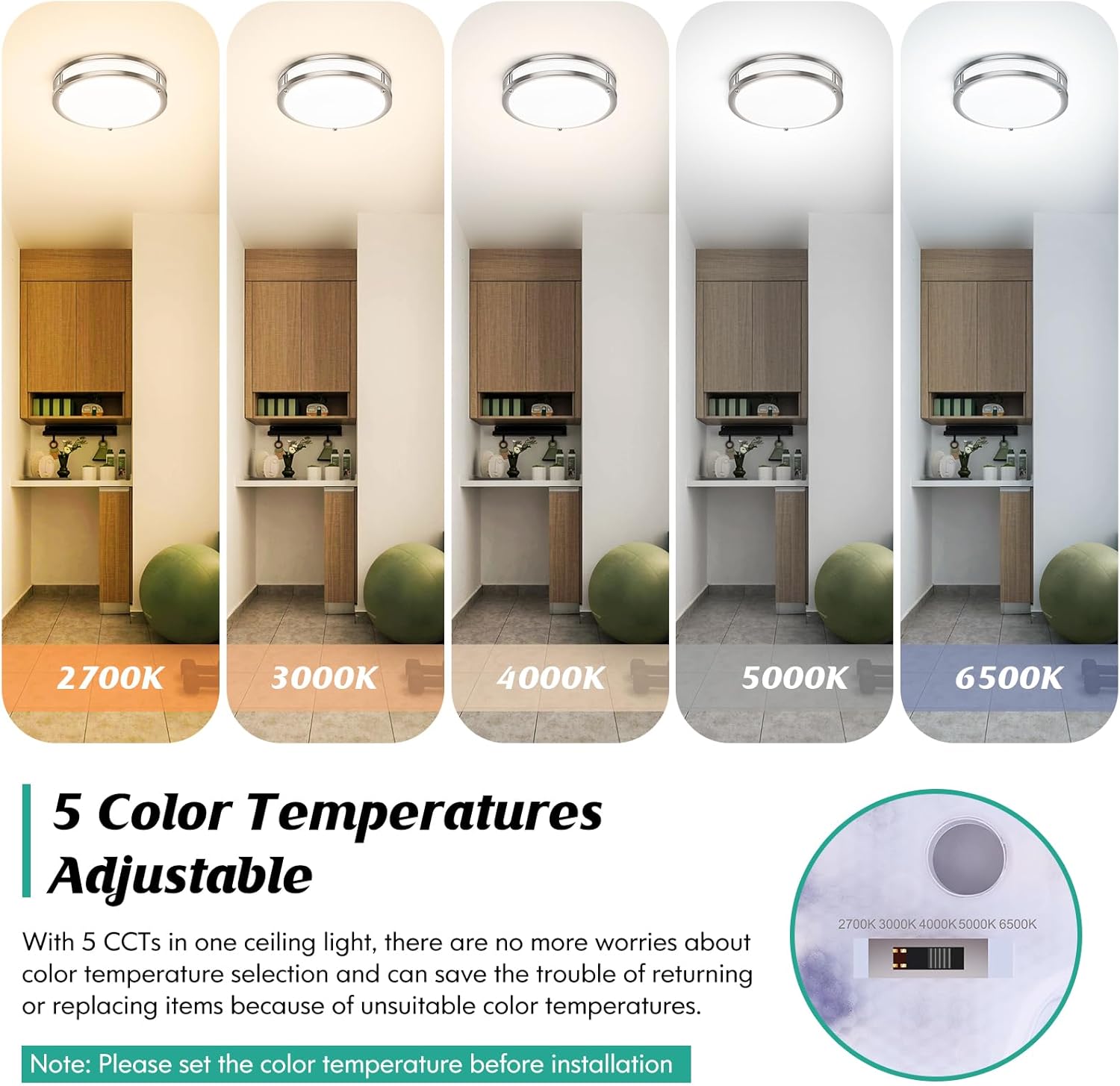

Image: Visual representation of the 5 adjustable color temperatures.
- 2700K: Warm White, suitable for cozy and relaxing environments.
- 3000K: Soft White, a slightly brighter warm tone.
- 4000K: Neutral White, balanced light for general tasks.
- 5000K: Daylight White, bright and crisp, ideal for task lighting.
- 6500K: Cool White, very bright, often used in utility areas.
Dimming Function:
The Brightever LED Ceiling Light Fixture is stepless dimmable from 5% to 100% brightness. To utilize this feature, a compatible LED dimmer switch (not included) must be installed in your electrical circuit.
Image: Depiction of the light fixture's dimming range.
Once a compatible dimmer is installed, you can adjust the light output to your desired level by operating the dimmer switch.
Flicker-Free Operation:
This light fixture is designed to provide flicker-free illumination, which helps reduce eye strain and fatigue often associated with conventional lighting.
Image: Illustration of the light's flicker-free performance.
7. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your light fixture.
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes, as these can damage the finish or electrical components.
- Bulb Replacement: This LED fixture has integrated LEDs and does not require bulb replacement. The LEDs are designed for a long lifespan.
- Inspection: Periodically check for any loose connections or signs of damage. If any issues are found, turn off the power and consult a qualified electrician.
8. Troubleshooting
If you encounter issues with your light fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Loose wiring connection Faulty switch | Check circuit breaker and wall switch. Turn off power, check wire connections. Test the switch with another device or replace if faulty. |
| Light flickers or dims unexpectedly | Incompatible dimmer switch Loose wiring Voltage fluctuations | Ensure a compatible LED dimmer is used. Turn off power, check wire connections. Consult an electrician to check household voltage. |
| Incorrect color temperature | Color temperature switch set incorrectly | Turn off power, remove the fixture cover, and adjust the color temperature switch to the desired setting. Reinstall cover. |
| Light is too dim or too bright (without dimmer) | No dimmer installed or used | This fixture requires an external dimmer switch for brightness adjustment. If no dimmer is present, the light will operate at full brightness for the selected color temperature. |
If the problem persists after trying these solutions, please contact customer support.
9. Warranty and Support
For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact Brightever customer service. Keep your purchase receipt as proof of purchase.
Contact information for Brightever customer support can typically be found on the product packaging or the official Brightever website.
