Galano Payne Wood Platform King Bed Frame User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Galano Payne Wood Platform King Bed Frame. Designed for a King (U.S. Standard) mattress, this bed frame offers robust wooden slat support, eliminating the need for a box spring. Please read this manual thoroughly before beginning assembly to ensure safe and correct installation.

Figure 1: The Galano Payne Wood Platform King Bed Frame, featuring a dusty grey oak finish and a minimalist headboard, integrated into a modern bedroom environment.

Safety Information

Adherence to the following safety guidelines is crucial for preventing injury and ensuring the longevity of your bed frame:

• This product is TSCA-compliant.
• The maximum recommended weight for this bed frame is 550 pounds. Do not exceed this limit.
• Handle heavy components with care during assembly to avoid personal injury or damage to the product.
• Ensure all connections are properly tightened and secured before use to maintain stability.
• Avoid exposing the bed frame to liquids or excessive moisture, as this may damage the material and compromise structural integrity.
• Keep small parts away from children during assembly to prevent choking hazards.
• Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary.

Components List

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Headboard
• Footboard
• Side Rails (Left and Right)
• Wooden Slats
• Center Support Legs
• Assembly Hardware (screws, bolts, nuts, washers, Allen wrench)
• Assembly Instruction Manual (this document)

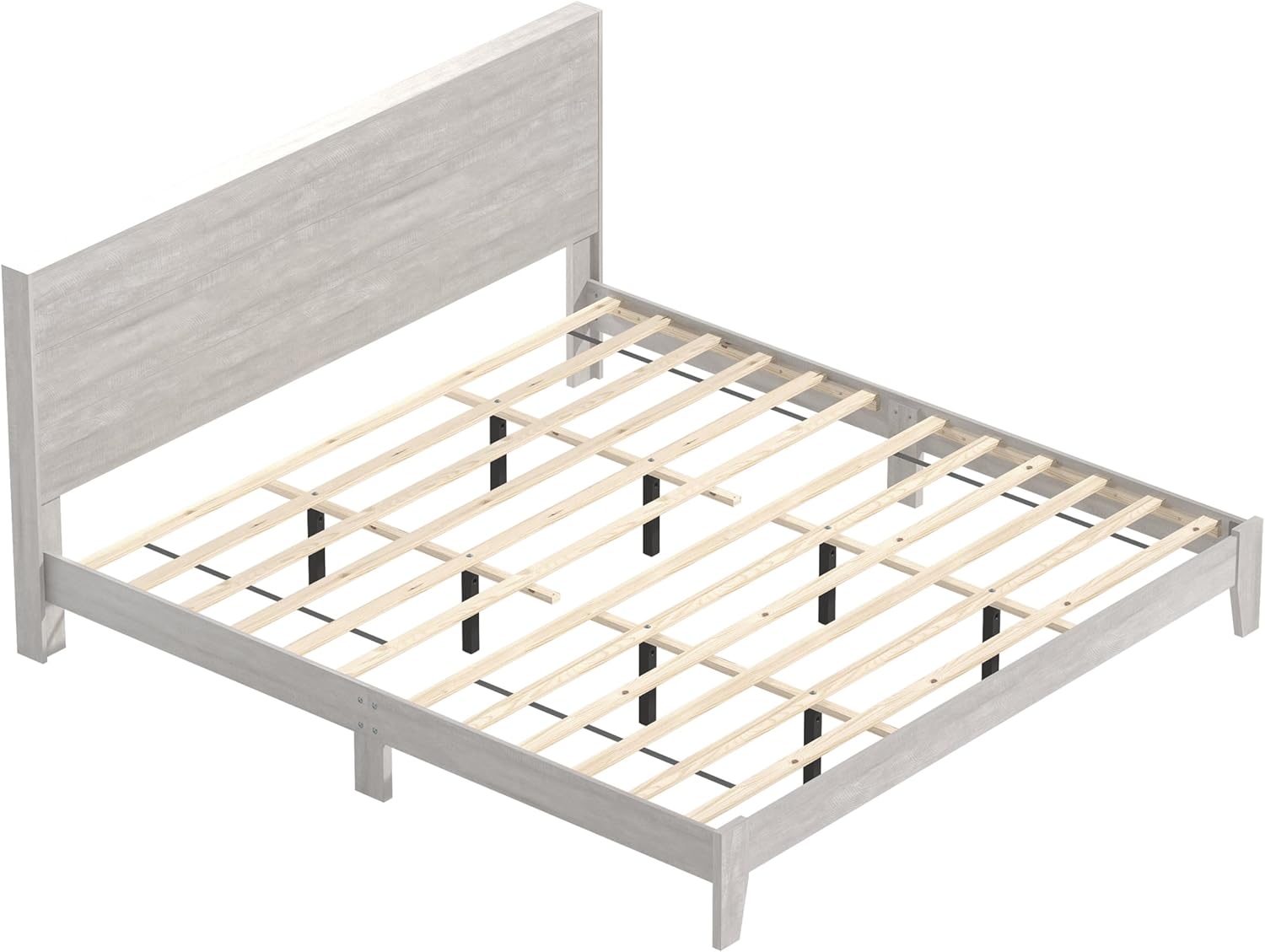

Figure 2: An isometric view illustrating the robust wooden slat support system and central support legs, designed to provide even mattress support and airflow.

Setup and Assembly

Assembly of the Galano Payne Wood Platform King Bed Frame typically requires two adults and basic tools such as a mallet and screwdriver (not included, but an Allen wrench is usually provided). Follow these steps carefully:

1. Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratches. Identify each part using the provided components list.
2. Attach Side Rails to Headboard and Footboard: Connect the side rails to the headboard and footboard using the designated bolts and nuts. Ensure the connections are secure but do not fully tighten all bolts until the frame is fully assembled.
3. Install Center Support Legs: Attach the center support legs to the central beam or designated points on the side rails, as indicated in the assembly diagram. These legs are crucial for mattress support and stability.
4. Place Wooden Slats: Lay the wooden slats across the bed frame, ensuring they are evenly spaced and secured to the side rails or central beam. Some slats may require screwing into place. The slats provide direct support for your mattress, eliminating the need for a box spring.
5. Final Tightening: Once all components are in place and the frame is aligned, fully tighten all bolts and screws. Do not overtighten.
6. Position Bed Frame: Carefully move the assembled bed frame to its desired location.

Figure 3: Detailed dimensional diagram of the Galano Payne King Bed Frame, showing overall length, width, height, and internal mattress dimensions (76.8"W x 81.6"D).

Operating Instructions

Once assembled, the Galano Payne Wood Platform King Bed Frame is ready for use. Simply place your King-sized mattress directly onto the wooden slats. No box spring is required. The integrated wooden slats provide optimal support and ventilation for all mattress types, including memory foam, latex, and hybrid mattresses.

Figure 4: A side view of the bed frame with a mattress in place, highlighting the 6-inch underbed clearance suitable for storage.

Maintenance

To maintain the appearance and structural integrity of your Galano Payne Wood Platform King Bed Frame, follow these simple maintenance guidelines:

• Cleaning: Wipe the bed frame with a dry, soft cloth to remove dust and debris. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
• Spills: In case of spills, immediately blot the area with a clean, dry cloth. Do not allow liquids to sit on the surface.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Tighten any loose hardware to ensure the bed frame remains stable and secure.
• Avoid Excessive Weight: Do not place excessive or uneven weight on the bed frame. Distribute weight evenly across the mattress.

Troubleshooting

If you encounter any issues with your Galano Payne Wood Platform King Bed Frame, consider the following common solutions:

If the problem persists after attempting these solutions, please contact Galano customer support for further assistance.

Specifications

Warranty and Support

For any questions, concerns, or assistance with your Galano Payne Wood Platform King Bed Frame, please contact Galano customer support. While specific warranty details are not provided in this manual, please refer to your purchase documentation or the retailer's website for warranty information.

For customer support, please visit the Galano Store on Amazon or refer to the contact information provided with your purchase.
